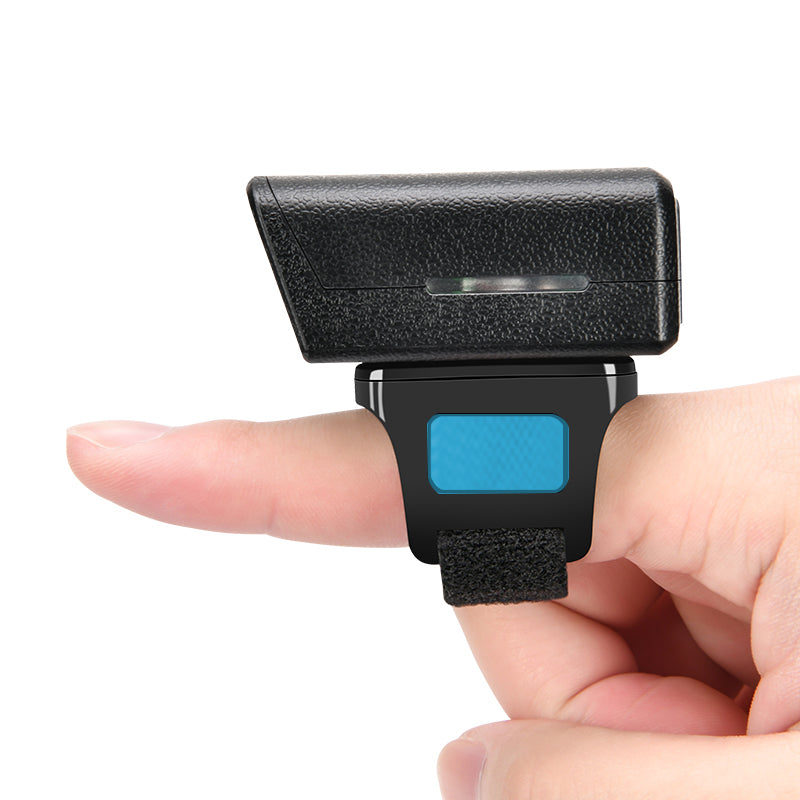

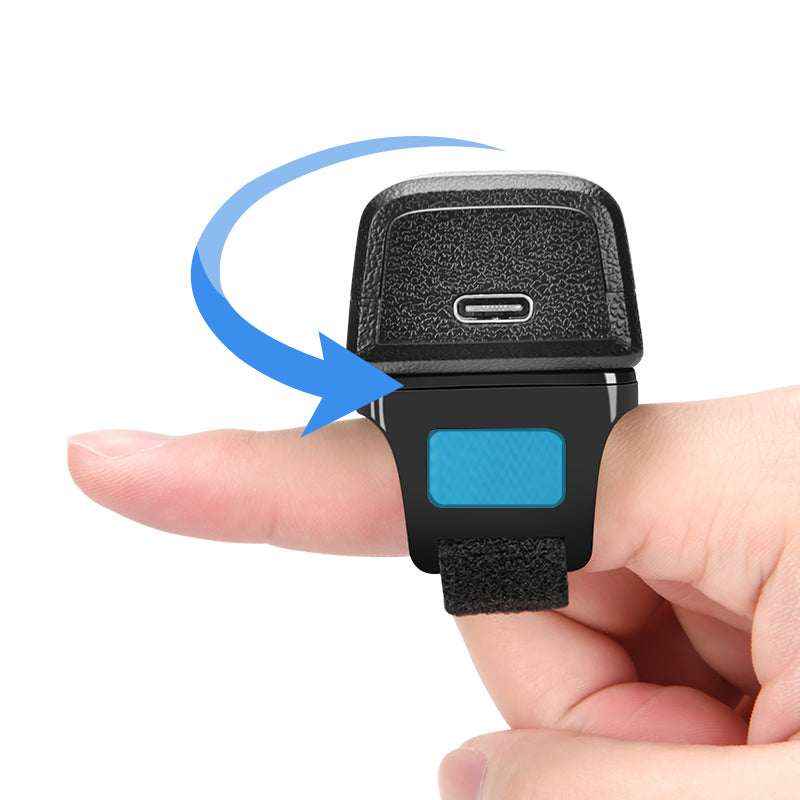

Wireless Portable Bluetooth Barcode Scanner WD-R660S
Wireless Portable Bluetooth Barcode Scanner WD-R660S
Features:
1. Adopt self-developed barcode core decoding technology, can quickly read all kinds of barcodes
2. Quickly read one-dimensional barcode of paper, one device for multiple needs
3. Short start-up time.
4. Provide easy-to-understand SDK, help customers quickly import debugging, Save technical staff development time
5. Strong reading ability, can provide excellent scanning code reading performance in a variety of lighting environments (including completely dark environment), a wide range of temperature and humidity
Product parameters:
|
Scanning Performance |
Sensors |
32位RAM |
|
|
|
Recognition code system |
1D |
EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar |
|
|
|
|
Interleaved 2 of 5, ITF-6,ITF-14,ISBN ,ISSN |
|
|
|
|
GS1 Databar,Code 11,Industrial 25, Standard 25，Plessey |
|
|
|
|
Matrix 2 of 5 |
|
|
Reading accuracy |
|
≥4mil |
|
|
Reading depth of field |
Code39 |
40mm-18mm （5mil） |
|
|
|
Code39 |
40mm-500mm (13mil) |
|
|
|
Code39 |
150mm-700mm （40mil） |
|
|
|
EAN-13 |
40mm-310mm (13mil) |
|
|
|
Code128 |
30mm-430mm （15mil） |
|
|
Contrast Ratio |
≥25% |
|
|
|
Scanning angle |
Tilt ±55°, Deflection ±55°, Rotation 30° |
|
|
|
Field of view |
Horizontal 53°, vertical 40° |
|
|
Mechanical/electrical parameters |
Communication Interface |
TTL-232 , USB (HID-KBW, virtual serial port)2.4G, Bluetooth |
|
|
Environmental parameters |
Appearance size |
50mm×30mm×50mm |
|
|
|
Reading Tips |
LED prompts and Buzzer and vibration motor |
|
|
|
Operating Voltage |
+5V DC ±5% |
|
|
|
Rated current |
170mA |
|
|
|
Operating temperature |
-20℃~+60℃ |
|
|
|
Storage temperature |
-40℃~+70℃ |
|
|
|
Working humidity |
5%~95% (no condensation) |
|
|
|
Protection level |
IP42 (1.5m tumbling and falling) |
|
