A barcode scanner can decode the right symbols and still feel difficult to use when its aiming pattern, illumination and working distance do not match the application. Operators may cover the wrong code on a crowded label, struggle with reflections or move the scanner repeatedly before it reads.

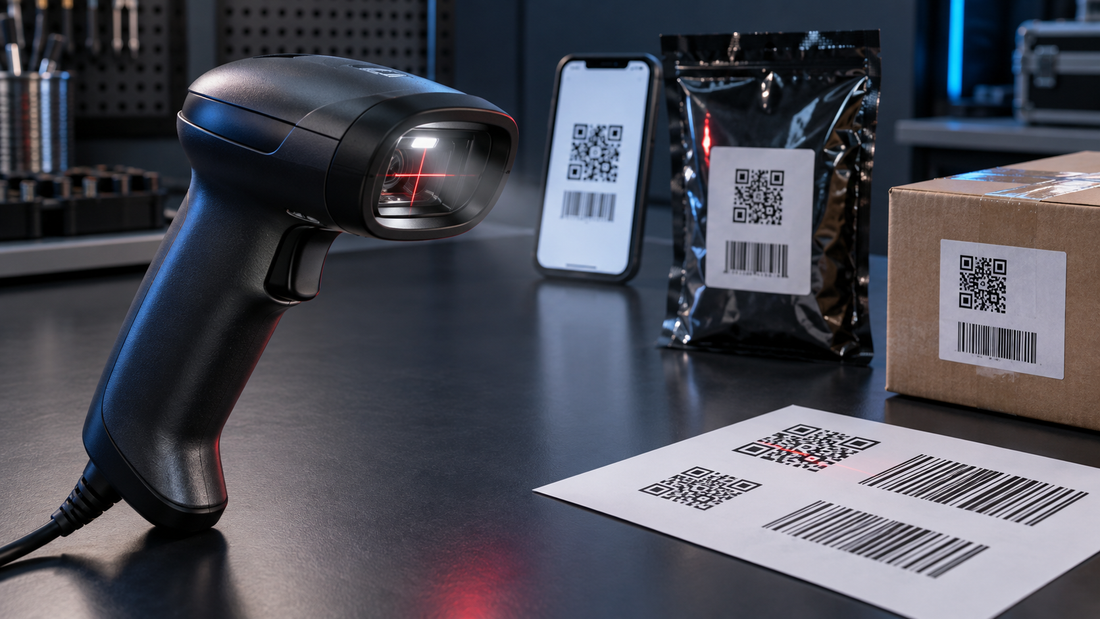

This guide explains how barcode scanner aiming and illumination systems work, how they differ from the image-capture area, and what buyers should test before choosing a handheld barcode scanner, desktop presentation scanner or fixed-mount barcode reader.
Aiming and illumination are different functions
The aiming system helps a user or installer position the scanner. It may appear as a dot, line, crosshair, frame or set of corner marks. Illumination lights the barcode so the imaging sensor can capture enough contrast for decoding. Some products combine the two visually, but they solve different problems.
A scanner may illuminate an area much wider than the visible aiming mark. The camera may also capture a field of view that extends beyond the aim point. For this reason, placing the crosshair on a symbol is not always the same as filling the camera image with that symbol.
Common barcode scanner aiming patterns
Single aiming dot
A dot is simple and easy to see at normal working distances. It helps the operator identify the center of the intended code, but it does not show the full capture area. A small dot can also disappear on a dark, reflective or brightly lit surface.
Aiming line
A horizontal line is familiar to users of traditional laser scanners and can make alignment with a 1D barcode intuitive. On a 2D imager, however, the line is normally only a positioning aid; the camera still captures a two-dimensional image. Confirm whether the line length changes with distance and whether it remains visible on the target materials.
Crosshair
A crosshair gives a clearer center reference in both horizontal and vertical directions. It is useful for selecting one code among several, positioning a fixed reader during installation and targeting small symbols. The intersection should be tested at the actual reading distance because optical alignment can vary across the usable range.
Frame or corner pattern
A frame-style pattern can indicate a larger part of the camera's capture area. It is helpful when the operator needs to bring an entire document, ticket or package label into view. The projected frame is still an approximation: perspective, focus and lens geometry change with distance.
Illumination color and intensity
Barcode imagers commonly use red or white LEDs, while specialized readers may provide additional lighting options. The best illumination is the one that creates usable contrast without excessive glare, washout or discomfort.
- Red illumination is common for printed 1D and 2D codes and can provide strong contrast on many normal labels.
- White illumination may support color documents, mobile screens and applications where the camera needs a more natural image.
- Diffuse illumination can reduce hot spots on glossy packaging.
- Angled or dark-field lighting may improve difficult direct marks or textured surfaces by emphasizing edges.
Color alone does not predict performance. Sensor response, exposure control, lens, decoder and the target material work together. Always test the complete reader rather than selecting it by LED color.
Why glossy labels create glare
A glossy label, shrink film or phone screen can reflect the scanner's illumination directly back into the camera. The bright reflection may hide bars or modules even when the rest of the code looks clear.
Small changes in pitch or skew can move the reflection away from the symbol. Diffuse lighting, polarization or a different scanner position may also help. In a fixed installation, design the mounting angle and product path so that the most common reflective surfaces do not face the reader squarely.
Aiming at one code among many
Pick lists, medical labels, electronics packages and shipping documents may contain several barcodes close together. A wide field of view can capture more than one code, while a visible aim point may cover only one.
Ask how the scanner selects the result when multiple valid symbols are present. Useful options can include center decoding, pick-list mode, symbology filtering, code-length rules, region of interest or application-controlled validation. The best solution combines physical aiming with configuration so that the reader cannot easily return the wrong data.
Handheld, presentation and fixed-mount priorities
Handheld scanners
Operators need an aiming pattern that is visible at the nearest and farthest required distances without slowing repeated scans. Check trigger feel, wrist position and whether the user can see the code and feedback indicator at the same time.
Desktop presentation scanners
At a checkout counter, the user often presents an item instead of carefully aiming. A broad, forgiving read zone and controlled illumination matter more than a precise crosshair. Test small products, curved bottles, shiny packages and mobile coupons at natural hand speeds.
Fixed-mount readers and scan engines
For kiosks, gates and automation equipment, aiming is mainly an installation tool. The final design must control working distance, field of view, trigger timing, ambient light and code position. If the reader is hidden behind a window, test reflection, tint, scratches and internal light leakage with the final enclosure.
Ambient light and outdoor use
Strong sunlight can reduce the visibility of an aiming pattern and challenge exposure control. Warehouse skylights, security lighting and changing reflections can create similar problems. A scanner that works on a desk should be tested at the brightest and darkest points of the real site.
For outdoor or semi-outdoor equipment, consider shading the scan area, using a hood, controlling target distance and preventing water or dust from collecting on the optical window. Do not assume that a brighter aimer automatically means better decoding.
Phone-screen and digital barcode testing
Phone screens produce their own light and can show reflections from the scanner or surrounding environment. Test low and high screen brightness, dark mode, screen protectors, cracked glass and different display technologies. The user should not need to touch the scanner window or rotate the phone through extreme angles.
Also verify the smallest code size the application can display and the amount of quiet zone around it. A well-aimed scanner cannot recover a symbol that is too small, cropped or heavily compressed.
Practical sample-test checklist
- Collect the smallest, largest, lowest-contrast and most reflective acceptable codes.
- Test every required surface: matte paper, glossy film, curved packaging, metal and phone screens.
- Measure the nearest and farthest comfortable working distances.
- Check aiming visibility in bright light, normal indoor light and the darkest expected area.
- Place several codes close together and confirm the intended one is returned.
- Test natural operator movement instead of holding every sample perfectly still.
- Repeat the test after changing angle, screen brightness and package orientation.
- Record the scanner configuration, firmware, interface and exact sample labels.
Questions to send a barcode scanner supplier
- Which aiming pattern and illumination color does the exact model use?
- Can aiming and illumination be controlled separately?
- What working distance applies to the smallest required module size?
- Does the reader support center decoding, pick-list mode or a region of interest?
- Can brightness, exposure or illumination timing be configured?
- Does the model read codes on phone screens and glossy packaging?
- Are software commands, SDK files and configuration tools available?
- Can a production sample be tested with the buyer's real labels and enclosure window?
Frequently asked questions
Is the aiming pattern the same as the scanner's field of view?
No. The pattern is a positioning aid. The camera can capture an area that is larger or shaped differently, and that area changes with working distance.
Does a brighter aiming light improve barcode reading?
Not necessarily. Aiming helps positioning, while decoding depends on the captured image. Excessive or poorly directed light can create glare and reduce contrast.
Why does the scanner read the wrong barcode on a label?
Several valid codes may be inside the field of view. Use center decoding, pick-list mode, a region of interest, symbology filters or application validation where supported.
Which aiming pattern is best for a kiosk?
The final kiosk should not depend on precise user aiming. Use a forgiving read zone, clear physical guidance and a controlled target distance. The aiming pattern is most useful during installation and service.
Can one scanner handle paper labels and phone screens?
Many 2D imagers can, but performance depends on optics, exposure, illumination and code size. Test the exact model with representative paper and screen samples.
Choose the complete optical system
Aiming patterns make barcode scanners easier to position, but reliable reading comes from the complete optical system: illumination, lens, sensor, decoding, working distance, target surface and configuration. Approve a scanner only after testing the real codes under real lighting and workflow conditions.
