Choosing a barcode scanner is not only about reading 1D or 2D codes. The interface determines how decoded data reaches a computer, POS terminal, PLC, kiosk or mobile device. A scanner with the wrong interface may read perfectly but still be difficult to integrate.

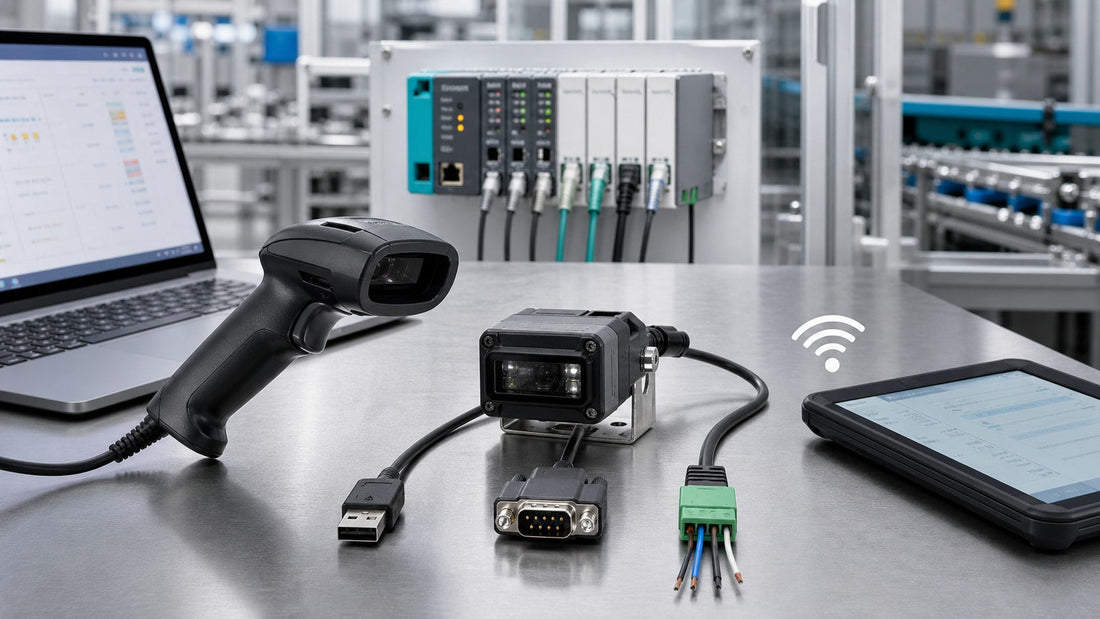

This guide compares USB HID, USB virtual COM, RS232 and Bluetooth barcode scanner interfaces. It explains how each connection behaves, where it fits best and which details should be confirmed before ordering samples or starting an OEM project.
Why the barcode scanner interface matters
The interface affects installation, software development, power, cable length, data control and long-term maintenance. Two scanners with similar reading performance can require very different integration work.
Before choosing an interface, define the host device and workflow:
- Will the scanner connect to a Windows PC, Android terminal, POS system, kiosk controller or PLC?
- Should scanned data appear like keyboard input, or should software communicate directly with the scanner?
- Does the application need commands, acknowledgements, trigger control or detailed read results?
- Will the scanner receive power from the host or use a separate supply?
- Is the installation fixed, handheld or mobile?
- What cable length, connector and environmental protection are required?
USB HID: simple keyboard-style input
USB HID keyboard mode is one of the easiest ways to connect a barcode scanner. The host recognizes the scanner as a keyboard. When a code is read, the scanner sends characters to the currently active field.
Advantages of USB HID
- Usually requires no dedicated driver
- Works with many standard desktop and POS applications
- Provides power and data through one cable
- Easy to test in a text editor or input field
- Supports common prefixes, suffixes and keyboard layouts
Limitations of USB HID
Keyboard mode depends on input focus. If the cursor is in the wrong field, barcode data can be entered in the wrong place. The application also has limited control over the scanner unless the model provides an additional command channel.
Keyboard country settings matter. A mismatch between the scanner configuration and operating-system layout can change punctuation or special characters. Test the complete data set, not only numeric EAN codes.
Best applications
USB HID is well suited to retail checkout, office document processing, simple warehouse workstations and other fixed stations where the user scans into an active software field.
USB virtual COM: serial communication over USB
USB virtual COM mode makes the scanner appear as a serial port. Application software opens the assigned port and receives decoded data through a defined communication format.
Advantages of USB COM
- Software receives scanner data independently of keyboard focus
- Applications can parse messages and manage read events
- One USB cable can provide both data and power
- Serial-style integration is familiar to many developers
- Some scanners support commands and configuration through the port
Limitations of USB COM
A driver may be required, depending on the scanner chipset and operating system. Port numbers can change when equipment is moved between USB connections, so deployment procedures should identify devices consistently.
The application must manage the port, baud settings where applicable, message boundaries and reconnection. Confirm whether the scanner sends plain decoded text or a framed protocol.
Best applications
USB COM is useful for kiosks, access-control systems, laboratory applications, equipment interfaces and custom software that needs reliable read-event handling without keyboard emulation.
RS232: established serial integration
RS232 remains common in industrial equipment, older POS systems, controllers and embedded projects. It uses serial transmit and receive lines with defined parameters such as baud rate, data bits, parity and stop bits.
Advantages of RS232
- Widely understood in industrial and embedded systems
- Supports controlled data exchange and command protocols
- Provides predictable point-to-point communication
- Can be practical when the host already includes a serial port
- Useful for integration with controllers and legacy equipment
Power must be planned separately
A standard RS232 data connection does not automatically provide the power required by a scanner. Some systems use a powered serial connector, while others require a separate adapter or power lead. Never assume that two connectors with the same shape use the same voltage or pinout.
Integration details to confirm
Confirm connector type, pin assignment, signal level, baud rate, flow control and cable length. If the scanner will be installed near motors, conveyors or other electrical equipment, review grounding, shielding and cable routing.
Best applications
RS232 is often selected for industrial workstations, kiosks, vending equipment, production machines and systems that require compatibility with an existing serial controller.
Bluetooth: direct connection to mobile devices
Bluetooth allows a scanner to connect without a cable to a tablet, phone, laptop or supported POS terminal. The user gains mobility, but pairing, battery life and reconnection become part of the workflow.
Bluetooth HID
Bluetooth HID behaves like a wireless keyboard. It is convenient for standard mobile applications because scanned data appears in the active field. As with USB HID, input focus and keyboard layout must be controlled.
Bluetooth serial profiles
Some scanners support a serial communication profile that lets a compatible application receive data through a controlled connection. Operating-system support and SDK requirements should be checked early.
Advantages of Bluetooth
- No dedicated USB receiver is required on compatible hosts
- Works well with tablets, phones and mobile terminals
- Allows the operator to move around shelves, pallets or large items
- Can support cable-free carts and field-service workflows
Limitations of Bluetooth
Wireless range depends on the host, building layout and interference. Battery runtime, charging, pairing and sleep recovery should be tested in the real application. A scanner that connects successfully during setup may still create delays if it takes too long to reconnect after inactivity.
Interface comparison
- USB HID: best for simple keyboard-style input at a fixed workstation.
- USB virtual COM: best for custom PC or kiosk software that needs controlled scanner data.
- RS232: best for industrial controllers, legacy equipment and established serial integrations.
- Bluetooth HID: best for mobile keyboard-style input without a cable or receiver.
- Bluetooth serial communication: best for compatible mobile applications that need a managed data channel.
Other interfaces used in scanner modules
Embedded scan engines may also provide TTL-level UART, RS485 or other board-level interfaces. These are not interchangeable with standard RS232. Voltage levels, logic, connector pinout and power requirements must match the host board.
For OEM integration, request the hardware integration guide, communication protocol, connector drawing and recommended power design. A sample cable is useful for evaluation, but the final production design should be checked against the formal documentation.
Questions to ask before choosing an interface
- Which operating system and host hardware will be used?
- Should the scanner act as a keyboard or communicate with dedicated software?
- Does the application need software triggering, acknowledgements or configuration commands?
- Which connector and cable length fit the installation?
- How will the scanner be powered?
- Are a driver, SDK and protocol document available?
- What happens after sleep, restart, cable reconnection or wireless signal loss?
- Do prefix, suffix, encoding and keyboard settings match the application?
Test the complete data path
A successful decode beep does not prove that the integration is complete. Test real barcode data from scanner to final application, including punctuation, leading zeros, long values and rapid consecutive reads.
For automated equipment, confirm trigger timing, response format, timeout handling and no-read behavior. For mobile scanners, test pairing, charging, sleep recovery and operation at the farthest working point.
Frequently asked questions
Is USB HID the same as USB COM?
No. USB HID normally sends data as keyboard input, while USB COM creates a serial-style port that application software opens directly.
Can one scanner support several interfaces?
Many scanners support more than one mode, but available cables, firmware and connectors vary. Confirm the exact model and configuration rather than assuming every version supports every interface.
Can an RS232 scanner connect to a USB-only computer?
A compatible serial-to-USB adapter may work, but driver support, power and signal wiring still need verification. A scanner with native USB COM may provide a simpler deployment.
Which interface is best for an OEM kiosk?
USB COM, RS232 or a board-level serial interface are common choices because the software can manage scan events directly. The best option depends on the controller, power design, cable routing and required commands.
Choose the interface around the host system
The best barcode scanner interface is the one that matches the host, software and maintenance workflow. Define the data path first, then test an exact scanner, cable and configuration before rollout.
