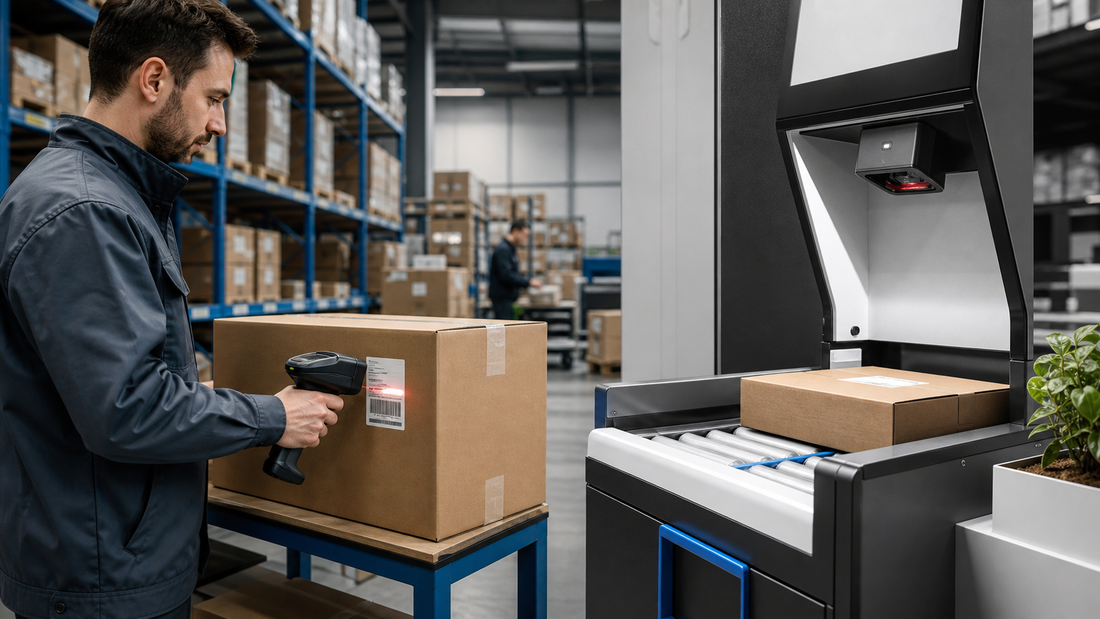

Barcode scanner selection is often framed as a question of scan performance. In practice, the more important question is how the scanner fits the workflow. A handheld scanner follows the operator to the barcode, while a fixed-mount scanner brings the barcode through a defined scan zone. Both can read 1D and 2D codes, but they solve different operational problems.
This guide compares fixed-mount and handheld barcode scanners for warehouses, production lines, retail counters, kiosks, access-control systems, parcel stations, and OEM/ODM projects. It also provides a practical decision process for choosing the right form factor before requesting samples.
What is a handheld barcode scanner?
A handheld barcode scanner is designed to be picked up, aimed, and triggered by an operator. It may be wired through USB or RS-232, or wireless through Bluetooth or a proprietary radio connection. Handheld models are common at retail counters, warehouse picking stations, receiving areas, service desks, inventory operations, and light manufacturing workstations.
The main advantage is flexibility. The operator can scan items of different sizes, reach labels in different positions, and move around the work area. This makes handheld scanners useful when the barcode does not always arrive in the same orientation or location.
What is a fixed-mount barcode scanner?
A fixed-mount scanner is installed inside or above equipment and reads codes presented within a controlled field of view. It may be integrated into a self-service kiosk, vending machine, turnstile, production line, parcel locker, conveyor, ticketing terminal, or automated inspection station.
Instead of relying on a person to aim the device, the system controls where the item, label, phone screen, or ticket appears. Fixed scanners are normally chosen when hands-free operation, compact integration, repeatable positioning, or automatic triggering is more important than mobility.
Fixed-mount vs handheld scanners: the key differences
| Decision factor | Handheld scanner | Fixed-mount scanner |
|---|---|---|
| Typical operation | An operator aims and triggers the scanner | An item or code enters a defined scan zone |
| Mobility | High, especially with wireless models | Installed in one location |
| Barcode position | Can vary significantly | Should be predictable |
| Integration work | Usually lower | Requires mechanical, electrical, and software planning |
| Automation | Operator-driven | Well suited to automatic triggering |
| Space requirements | Requires storage and handling space | Can be built into compact equipment |
| Best fit | Flexible, changing tasks | Repeatable, controlled workflows |
Choose handheld when the work comes in many shapes
A handheld scanner is usually the better choice when staff must scan large cartons, small products, shelf labels, assets, documents, or codes located at different heights and angles. The user can adjust distance and orientation immediately instead of redesigning the workstation.
Warehouse receiving and picking
Receiving teams often work with cartons of different dimensions and labels placed on several sides. A handheld scanner lets the operator find the label without moving a heavy package into a precise scan position. Wireless operation can be useful when the worker moves between pallets, racks, and staging areas.
Retail and service counters
At a checkout or service desk, a handheld model can scan products on the counter as well as bulky items that remain in a trolley. A suitable stand can also provide presentation-style scanning when hands-free operation is occasionally needed.
Maintenance and asset management
Equipment labels and asset tags are rarely positioned for a fixed reader. Handheld scanners are therefore a practical fit for maintenance rounds, inventory counting, tool management, and document tracking.
Choose fixed-mount when the workflow must be repeatable
A fixed-mount scanner is usually the stronger choice when every scan occurs at a defined point in a process. The device can be positioned once, protected inside an enclosure, and connected directly to the host equipment.
Self-service kiosks and ticketing terminals
Kiosks need a scanner that fits behind a window or bezel, reads printed tickets and phone screens, and works without a handheld device exposed to customers. Integration planning should cover scan-window material, viewing angle, illumination, reading distance, and ambient light.
Production and conveyor lines
On an automated line, the scanner may receive a trigger from a sensor or controller and send decoded data to a PLC, industrial computer, or quality system. The key variables are line speed, label size, code quality, object movement, mounting distance, and the time available for each read.
Parcel lockers, access control, and vending
These systems benefit from compact scanners that can be installed behind a front panel. A fixed reader reduces loose components and supports a consistent user interaction. It should be tested with the actual printed codes and phone displays expected in the field.
Seven questions to answer before choosing
1. Does an operator control each scan?
If a person already handles every item and needs to locate the barcode, handheld is generally simpler. If the process must work automatically or through self-service, fixed-mount is usually more appropriate.
2. Is the barcode position predictable?
A fixed reader performs best when the code passes through a known area. If labels can appear on different sides of an object, consider a handheld scanner, multiple fixed scanners, or a redesigned presentation method.
3. Are the codes printed, displayed on screens, or both?
For QR codes, mobile coupons, digital tickets, and payment-related workflows, choose a 2D imager and test several phone models at different brightness levels. Screen protectors, reflections, dark mode, and low display brightness can all affect real-world performance.
4. What interfaces does the host system support?
Common interfaces include USB HID, USB virtual COM, RS-232, Ethernet, Bluetooth, and TTL or other embedded connections. The physical connector alone does not guarantee compatibility. Confirm the communication mode, voltage, protocol, data format, and driver requirements.
5. How harsh is the environment?
Warehouses and production areas can expose scanners to dust, drops, vibration, temperature changes, and repeated cleaning. Match the enclosure, cable retention, sealing, and mounting design to the actual environment rather than selecting only by scanning specification.
6. How will triggering work?
Handheld scanners commonly use a trigger button, presentation mode, or continuous reading. Fixed-mount systems may use automatic detection, a photoelectric sensor, a host command, or a hardware trigger. Define the sequence clearly: when scanning starts, how long it stays active, what happens after a successful read, and how no-read events are handled.
7. What happens when a barcode cannot be read?
A reliable workflow needs an exception process. A handheld station might allow the operator to reposition the item or enter data manually. An automated line may need a reject mechanism, alert, retry position, or secondary scanner. Planning for no-reads is just as important as measuring successful reads.
Do not choose from specifications alone
Datasheets are useful for narrowing the options, but they cannot represent every label, surface, screen, mounting angle, and lighting condition. Before approving a model, test it with production-like samples.
- Use the smallest and largest codes expected in operation.
- Include low-contrast, damaged, curved, glossy, and densely printed labels.
- Test phone screens at different brightness settings and angles.
- Use the real mounting distance, window material, cables, and host software.
- Measure both successful reads and no-read recovery.
- Run the test at the expected transaction rate or conveyor speed.
For OEM/ODM projects, the pilot should also confirm enclosure fit, screw positions, cable routing, connector accessibility, firmware defaults, and data output format.
Can one workflow use both types?
Yes. Many systems benefit from a hybrid design. A fixed-mount scanner can handle the standard flow, while a handheld scanner supports oversized items, exception handling, rework, or maintenance. Retail counters may use a presentation scanner for normal products and a handheld scanner for bulky goods. Warehouses may combine conveyor scanning with mobile exception stations.
The correct architecture is the one that minimizes unnecessary movement while giving staff a practical way to recover from unusual cases.
A simple selection rule
Choose a handheld barcode scanner when barcode position, item size, or operator location changes frequently. Choose a fixed-mount barcode scanner when the scan point is controlled, the process is repetitive, and the reader needs to become part of a larger machine or terminal.
Then validate the decision through real-code testing, interface checks, environmental review, and a production-like pilot.
