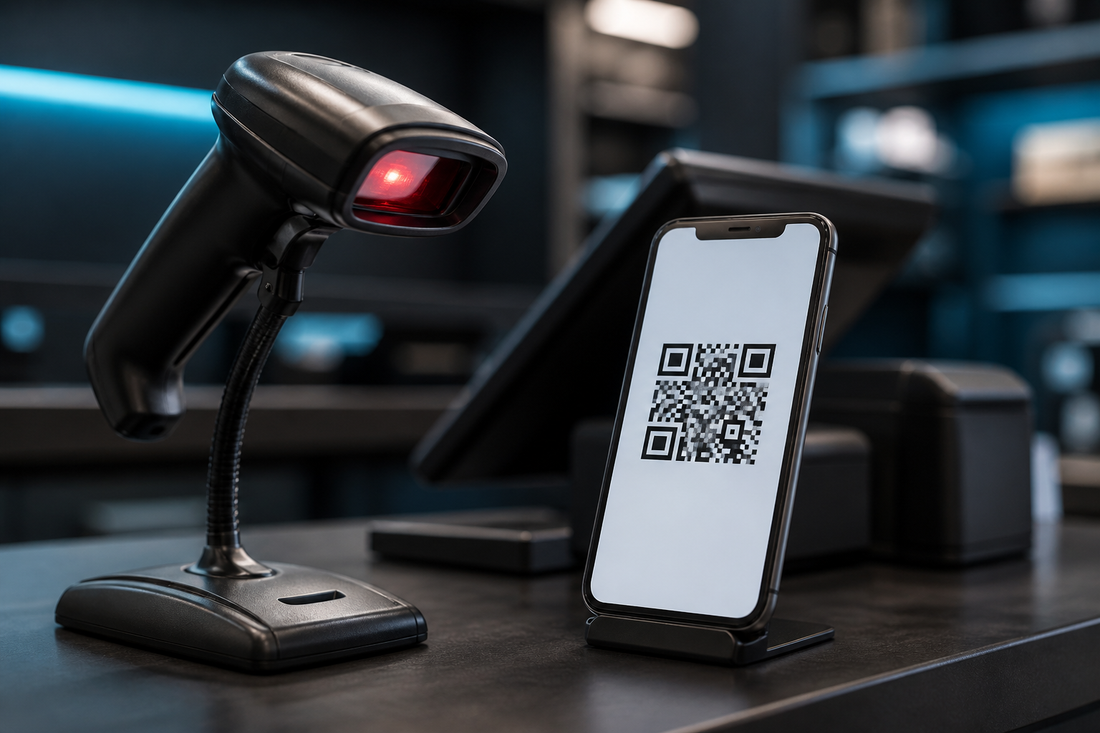

Mobile coupons, digital tickets, membership cards and payment codes are now presented on phone screens every day. Yet a barcode that looks perfectly clear to a person can still be difficult for the wrong scanner to read. Screen brightness, reflections, viewing angle, code size and the scanner's imaging system all affect the result.
This guide explains how to choose and configure a barcode scanner for phone screens. It is intended for retailers, kiosk developers, system integrators and OEM teams that need reliable mobile barcode and QR code scanning.
Why phone-screen barcodes are different
A printed label reflects light from the scanner or the environment. A phone screen produces its own light and is covered by glass. That difference creates several practical challenges:
- Glare and reflections: overhead lighting can hide part of the symbol.
- Screen brightness: a very dim or overexposed display can reduce usable contrast.
- Pixel structure: the barcode is formed by screen pixels rather than ink.
- Refresh and flicker: display control methods can interact with camera exposure.
- User movement: customers change distance and angle while presenting the phone.
- Variable code size: apps may show the same QR code at different physical sizes.
The scanner therefore needs to capture a complete, well-exposed image quickly under changing presentation conditions.
Choose a 2D imager, not a 1D laser scanner
A traditional 1D laser scanner reads the reflected pattern of linear bars. It is suitable for many printed 1D barcodes, but it is generally not the right choice for QR codes or other 2D symbols displayed on a phone.
A 2D area imager captures an image of the entire symbol and decodes both 1D and 2D codes. This technology is normally required for mobile QR payments, e-tickets, loyalty codes and digital coupons. When comparing products, confirm that the specification explicitly supports screen reading; do not assume that every 2D scanner performs equally well on every display.
Match the scanner format to the workflow
Desktop presentation scanners
A desktop barcode scanner is often the best fit for checkout counters. It creates a hands-free reading zone so the customer or cashier can present the phone without pressing a trigger. Omnidirectional reading also reduces the need to align the QR code carefully.
Check the available counter space, the normal phone presentation angle and whether the scanner can be tilted. For busy lanes, test how quickly it returns to ready status after each decode.
Handheld scanners
A handheld 2D scanner gives the operator more control over distance and angle. It is practical for service desks, ticket inspection, warehouse counters and mixed workflows that include both product labels and customer phones.
Consider cable length, trigger life, wireless range, battery operation and how the device will be stored between scans. A stand can provide optional presentation scanning without giving up handheld flexibility.
Fixed-mount readers and scan engines
Kiosks, access gates, vending machines and self-service terminals usually require a fixed-mount scanner or compact scan engine. In these projects, the protective window, mounting angle, available opening and user guidance become part of the optical system.
Design the presentation area before freezing the enclosure. The phone should be easy to position inside the scanner's field of view without touching the window.
Seven factors that determine screen-reading performance
1. Barcode symbology
List every required code type. QR Code is common, but an application may also use Data Matrix, PDF417, Aztec, EAN/UPC or Code 128. Confirm that the exact symbology is enabled in the scanner configuration and supported by the host software.
2. Code size and module size
The outer size of a QR code is not enough to define the task. The smallest square element, or module, must occupy enough image pixels for reliable decoding. A code with more encoded data can contain more modules and become harder to read when displayed in the same physical area.
Test the smallest code shown by the real application on the smallest supported phone. Include any zoom restrictions imposed by the app.
3. Reading distance and field of view
The complete barcode, including its quiet zone, must remain inside the field of view. If users present a phone too close, part of the symbol may fall outside the image. If they hold it too far away, the modules may occupy too few pixels.
Use physical guides, enclosure geometry or simple on-screen instructions to encourage a repeatable distance. A large scan zone is convenient, but it still must provide sufficient resolution for the smallest code.
4. Screen brightness
A phone at minimum brightness can create poor contrast, while maximum brightness may cause saturation in some conditions. Automatic exposure should manage a reasonable range, but extreme settings still need to be tested.
For a controlled application, ask users to increase brightness when necessary. For unattended kiosks, choose a scanner that can adjust exposure quickly and provide clear feedback if presentation needs to change.
5. Glare and presentation angle
Phone glass can reflect ceiling lights, windows or the scanner's own illumination. A slight angle often moves the reflection away from the barcode, but too much angle compresses the symbol and reduces effective module width.
During installation, observe the screen from the scanner's position. Adjust the scanner or phone plane so strong reflections do not cover the normal presentation area.
6. Motion and exposure
Customers rarely hold a phone perfectly still. Shorter exposure can reduce motion blur, but it also captures less light. The scanner's sensor, illumination and processing must balance these conditions.
Test natural presentation movement rather than placing a phone motionless in front of the scanner. Measure first-read success and time to decode, not only whether the code can eventually be read.
7. Protective windows
A kiosk window can introduce reflections, scratches, tint and optical distortion. Keep it clean, flat and correctly angled. Anti-reflective material may help, but the final material and thickness must be tested with the actual scanner.
Avoid placing the scanner far behind a small opening. The enclosure must not block the required field of view at the nearest and farthest phone positions.
Practical setup steps
- Enable only the required symbologies to simplify testing and reduce unwanted reads.
- Select the correct USB HID, USB COM or RS-232 output for the host system.
- Confirm suffix, prefix and data formatting requirements with the application.
- Position the scanner so the normal phone angle avoids direct reflections.
- Verify the aiming pattern or illumination does not obscure the user's view.
- Provide an audible, visual or on-screen good-read signal.
- Test duplicate-read prevention and the time before the next code is accepted.
Configuration should be documented and copied to every deployed scanner. For a multi-site rollout, retain a master settings file or setup barcode sheet with revision control.
Build a realistic test matrix
Use actual phones, applications and codes before ordering in volume. A useful sample test includes:
- Small and large phone screens
- LCD and OLED displays from several manufacturers
- Low, medium and high screen brightness
- Light and dark application themes
- Screen protectors, cracked glass and fingerprints
- The smallest and densest production codes
- Portrait and landscape presentation
- Near, nominal and far distances
- Bright retail lighting and lower indoor lighting
- Normal user motion and several presentation angles
Record first-read rate, decode time and the exact conditions behind every failure. A short controlled pilot is more valuable than a specification comparison that does not include the real workflow.
Common problems and quick corrections
- The scanner reads paper but not phones: verify that it is a 2D imager with screen-reading support and review exposure settings.
- It reads only at one precise distance: confirm code size, focus range and field of view; consider a model with optics better matched to the application.
- The screen appears washed out: reduce direct illumination, change the presentation angle or adjust exposure.
- Reads are slow at checkout: test presentation mode, symbology settings, interface behavior and application response time separately.
- Some phones fail: compare display type, brightness, screen protector and app code size; do not rely on one test device.
- A kiosk works before the cover is installed: inspect window reflection, tint, distance and field-of-view obstruction.
Frequently asked questions
Can a laser barcode scanner read a QR code from a phone?
No. A standard 1D laser scanner cannot decode a two-dimensional QR code. Use a 2D area imager designed and tested for screen reading.
Why does increasing phone brightness sometimes help?
Higher brightness can improve captured contrast when the display is too dim, especially under strong ambient light. However, excessive brightness or glare can also cause overexposure, so the goal is a clear, balanced image.
Is a higher-resolution scanner always better for phone screens?
Not by itself. Sensor resolution, optics, focus, field of view, exposure control and decode software work together. Choose a model that passes the actual distance, code-size and phone tests.
What information should I send to a supplier?
Provide the symbologies, smallest displayed code, target phones, near and far distances, lighting, mounting method, interface, host operating system and expected scan volume. For an embedded project, include enclosure drawings and window material.
Choose by testing the complete workflow
Reliable phone-screen scanning comes from matching a 2D imager to the code, display, distance, angle, lighting and host application. Select the correct scanner format, control the presentation zone where possible and approve the model only after a representative pilot.
