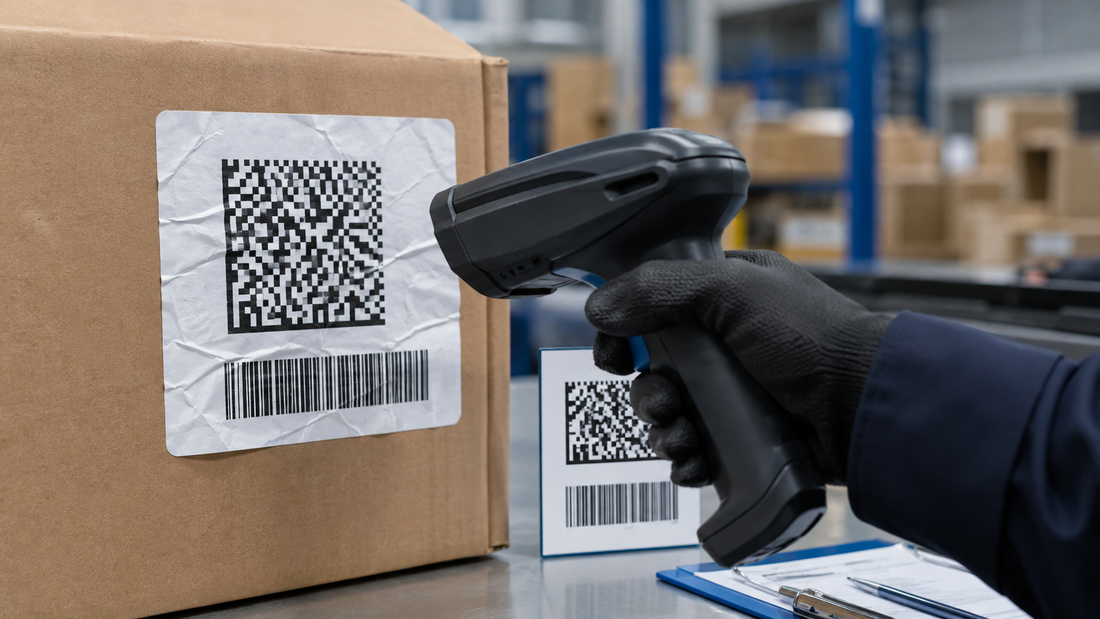

A barcode may look readable to a person and still fail repeatedly at the scanner. Scratches, wrinkles, low contrast, glare, small modules, poor printing and incorrect scanner settings can all reduce the usable signal. Replacing the scanner without identifying the real cause may improve one sample while leaving the production problem unresolved.
This guide explains how to diagnose damaged and difficult barcodes, improve first-pass read rates and decide when a different scanner, label or mounting method is required.
Why damaged barcodes are difficult to scan
A barcode reader does not simply recognize the overall shape of a symbol. It must capture enough contrast and detail to distinguish bars, spaces or two-dimensional cells, locate the symbol and correct available errors. Damage becomes a problem when it removes too much useful information or creates patterns that the decoder can mistake for part of the code.
Common causes include:
- Scratches or tears crossing bars or 2D cells
- Wrinkles that distort spacing and reflect light unevenly
- Faded printing or insufficient darkness
- Glossy laminate, curved packaging or direct reflections
- Ink spread that closes narrow spaces
- Missing quiet zones around the symbol
- A barcode printed smaller than the reader can resolve
- Condensation, dust, oil or transparent film covering the label
Start by separating a barcode problem from a scanner problem
Test several samples before changing settings. If one scanner reads clean labels reliably but fails only on a particular batch, the barcode or packaging is the likely cause. If every label is difficult, inspect the scanner window, connection, configuration and reading distance.
A practical test set should include a known-good label, the failed label, another label from the same batch and the same data reprinted on suitable media. Test each sample with the production scanner and, if available, a second known-good reader. Record whether the failure follows the label, the scanner or the workstation.
1. Inspect the barcode and its surroundings
Look at the entire symbol, not only the encoded area. Linear barcodes require clear space before the first bar and after the last bar. Many 2D symbols also require a surrounding quiet zone. Text, borders, packaging graphics or label edges placed too close to the code can interfere with detection.
Check for:
- Missing bars, cells or finder patterns
- Vertical lines caused by a damaged printhead element
- Uneven darkness across the print width
- Bar growth, blurred edges or toner flaking
- Creases passing through critical areas
- Clear tape, shrink wrap or laminate producing glare
- Background artwork visible through a transparent label
If a defect appears in the same position on every label, inspect and clean the printer. A consistent white line through thermal labels can indicate debris or a failed printhead dot. If defects change randomly, check the label stock, ribbon, heat, speed and material handling.
2. Improve lighting and scanning angle
Glare can hide part of a code even when it appears clear from another angle. Tilt a handheld scanner or the package slightly so the illumination does not reflect directly into the reader. For fixed installations, adjust the scanner or label presentation rather than relying on operators to find the correct angle.
Curved bottles and glossy flexible packaging are especially sensitive. A code wrapped too far around a small cylinder can be distorted and partially out of focus. Where possible, place the barcode on a flatter area, increase its size or control package orientation.
3. Use the correct reading distance
Every scanner has a usable depth of field, and that range changes with barcode size and optical design. Holding a reader too close can be just as problematic as holding it too far away. Start at a moderate distance and move slowly until the aiming pattern covers the complete symbol.
Small, dense codes generally need more optical resolution and a shorter controlled working distance. Large logistics labels may need a standard-range or long-range scanner, depending on the workstation. Do not judge performance from the maximum distance claimed for a large test code when the real label is much smaller.
4. Confirm the barcode type is enabled
A scanner may support a symbology but have it disabled in the current configuration. Confirm the exact barcode type and any relevant options, including check digits, add-ons, minimum length and data-format settings. Restoring factory defaults can help during diagnosis, but first record any prefixes, suffixes, interface modes and application-specific settings that must be restored.
A 1D laser reader will not decode QR Code, Data Matrix or PDF417. A 2D imager is normally the better starting point when the workflow includes both printed linear codes and 2D symbols, phone screens or difficult labels.
5. Check print contrast and sizing
Increasing darkness is not always the answer. Printing too lightly reduces contrast, but excessive heat can make bars spread and narrow spaces disappear. Match printer speed and darkness to the label and ribbon combination, then inspect several consecutive samples.
Avoid resizing barcode artwork as a normal image. Scaling can produce uneven bar widths or blurred cell edges. Generate the symbol at the required physical size and printer resolution. Preserve the quiet zone and use a background that creates strong, consistent contrast.
| Symptom | Likely causes | First checks |
|---|---|---|
| Reads only at one angle | Glare, curvature or uneven lighting | Tilt the code, remove reflective covering, test a flatter location |
| Clean labels read; one batch fails | Print or media variation | Compare darkness, size, quiet zone and material |
| Very small codes fail | Insufficient optical resolution | Measure module size and test a higher-resolution imager |
| Scanner beeps but data is wrong | Keyboard layout, encoding or data formatting | Check interface mode, host layout, prefix and suffix |
| No labels read | Window, configuration, interface or hardware issue | Clean the window, test a known-good code and review settings |
6. Clean the scanner window safely
Fingerprints, cardboard dust and fine scratches reduce image quality. Disconnect power where appropriate and follow the manufacturer's cleaning instructions. Use a soft lint-free material and a suitable cleaner; do not use abrasive pads or sharp tools. A cracked or heavily scratched window may require professional replacement.
7. Choose a scanner for difficult labels
When label quality cannot be fully controlled, evaluate scanners with representative samples rather than relying only on a symbology list. Useful characteristics can include higher optical resolution, a wide dynamic range, algorithms designed for damaged codes, suitable illumination and enough depth of field for the workstation.
For industrial applications, also consider enclosure protection, drop resistance, trigger options, mounting, interface and continuous operating conditions. A rugged housing does not automatically mean better decoding, and strong decoding does not automatically make a scanner suitable for dust, vibration or washdown environments.
8. Improve the process instead of accepting repeated rescans
A powerful scanner can reduce exceptions, but it should not hide an unstable printing or labeling process. Track no-reads by product, printer, shift, supplier and failure type. Review the failed samples rather than discarding them immediately.
Useful preventive actions include:
- Approve label, ribbon and printer settings as one combination
- Protect labels from abrasion, moisture and folds
- Position codes away from seams and tight curves
- Clean printers and scanner windows on a defined schedule
- Keep barcode dimensions and quiet zones in controlled templates
- Test real packages at production speed before rollout
- Retain failed samples for root-cause analysis
Frequently asked questions
Can a scanner read a partially damaged barcode?
Sometimes. The result depends on the symbology, the location and extent of the damage, print contrast, module size and scanner capability. Two-dimensional codes may recover from some missing information, but error correction is not a substitute for controlled printing and handling.
Why can a phone read a barcode that my scanner cannot?
The devices may use different cameras, lighting, autofocus and decoding software. A phone test does not prove that a scanner is defective. Compare the real working distance, motion, angle, screen or label material and required read speed.
Will increasing printer darkness fix unreadable labels?
Only if the current print is too light. Excessive darkness can spread bars and reduce space width. Adjust darkness and speed together, then inspect or verify the result.
Should I replace a 1D laser scanner with a 2D imager?
A 2D imager is appropriate when you need QR Code, Data Matrix, PDF417, screen reading or better flexibility with many difficult labels. Test the exact samples and workflow before standardizing a replacement.
What should I send to a scanner supplier for testing?
Provide physical label or package samples, barcode type, code dimensions, smallest module size, reading distance, angle, motion, lighting, interface, environment and target first-pass read rate. Include both normal and worst-case samples.
Build reliability around the real barcode
Reliable scanning comes from matching the barcode, print process, packaging, optics, illumination and workstation design. Diagnose where the signal is being lost, correct controllable label problems and test suitable equipment with representative samples.
