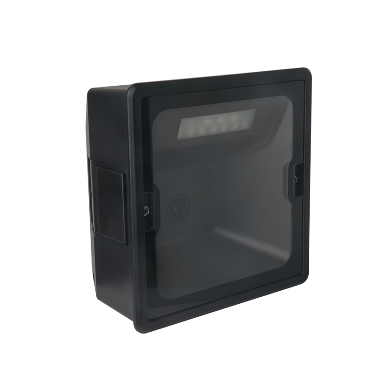

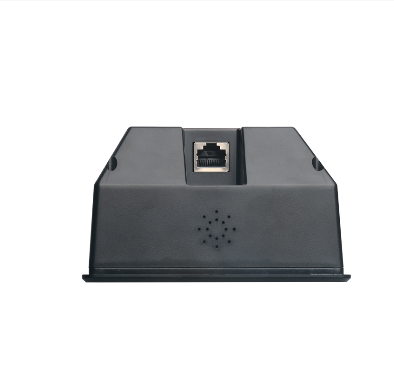

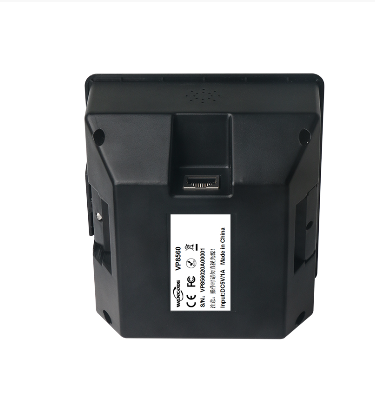

Fixed 2D Bar Code Scanner
Fixed 2D Bar Code Scanner
Product description:
It is a 1 mega pixel omnidirectional 2D embedded desktop scanner with advanced CMOS image recognition technology. It can easily read paper, goods, screens and other media 1D 2D barcodes. Widely used in large supermarkets, restaurant, chain stores, and grocery stores.
Features:
1. Embedded design, wide window for auto sense scanning.
2. 2d image technology, read paper, plastic, screen 1D 2D barcodes, etc. easily.
Product parameters:
Scan Type |
CMOS |
Light Source |
Red LED, 525nm |
Image sensor |
1280×800 |
Resolution |
≥4mil/0.1mm(PCS90%,CODE 39) |
Decoding speed |
100CM/S |
View |
Horizontal 62°× Vertical 41° |
Depth of field |
0-650mm |
Scan Mode |
Continuous mode |
Scan angle |
Roll:±360°、Pitch:±70°or greater、Yaw:±65°or greater |
Print Contrast Signal |
≥20% |
Ambient Light |
Dark environment, indoor natural light |
Symbologies |
1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5(Straight 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, Aztec,etc. |
Weight |
≈250g(No Cable) |
Dimension |
L115mm * W115mm * H69mm |
Communication Mode |
USB (KBW, COM) ,RS232 |
Cable length |
1.5m |
Interface Type |
USB、RS232 |
Power Supply |
DC 5V@260mA(work) |
Operating temperature |
-20℃ to 50℃ |
Storage temperature |
-40℃ to 60℃ |
Humidity |
5% to 95%(non-condensing) |
Transport vibration Test |
10H@125RPM |
Cable |
USB Cable, used to connect the machine to a host device. |
|
RS232 Cable, used to connect the machine to a host device, with USB supply cable. |
