A barcode scanner can have excellent decoding performance and still feel slow or unreliable if its trigger mode does not match the workflow. A cashier may need hands-free presentation scanning, a warehouse worker may prefer manual triggering, and a kiosk controller may need software to decide exactly when the scanner reads.
This guide explains the main barcode scanner trigger modes—manual, auto-sense, presentation, continuous and command trigger—and shows how to select and test them for retail, warehouse, production and OEM equipment.
What Is a Barcode Scanner Trigger Mode?
A trigger mode defines when the scanner turns on its illumination and image capture, searches for a barcode and returns decoded data. The word “trigger” does not always mean a physical button. The trigger event can come from a button, an object sensor, continuous operation, a host command or an external electrical signal.
The selected mode affects speed, power consumption, light exposure, accidental reads and software control. Product manuals may use different names for similar behaviors, so buyers should confirm the exact operating sequence rather than relying only on the mode name.
Trigger Modes at a Glance
| Mode | What Starts the Read | Typical Applications | Main Consideration |
|---|---|---|---|
| Manual trigger | Operator presses a button | Warehouse, retail, receiving and inventory | Operator control and ergonomics |
| Auto-sense | Movement or an object enters the detection area | Checkout stands, service desks and packing stations | Sensitivity and wake-up speed |
| Presentation | Barcode is presented in an active scan zone | High-volume retail and ticket scanning | Hands-free field of view and duplicate reads |
| Continuous | Scanner reads continuously | Fixed stations, simple conveyors and embedded devices | Power, heat and unwanted reads |
| Command or external trigger | Software command or electrical input | Kiosks, gates, machines and automated lines | Interface, timing and response protocol |
Manual Trigger Mode
Manual trigger is the familiar handheld-scanner workflow. The operator aims at the target and presses the trigger. The scanner reads until it decodes a symbol, the trigger is released or a timeout is reached.
This mode gives the operator clear control when many barcodes are visible or items appear in unpredictable positions. It is useful for warehouse picking, receiving, inventory checks, bulky items and retail products that cannot be brought neatly to a counter.
What to Test
- Trigger force and comfort during hundreds of scans.
- Time from button press to illumination and decoding.
- Timeout behavior when no barcode is present.
- Performance with gloves and at different wrist angles.
- Whether the scanner can also switch to hands-free mode when placed in a stand.
Auto-Sense Mode
In auto-sense mode, the scanner waits in a lower-power state and begins scanning when it detects movement, a change in the field of view or an object near the window. This allows hands-free use without keeping the illumination fully active all the time.
Auto-sense is a good fit for packing desks, pharmacies, small checkout counters and service windows. An operator can pick up the scanner for manual use and return it to the stand for automatic operation.
The important specifications are detection sensitivity, activation distance, wake-up time and resistance to false activations. Background movement, glossy counters, changing sunlight or people walking behind the target can keep a poorly configured scanner awake.

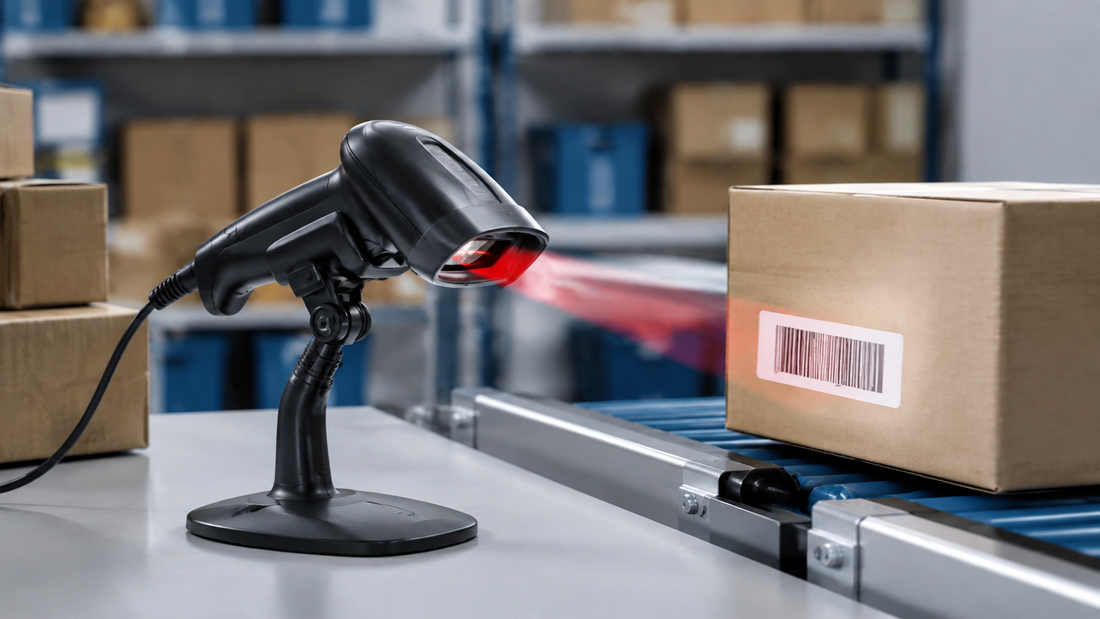

Presentation Mode
Presentation mode is designed for fast hands-free scanning. The scan area remains ready while products, tickets or phone screens are presented to the window. Desktop scanners and handheld scanners in stands often use this mode.
It works well at busy retail counters because the operator can use both hands to move products. A wide field of view and omnidirectional decoding reduce the need to align a 1D barcode precisely. For mobile coupons and QR codes, confirm that the imager can read illuminated phone screens at practical brightness levels.
Avoiding Duplicate Reads
Presentation scanners commonly use a same-code delay, reread delay or “good read” lockout. After a successful decode, the scanner ignores the same symbol for a configured interval or until the object leaves the field. Set this delay around the transaction workflow: too short can create duplicate entries, while too long can block two identical products scanned one after another.
Continuous Scan Mode
Continuous mode keeps the reader actively searching for barcodes without waiting for a trigger event. It can simplify a fixed station where items pass through a predictable zone, but it requires careful control of duplicate reads and background labels.
Continuous illumination may increase power consumption and visible light exposure. In an embedded design, review thermal conditions and the manufacturer’s recommended duty cycle. A continuously active scanner should not be hidden behind an unsuitable window or installed where reflections keep it decoding the wrong target.
Command Trigger Mode
Command trigger lets the host application start and stop scanning through USB virtual COM, RS-232 or another supported interface. The application can synchronize barcode reading with a screen prompt, payment step, door state or machine cycle.
This is valuable in self-service kiosks, access-control terminals, parcel lockers and laboratory equipment. Confirm the command set, acknowledgement behavior, timeout, decode result format and method for cancelling a read. A connector labeled USB does not prove that software trigger commands are available; USB HID keyboard mode and USB serial communication behave differently.
For a comparison of host connections, read our barcode scanner interface guide.
External Hardware Trigger
Some fixed-mount scanners and scan engines accept a hardware input from a photoelectric sensor, PLC, button or controller. The signal tells the scanner when a package or component is in position. This reduces unnecessary image capture and helps align the read window with the process.
Integration details matter: input voltage, active-high or active-low logic, pulse width, debounce, isolation and connector pinout. The scanner’s decode output must also reach the control system in time for the next action. Document the complete timing sequence rather than testing each device separately.
How to Choose the Right Mode by Application
Retail Checkout
Use presentation or auto-sense mode for hands-free speed. Keep manual triggering available for large or awkward products. Test printed 1D codes, QR codes and mobile coupons with the real POS software.
Warehouse Picking and Receiving
Manual trigger normally provides better target control among multiple location, item and carton labels. Auto-sense in a vehicle or workstation stand can help when both hands are needed. Review wireless coverage and battery behavior as part of the same pilot.
Manufacturing Station
Use an external sensor or command trigger when reading must match a machine state. Continuous mode may work for a simple slow process, but controlled triggering makes timing and error recovery easier to diagnose.
Kiosk or Access Gate
Auto-sense can provide a simple user experience, while command trigger gives the application tighter control. Check wake-up time, screen-code performance, ambient light and what happens when a user presents an invalid or expired code.
Seven Settings That Affect Trigger Performance
- Decode session timeout: how long the scanner searches after activation.
- Same-code delay: how soon the same data can be accepted again.
- Motion sensitivity: how easily auto-sense mode wakes up.
- Illumination and aimer: when the lights activate and whether aiming can be controlled separately.
- Good-read feedback: beeper, LED or vibration confirmation.
- Prefix and suffix: characters sent before or after decoded data.
- Power-saving timeout: when a cordless or auto-sense scanner enters deeper sleep.
If the application needs an Enter or Tab after each read, see our prefix and suffix configuration guide.
Recommended Pilot Test
- List every required mode and who or what triggers each scan.
- Use real printed labels, damaged samples and phone-screen codes.
- Place neighboring barcodes in the normal field of view.
- Measure wake-up, decode and data-delivery time.
- Scan identical products consecutively to verify reread delay.
- Test under the brightest and darkest expected lighting.
- Cycle power and confirm the selected mode is retained.
- Save the approved configuration, firmware and command sequence.
Frequently Asked Questions
Can a handheld barcode scanner work automatically in a stand?
Many models support stand detection, auto-sense or presentation mode, but support varies. Confirm the compatible stand and whether the scanner changes mode automatically or requires configuration.
Why does my scanner read the same barcode twice?
The same-code or reread delay may be too short, or the application may be processing both keyboard and serial input. Test one interface at a time and adjust the scanner’s duplicate-read protection.
Is continuous mode best for a conveyor?
Not always. A photoelectric sensor or controller trigger can provide more precise timing, reduce unwanted reads and simplify error handling. Match the trigger architecture to conveyor speed and package spacing.
What should an OEM buyer provide?
Provide the barcode set, working distance, trigger source, timing diagram, interface, output format, power limits, mechanical drawing, environment, quantity and firmware customization requirements.
Final Recommendation
Choose manual trigger for flexible operator-controlled work, auto-sense or presentation mode for hands-free counters, and command or hardware triggering when software or machinery must control the exact scan window. Continuous mode is useful only when its power, lighting and duplicate-read behavior fit the process.
