Features:
1.Ergonomic design
2. Support multiple languages and systems.
3.Support USB barcode information transmission. ( languages customization)

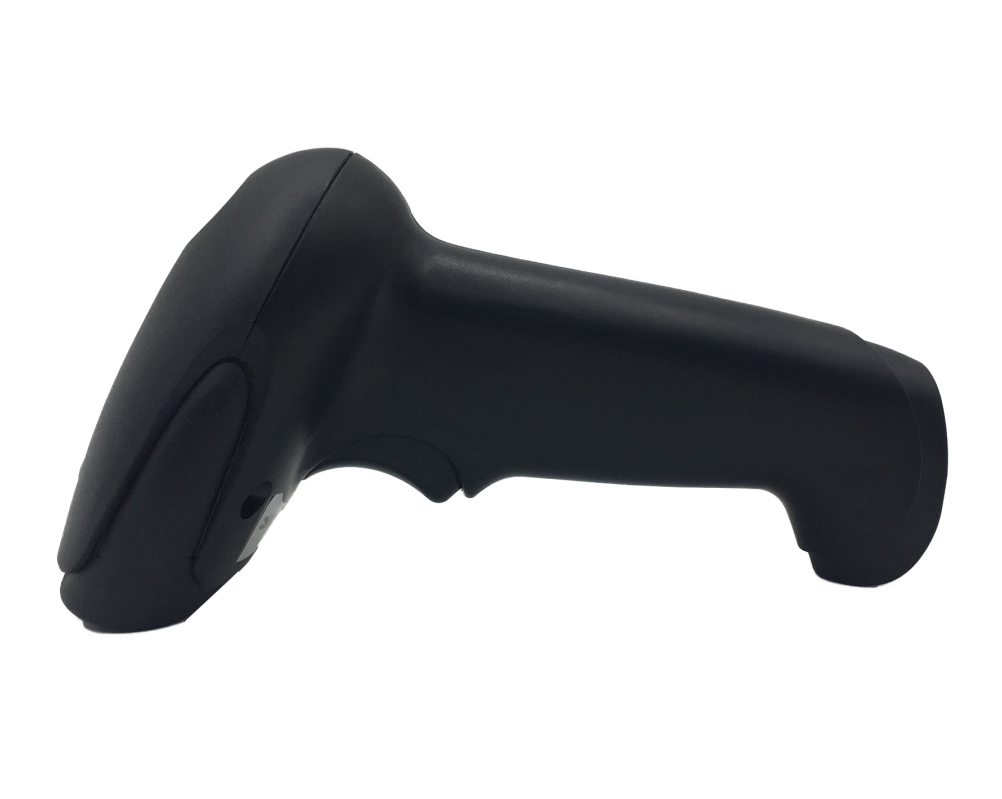

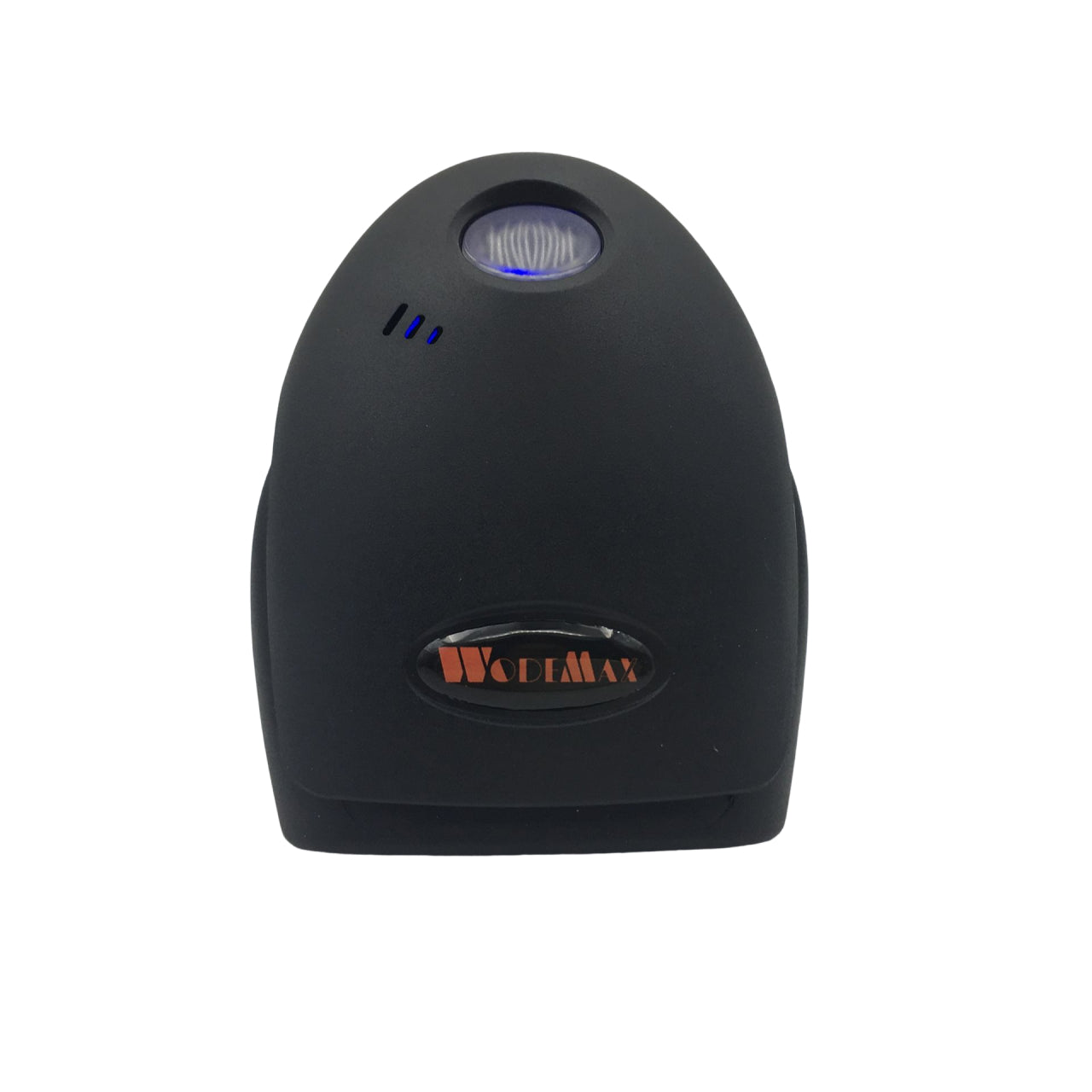

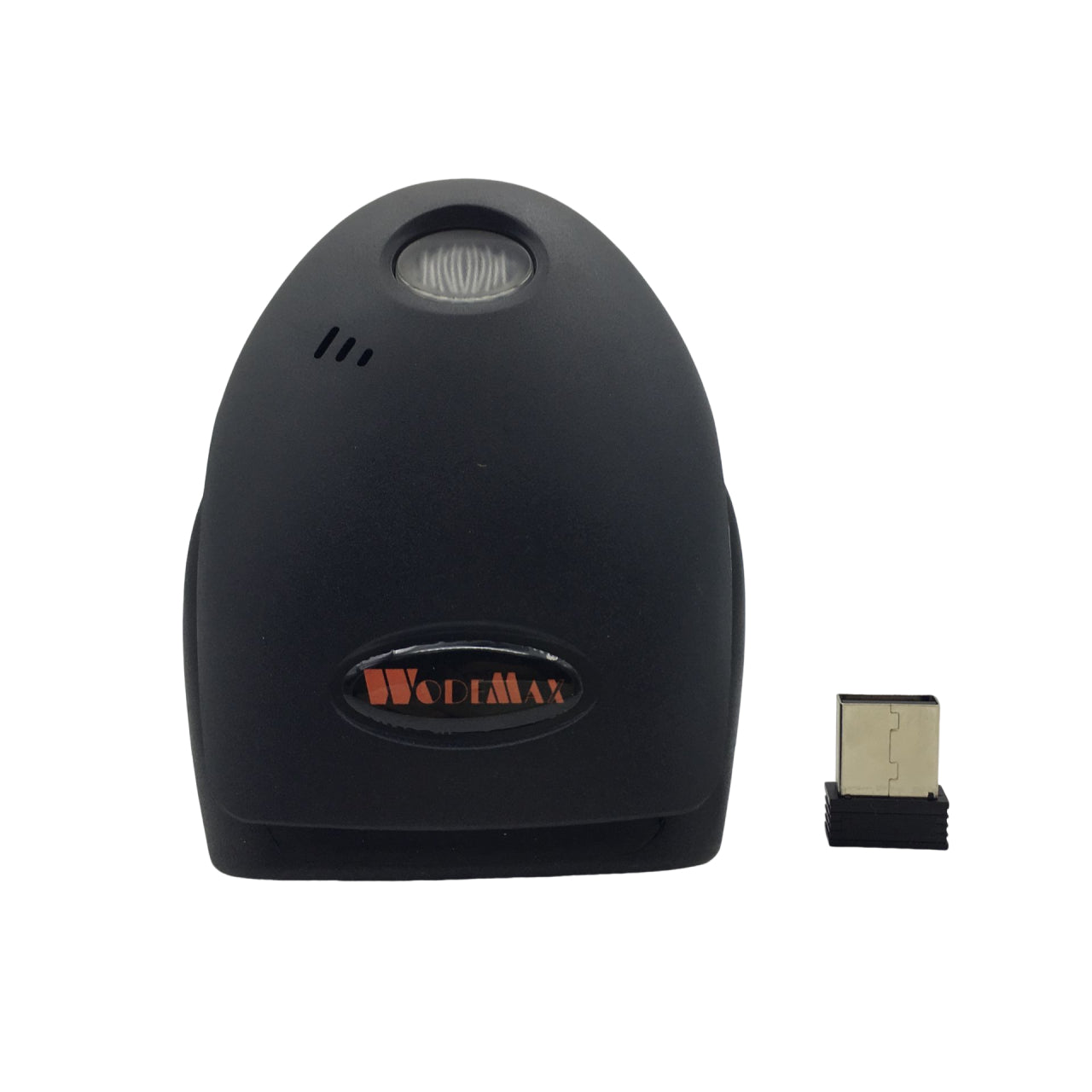

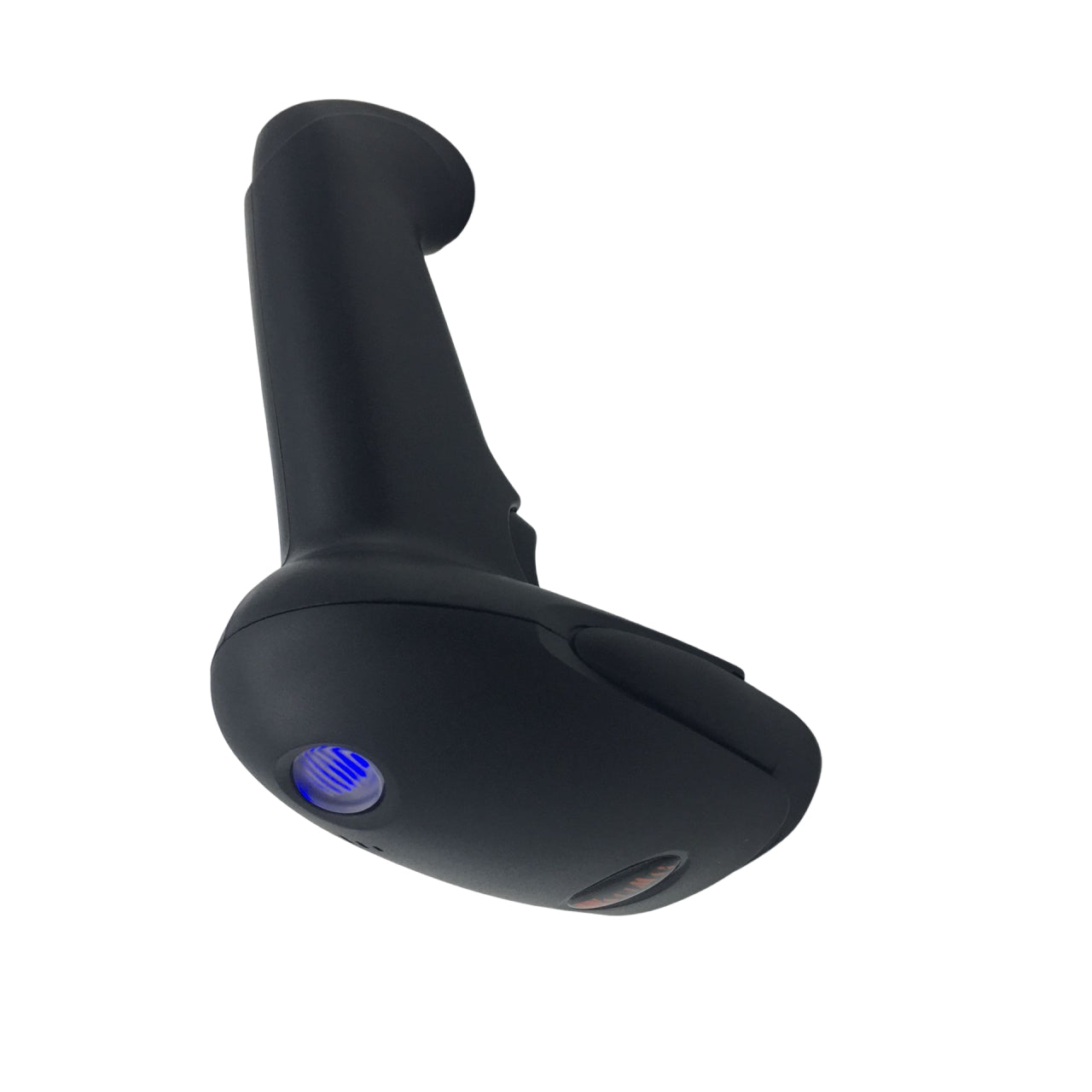

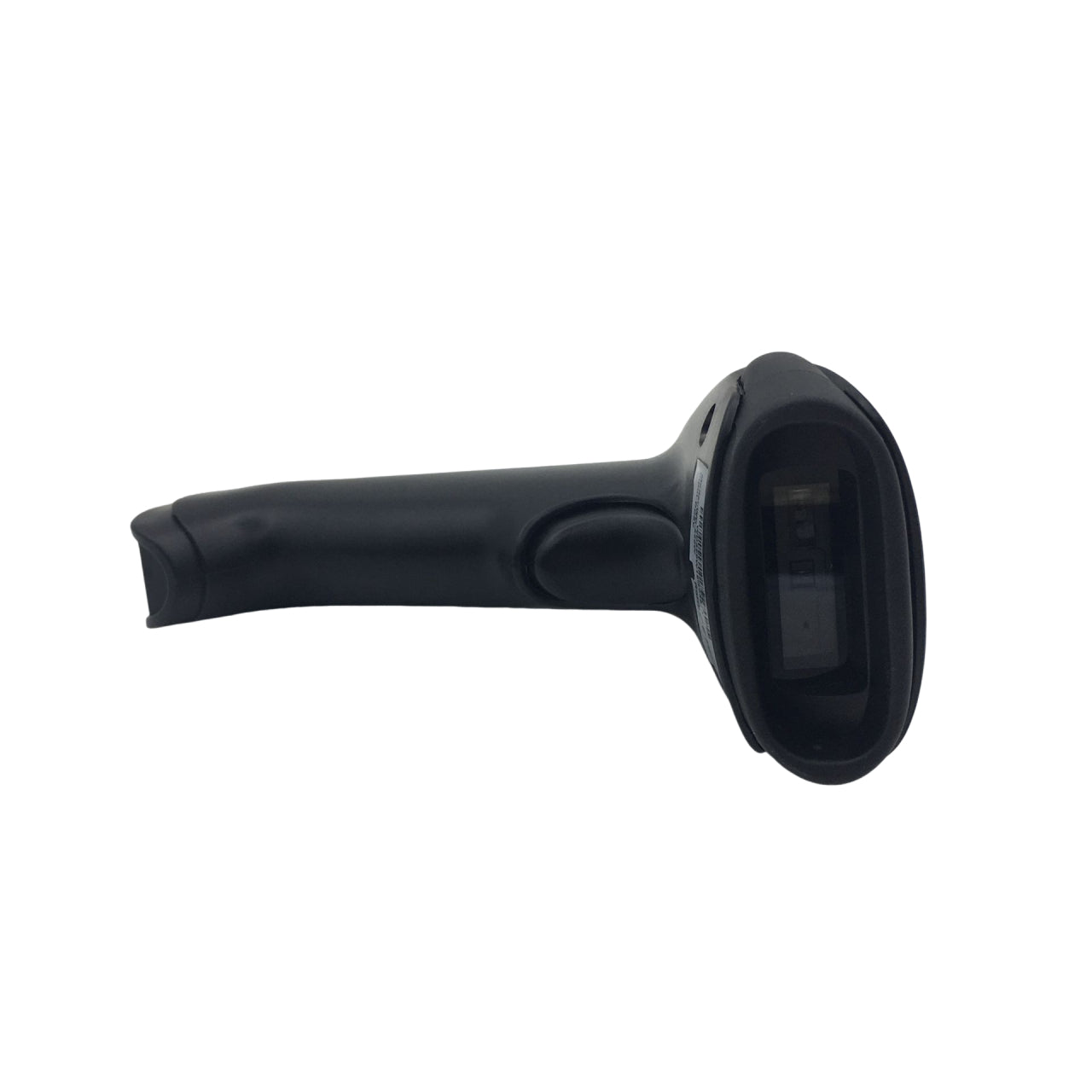

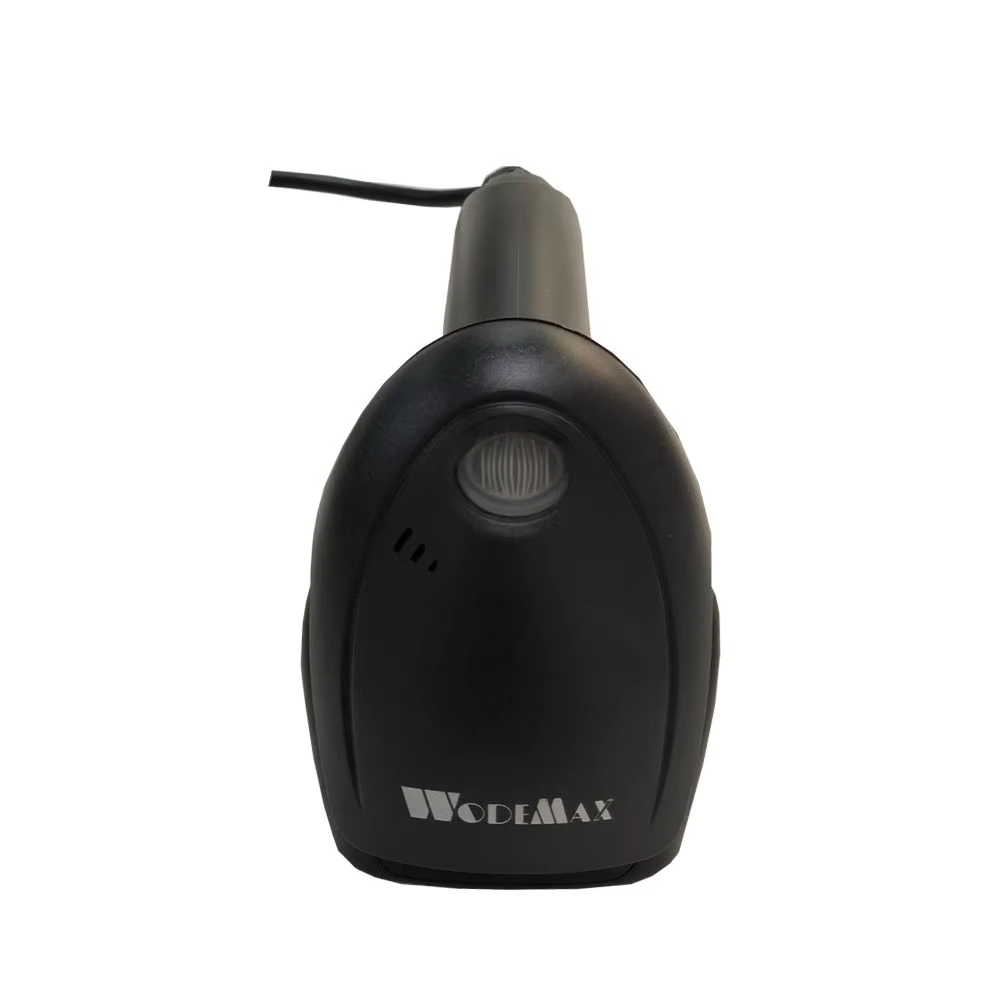

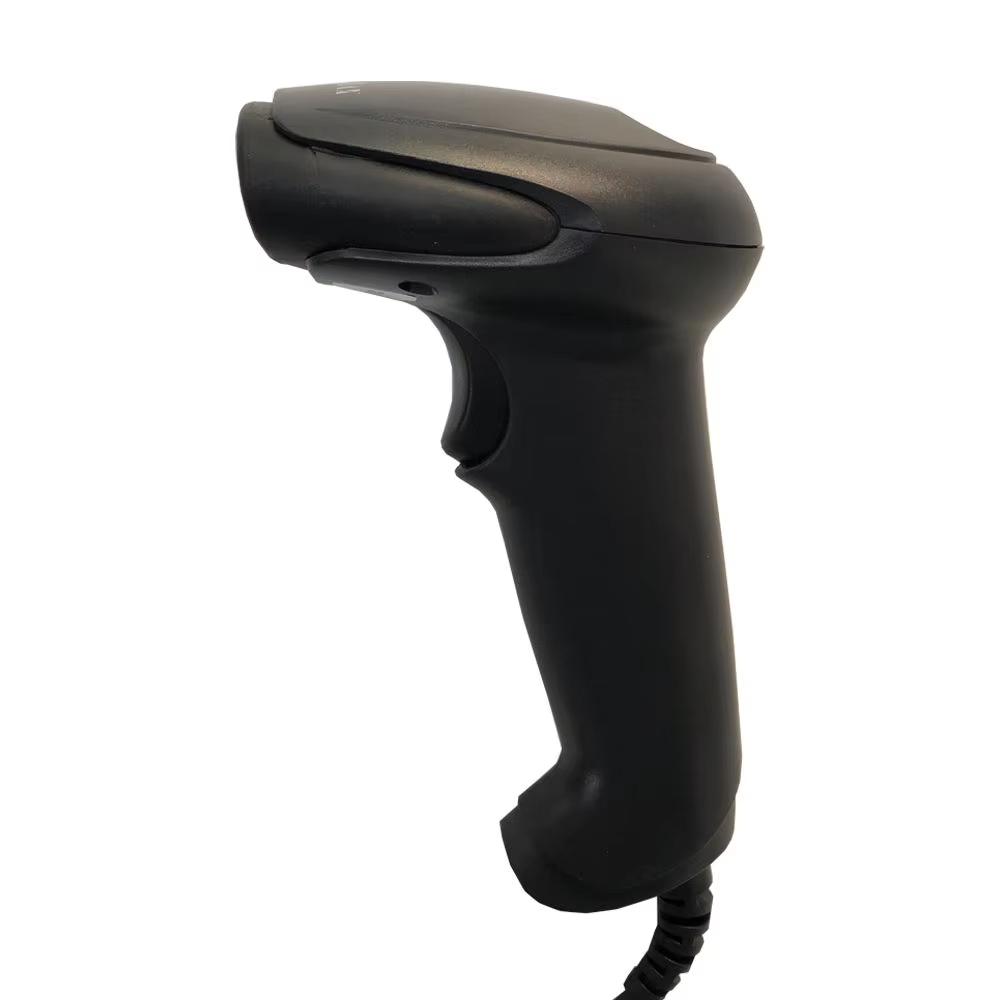

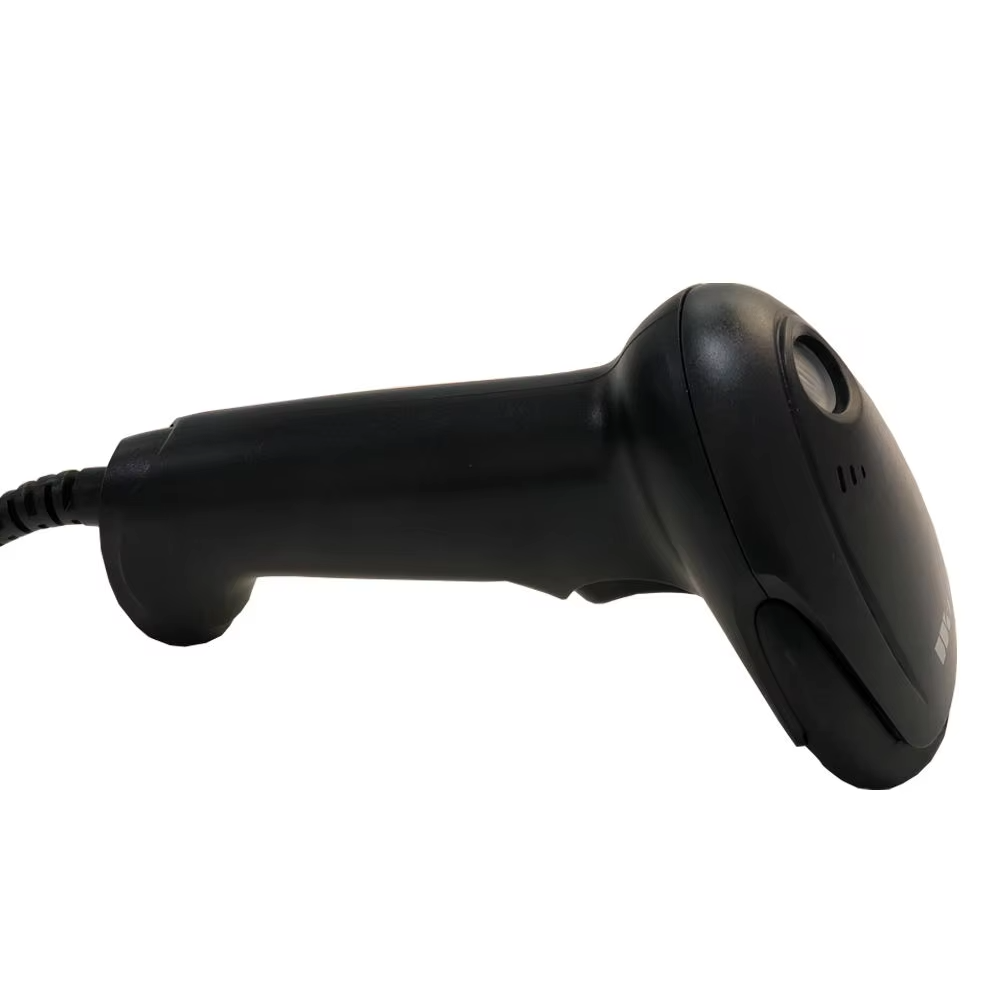

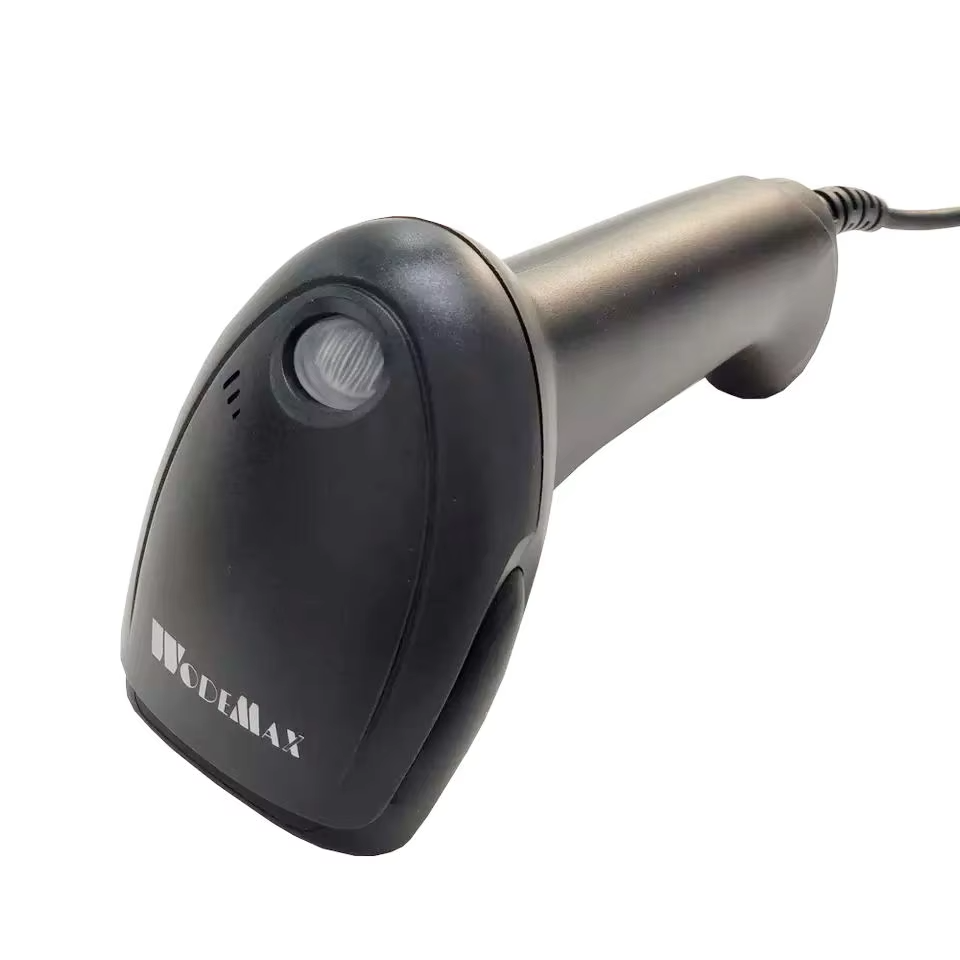

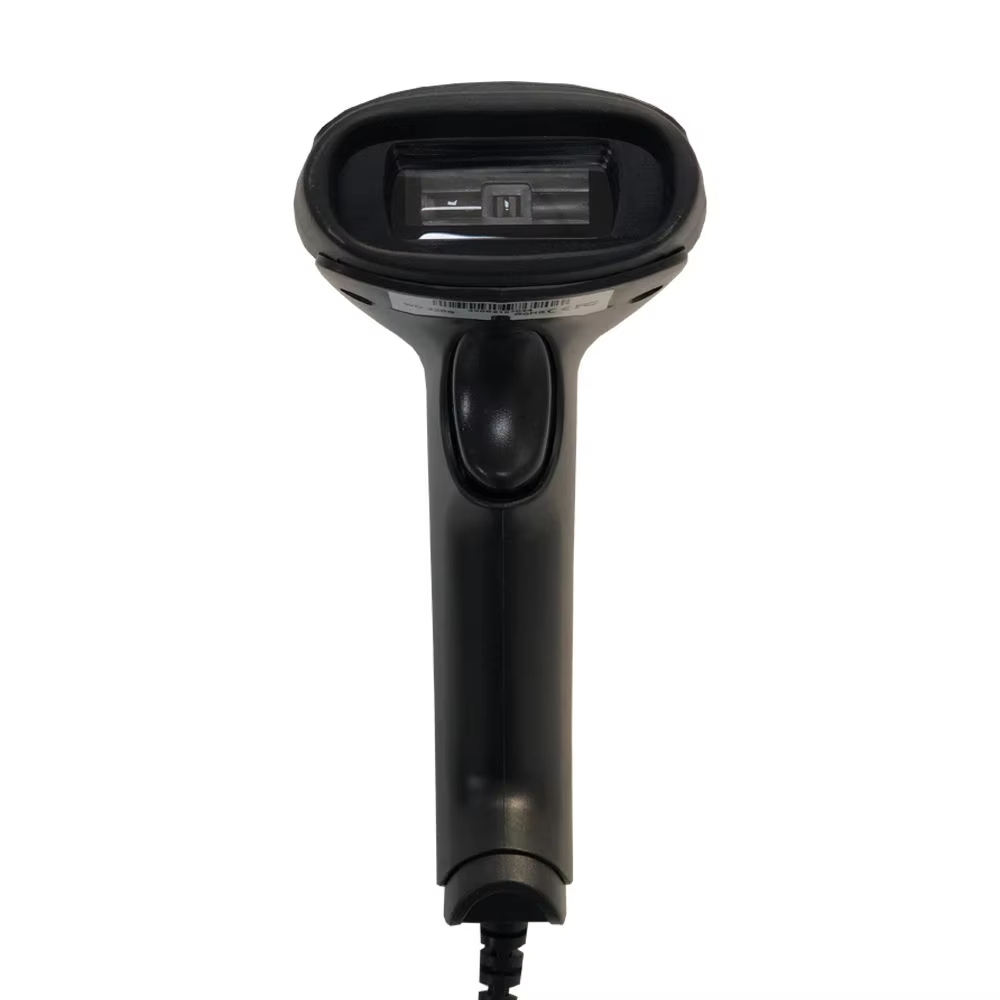

| Type: | 1D CCD Handheld Barcode Scanner |
| Interface: | USB, (RS232, RS485customized) |
| CPU : | 8bit |
| Scanning Rate : | 200 scans per second |
| Interfaces: | USB |
| Min Resolution : | PCS 0.9: 0.101 mm / 4 mil, Min. PCS value: 0.35 |
| Trigger mode: | Manual,multiple read, continuous read, auto-trigger,serial software trigger |
| Decode Capability : | 1Dbarcodes |
| Dimensions: | 90.5 x 69.8 x 160 mm 3.56 x 2.75 x 6.30 in (d x w x h) |
|
Communication Mode |
USB-KBW |
|
Sensor |
Linear CCD Sensor |
|
Reading Angle |
Roll: ±30°, Pitch: ±60°, Skew: ±60° Test Conditions: CODE39,10mil/0.25mm,PCS90% |
|
Print Contrast |
≥25% |
|
Ambient Illumination |
Dark Environment, Indoor Natural Light |
|
Code System |
UPC-A，UPC-E，EAN-8，EAN-13，ISSN，ISBN，Code 128，ISBT 128， Code 39，Code 93，Code 11， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Standard 2 of 5（IATA），Codabar（NW-7），MSI Plessey，China Post，etc. |
|
Product Weight |
160g (including wire) |
|
Packed Weight |
210g |
|
Appearance Dimension |
L151.5mm * W68.5mm * H95mm |
|
Packed Dimensions |
L195mm * W105mm * H80mm |
|
Wire Length |
1.5 meters |
|
Working Voltage |
DC 5V |
|
Current |
75mA（WORK）, 30mA(Standby) |
Working Environment
|
Working Temperature |
-20℃ to 50℃ |
|
Storage Temperature |
-40℃ to 60℃ |
|
Working Humidity |
5% to 95%（Non-Condensing） |
|
Transportation Vibration Test |
10H@125RPM |
