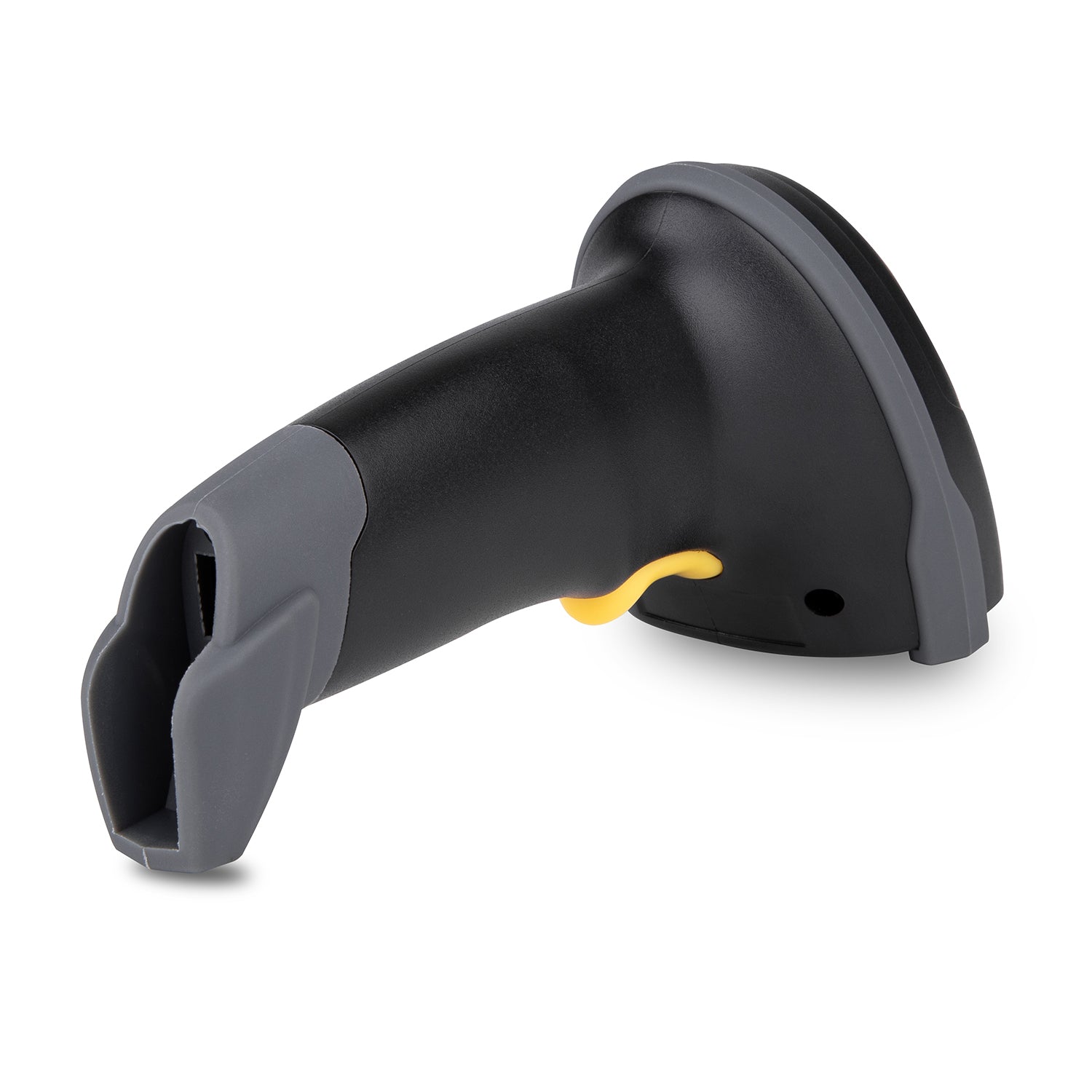

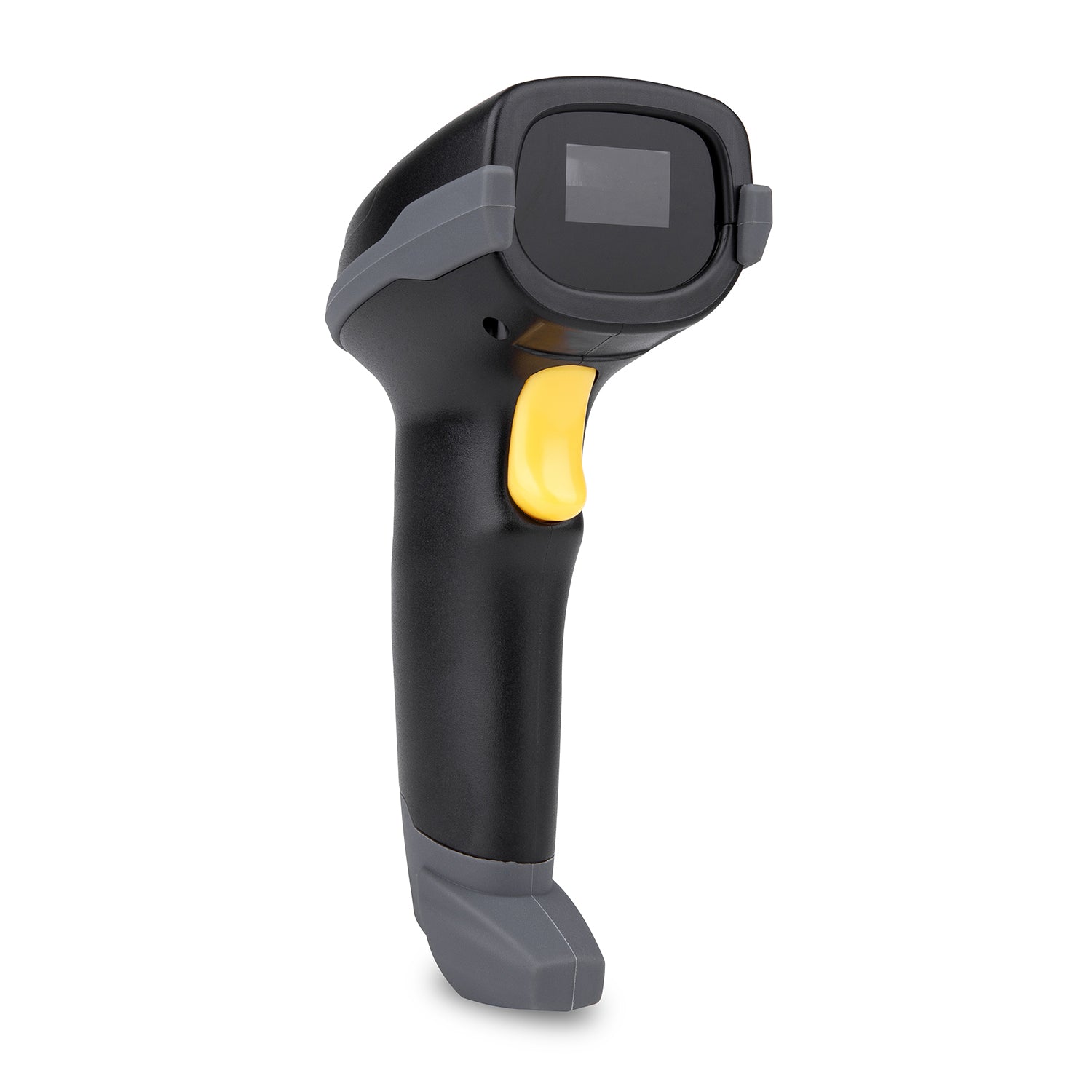

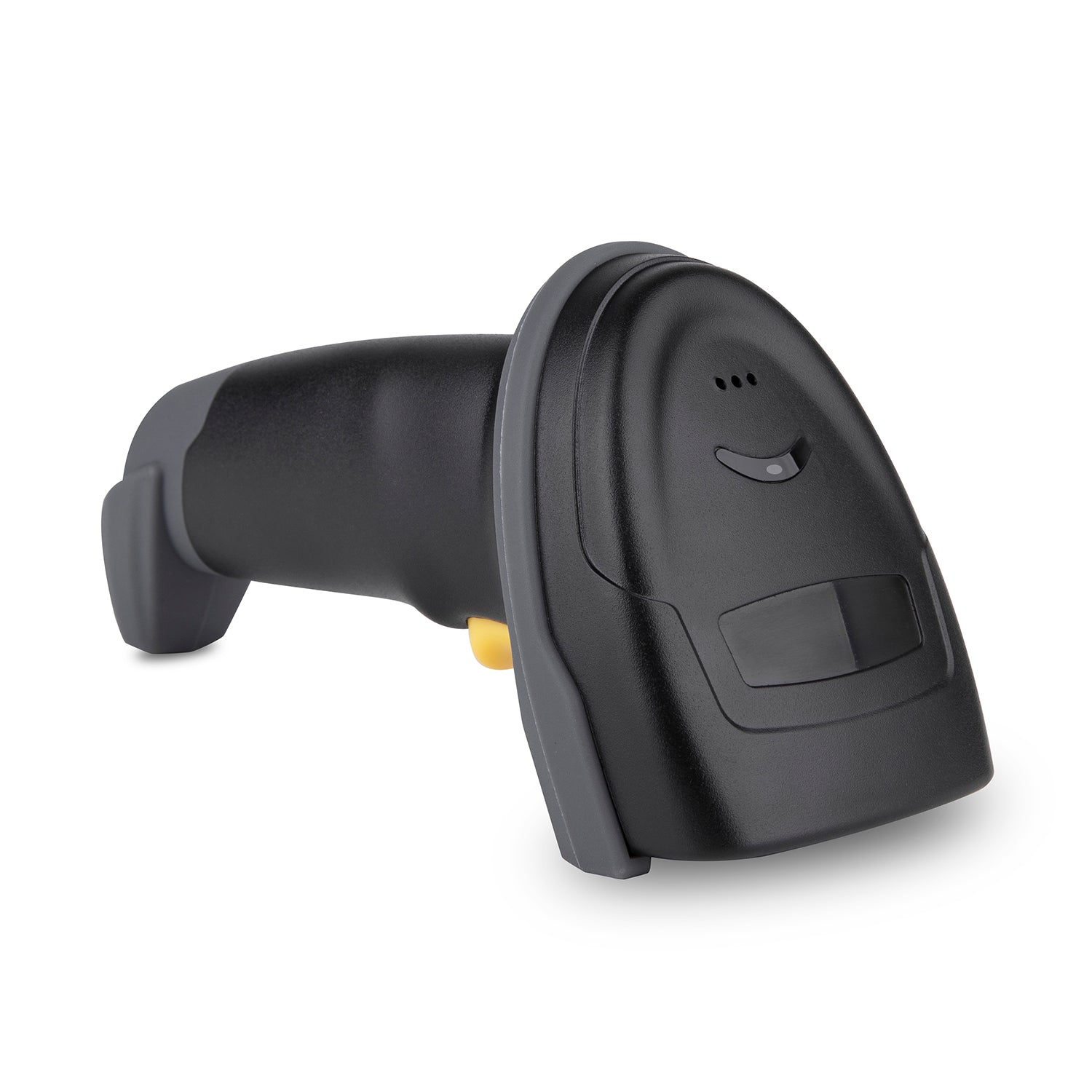

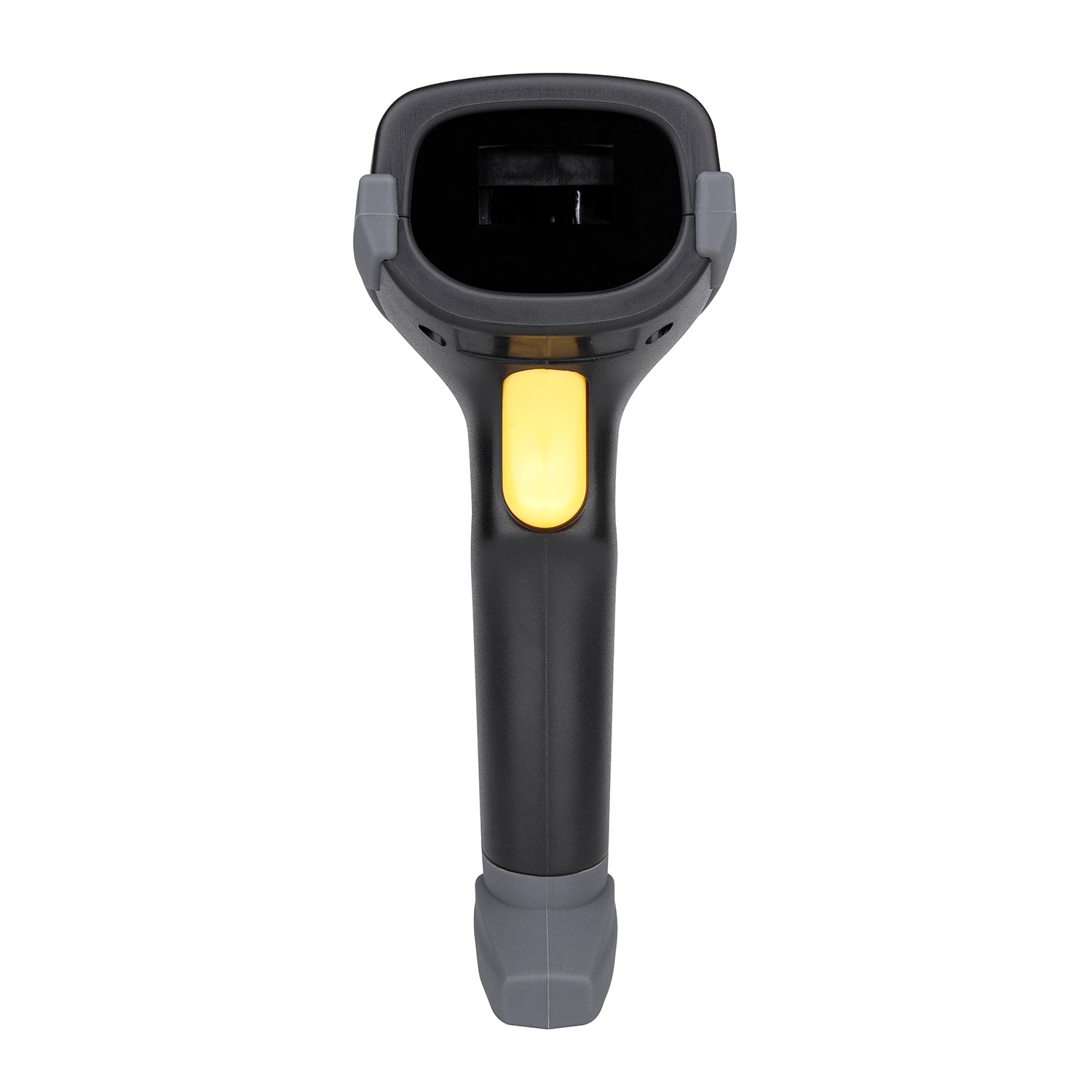

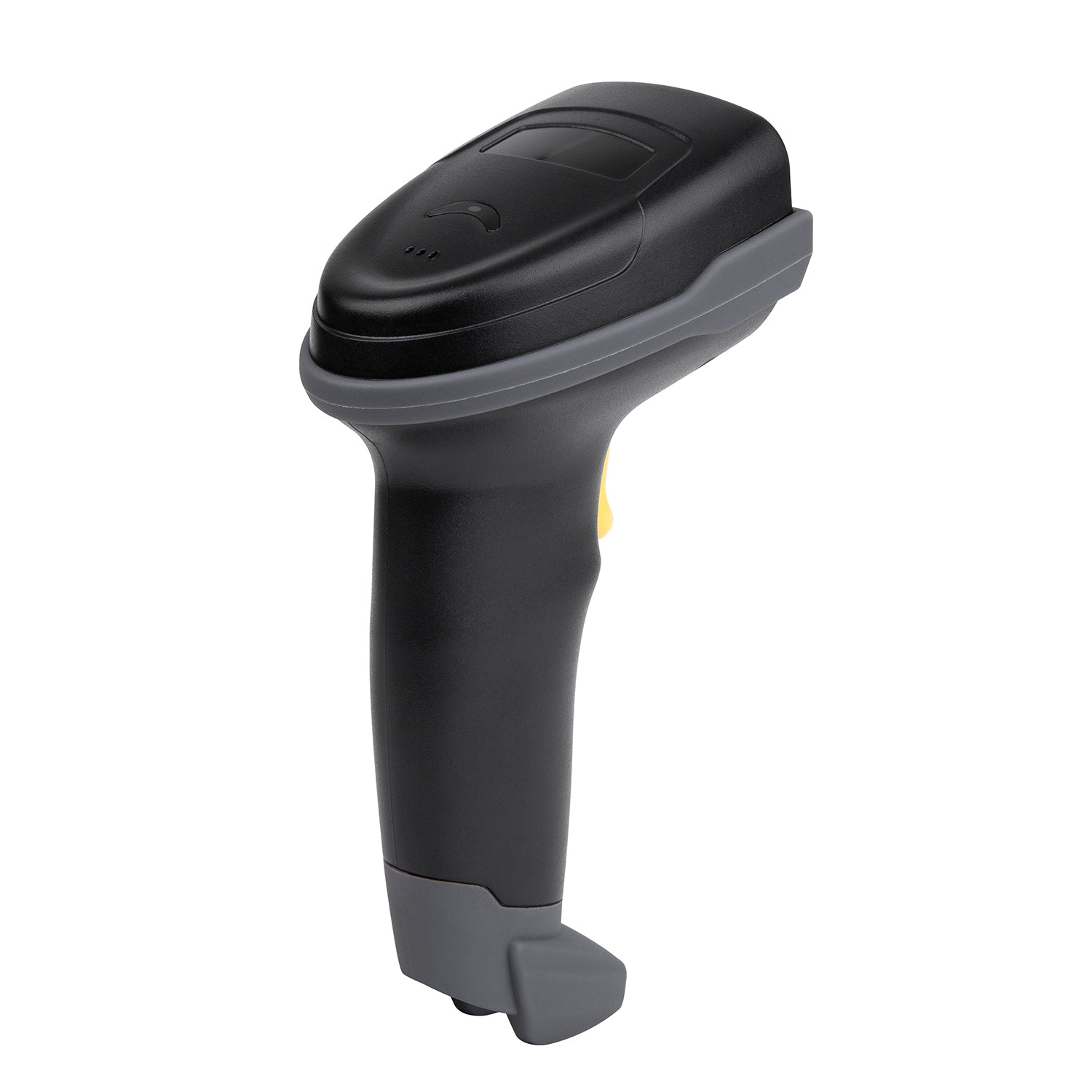

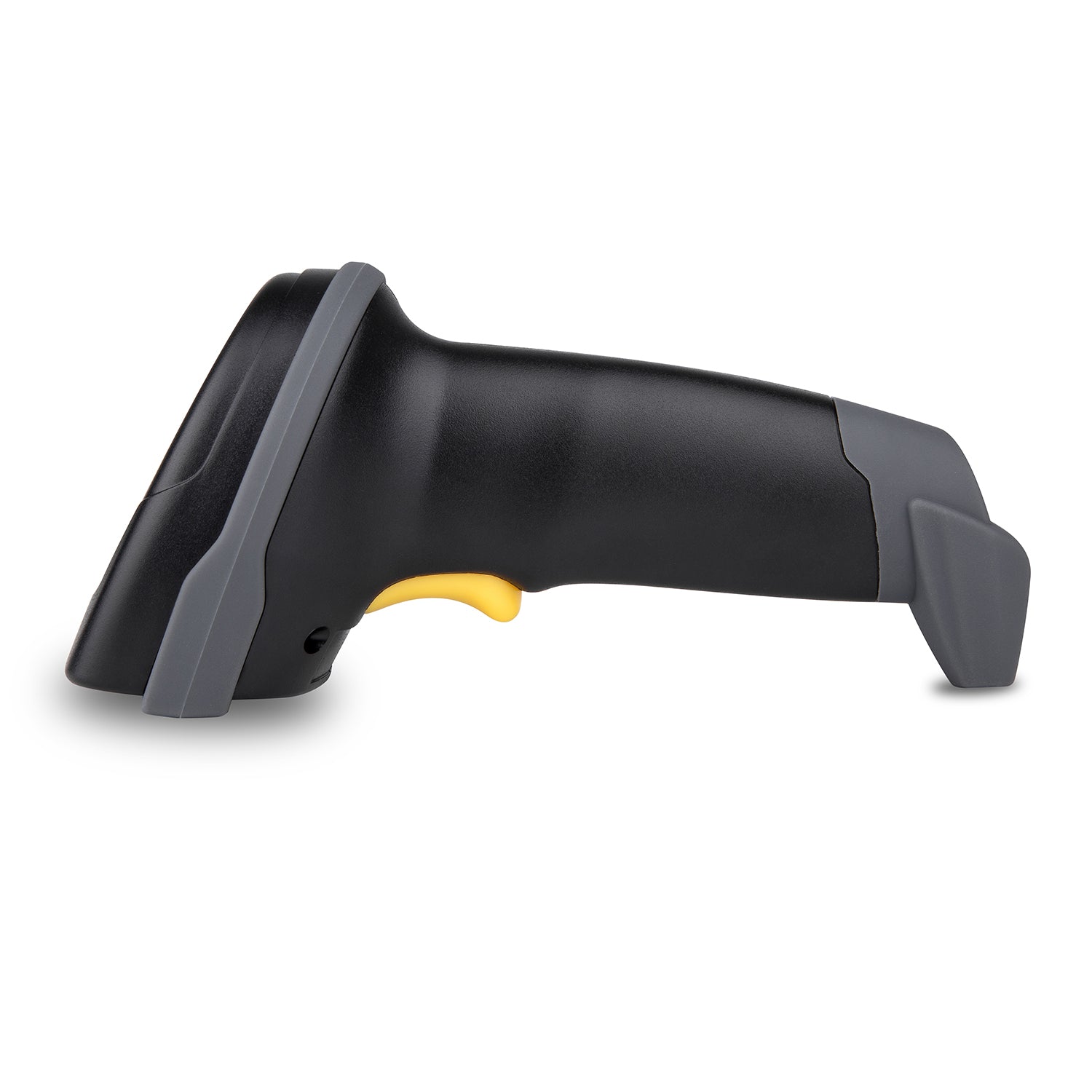

Handheld 1D Laser Wired Barcode Scanner WD-L5
Handheld 1D Laser Wired Barcode Scanner WD-L5
Features:
1. 32 digits decoding chips for faster speed.
2. Read barcode as small as 3.3 mill.
3. Integrate 1300MAH Li-ion battery.
4. Ergonomic design, comfortable to hold.
5. With mini USB receiver, plug and play.
6. Support different language for 25 countries.
7. With the function of storage capacity can be customized.
8. Dopt a highly integrated design, high quality shell, have IP45 protection grade.
9. Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc.
Product parameters:
|
TYPE:2.4G |
Distance:50m |
||
|
Storage:200 barcodes |
Material: ABS+PC |
||
|
Working current:3.5Vx40mA |
Standby current :18uA-5mA |
||
|
Working time :3 to 10 days |
Charging power:5V-500mA |
||
|
Scanning type :bi-directional |
Light source:650±20nm VLD |
||
|
Scanning width :30cm |
BER :1/20million |
||
|
Printing Contract :>20% |
Indication:Buzzer & LED |
||
|
Depth of Field |
3.3mil |
2mm-100mm |
CPU:ARM 32-bit Cortex M4 Resolution :3mil Decoding speed:250/sec |
|
10mil |
2mm-350mm |
||
|
15mil |
5mm-500mm |
||
|
30mil |
10mm-800mm |
||
|
Trigger Mode:Button,Continuous,Auto-Induction(customized) |
|||
|
Scanning angle:Angle of rotation±30°,inclination± 45°,declination ± 60° |
|||
|
Anti-interference:No influence working under strong light and sunshine |
|||
|
Decode Capability:UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,etc. (optional)GS1 Databar,Code32 |
|||
|
Button life :500,000 times |
laser life:10000 hours |
||
|
Drop test :1.5m |
Interface:USB,USB-COM |
||
|
Certificate :CE,FCC,RoHS,IP54 |
|||
