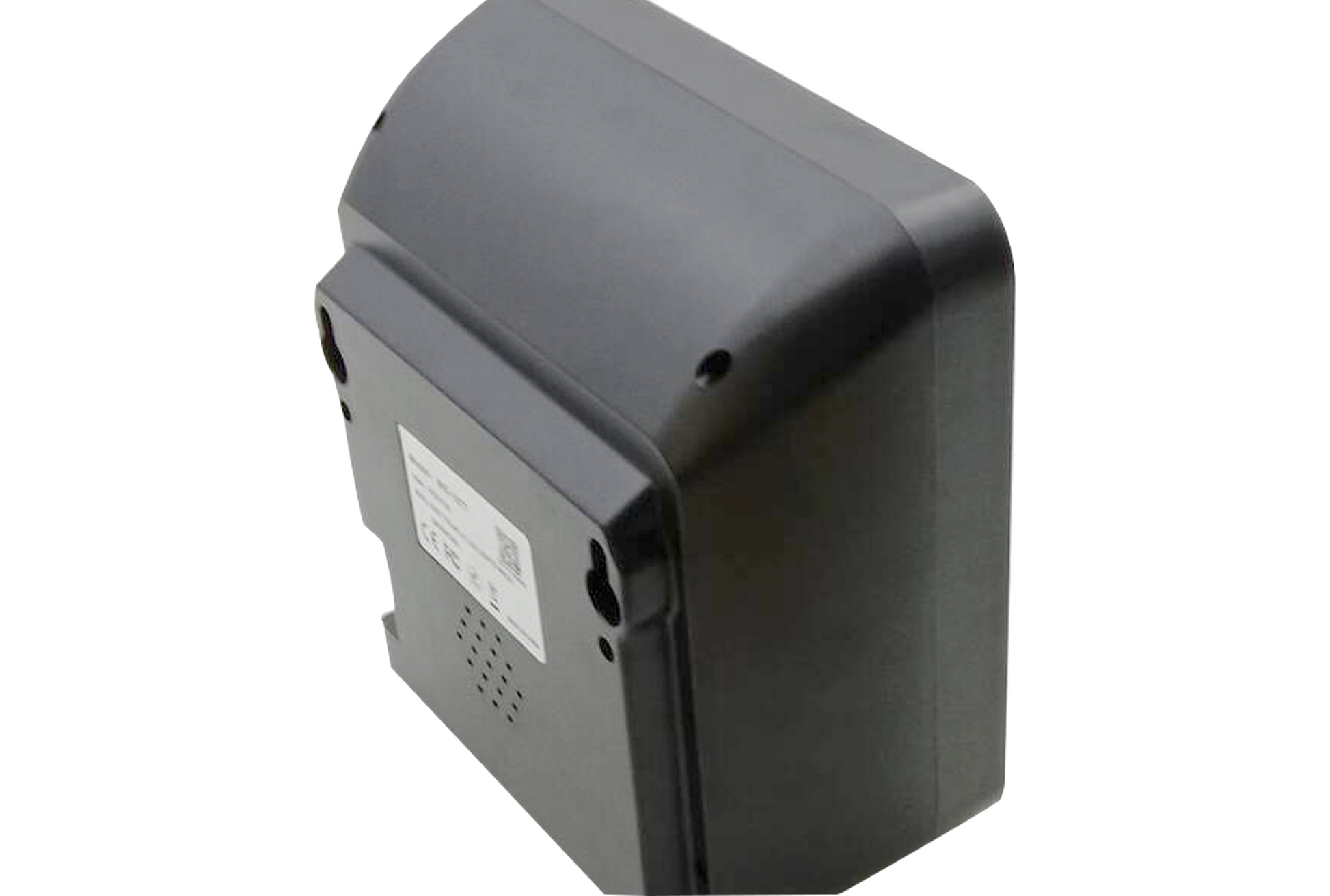

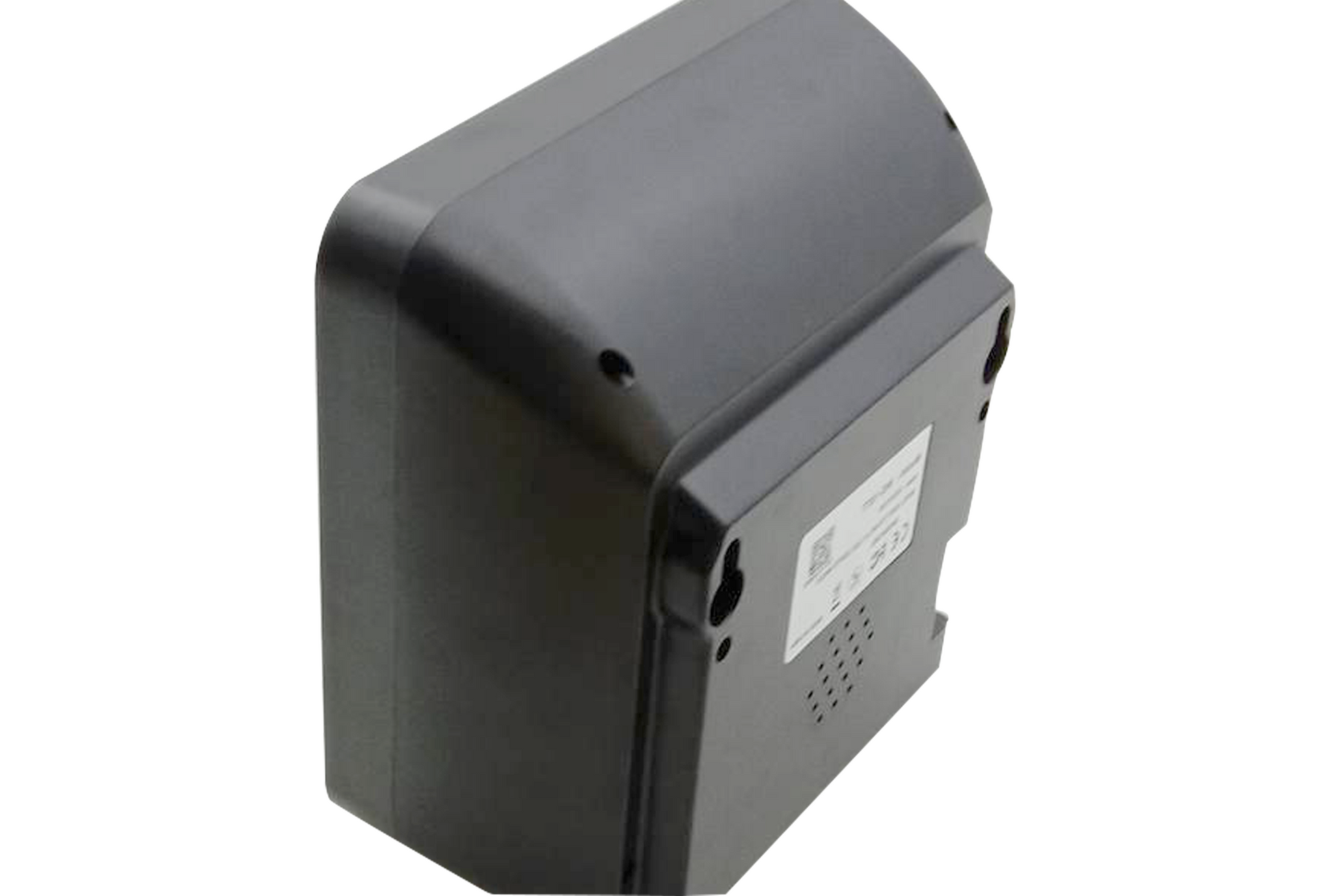

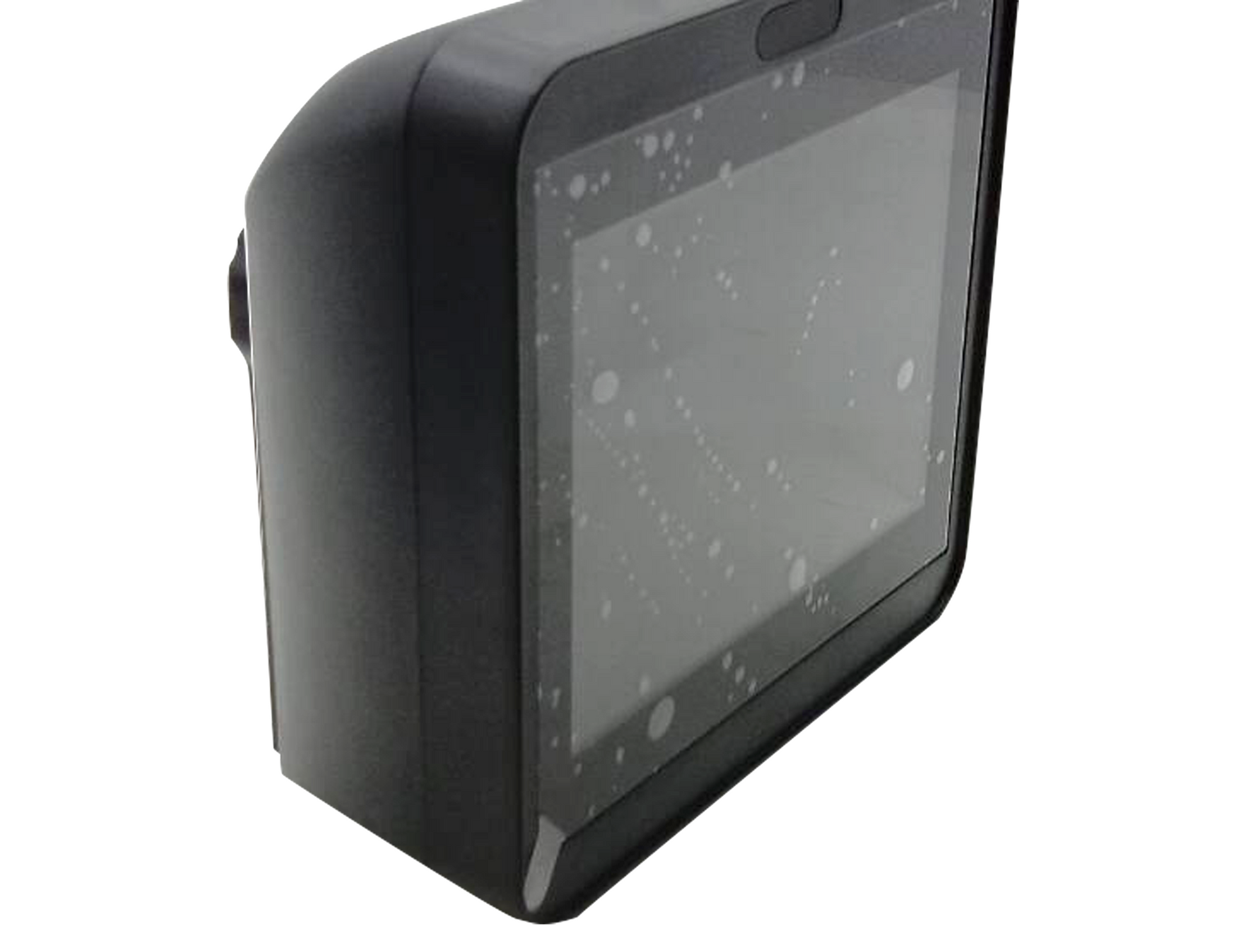

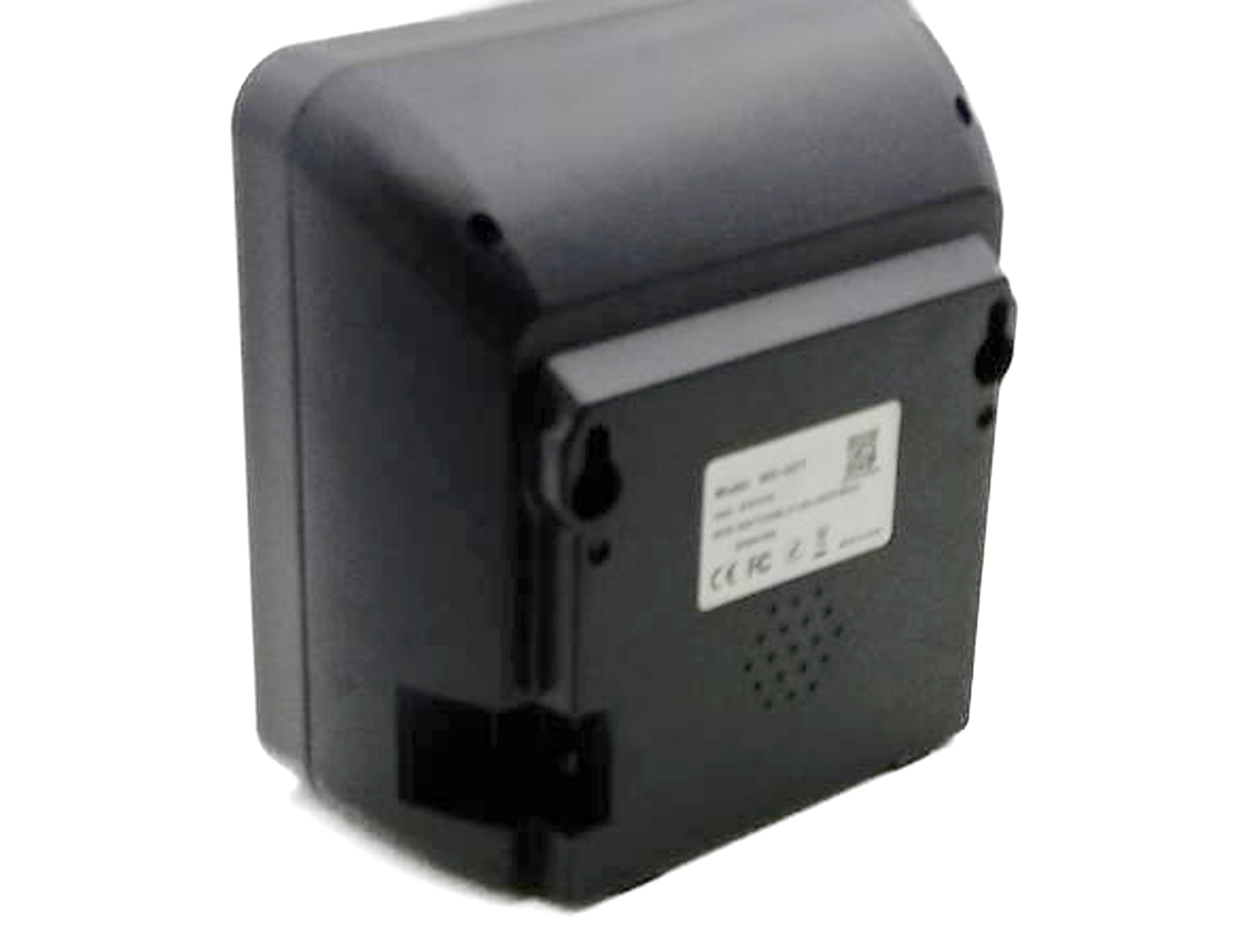

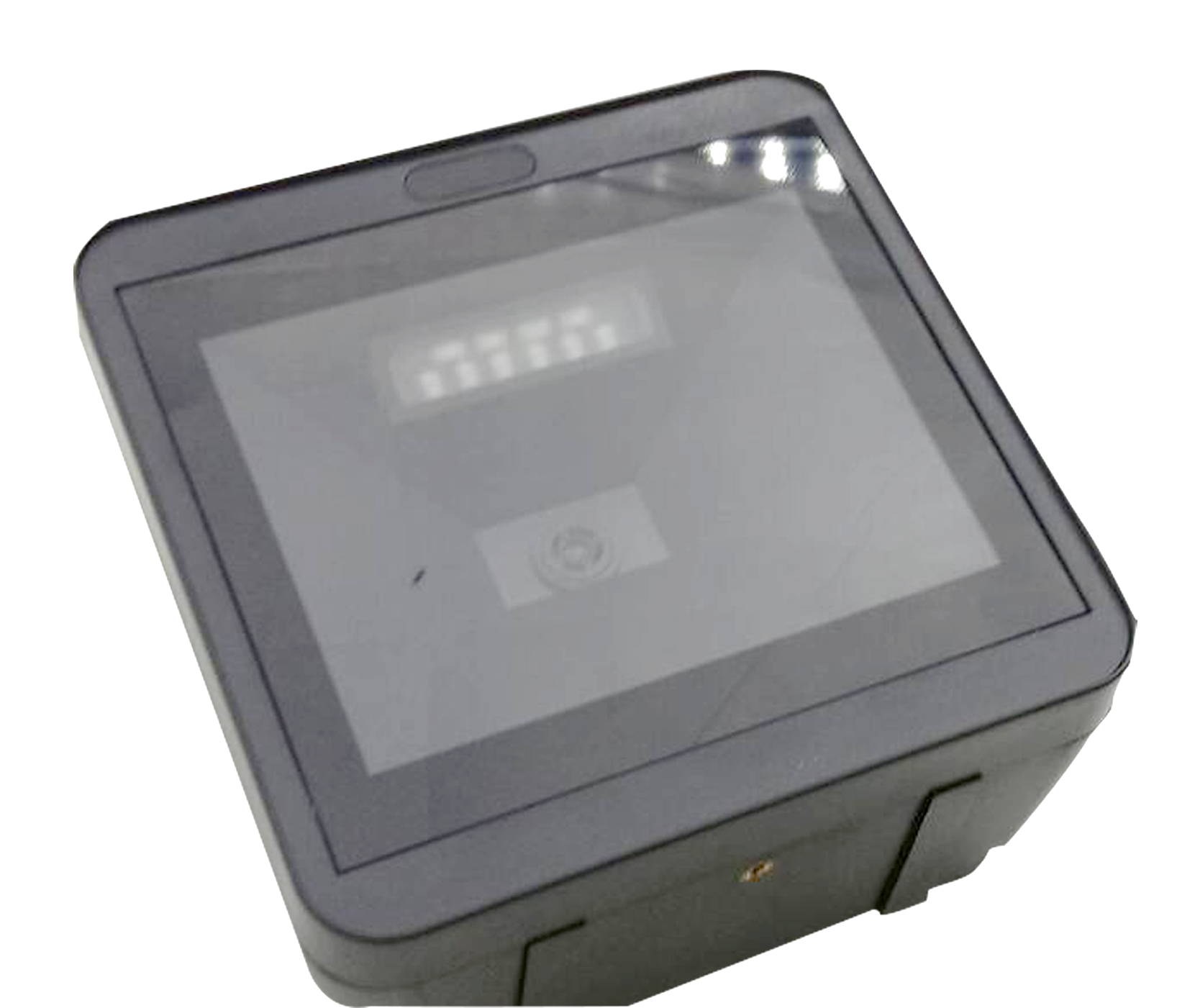

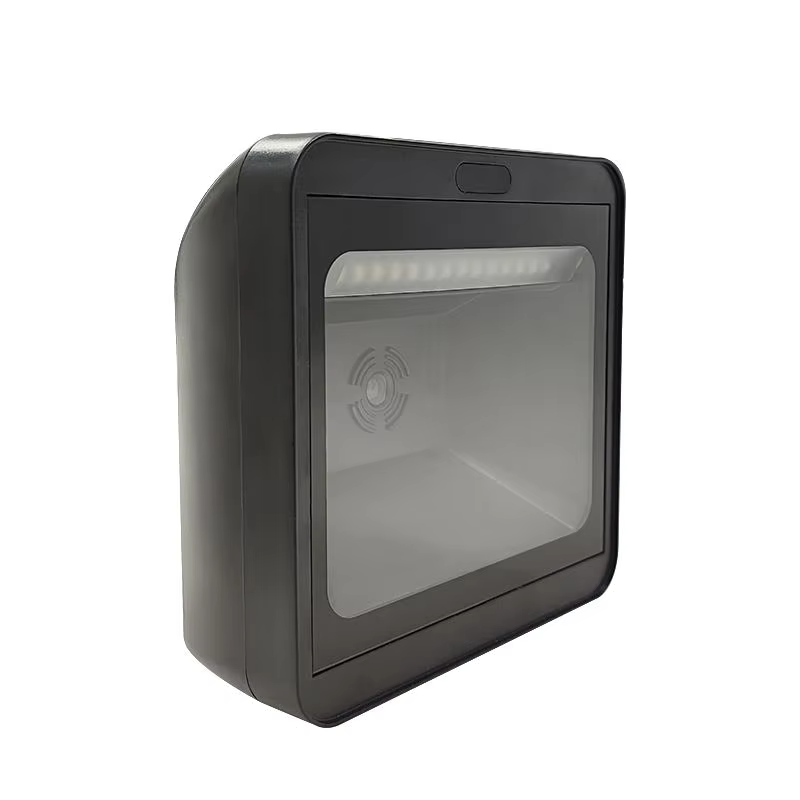

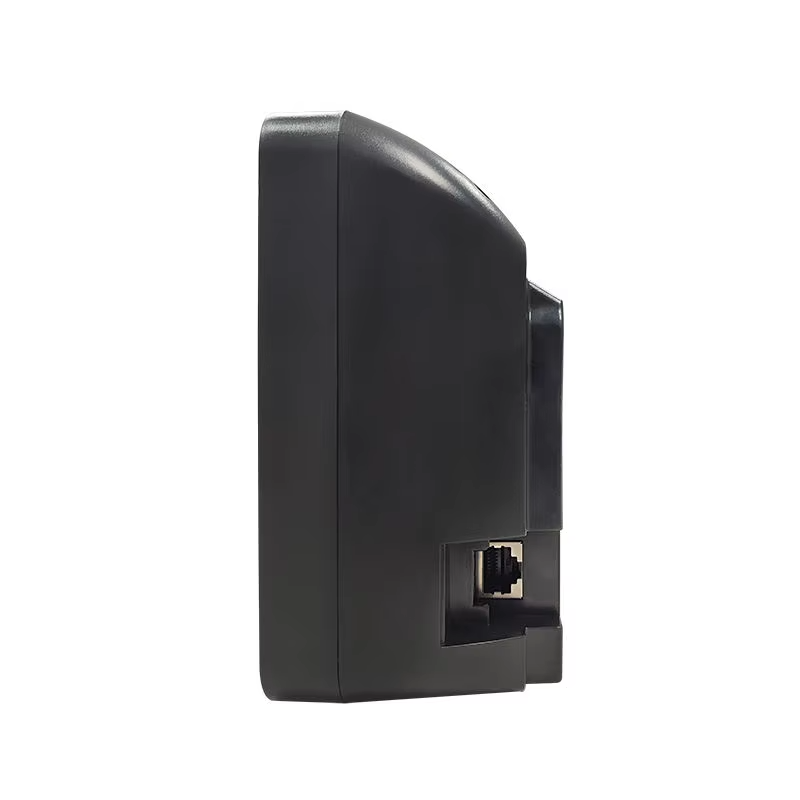

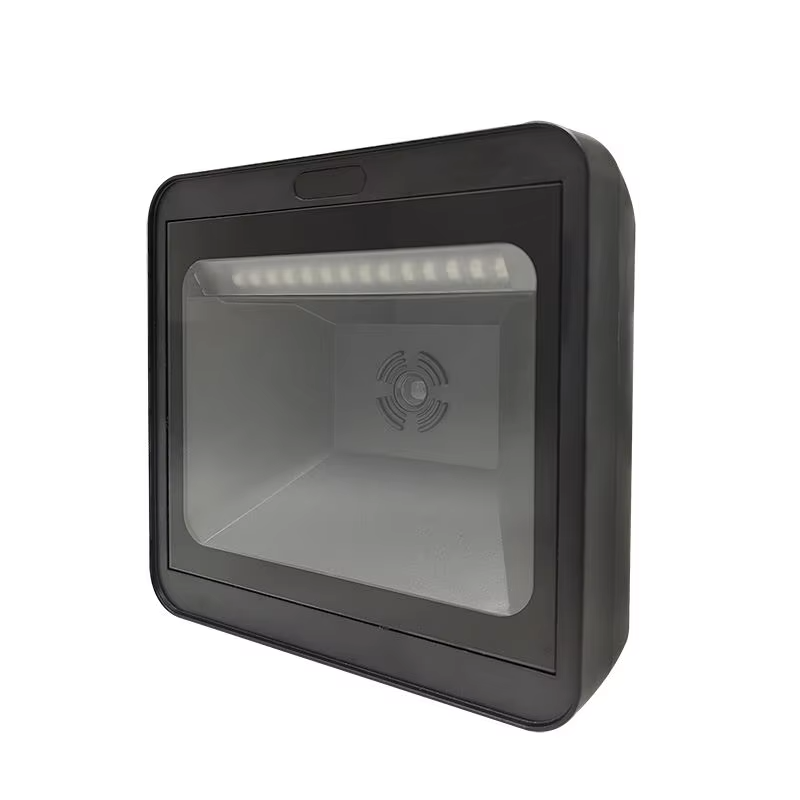

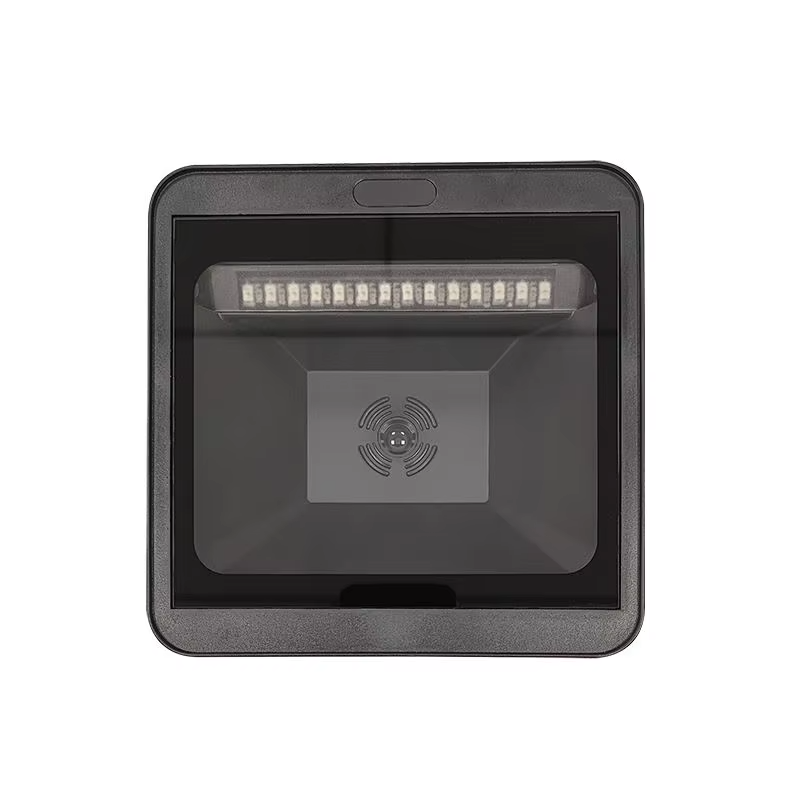

2D&1D desktop barcode scanning platform WD-D1

Product Features:

1. 1 million global exposure camera
   2.suitable for high-traffic scanning requirements
   3.have large wide-angle lens and large viewing angle.
   4.Fixed or suspended design
   5.Can perform continuous high-density operations

   Type:	2D&1D desktop barcode scanning platform
   Interface:	USB (Optional RS232:MOQ300)
   Sensors	CMOS, Global Shutter
   Resolution:	Megapixel(Optional 1.3 million pixels )
   Symbologies:	1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Strande 2 of 5, Codabar（NW-7），MSI Plessey，GS1 Databar(RSS)，China Post，Telepen,etc. 2D: QR Code, Data Matrix，PDF417， Aztec,HanXin Code, etc. Reading accuracy: ≥4mil/0.127mm(PCS90%,Code 39)
   Print Contrast Signal:	≥20%
   Communication Mode	USB（USB-KBW，USB-COM），RS232
   Pixel	1 million (1280 * 800)
   Reading Precision	≥4mil/0.1mm（PCS90%,CODE 39）
   Decoding Speed	100CM/S
   Reading Mode	Continuous、Induction、Command Control
   Prompt Mode	Buzzer, LED
   Reading Perspective	H58°*V43°*D70°
   Reading Angle	Roll: ±360°，Pitch:±70°，Skew: ±65° Test Conditions：CODE39,10mil/0.25mm,PCS90%
   Print Contrast	≥20%
   Ambient Illumination	Dark Environment，Indoor Natural Light
   Product Weight	403g (Without Wire)
   Length of Wire	1.8 meters
   Power Input	DC 5V 1A
   Current	150mA（Average Work）, 530mA(Max)
   Working Temperature	-20℃ to 50℃
   Storage Temperature	-40℃ to 70℃
   Working Humidity	5% to 95%（Non-Condensing）
   Transportation Vibration Test	10H@125RPM
