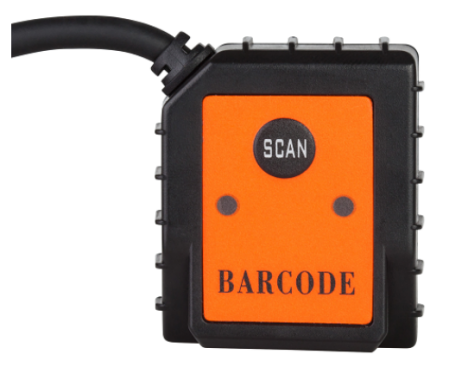

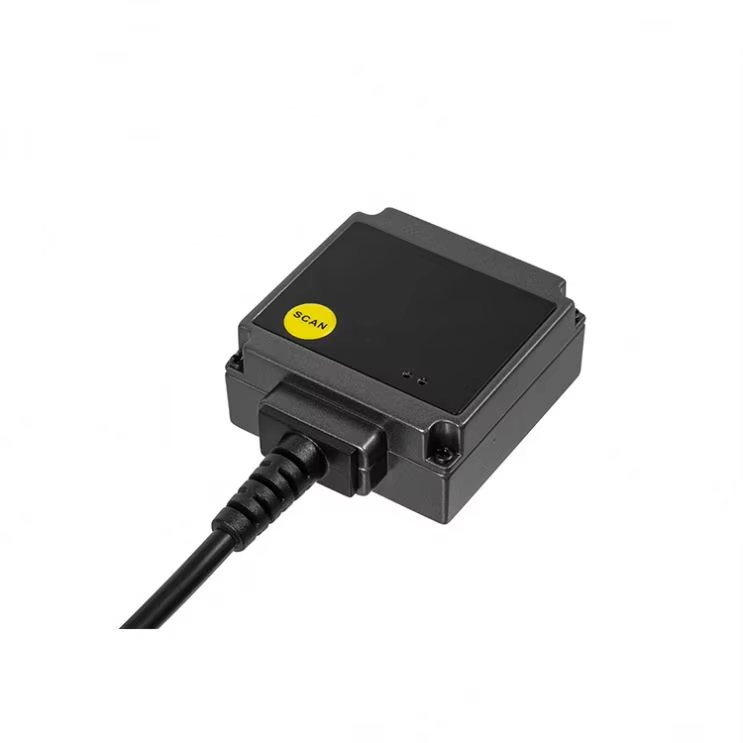

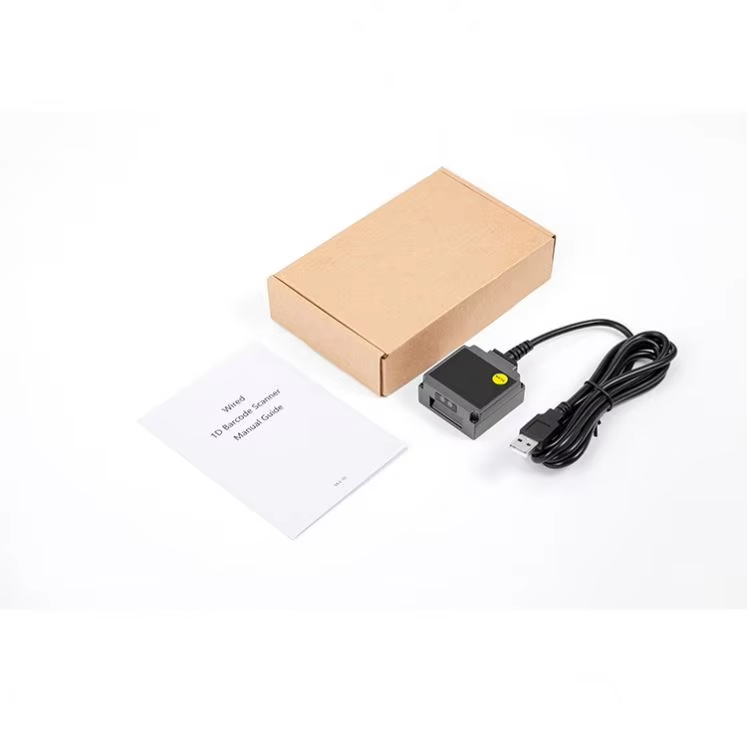

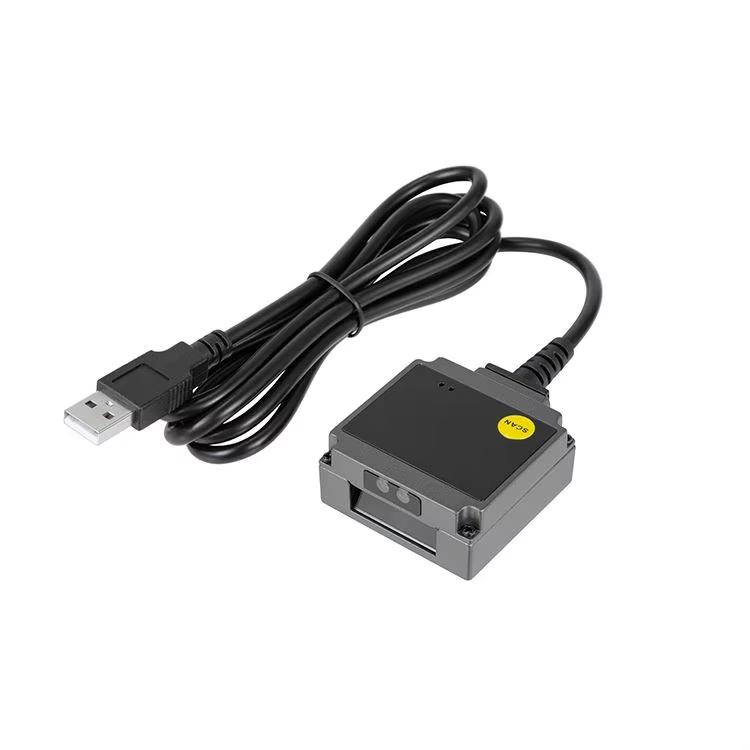

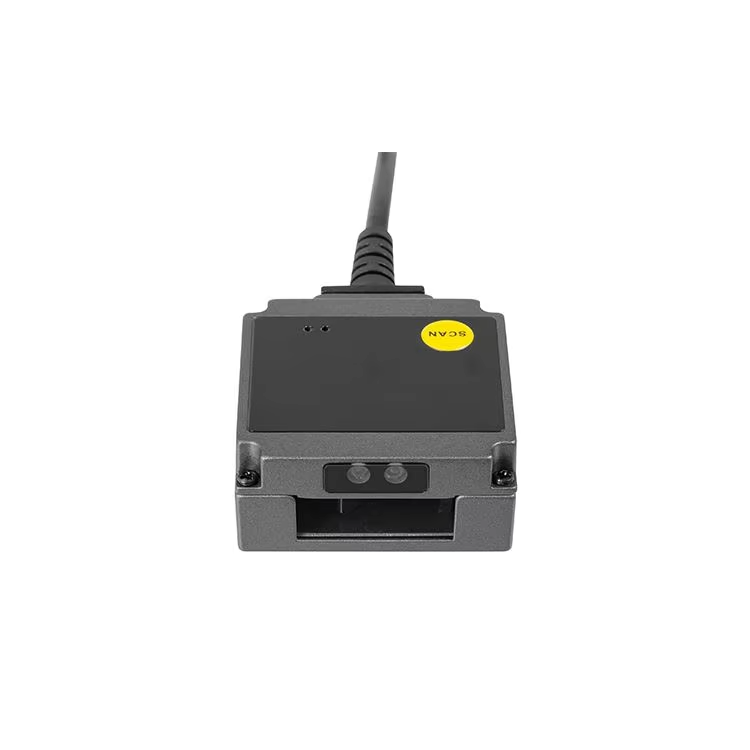

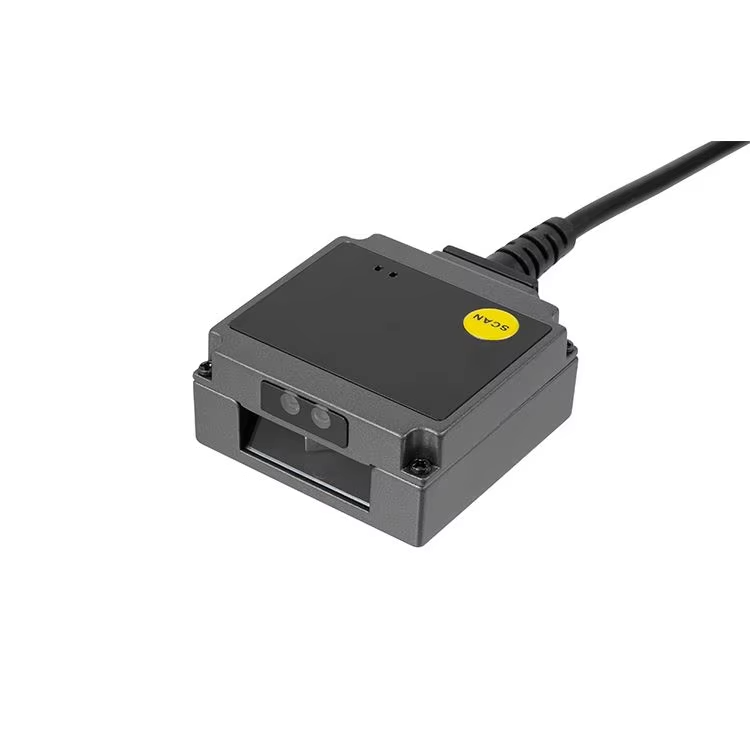

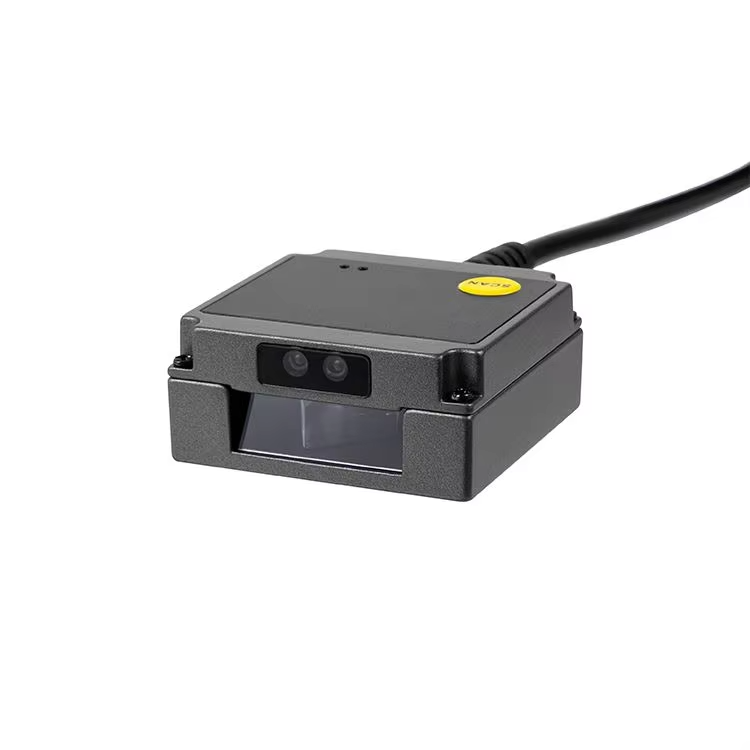

2D embedded scanner WD-M19
2D embedded scanner WD-M19
Product features:
1.High integration
2.Clear aiming and positioning
3.All-code system
4.High frame rate global exposure image sensor
5.High precision high-density identification capability
6.Quick start
| Type: | 2D embedded scanner |
| Interface: | TTL-232,USB,USB COM |
| Light source : | Red light LED |
| Sensor: | 640x480 CMOS( 0.3million 、1 million、1.3 million for option) Global exposure CMOS |
| Decode Capability: | 1D：Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, Code 11, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Industrial 2 of 5,Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Standard 2 of 5, Plessey, MSI-Plessey,GS1 composite code,Etc. 2D：PDF417, Data Matrix, QR Code，Hanxin ，AZTEC，maxicode |
| Depth of Field: | 60mm~260mm (13mil) |
| Symbol contrast | ≥20% |
| Identify Angle | inclination±55°，declination±55°，rotation360° |
| Field Angle | horizontal 37°，vertical 28° |
| Appearance size(mm) | 21.6(D)×13.2(W)×12(H) |
| weight | 5g |
| Operating voltage | 3.3VDC±10% |
| Working current | 170mA（Typicalvalue），220mA（Maxvalue） |
| Standby current | USB:25mA;TTL:10mA; |
| OperatingTemp | -20℃~+55℃ |
| StorageTemp | -40℃~+70℃ |
| Working humidity | 5%~95%（non-condensing） |
| Ambient light | 0~100,000LUX |
| Vibration | 2000G,0.7ms,half sinus,3axes |
| Drop | Can withstand a drop of 1.2 meters to the concrete floor |
