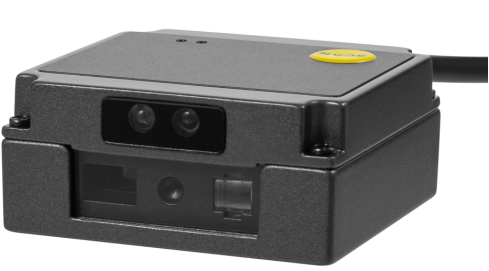

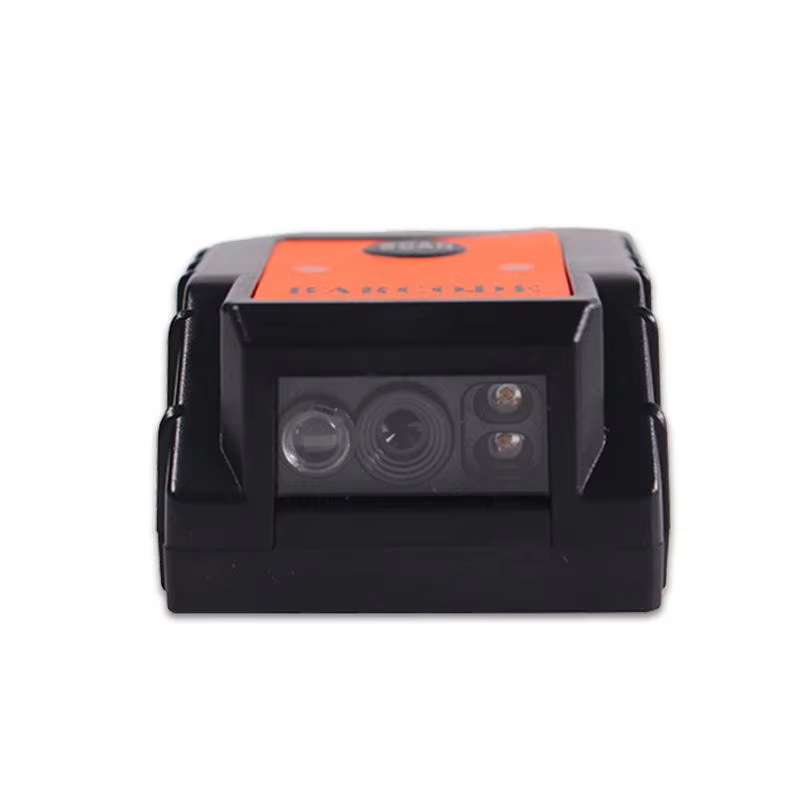

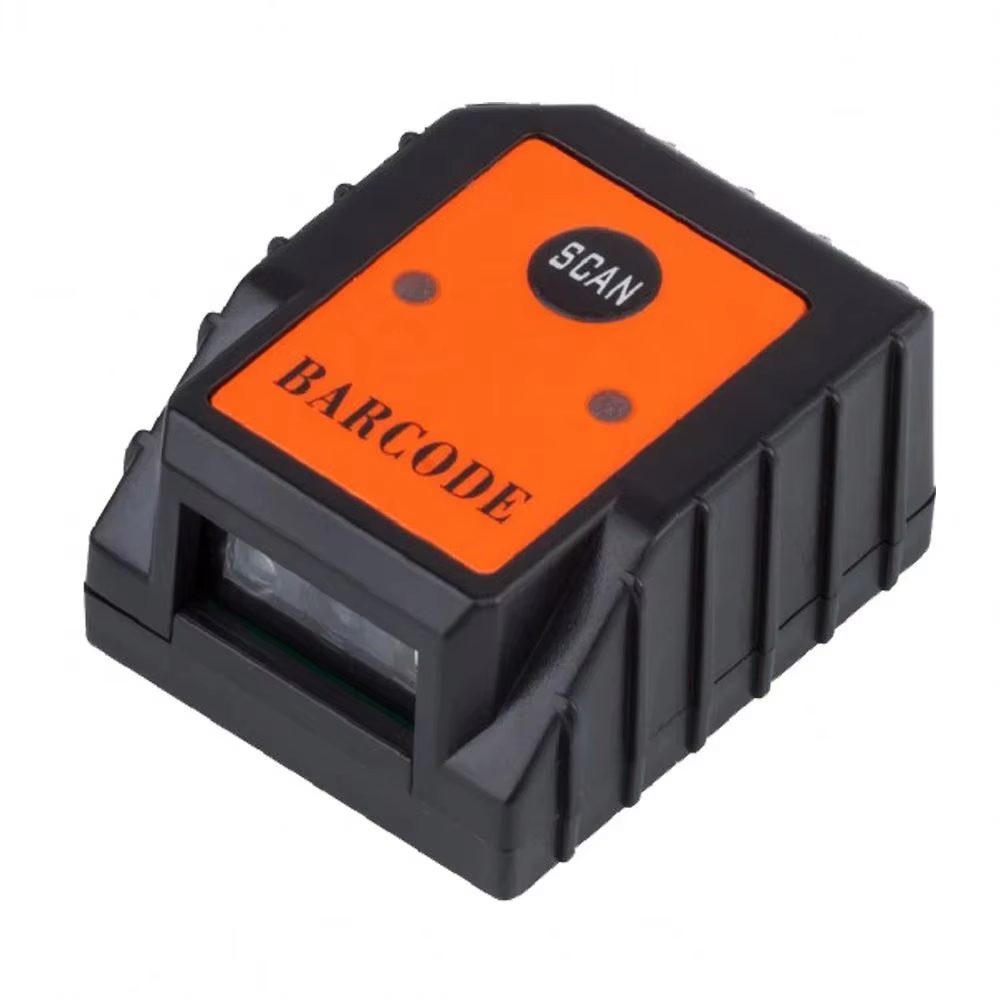

2D Fixed Laser Barcode scanner WD-M18
2D Fixed Laser Barcode scanner WD-M18
Feature:
1.Multiple languages
2.Support online full ASCII character editing of specified barcode type
| Type: | 2D Fixed Laser Barcode scanner |
| Interface: | USB, USB-COM, TTL, RS232 |
| Light source : | 6500K LED |
| Sensor: | 640x480 CMO( 0.3million 、1 million for option) |
| Scan Mode: | Trigger ：Button，Continuous，Auto-sense |
| Decode Capability: | 1D：UPC, EAN, ISBN, ISSN, Code 128, Code 39, Code32, Code 93,Interleaved 2 of 5, industrial 2 of 5, Matrix 2 of 5, IATA 2 of 5, MSI Plessey, Code 11, Codabar, GS1 Data Bar，GS1 Composite， Plessey, Febraban 2D：QR, Micro QR，Data Matrix，PDF417，MicroPDF417，Aztec， Maxi Code，Hanxin |
| Working current | 3.3-5Vx190mA (idle≤25mA) |
| Resolution： | ≥4mil |
| Scanning angle： | rotation360°，inclination± 55°，declination ± 55° |
| FOV： | horizontal 34°, vertical 26° |
| Printing Contract : | ≥ 25% |
| Anti-interference： | 100000Lux Max |
| LED life： | 100000 hours |
| Button life ： | 500,000 times |
| Drop test ： | 1.2m |
| REGULATORY | CE, FCC, RoHS |
| Operating Temp. : | -20℃ to 50℃ |
| Storage Temp. ： | -40°C to 70°C |
| Humidity： | 5% – 95% non-condensing |
