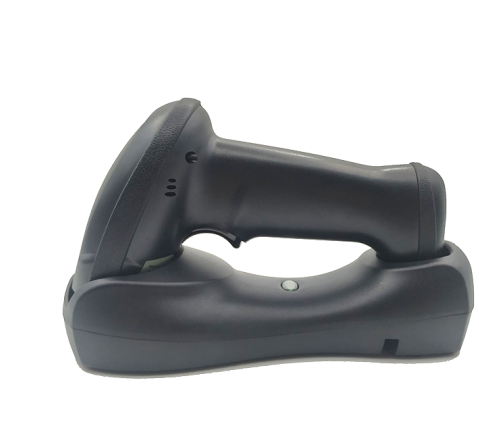

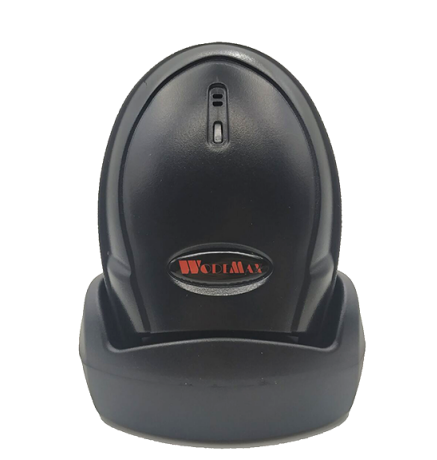

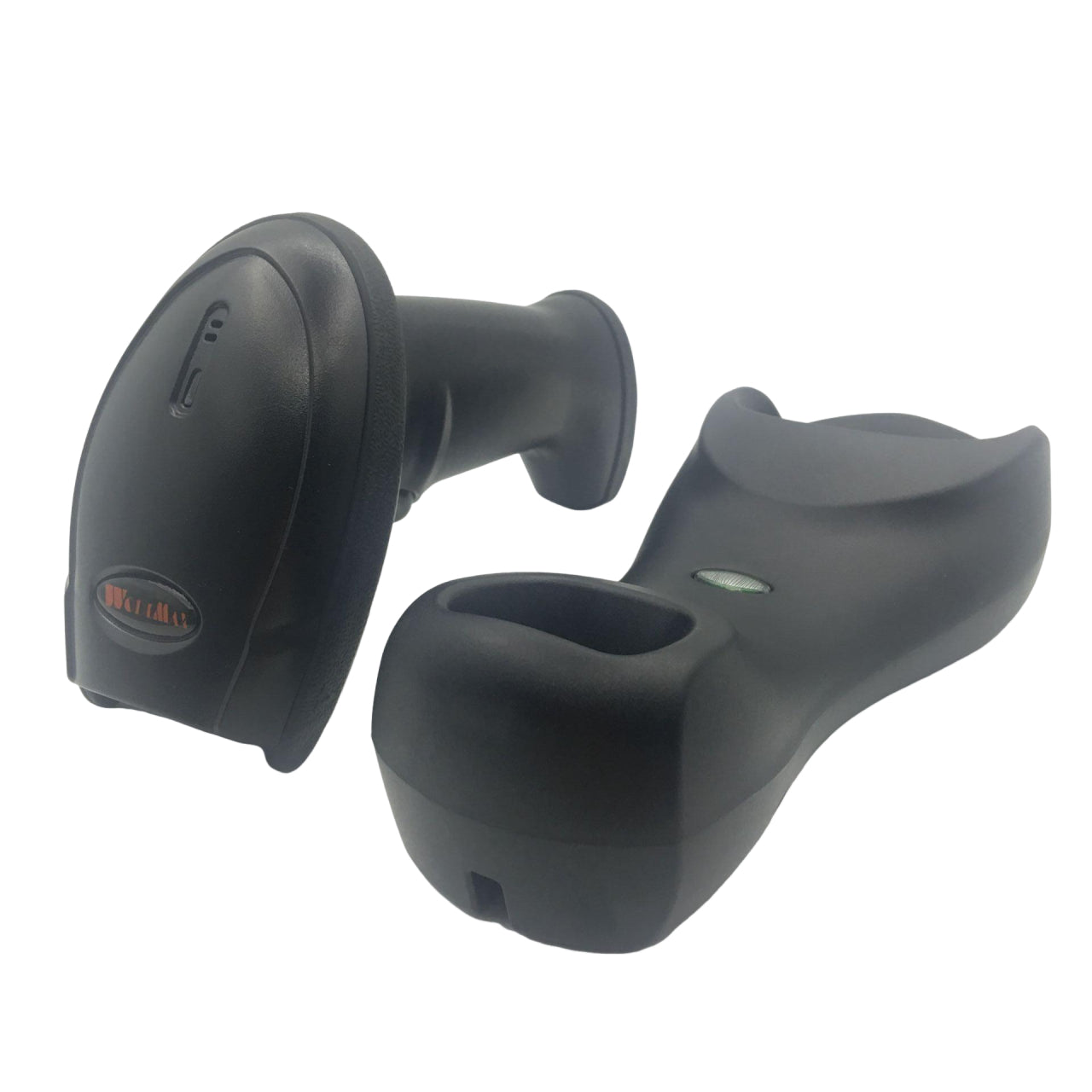

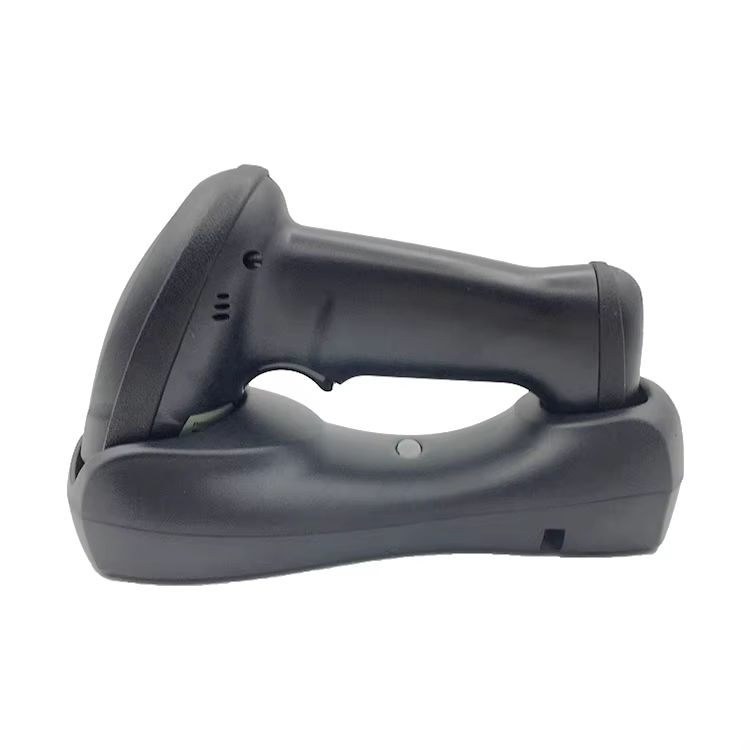

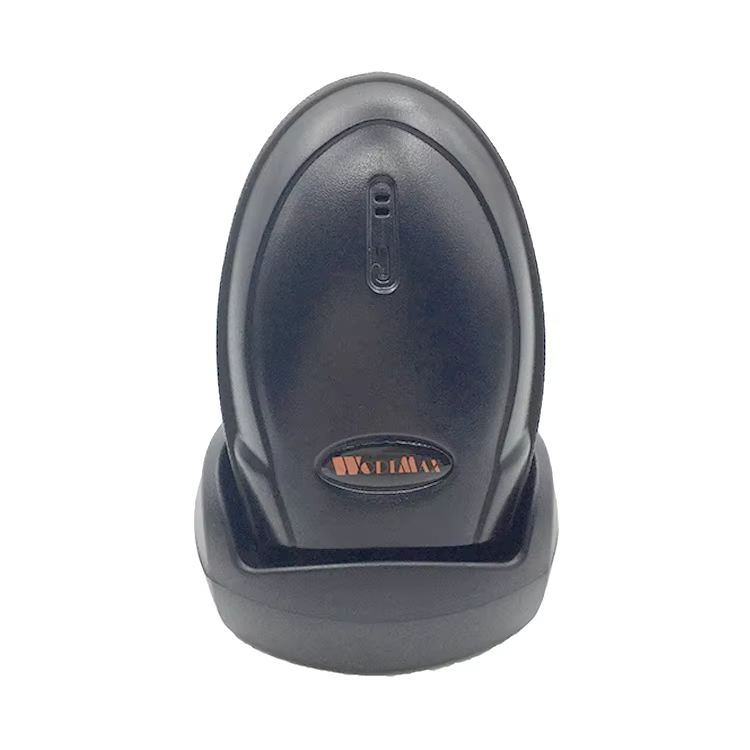

2D Image Barcode Scanner with base WD-S2

2D Image Barcode Scanner with base WD-S2

Feature:

1.You can use it without installing a driver.

2.Wide voltage design avoids the occurrence of data transmission failure due to voltage fluctuations.

3. Multi-language support: support multi-language bar code information direct transmission.

4.The 32-bit main control chip is equipped with patented software, which can smoothly interpret reflective, wrinkled, fuzzy, and color bar codes. It can also be decoded normally under strong light and dark light.

5.Using full tantalum capacitor and anti-oxidation optical technology, it avoids the problem of sensitivity drop after using the traditional scanner for a period of time.

Type :  2D Image Barcode Scanner with base

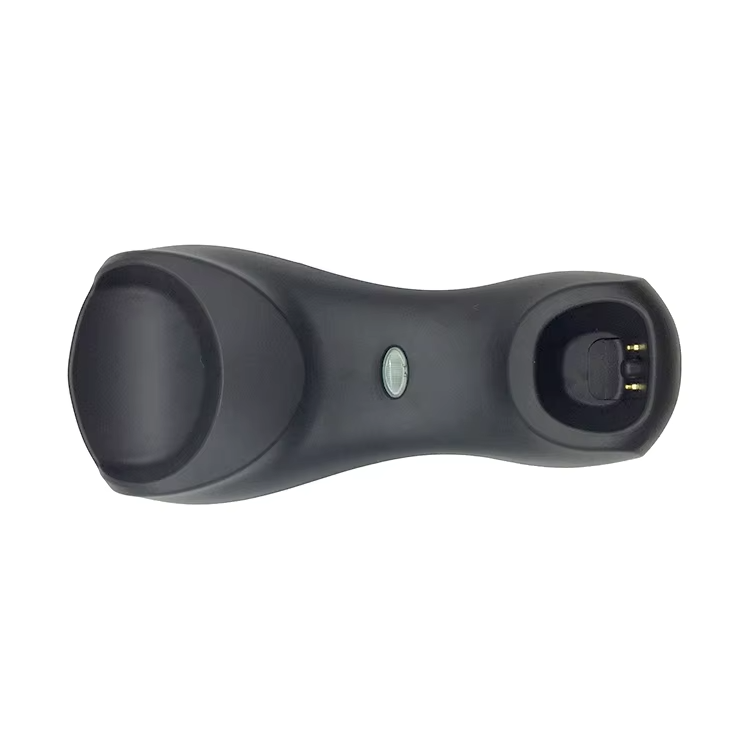

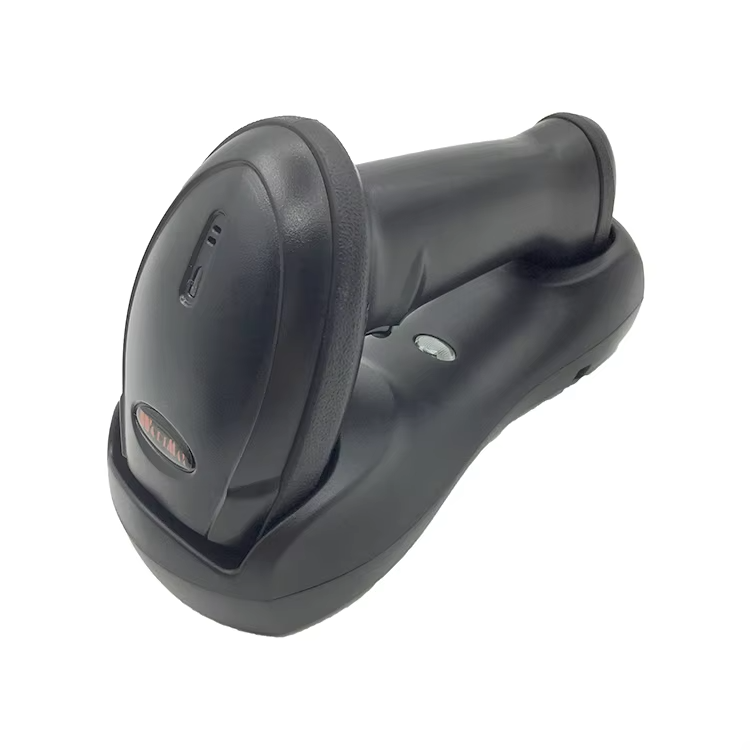

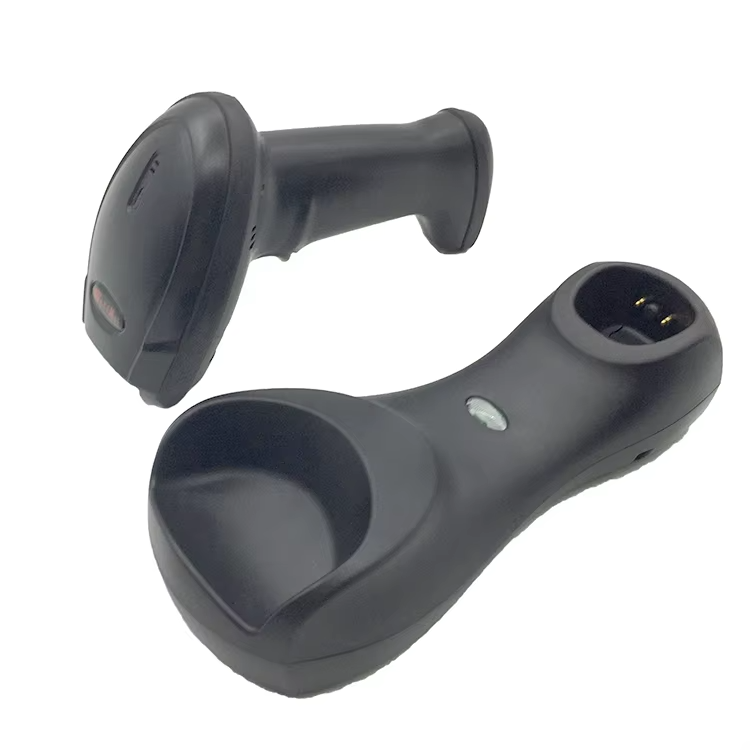

2D Wireless 2.4GHz Barcode Scanner with 1.5m usb cable

Interface type :

2.4GHz, base and PC are connected by USB cable

Material:

ABS+PC

Light source:

illumination: white LED Aiming: green LED, wavelength 525nm

Image sensor

640×480 CMOS

Resolution

1D: ≥ 4mil, 2D: ≥ 8.7mil @PCS90%

Scan mode

Manual button scan, auto-sensing scan

Prompt mode LED indicator, buzzer

Reading angle

roll±360°, Pitch: ±60° or greater, Yaw: ±70° or greater)

Field of view

Horizontal 40°× Vertical 30°

Support barcode type

1D: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25),

Industrial 2 of 5 Industrial 25 code, Matrix 2 of 5, Code93, Code11,

Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN,

 ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded

2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec


Wireless performance

transmission distance

2.4GHz 100 meters (outdoor open environment)

Storage capacity

512K (about 5000 product codes)

Battery capacity

1600mAh

Battery charging time

About 6.5 hours

Continuous working time

≥ 20 hours or continuous scanning 60,000 times

Environmental parameters

Operating temperature

-20°C to 55°C

Storage temperature

-20°C to 60°C

Relative humidity

5% to 95% (non-condensing state)

IP grade

IP67

Drop test

1.8 meters, 100 times

High and low temperature test

30 minutes for high Temp., 30 minutes for low Temp.,

High temperature

60° C

Low temperature

-20 ° C
