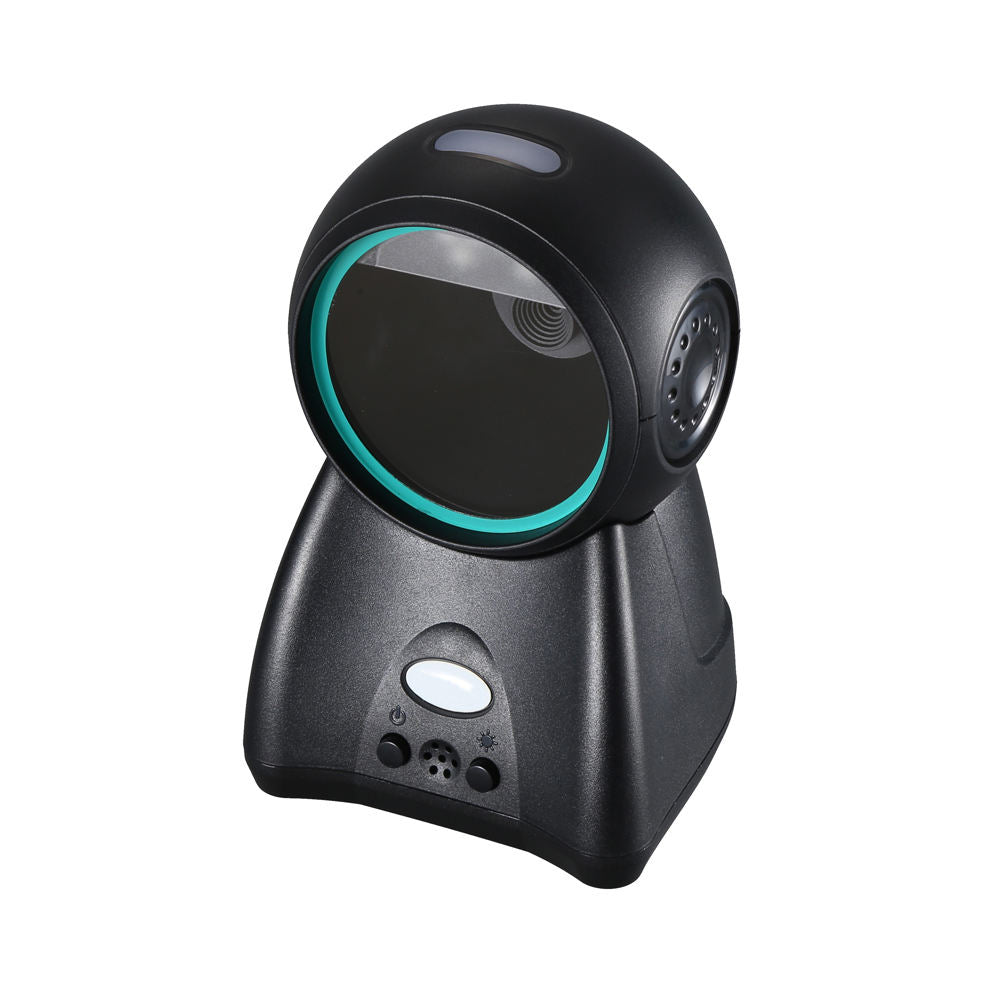

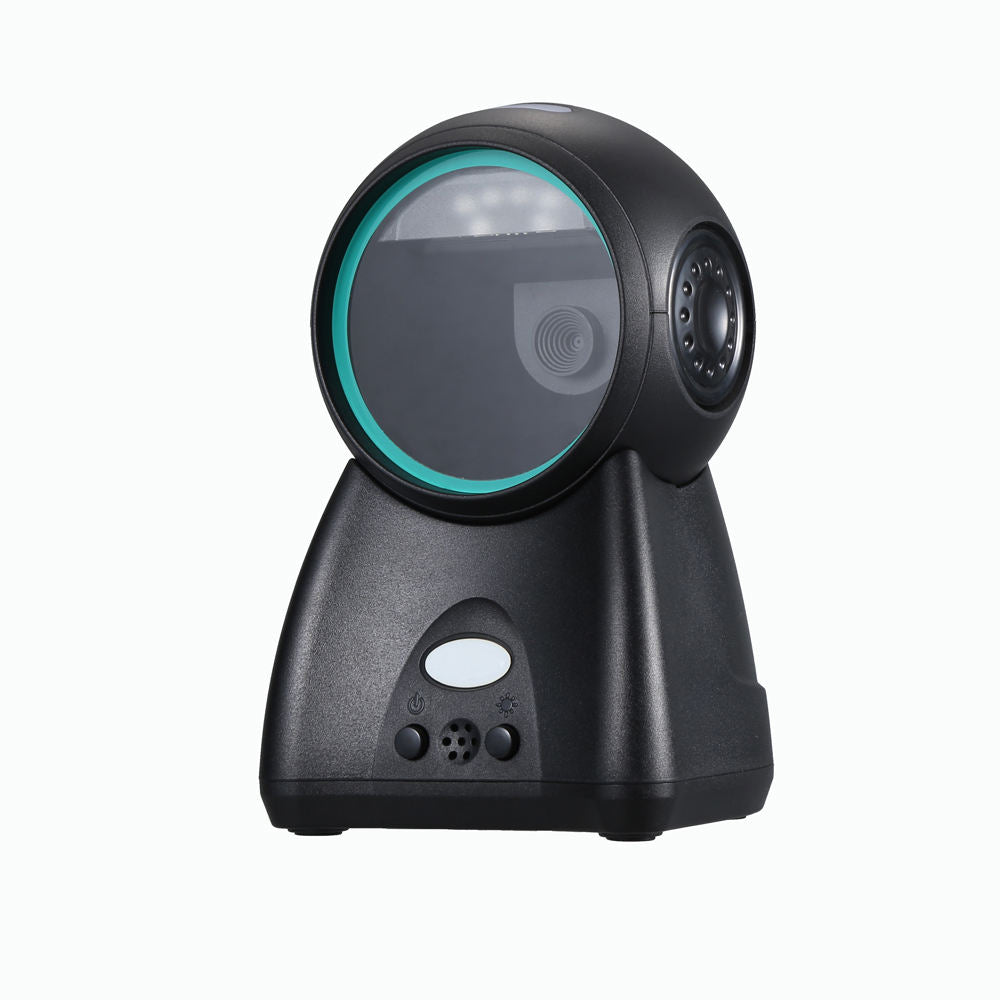

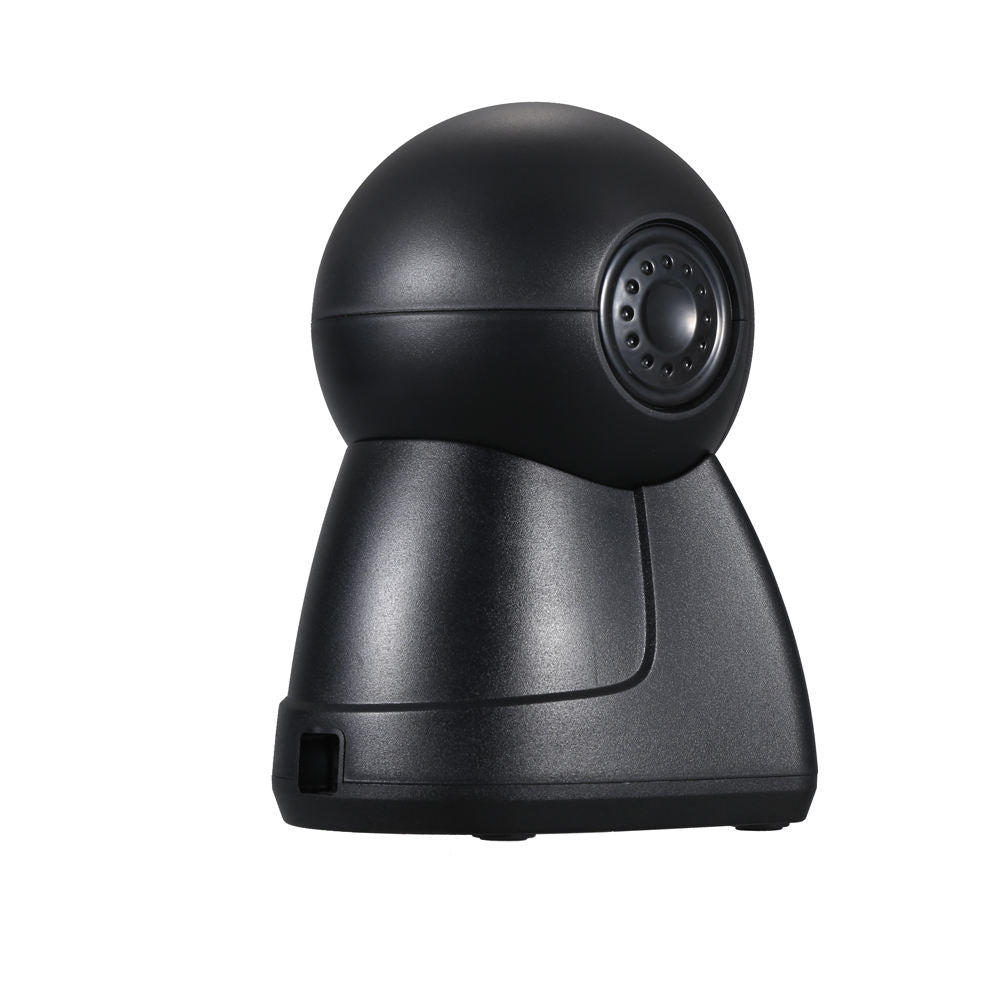

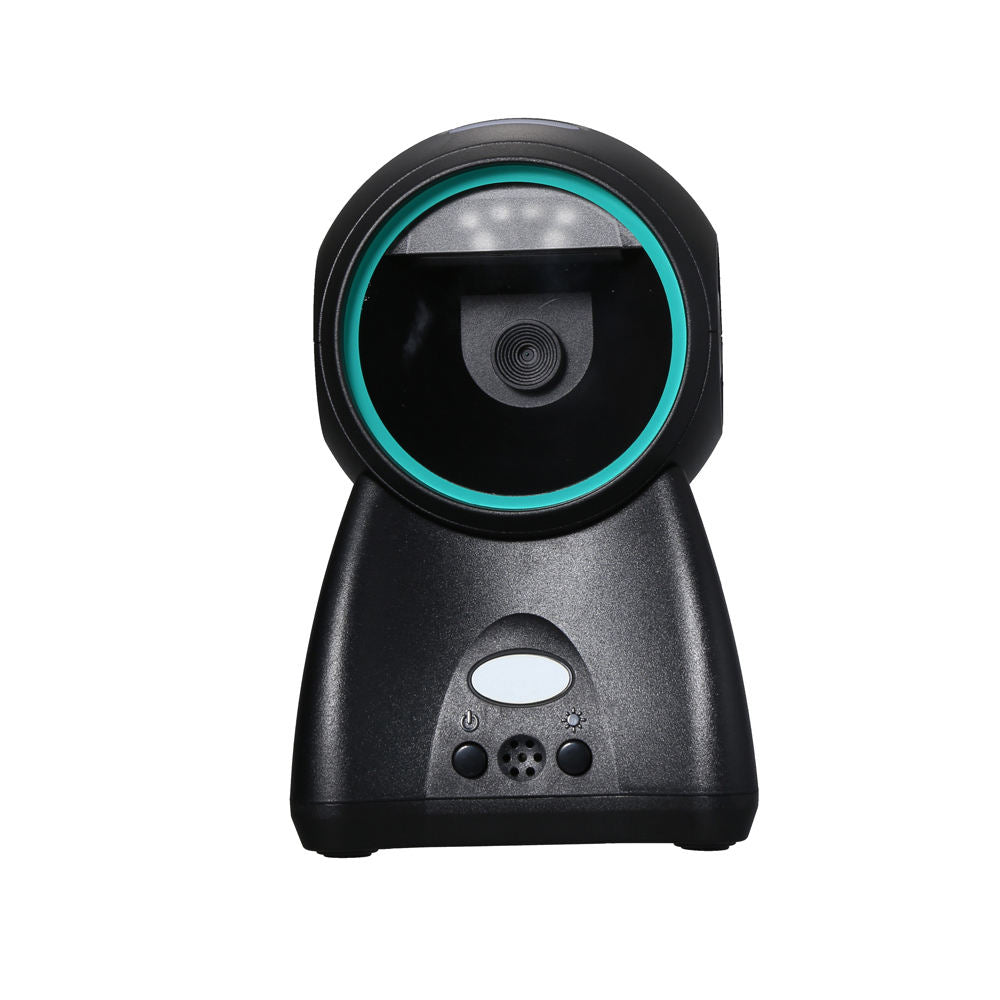

2D Image Desktop Barcode Scanner WD-D3
2D Image Desktop Barcode Scanner WD-D3
Feature:
1.Global exposure engine,
2.has a faster response speed
3. supports multiple languages
4.High brightness LED fill light, can be accurately read in dim environment
| Type: | 2D Image Desktop Barcode Scanner |
| Read code mode: | CMOS (global light burst) |
| Interface support: | USB |
| pixel: | 640*480 |
| illuminant: | The 617-nm red-light LED |
| scan pattern: | All-directional induction triggers scanning / continuity |
| input voltage: | 5VDC±10% |
| working current: | 175mA is typical |
| Depth of view Angle: | 30° V x 48° H (vertical horizontal) |
| Field of view Angle: | 48° (H) x 30° (V) |
| rough weight: | Ap4 ately 450g (including packaging wire and accessories) |
| Cable standard: | Direct line: 1.8m |
| pigment: | Black / white |
| material quality: | ABS+PC |
| Sealing grade: | IP54 |
| Fall height: | 1.5m |
| Decoding ability: | 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS 2D: QR, Data Matrix (DM), PDF417, support for mobile phone screen reading code |
|
|
0.127mm(5mil) @Code 39, PCS=90% |
|
storage temperature: |
5% -95% without condensation |
|
ambient illumination: |
0~8,600 Lux (fluorescent) 0~100,000 Lux (daylight) |
|
input voltage: |
175mA is typical |
|
carton size: |
535mm 355mm 485mm (length * width * height) |
|
Box size: |
175mm 130mm 115mm (length * width * height) |
