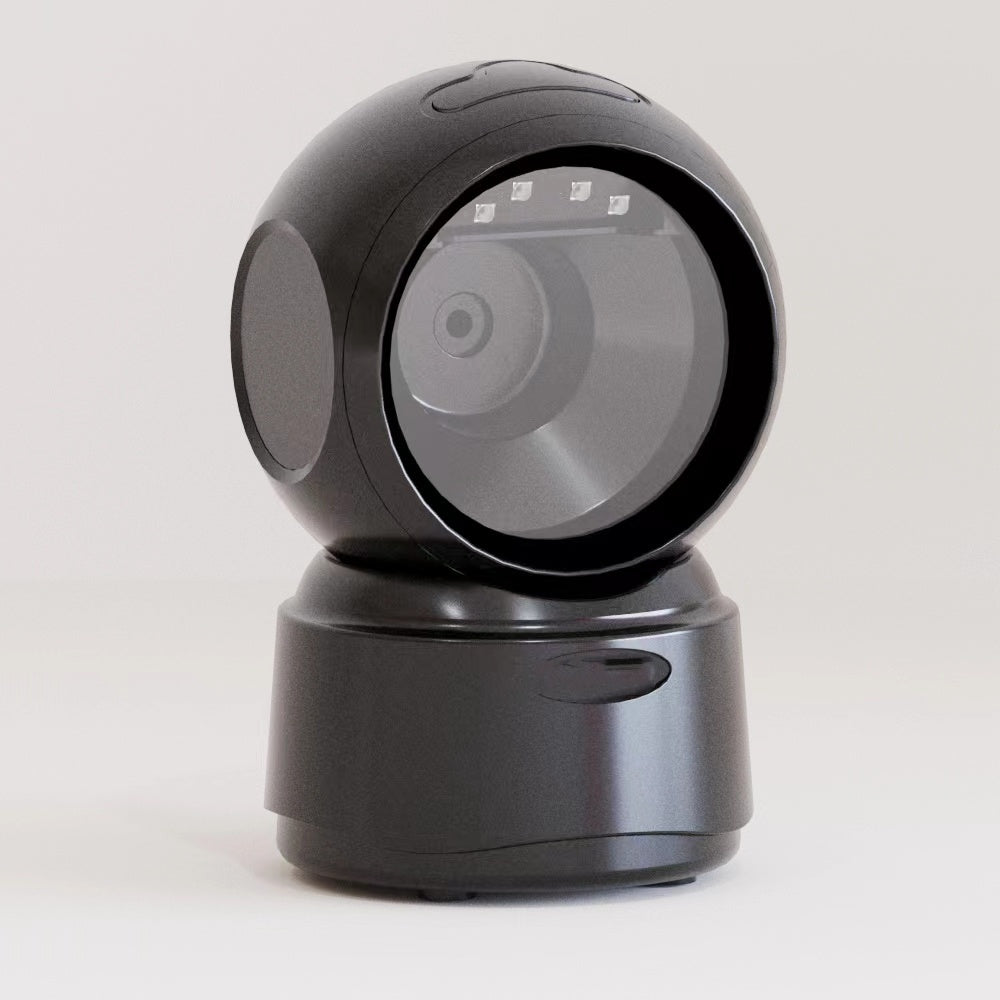

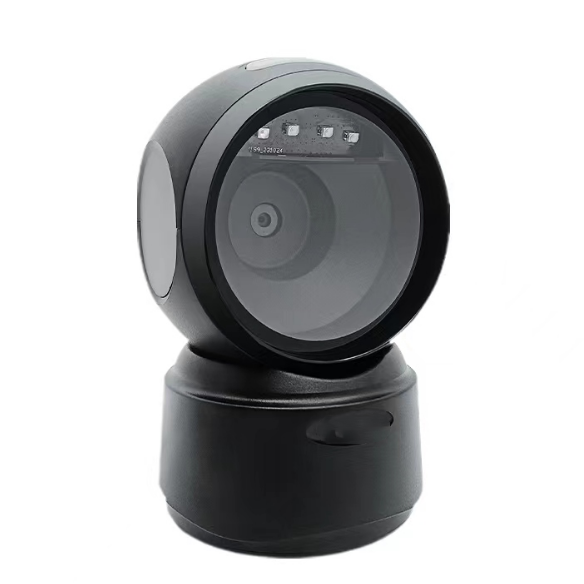

WD-D9 2D Image Desktop Barcode Scanner
WD-D9 2D Image Desktop Barcode Scanner
Feature:
1.Scan smoothly
2.Multi-prompt, buzzer + LED indicator for feedback
3.eIP42 rated 1.5 meter drop height using ruggedized hardware
| Type | 2D Image Desktop Barcode Scanner |
| Read code mode | CMOS (global light burst) |
| Interface support | USB |
| pixel | 640*480 |
| illuminant | The 617-nm red-light LED |
| Scan pattern | All-directional induction triggers scanning / continuity |
| Input voltage | 5VDC±10% |
| Working current | 175mA is typical |
| Depth of view Angle | 30° V x 48° H (vertical horizontal) |
| Field of view Angle | 48° (H) x 30° (V) |
| Rough weight | Ap4 ately 450g (including packaging wire and accessories) |
| Cable standard | Direct line: 1.8m |
| material quality | ABS+PC |
| Sealing grade | IP54 |
| Decoding ability | 1D: EAN13, EAN8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodaBar, MSI, RSS |
| 2D: QR, Data Matrix (DM), PDF417, support for mobile phone screen reading code | |
| Options | USB+2.4G+Bluetsooth : +13.19$ Charging base:+1.42$ |
| Packing List | 30pcs /ctn, NW:13kg GW:14KG, 55*45*30cm. 1 unit:0.55kg, 18*13*10cm |
