working current:

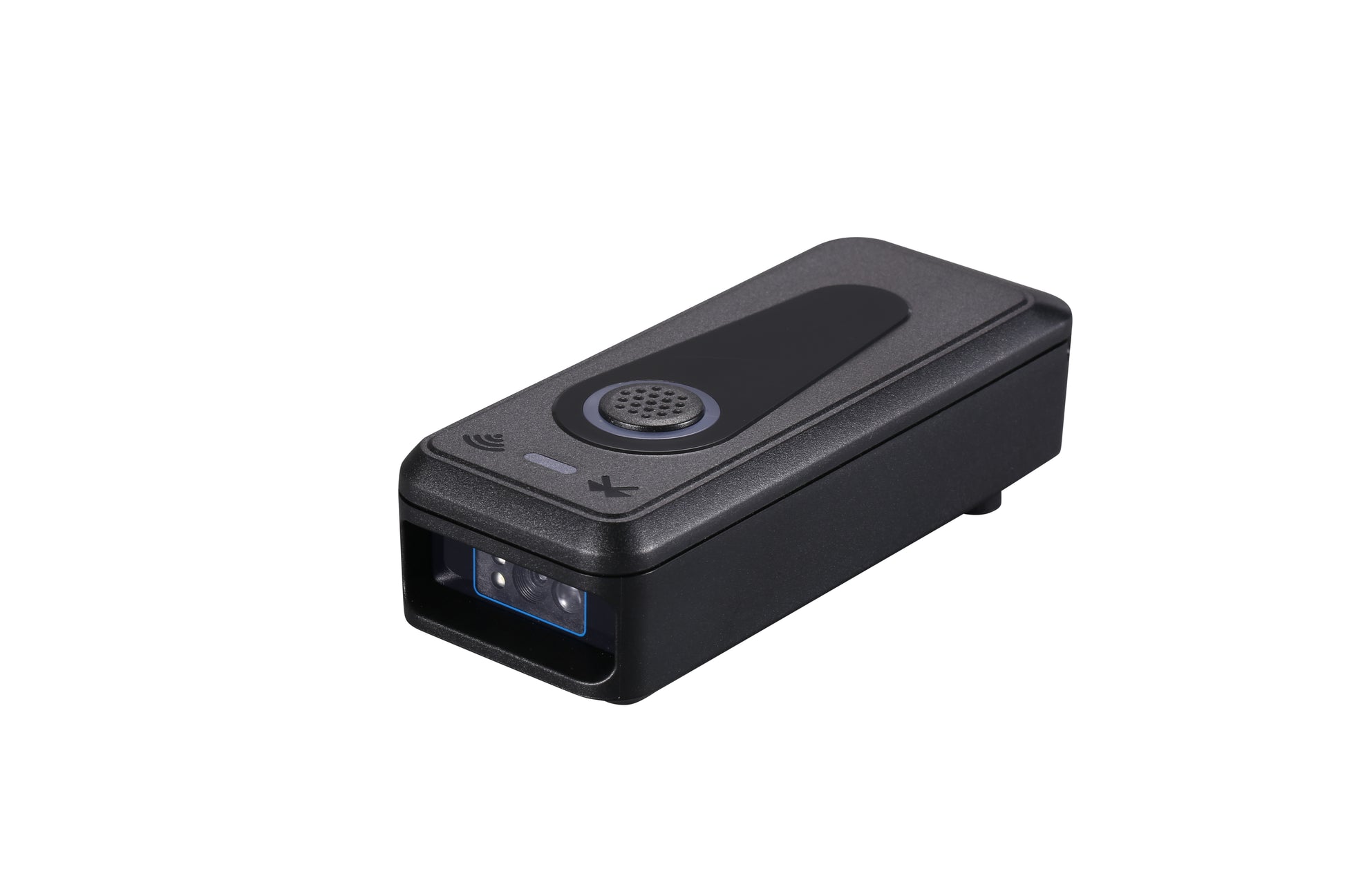

2D Image Portable Bluetooth Barcode scanner WD-PS3
2D Image Portable Bluetooth Barcode scanner WD-PS3
Feature:
1.Fast scanning speed, strong reading performance, high accuracy., Support for multiple languages
2.offline storage, two transmission modes
3.32-bit microprocessing compatible with different end-user systems
| Type: | 2D Image Portable Bluetooth Barcode scanner |
| Scan element type: | CMOS (global light burst) |
| Interface: | USB+2.4G+Bluetooth |
| pixel: | 300000 Pixel |
| illuminant: | 617nm red light LED |
| scan pattern: | Key trigger, induction trigger, automatic scanning, continuous scanning |
| nning speed: | 200 Tests / s |
| Full-readable bar code: | More than 100,000 times |
| battery capacity: | 1800m A h |
| Visual dimensions: | 108mm * 42mm * 38mm (length * width * height) |
| Cable standard: | Direct line: 1.8m |
| pigment: | Black / white |
| material quality: | ABS+PC |
| Sealing grade: | IP52 |
| Fall height: | 1.5m |
| Decoding ability: | 1D: EAN 13, EAN 8, UPCA, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, A, Code11, CodaBar, MSI, RSS, anti-phase barcode, Brazilian bank code, et al 2D: QR, Data Matrix (DM), PDF417. |
|
|
145mA-165mA |
|
Depth of view Angle: |
30° V x 48° H (vertical horizontal) |
|
Field of view Angle: |
48° (H) x 30° (V) |
