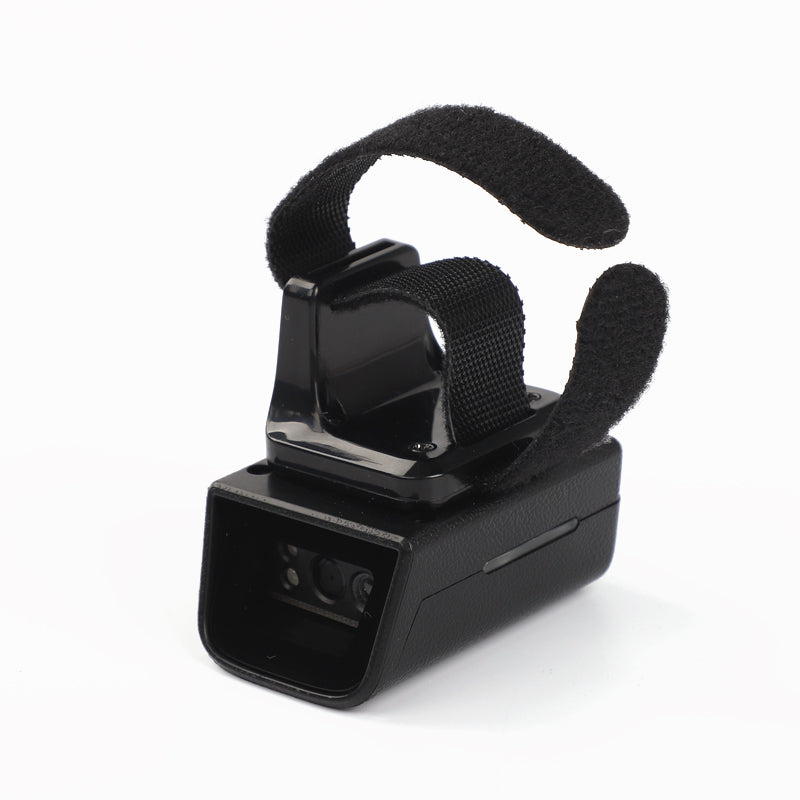

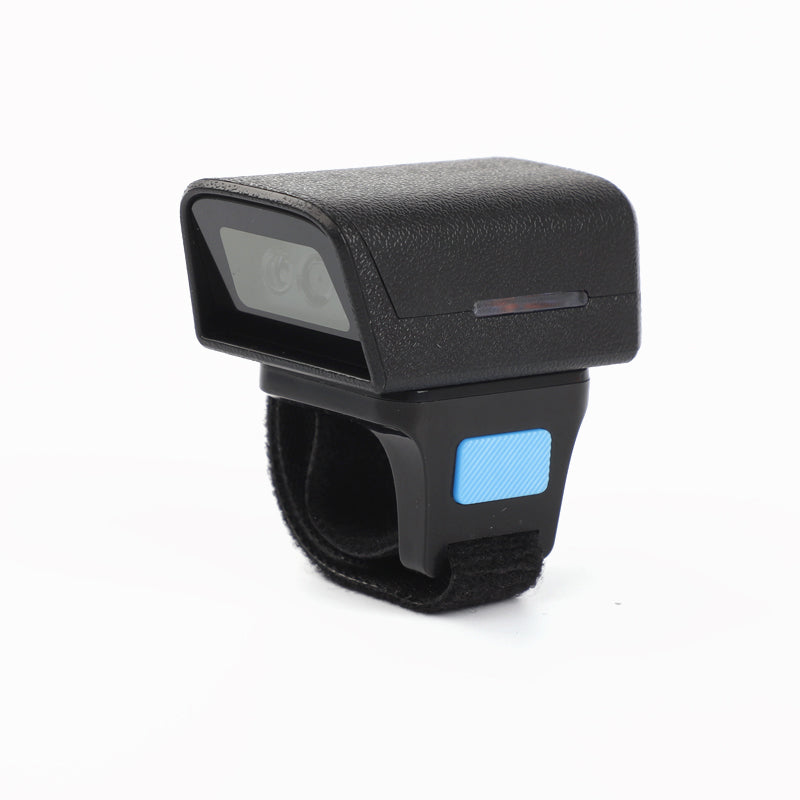

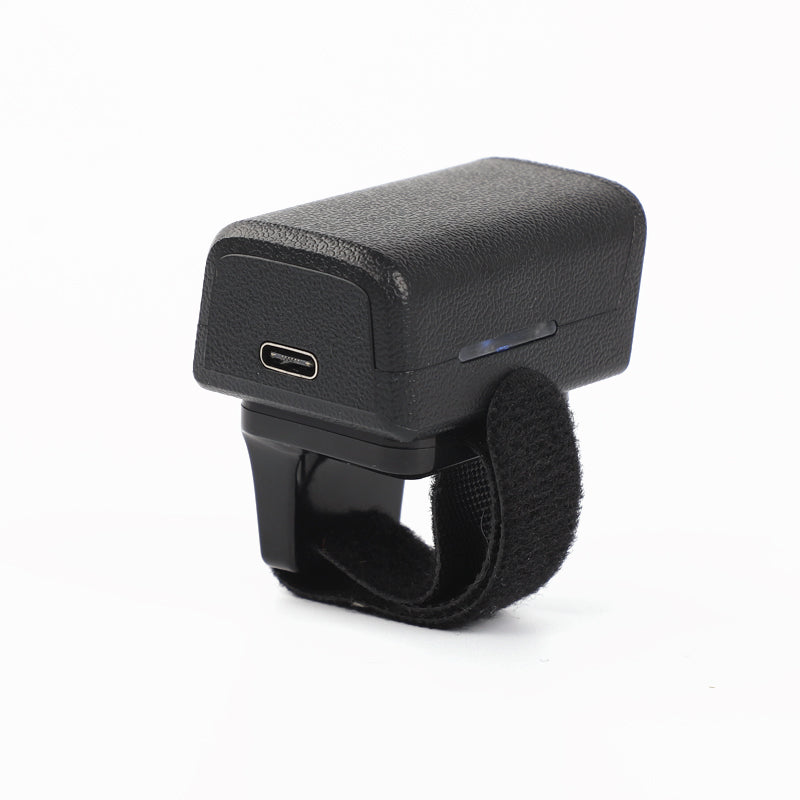

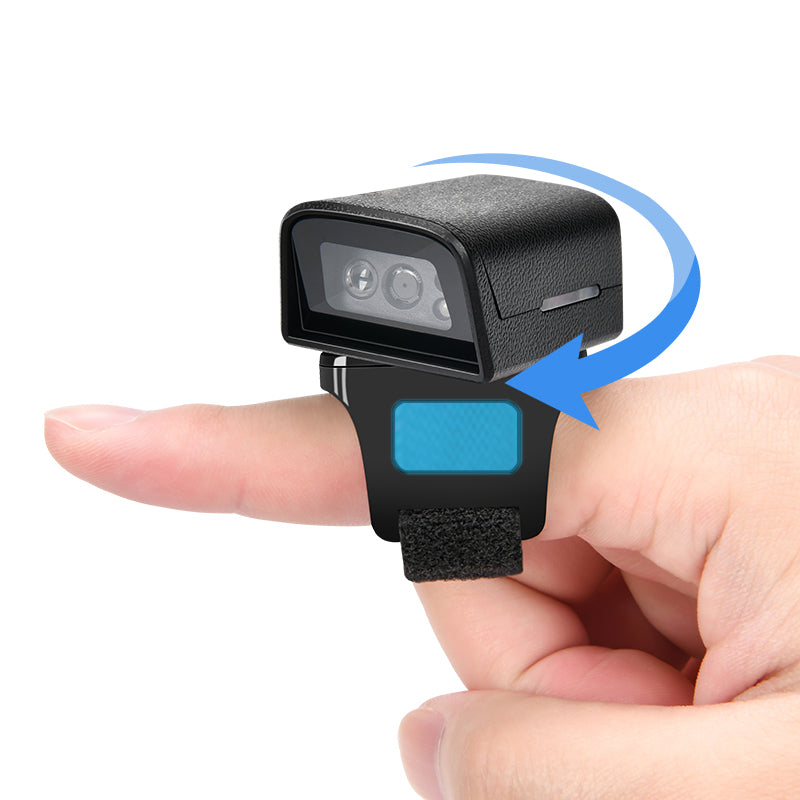

2D Image Portable Bluetooth Barcode scanner WD-R2
2D Image Portable Bluetooth Barcode scanner WD-R2
Product Features:
1.can quickly read all kinds of barcodes
2.Quickly read one-dimensional barcode of paper, one device for multiple needs
3.Short start-up time.
4.Simple SDK
5.Strong reading ability
| Type: | 2D Image Portable Bluetooth Barcode scanner |
| Communication Interface | TTL-232 , USB (HID-KBW, virtual serial port)，2.4G, Bluetooth |
| Sensor： | 640×480 Global exposure,120FPS |
| Reading accuracy | ≥4mil |
| Recognition code system | 1D：EAN,UPC,Code 39,Code 93,Code 128,UCC/EAN 128, Codabar (Cudebar code)，Interleaved 2 of 5, ITF-6,ITF-14,ISBN (book number),ISSN (newspaper number), GS1 Databar,Code 11,Industrial 25, Standard 25，Plessey, Matrix 2 of 5 2D: QR Code, Data Matrix, PDF417，Aztec, Maxicode, Hanxin Reading Tips LED prompts and Buzzer and vibration motor |
| Rated current | 170MA |
| Operating Voltage | +5V DC ±5% |
| Scanning angle | Tilt±55°,Deflection±55°,Rotation30° |
| Field of view | Horizontal53°,vertical40° |
| Appearance size | 50mm×30mm×50mm |
| ReadingTips | LEDpromptsandBuzzerandvibrationmotor |
| Operating temperature | -20℃~+60℃ |
| Storage temperature | -40℃~+70℃ |
| Working humidity | 5%~95%(nocondensation) |
| Protection level | IP42(1.5mtumblingandfalling) |
