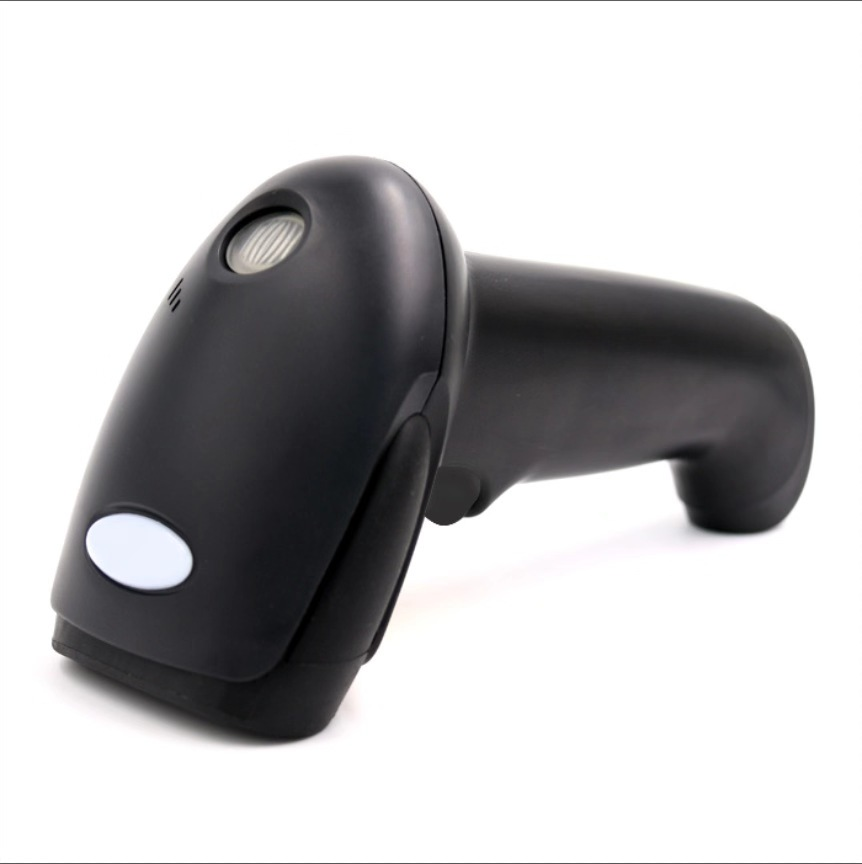

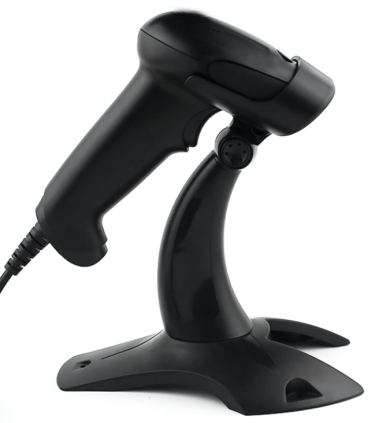

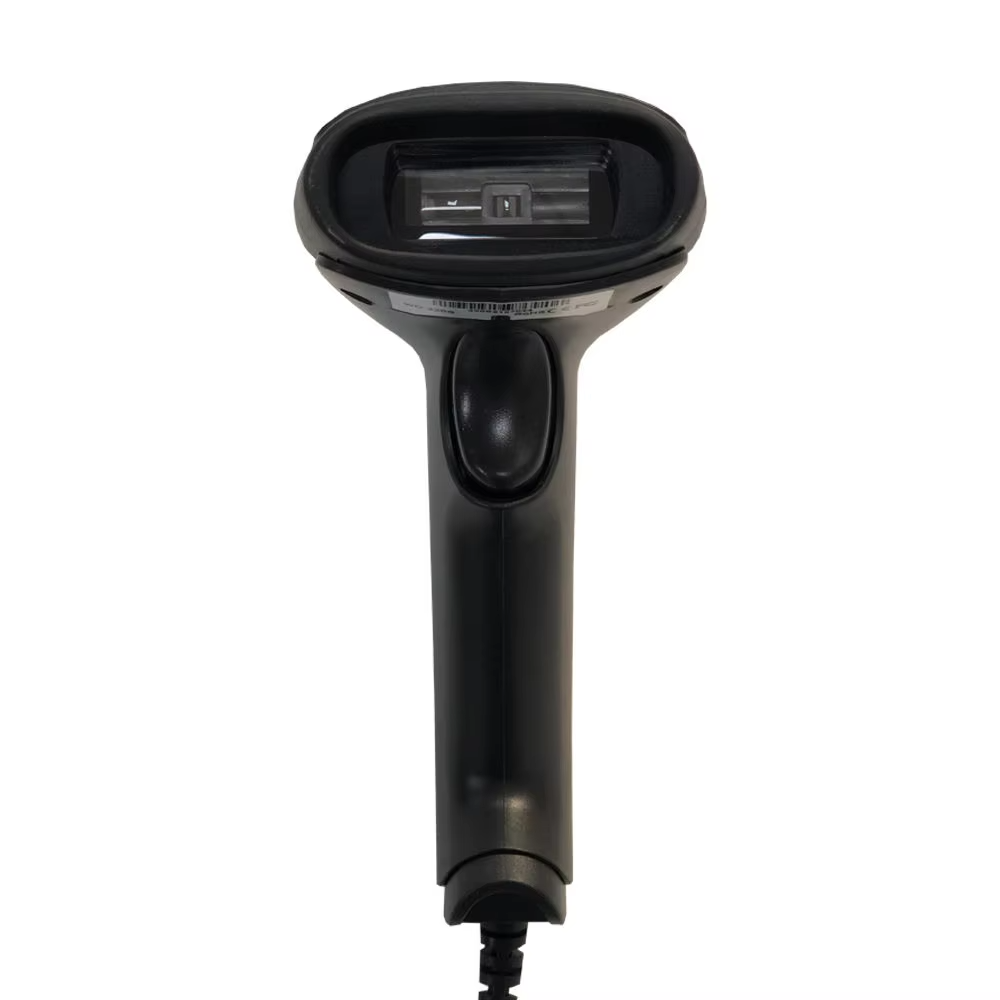

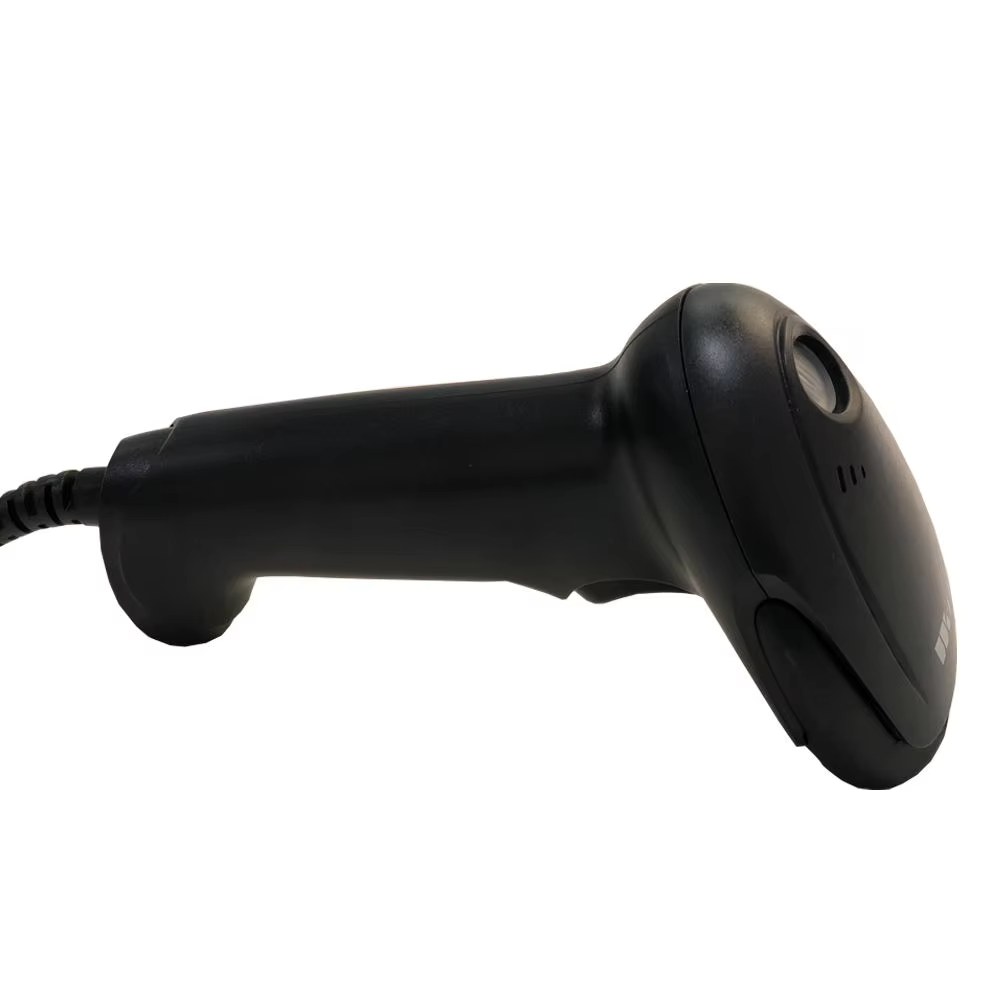

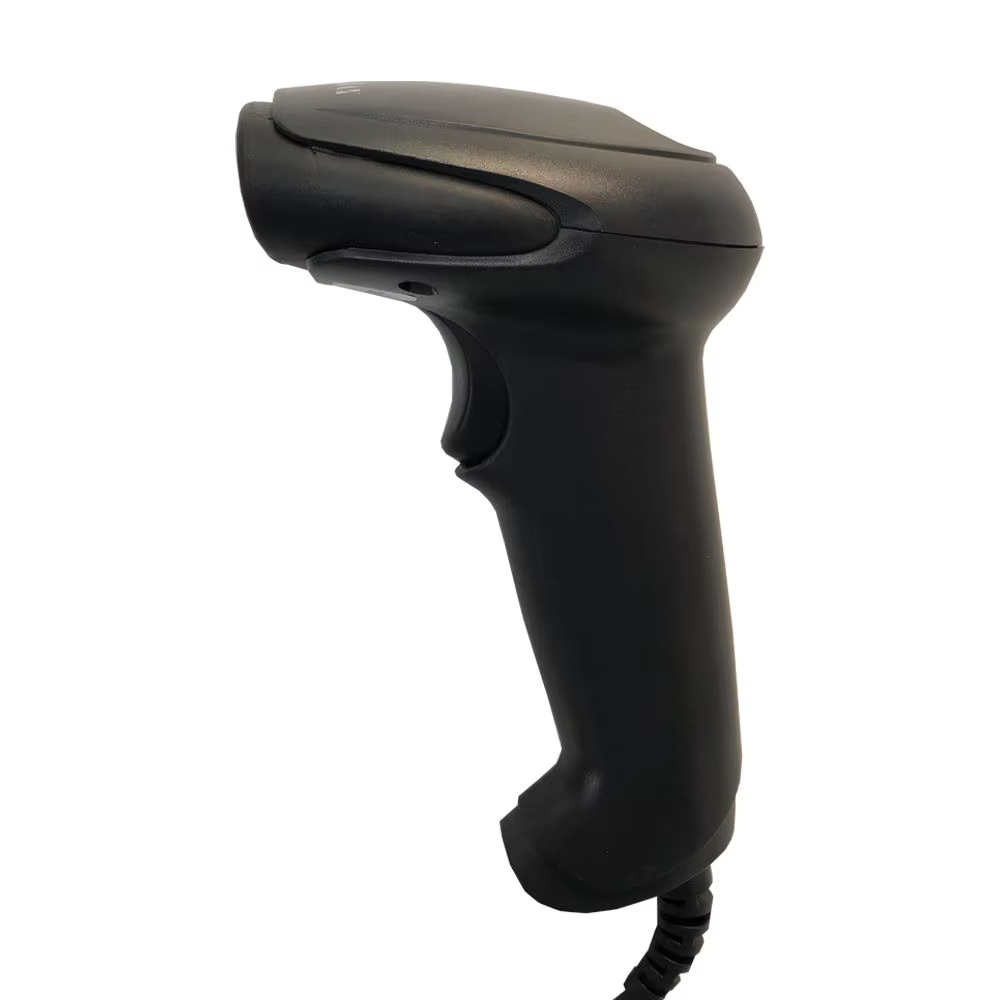

Auto Sense 1D CCD Barcode Scanner WD-326X
Auto Sense 1D CCD Barcode Scanner WD-326X
Features:
1. Supermarket, store and some commercial POS system;
2. Logistics, warehousing, libraries, banks, transportation and postal service
3. Manufacturing process management
4. Some public industry such as tourism, insurance and government.
5.Easy to set up: Plug & Play;Need no driver; ABS+PC material: Durable & Pratical 6.Support Win7, Win8, Win10, iOS7, Mac OS X 10.8.4 or above
Product parameters:
|
Material |
ABS+PC+Silicone |
|
Power Supply |
DC 3.3V ±5% |
|
Power Consumption |
90mA (Working); 120mA (Maximum) |
|
Maximum Consumption |
0.5W |
|
Weight |
200±5g(with cable) |
|
Size |
L * W * H:160 * 80 * 110(Unit/mm) |
|
Color |
Black |
|
Button life |
>150,000 times |
|
Performance Parameter |
|
|
Interface |
USB, RS 232 (PS/2 customizable) |
|
System Supported |
Linux,Android,Windows XP,7,8,10,MAC |
|
Language Supported |
English; French (France/Canada); Dutch; Spanish (Spain); Italian (Italy14); German; Português (Brazil/Portugal); Türkçe (Turkey F/Q); Polski (Poland) |
|
Capture pixel |
640*480-Omnidirectional |
|
Resolution |
4mil |
|
Bit error rate |
1/5 milion |
|
Decoding speed |
300 times/s |
|
Reading Mode |
CMOS-Omnidirectional |
|
Trigger Mode |
Key trigger; Auto-Sensing; Continuous scanning |
|
Reading Distance |
10mm-600mm |
|
Prompt Mode |
Buzzer, Indicator Light(LED) |
|
Print Contrast |
20% |
|
Decoding |
Code25-Interleaved Code25-Standard Code25-Matri |
|
scanning Angle |
Rotation angle 60°, elevation angle 40°, inclination angle 40° |
|
Scanning Depth |
Code39 4.17mil(15 bytes):1cm - 9cm |
|
Environment Parameter |
|
|
IP Grade |
IP54 |
|
Operating Temp. |
-20℃~+50℃ |
|
Storage Temp. |
-20℃~+60℃ |
|
Operating Humidity |
5% to 90%(No Condensation) |
|
Storage Humidity |
50% to 90%(No Condensation) |
|
ESD Protection |
15KV air discharge |
