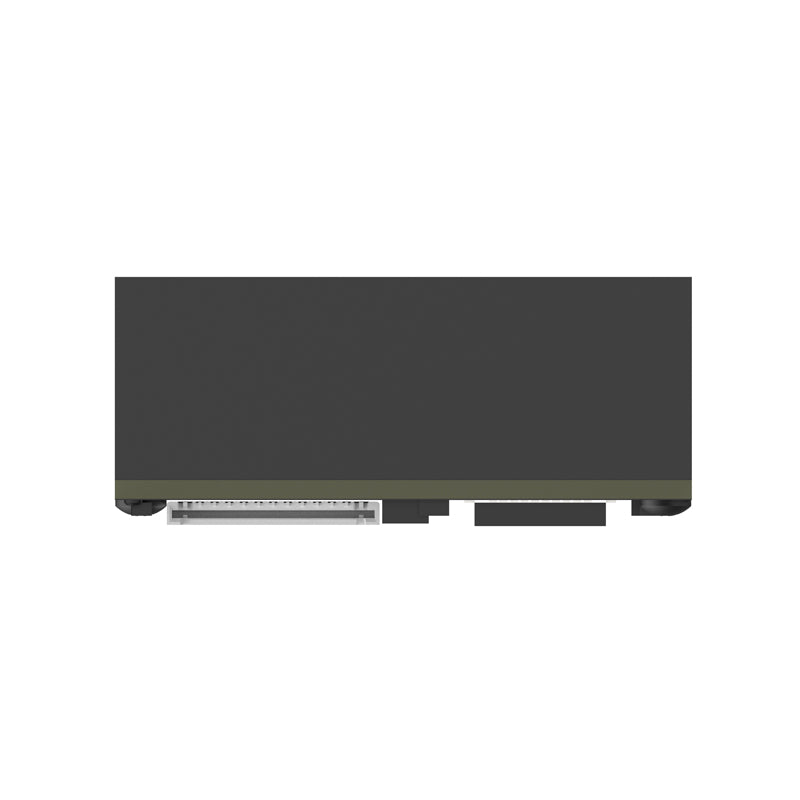

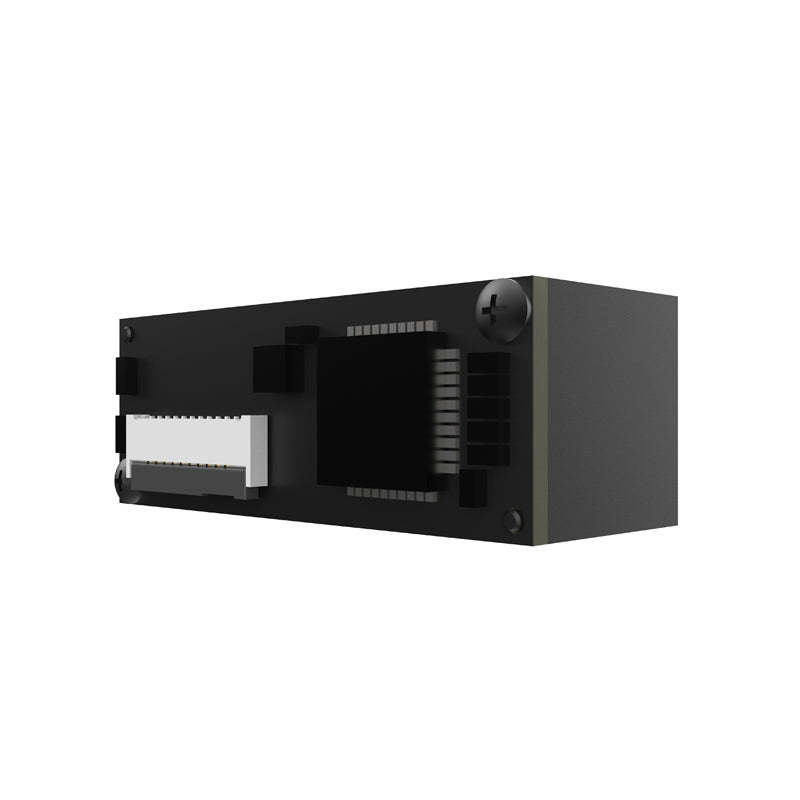

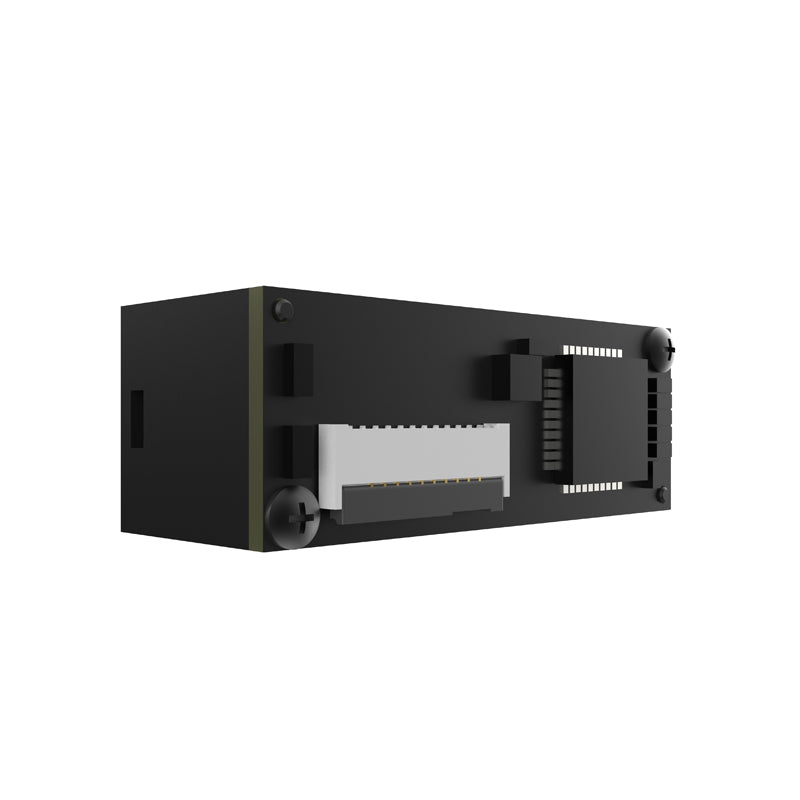

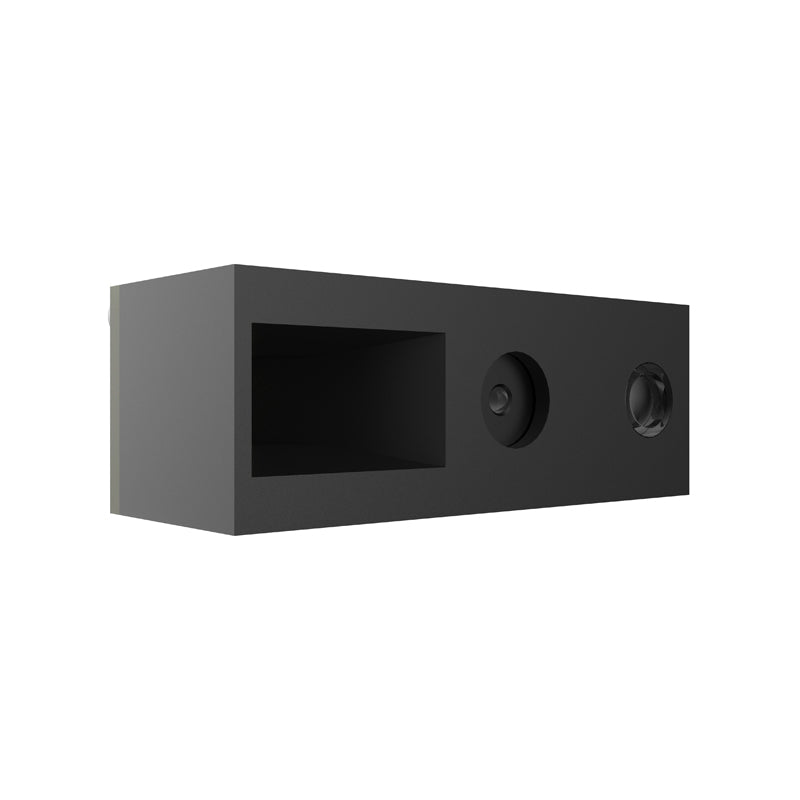

Barcode Scanner Module 2D Bar Code Imaging Module WD-M4
Barcode Scanner Module 2D Bar Code Imaging Module WD-M4
Features:
1. The WD-M4 is a highly integrated, high-performance, video 2D bar code imaging module.
2. The WD-M4 module is compact in size, making it flexible for a wide range of devices.
3. With advanced image recognition algorithms, the WD-M4 can easily scan all types of 1D barcodes and 2D barcodes.
4. The WD-M4 has strong reading ability and is adaptable to a variety of demanding and complex environments. For example, in a variety of illumination environments, it performs excellently in reading code within the large temperature and humidity range.
Product parameters:
|
Model
|
WD-M4
|
|
Type
|
Barcode Scanner module
|
|
Image Sensor
|
640x480 CMOS
|
|
Resolution
|
1D ≥4mil, 2D ≥ 10mil
|
|
Horizontal View Angle
|
37°
|
|
Scan Angle
|
Roll:360°, Pitch:±60°, Skew:±60°
|
|
Symbol Contrast
|
≥15%
|
|
Interface
|
TTL-232 / USB 2.0 Full Speed
|
|
Dimensions
|
22mm x9.5mm x 8mm
|
|
Weight
|
< 5g
|
|
Voltage
|
DC +3.3V±5%
|
|
Symbologies
|
1D：EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code 39,Code93,CodaBar ,Interleaved 2 of 5,Industrial 25,Matrix 2 of 5,Code11, MSI Plessey ,RSS-14, RSS-Limited, RSS-Expanded, Standard 2 of 5, Plessey, ChinaPost 25
2D：QR Code,PDF417,DataMatrix(ECC200),Channel Code, Mico QR,Micro PDF417,Code 16K,,Maxi Code |
