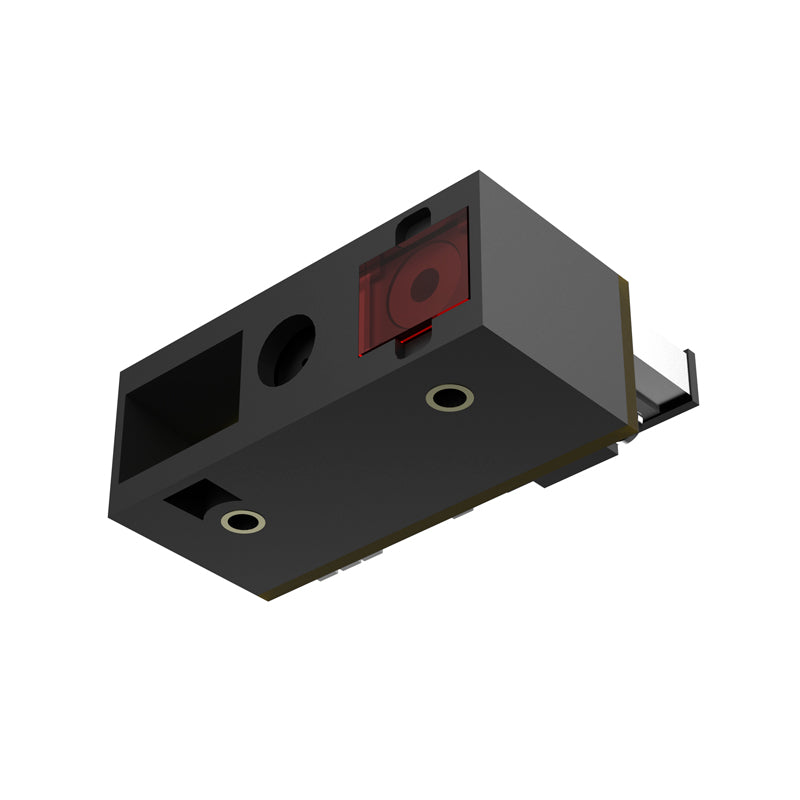

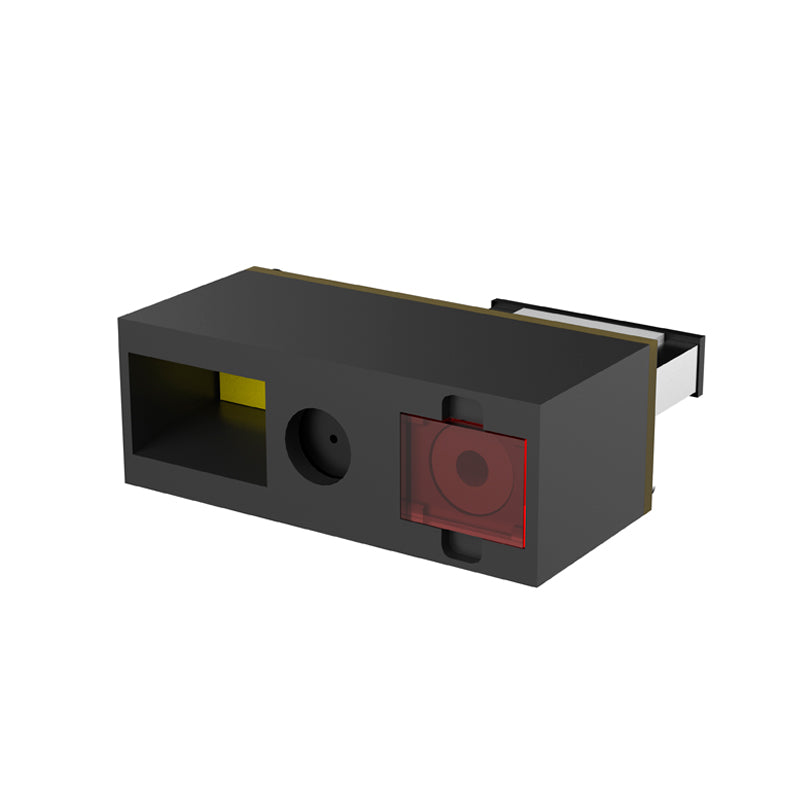

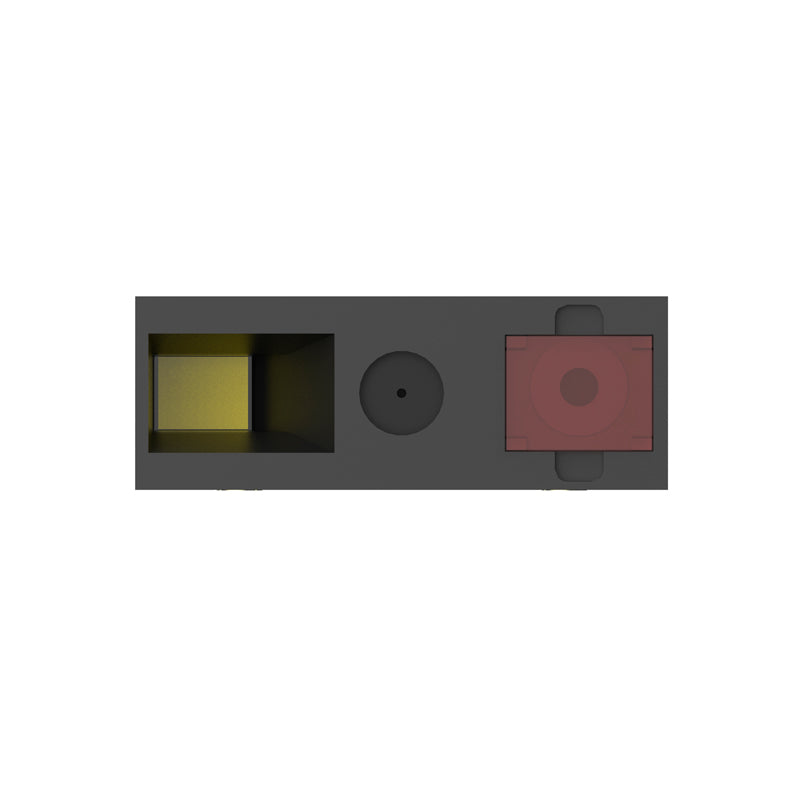

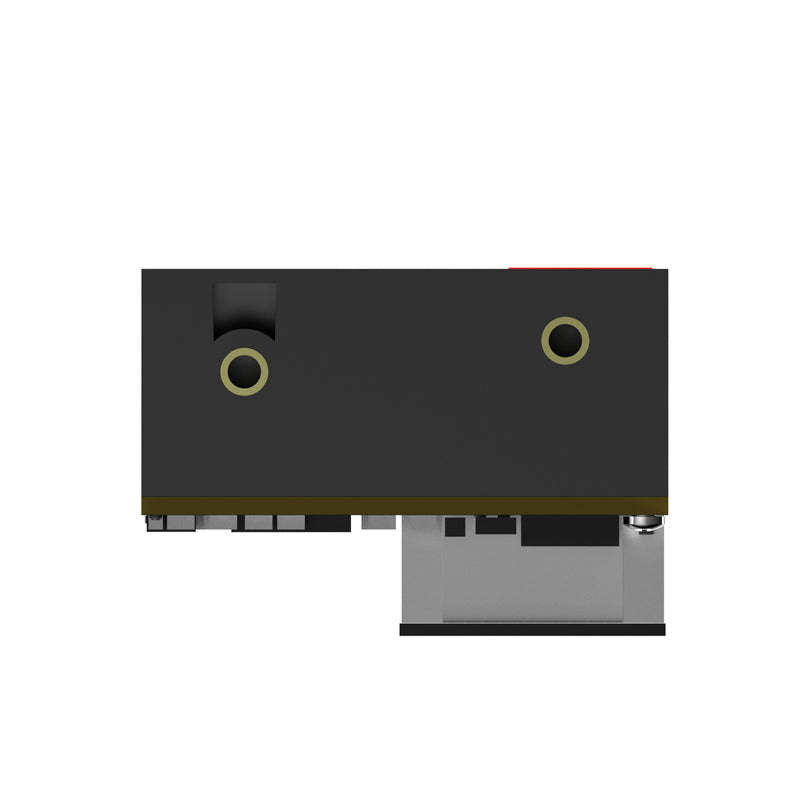

Barcode Scanner module WD-M1
Barcode Scanner module WD-M1
Product parameters:
|
Scaning Code |
Model |
WD-M1 |
||
|
Sensor |
1080x800 CMOS |
|||
|
Light source |
Red fill LED / Laser LED aim |
|||
|
Perspective |
Horizontal 45°, Vertical34° |
Horizontal 32°, Vertical24° |
||
|
Symbologies |
2D |
QRCode,MicroQR,Data Matrix, PDF417, MicroPDF417, Aztec,HanXin,Maxicode：GS1 Composite |
||
|
1D |
Code128,Code39,EAN13,UPC-A, ISBN13,EAN8,UPC-E0,UPC-E1,Code93, Interleaved 2of5,Industrial2of5, Matrix2of5,GS1 Databar,GS1 Databar Limited,GS1 Databar panded,Codabar, MSI Plessey,Code11,Standard 2of5, Plessey,China Poat 2of5,Code16K, Code49 |
|||
|
Depth of Field |
Code39:5~23cm(5mil) PDF417:4~17cm(5mil) DataMatrix:5~12cm(10mil) UPCA:4~50cm(13mil) EAN13:5~60cm(13mil) QR:3~26cm(15mil) Code128:5~70cm(15mil) Code39:6~80cm(20mil) |
Code39:5~21cm(5mil) PDF417:4~20cm(5mil) DataMatrix:4~14cm(10mil) UPCA:6~58cm(13mil) EAN13:8~76cm(13mil) QR:4~30cm(15mil) Code128:8~90cm(15mil) Code39:11~95cm(20mil) |
||
|
Angle |
Roll:360°, Pitch:±60°, Skew:±60° |
|||
|
Mode |
Manual Mode; Command Trigger Mode |
|||
|
Resolution |
1D:≥3mil 2D:≥9mil |
|||
|
Symbol Contrast |
≥15% TBD |
|||
|
Physical parameters |
Weight |
<5g |
||
|
Dimensions |
22*14.8*8 (LxWxH) unit:mm |
|||
|
Interface |
TTL-UART |
|||
|
Tips |
Provide LED prompt and buzzer prompt interface externally |
|||
|
Voltage |
+3.3VDC±5% |
|||
|
Current |
TBD |
|||
|
Environmental parameters |
Operating Temperature |
-20℃~ 60℃ |
||
|
Storage Temperature |
-40℃~ 70℃ |
|||
|
Working Humidity |
5%RH~95%RH（Non-condensing） |
|||
