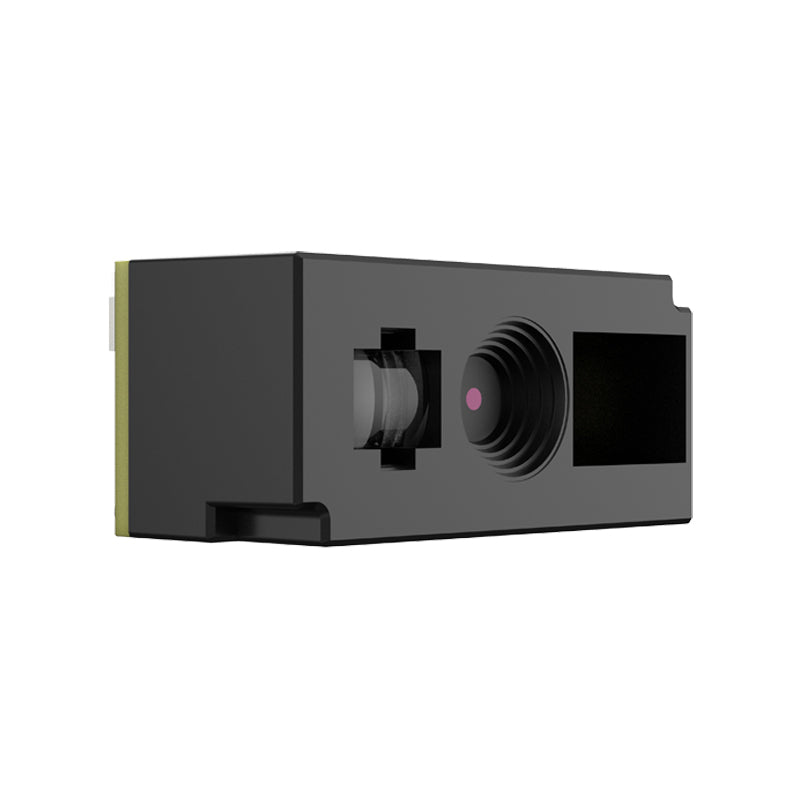

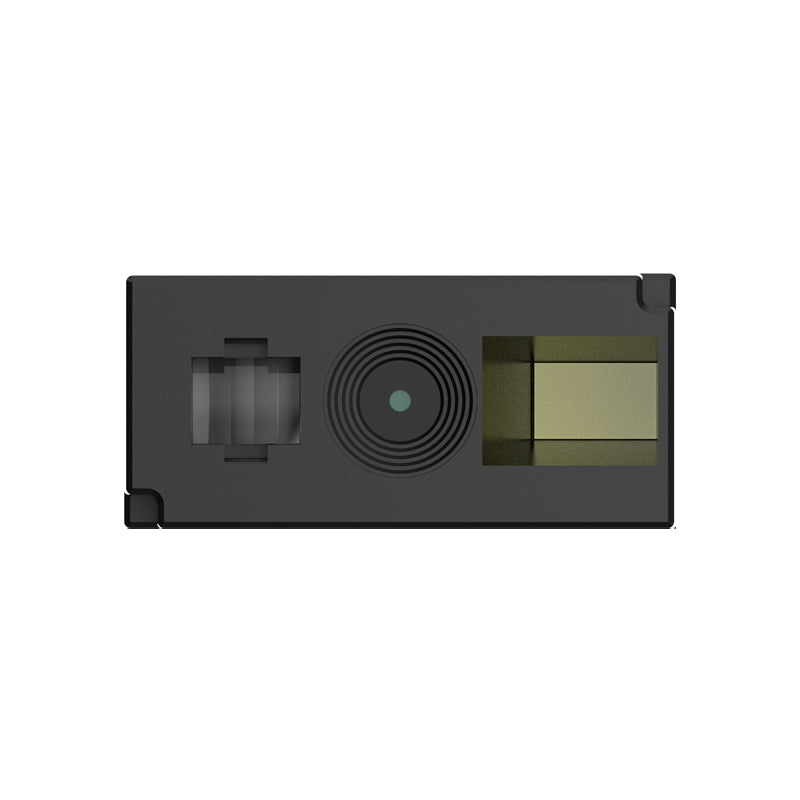

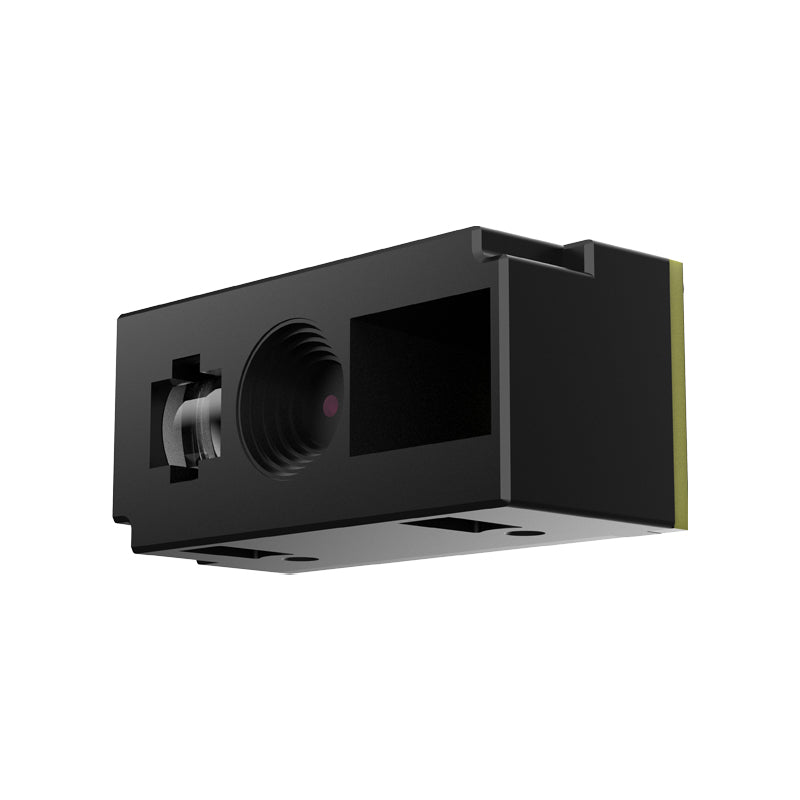

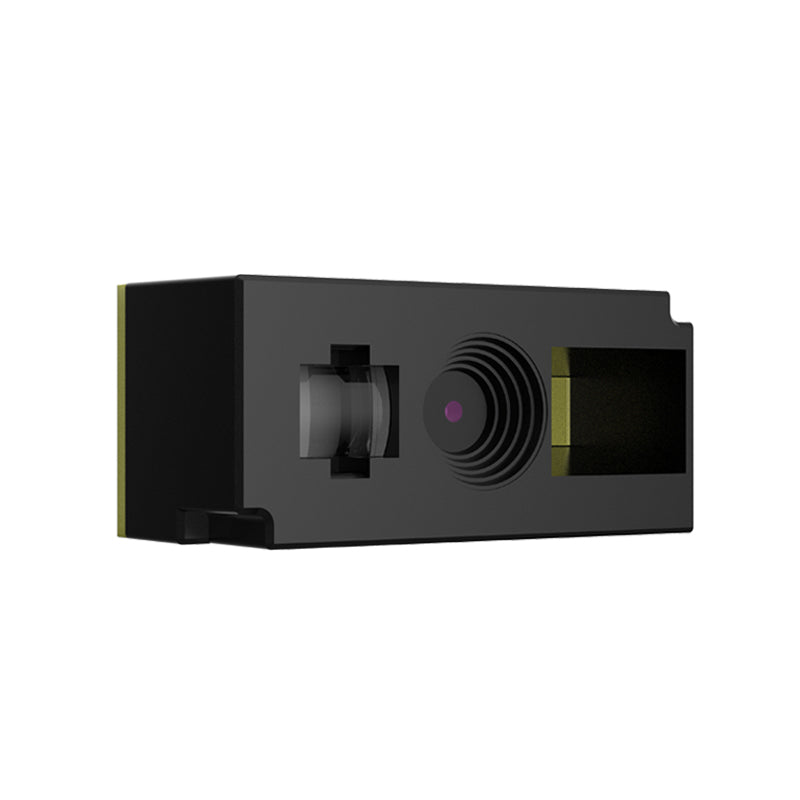

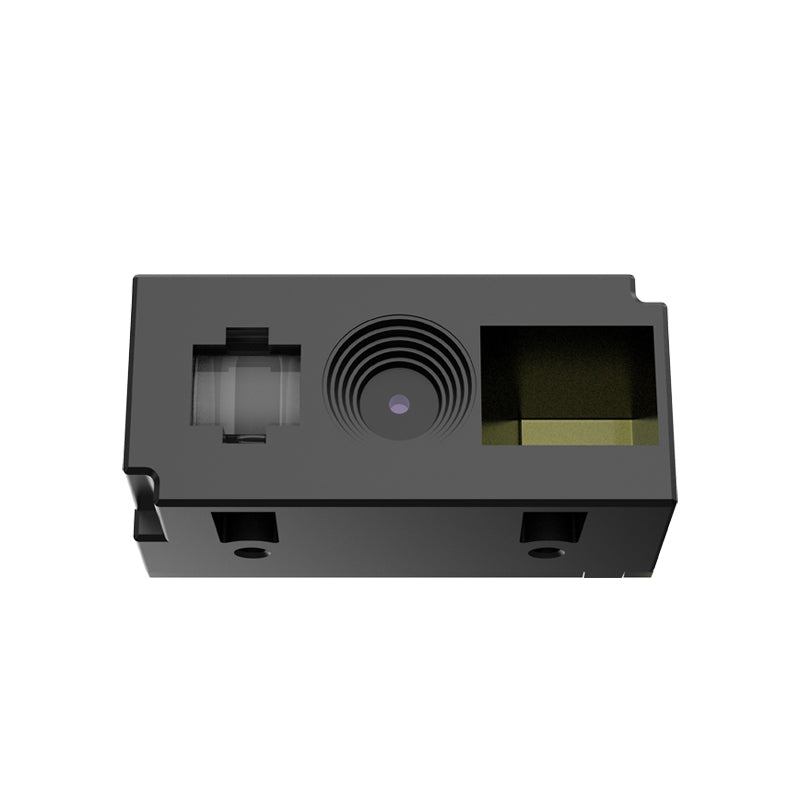

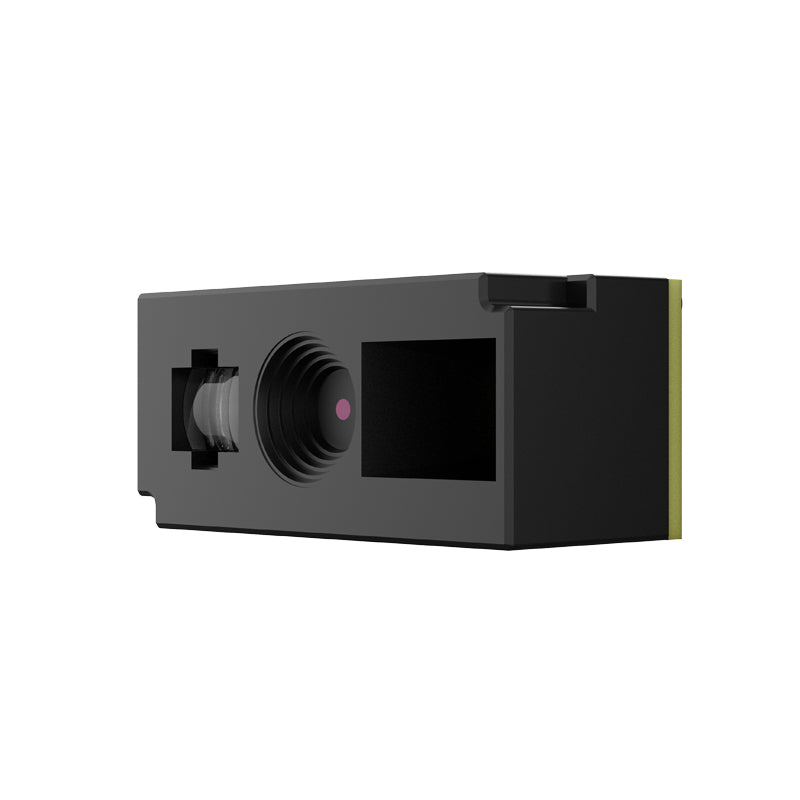

Barcode scanning camera module WD-M2

Barcode scanning camera module WD-M2

Features:

1. The WD-M2 is a highly integrated, high-performance, video 2D bar code imaging module.
2. The WD-M2 module is compact in size, making it flexible for a wide range of devices.
3. With advanced image recognition algorithms, the WD-M2 can easily scan all types of 1D barcodes and 2D barcodes.
4. The WD-M2 has strong reading ability and is adaptable to a variety of demanding and complex environments. For example, in a variety of illumination environments, it performs excellently in reading code within the large temperature and humidity range.

Product parameters:

Scaning Code


Sensor

　

640 (Horizontal) X 480 (Vertical) CMOS



Light Source

　

White light



Horizontal View Angle

　

37°







Symbologies

2D

QR Code,PDF417,DataMatrix(ECC200),Channel Code, Mico QR,Micro PDF417,,Code 16K,,Maxi Code,Aztec





1D

EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodaBar ,Interleaved 2 of 5,Industrial 25,Matrix 2 of 5,Code11, MSI Plessey ,RSS-14, RSS-Limited, RSS-Expanded, Standard 2 of 5, Plessey, ChinaPost 25





Depth of Field

EAN-13

4.0~20.0cm （13mil）





Code128

4.5 ~ 25.0cm （15mil ）





QR Code

4.0 ~ 18cm   (15mil)



Scan Angle

　

Roll:360°, Pitch:±60°, Skew:±60°





Resolution

1D

≥5mil





2D

≥ 10mil



Symbol Contrast

　

≥20%

Physical parameter

Weight

　

< 7g



Dimensions

　

26.15mm x 12.09mm x 13.85mm



Interface

　

TTL-232 / USB 2.0 Full Speed



Voltage

　

DC +3.3V±5%



Current

@DC 3.3V

Operating

170mA





Sleep

800 μA

Environmental parameters

Operating Temperature

　

-20℃ ~ 60℃



Storage Temperature

　



-40℃ ~ 70℃



Working  Humidity

　

5% RH~95% RH (Non-condensing)

Reliability

Anti-mechanical shock

Shock

5~200Hz, 10Grms, 3axes, 1.5Hr





Fall

It can withstand falling from as high as 1.2 meters to the concrete floor.



Heat Shock Resistance

Lowest Temperature

-20 °C (-4 °F)





Maximum Temperature

60 °C (140 °F)





Cycles

High Temperature: 30 minutes

Low Temperature: 30 minutes





Period

24h
