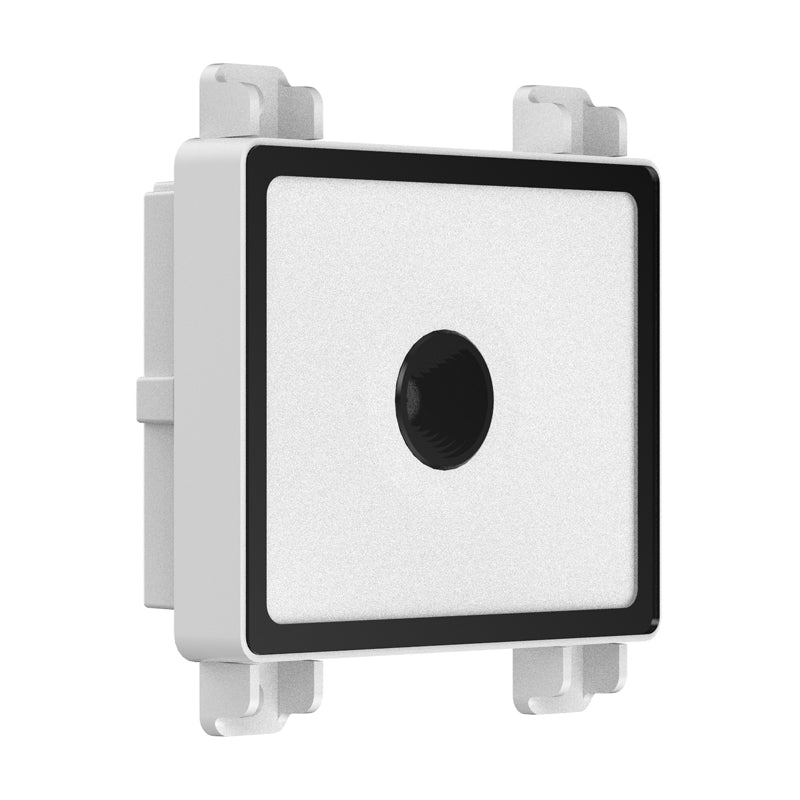

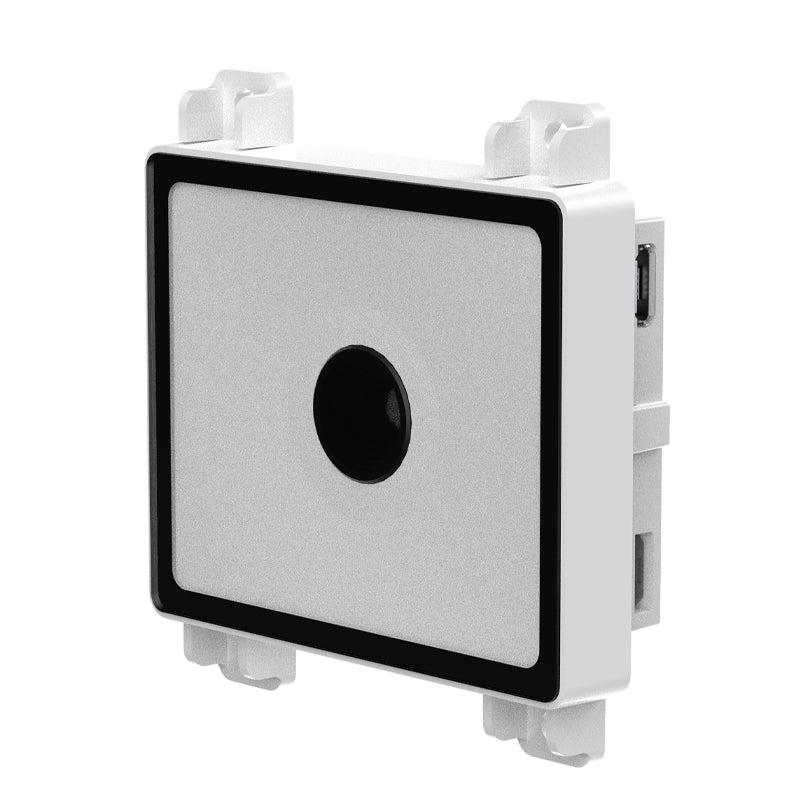

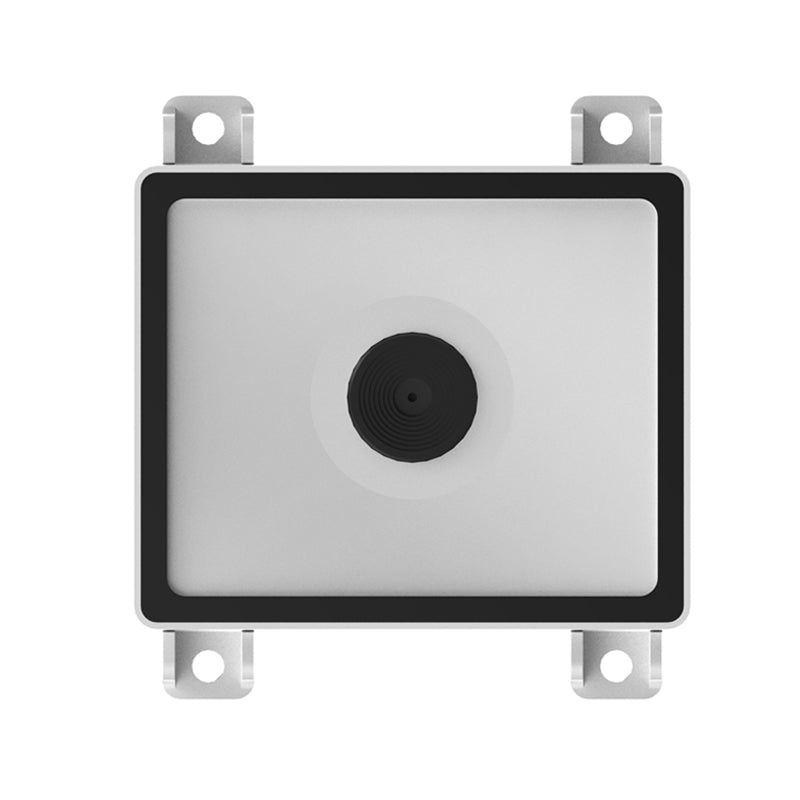

Embedded 2D CMOS Scanner Module WD-M12
Embedded 2D CMOS Scanner Module WD-M12
Features:
1.WD-M12 is a compact, highly integrated, flexible and high-performance embedded 2D barcode scanning module.
2.WD-M12 can be integrated into various applications such as buses, ticket machines, self-service ordering machines, and access gates. It is widely used in intelligent transportation, self-service retail, smart healthcare, and smart buildings.
3.WD-M12 employs advanced image recognition algorithms coupled with a wide-angle optical lens, enabling it to easily and quickly read various 1D and 2D barcodes, effortlessly handling diverse scanning applications.
4.WD-M12 boasts strong reading capabilities. It can deliver excellent barcode reading performance in a wide range of lighting conditions, including complete darkness, and under varying temperature and humidity. Additionally, it can withstand harsh and complex working environments such as shocks, vibrations, and strong exposure.
2.WD-M12 can be integrated into various applications such as buses, ticket machines, self-service ordering machines, and access gates. It is widely used in intelligent transportation, self-service retail, smart healthcare, and smart buildings.
3.WD-M12 employs advanced image recognition algorithms coupled with a wide-angle optical lens, enabling it to easily and quickly read various 1D and 2D barcodes, effortlessly handling diverse scanning applications.
4.WD-M12 boasts strong reading capabilities. It can deliver excellent barcode reading performance in a wide range of lighting conditions, including complete darkness, and under varying temperature and humidity. Additionally, it can withstand harsh and complex working environments such as shocks, vibrations, and strong exposure.
|
Model
|
WD-M12
|
|
Type
|
Embedded 2D CMOS Scanner Module
|
|
Image Sensor
|
640 x 480 CMOS，30fps |
|
Resolution
|
1D ≥5mil, 2D ≥ 10mil
|
|
Scan Angle
|
Roll:360°, Pitch:±60°, Skew:±60°
|
|
Symbol Contrast
|
≥25%
|
|
Interface
|
TTL-232 / USB 2.0 Full Speed
|
|
Dimensions
|
65mm x 61.5mm x21mm (L x W x H)
|
|
Weight
|
<30g
|
|
Voltage
|
DC +3.3V±5%，USB 5V
|
|
Symbologies
|
1D：EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39,Code93,CodaBar ,Interleaved 2 of 5,Industrial 25,Matrix 2 of 5,Code11, MSI Plessey ,
RSS-14, RSS-Limited, RSS-Expanded 2D：QR Code,PDF417,DataMatrix(ECC200) |
