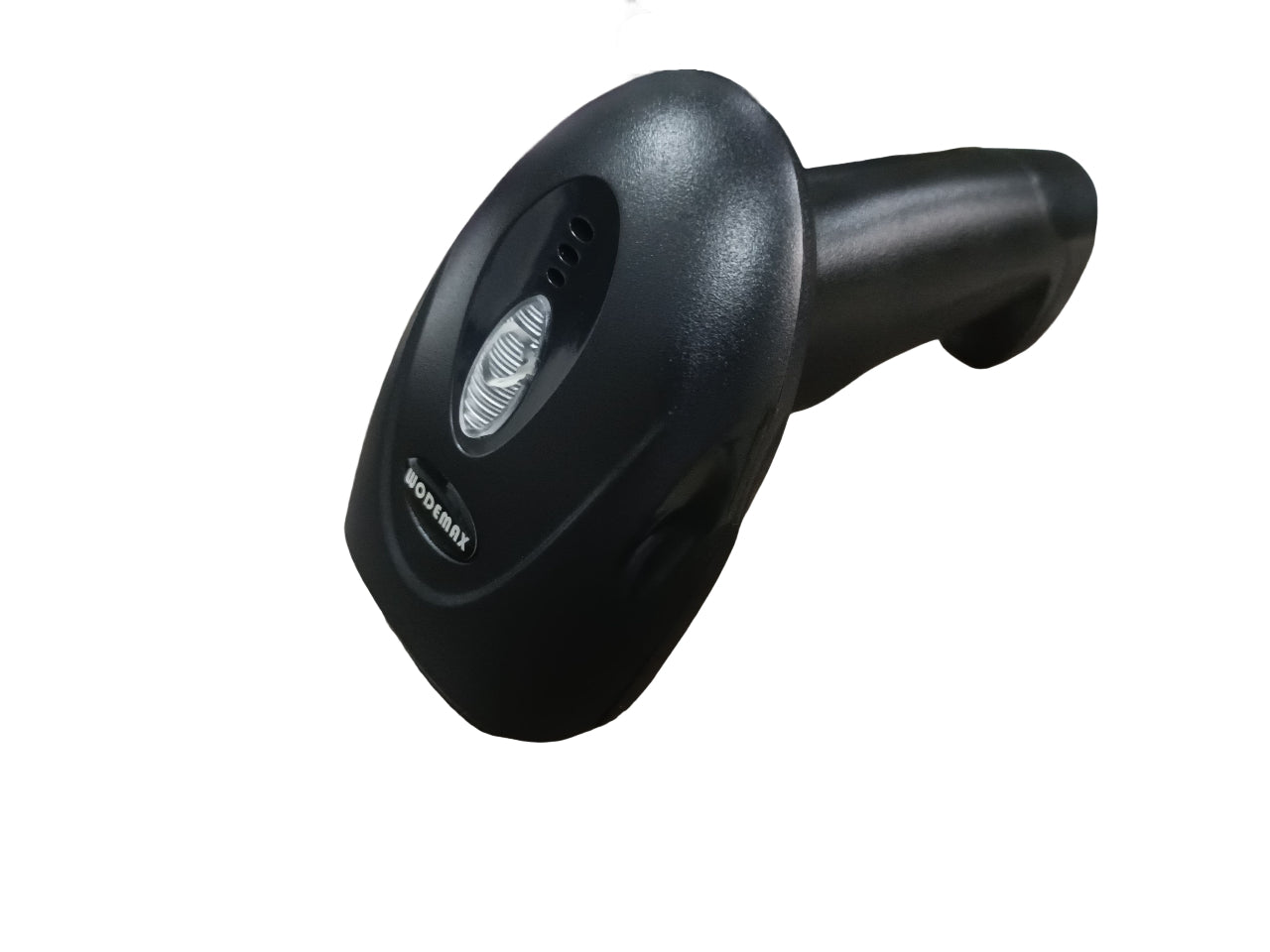

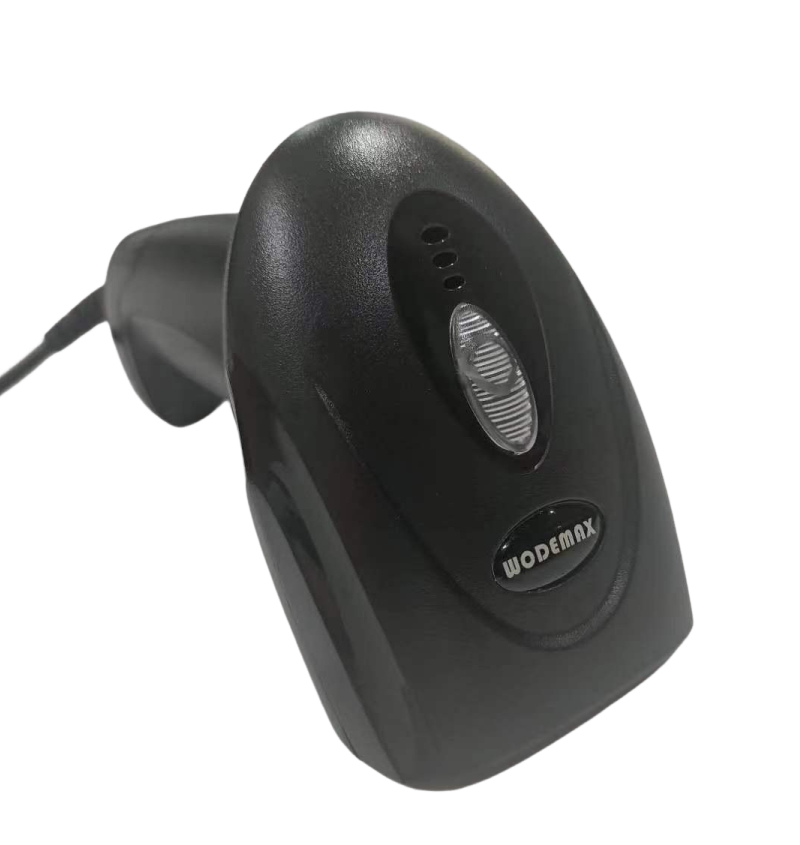

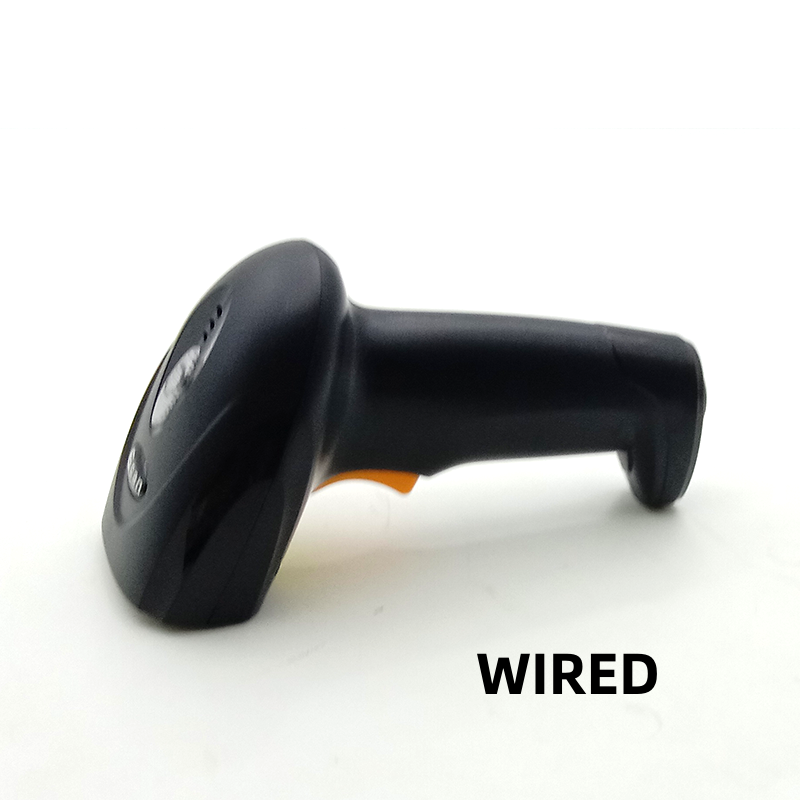

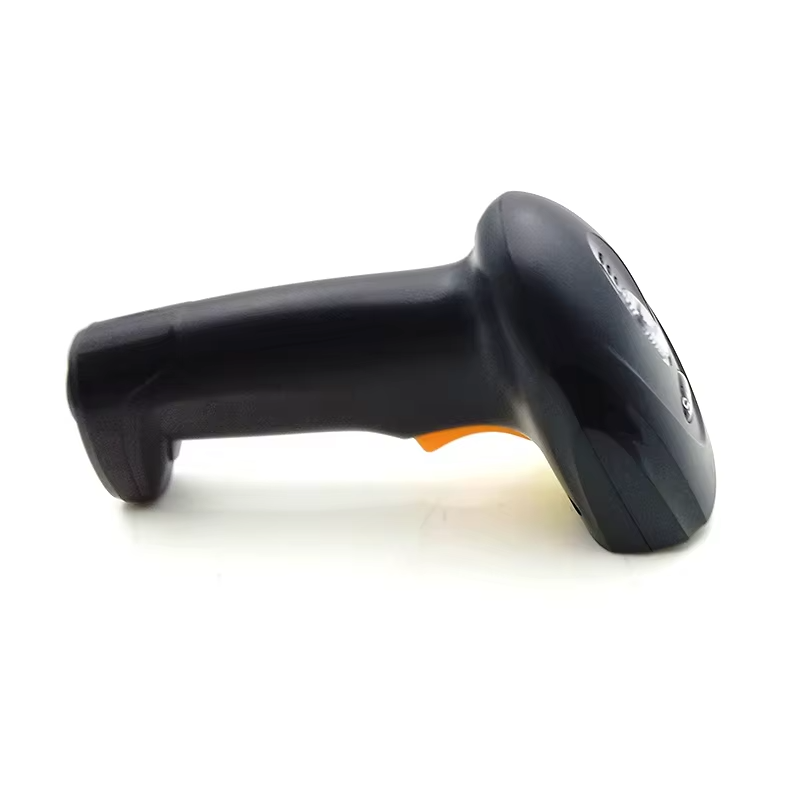

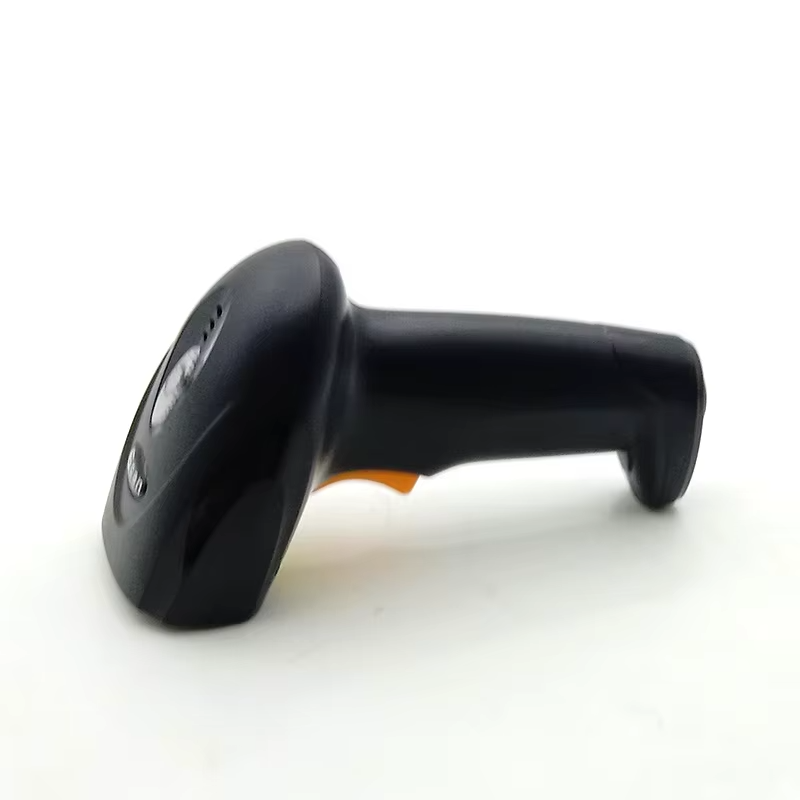

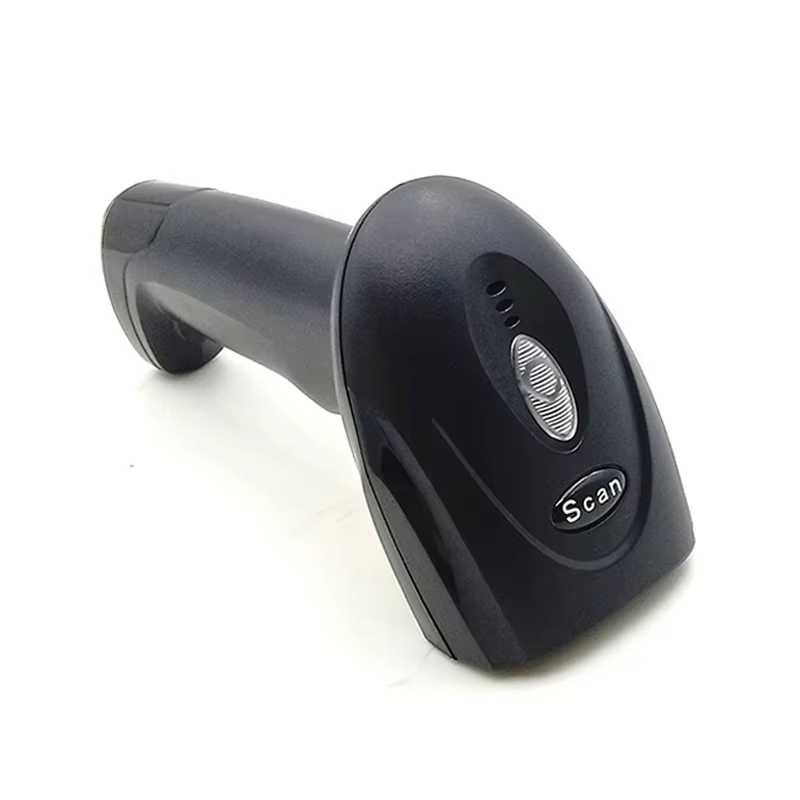

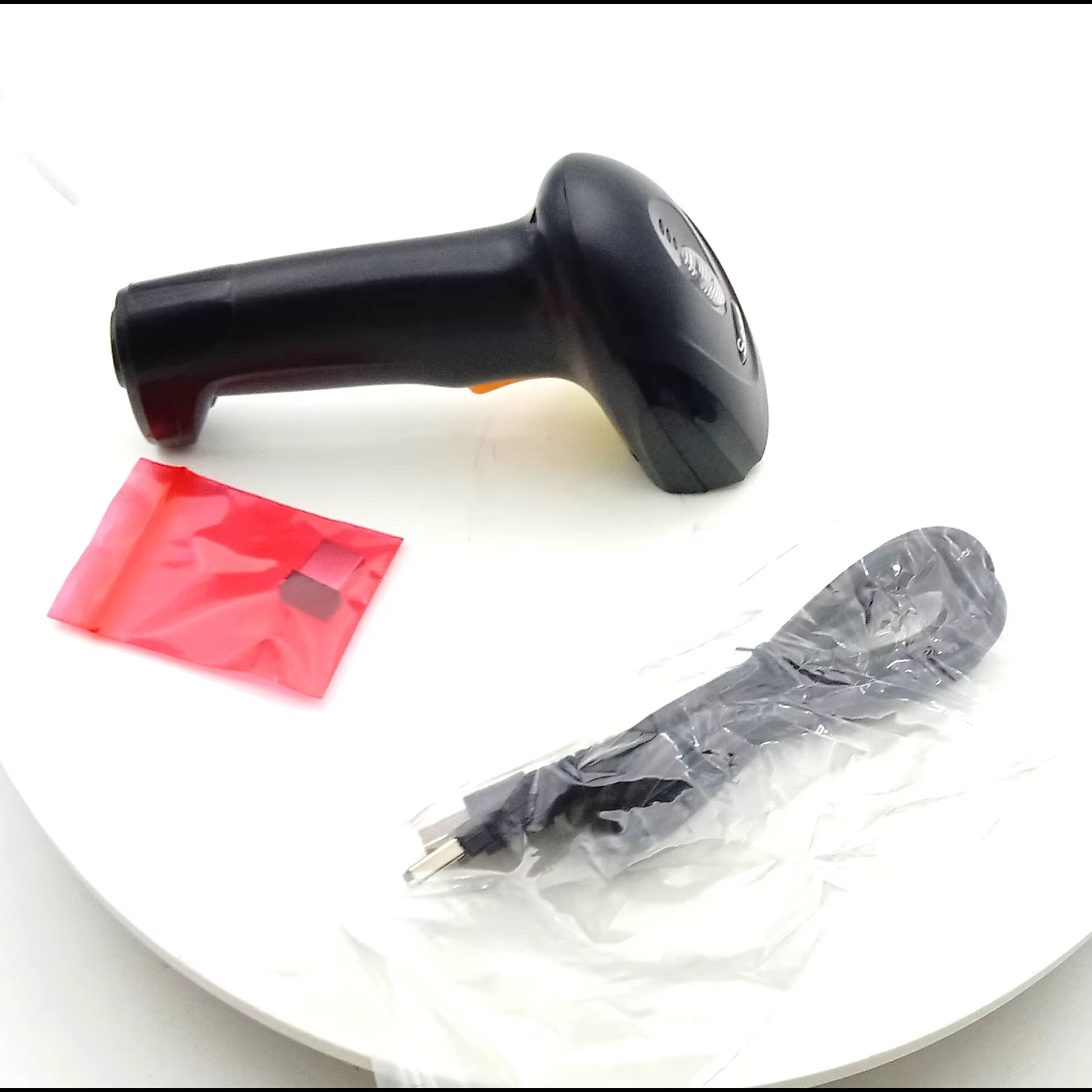

Handheld 1D Laser Wired Barcode Scanner WD-L3
Handheld 1D Laser Wired Barcode Scanner WD-L3
Features:
1.ABS material. 2.easy to work with continuous reading. 3.multi-language support
| Type: | Handheld 1D Laser Wired Barcode Scanner |
| Interface: | USB Standard |
| CPU : | 32bit |
| Light source: | Visible laser 650nm |
| Scanning element type: | Laser |
| Resolution: | Minimum 0.1mm(4mils) |
| Decoding speed: | 200times/sec |
| Scanning mode: | Push button trigger, inductive scanning, automatic scanning, continuous scanning |
| Minimum resolution: | 0.127mm(5mil) @Code 39, PCS=90% |
| Use environment: | 0°C-50°C |
| Storage temperature: | -20℃~+70℃ |
| Storage humidity: | 5%-95% non-condensing |
| Perimeter lighting: | 0~8,600Lux (fluorescent) 0~100,000Lux (daylight) |
| Input voltage: | 5VDC±10% |
| Operating current: | 52mA～86mA |
| Depth of field angle: | 30° V x 48° H (vertical horizontal) |
| Field of view angle: | 48° (H) x 30° (V) |
| Interface support: | USB, USB-COM, RS-232 (optional) |
| Exterior dimensions: | 159mm*65.5mm*85mm (L*W*H) |
| Box size: | 175mm×130mm×115mm (L*W*H) |
| Product weight: | Approx. 150g (excluding packaging and accessories) |
| Gross weight: | 175mm×130mm×115mm (L*W*H) |
| Cable standards: | Straight line: 1.8m |
| Material: | ABS+PC |
| Sealing grade: | IP52 |
| Drop height: | 1.5m |
| Decoding capability: | Code39,Code93,Code128,UCC/EAN-128,EAN-8,EAN-13,UPC-A,ISSN+2,ISBN+5,Industrial 25 etc. Trigger mode: Manual (Automatic induction, Continuous scanning Optional) |
