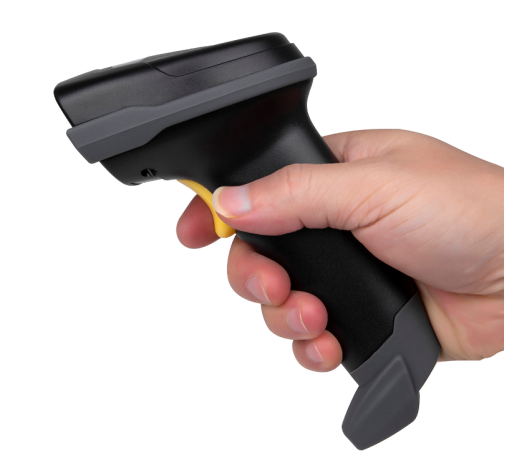

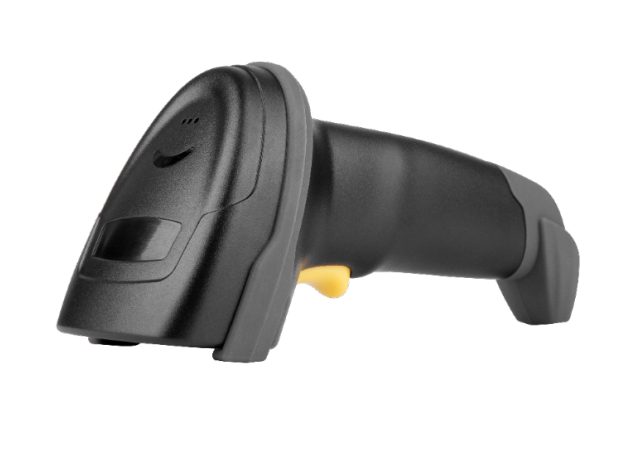

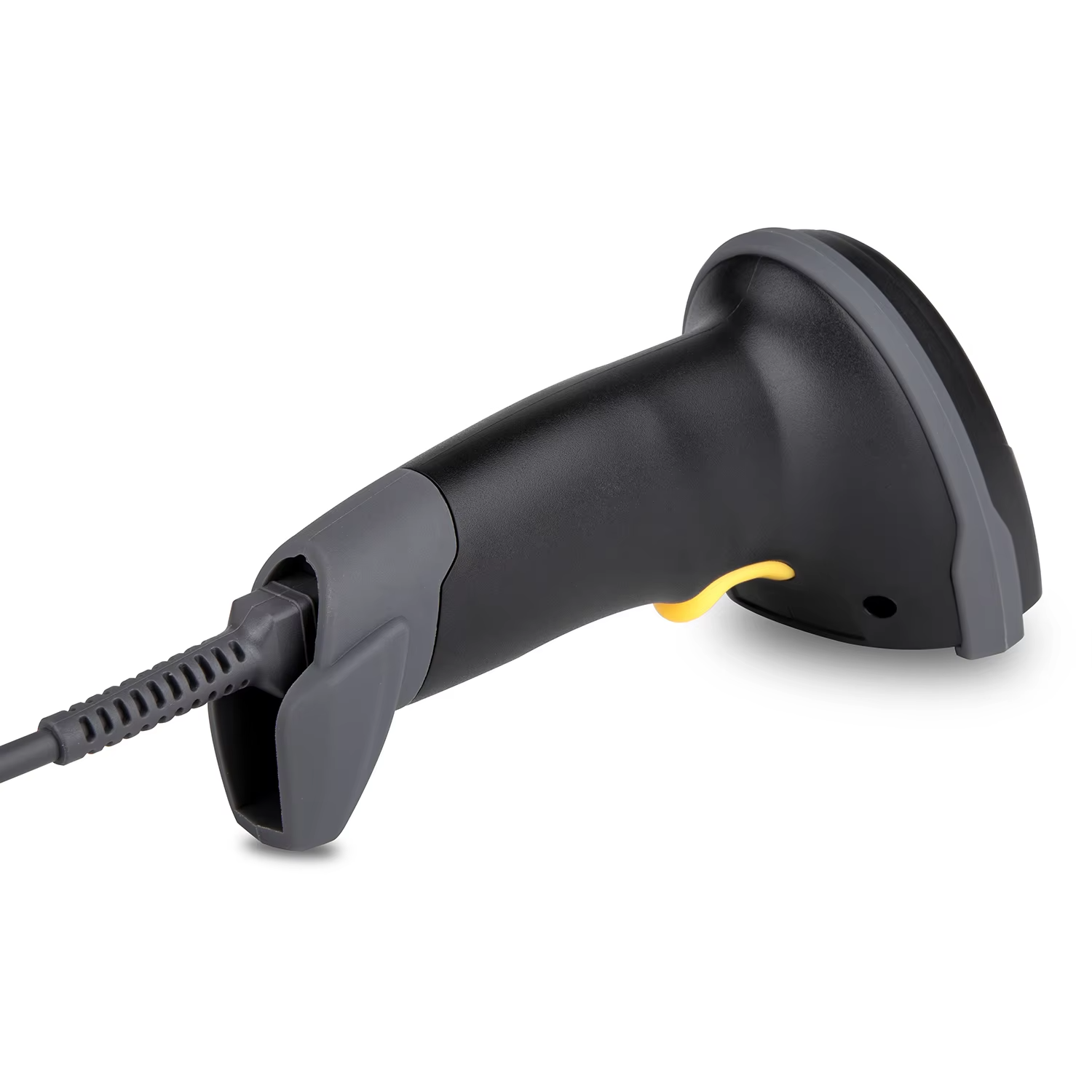

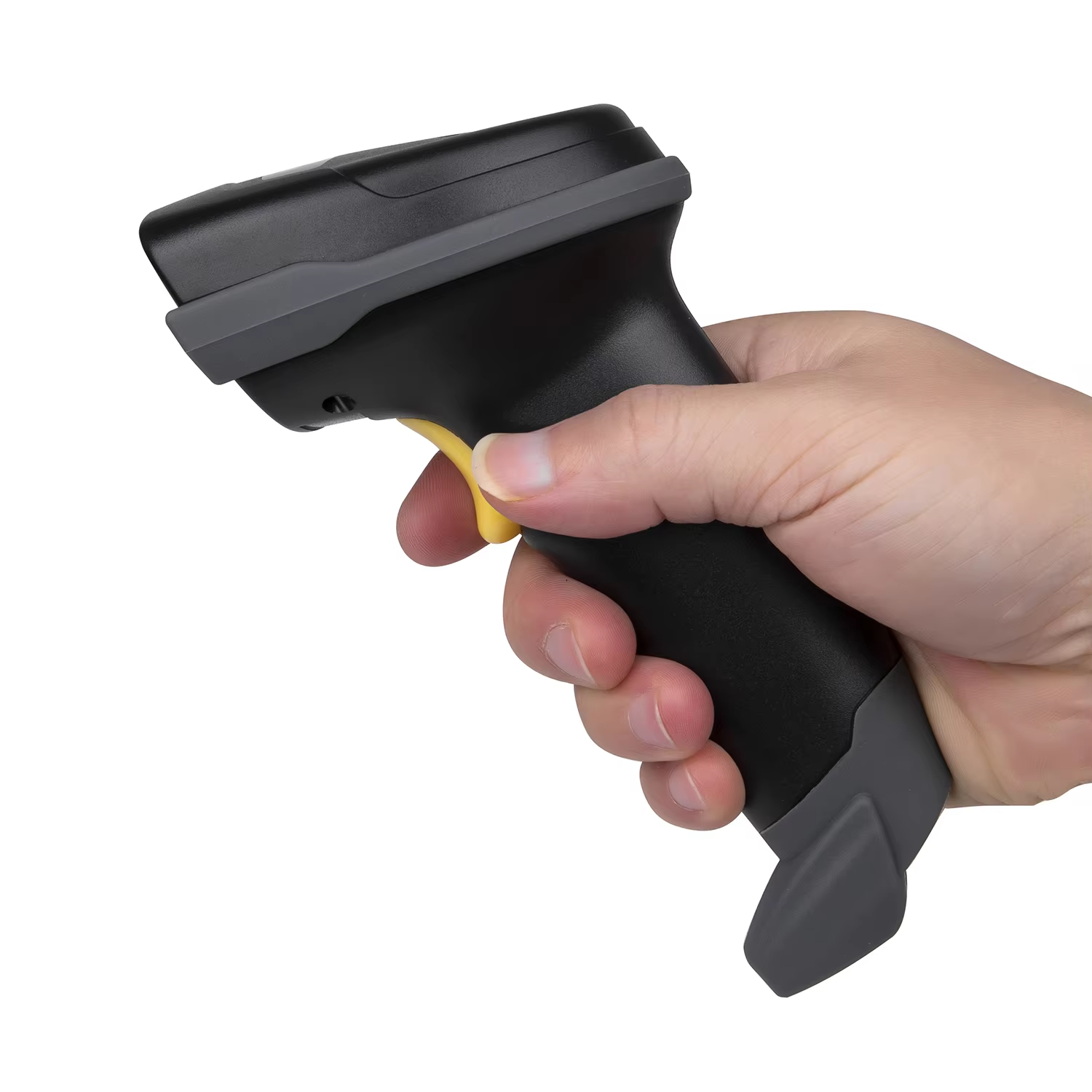

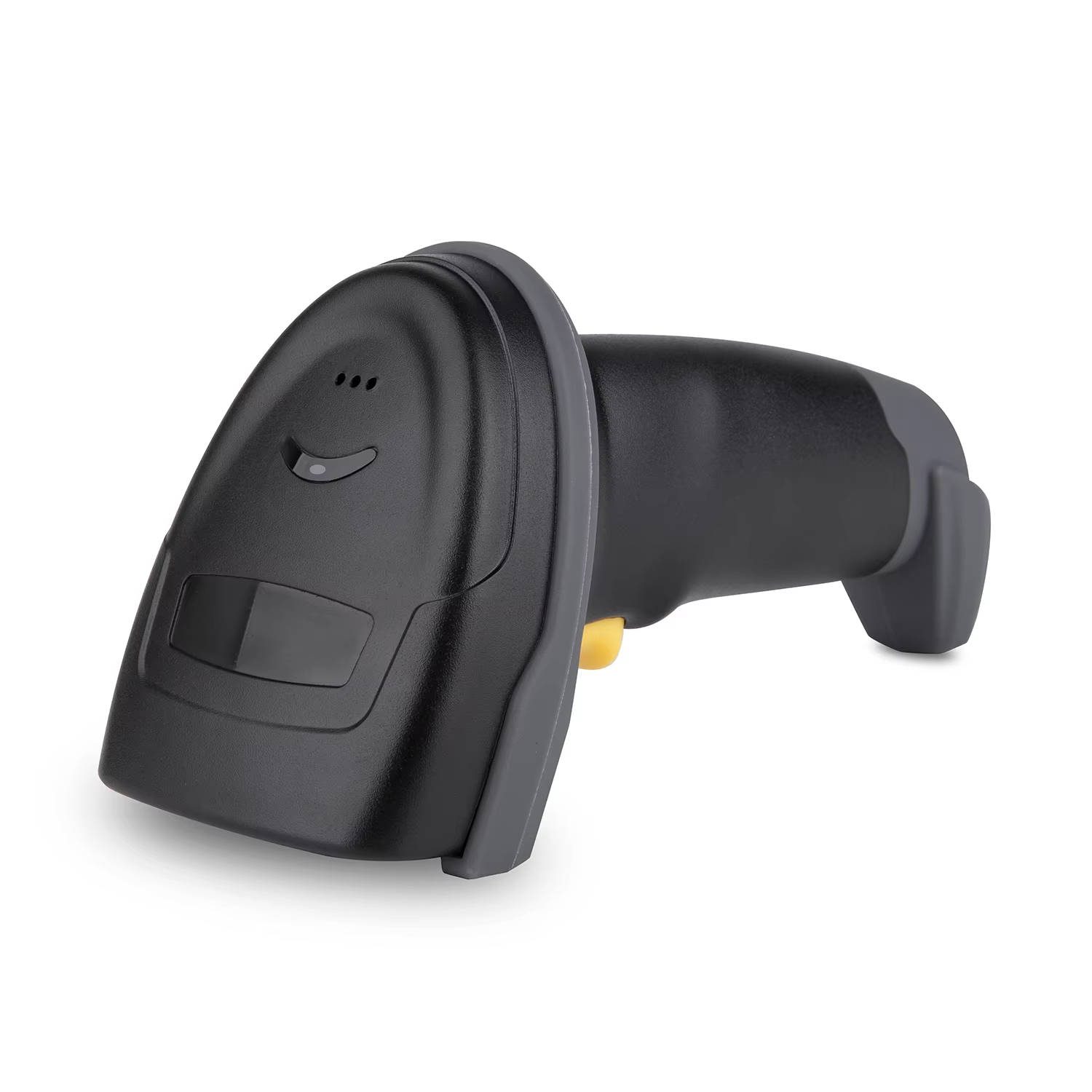

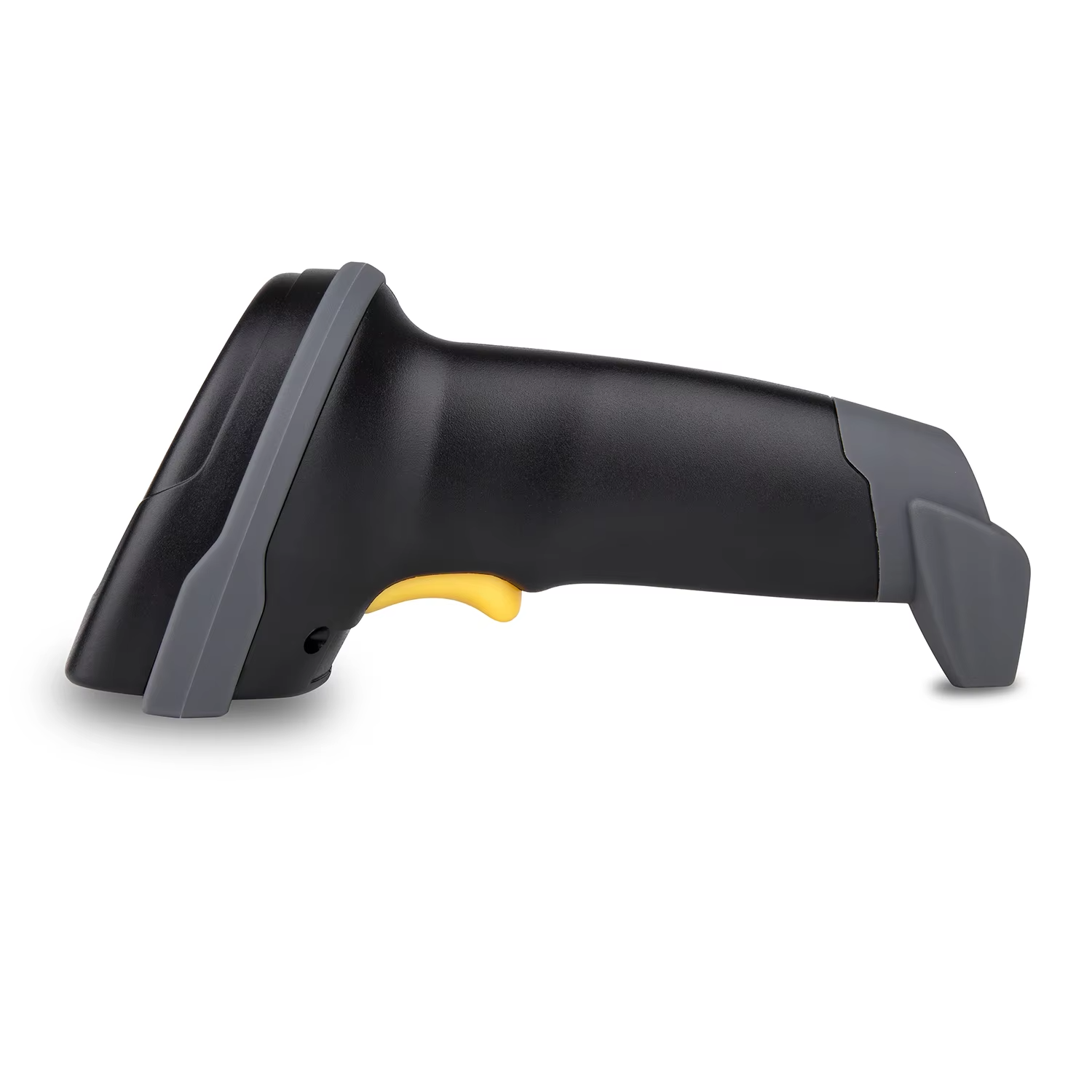

High sense 2D Barcode Scanner with time system WD-S1
High sense 2D Barcode Scanner with time system WD-S1
Features:
- 1.25 Languages
- Full ASCII character editing
- USB
- Time system
PARAMETER:
| Type : | High sense 2D Barcode Scanner with time system 2D Wired Handhedl Barcode Scanner with 1.5m usb cable |
| Interface: | USB (Optional RS232 MOQ300) |
| Material: | ABS+PC |
| Working current： | 3.3Vx200mA，( idle:0mA) |
| Light aimer： | 617nm LED |
| illumination： | 6500K LED |
| Sensor： | CMOS Full area expose PIXELS:640*480 |
| Indication： | Buzzer & LED |
| Resolution： | 1D≥4mil |
| Decoding speed： | 300/sec |
| Printing Contract : | > 20% |
| Trigger Mode： | Button，Continuous，Auto-sense |
| Scanning angle： | rotation360°，inclination± 60°，declination ± 60° |
| Anti-interference： | 0-100000Lux Max |
| Decode Capability： | 1D：UPC，EAN，ISBN, ISSN, Code 128，Code 39，Code32，Code 93, Interleaved 2 of 5，industrial 2 of 5,Matrix 2 of 5, Standard 2 of 5, MSI , Code 11，Codabar, GS1 Data Bar, GS1 composite code。 2D：QR, Micro QR，Data Matrix，PDF417，MicroPDF417，Aztec Code， Maxi Code，Hanxin |
| Drop test: | 1.8m |
| Dongle/Wire-Interface： | USB, USB-COM |
| REGULATORY: | CE, FCC, RoHS |
ENVIRONMENT:
| Operating Temp. : | -20℃ to 50℃ |
| Storage Temp. ： | -30°C to 60°C |
| Humidity： | 5% – 95% non-condensing |
| Stand： | Optional |
