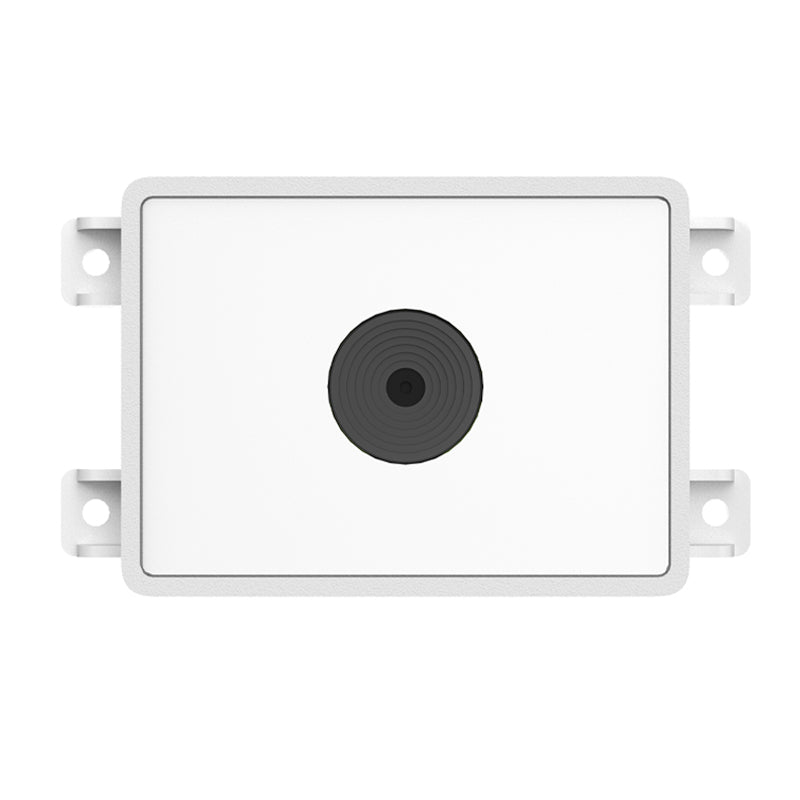

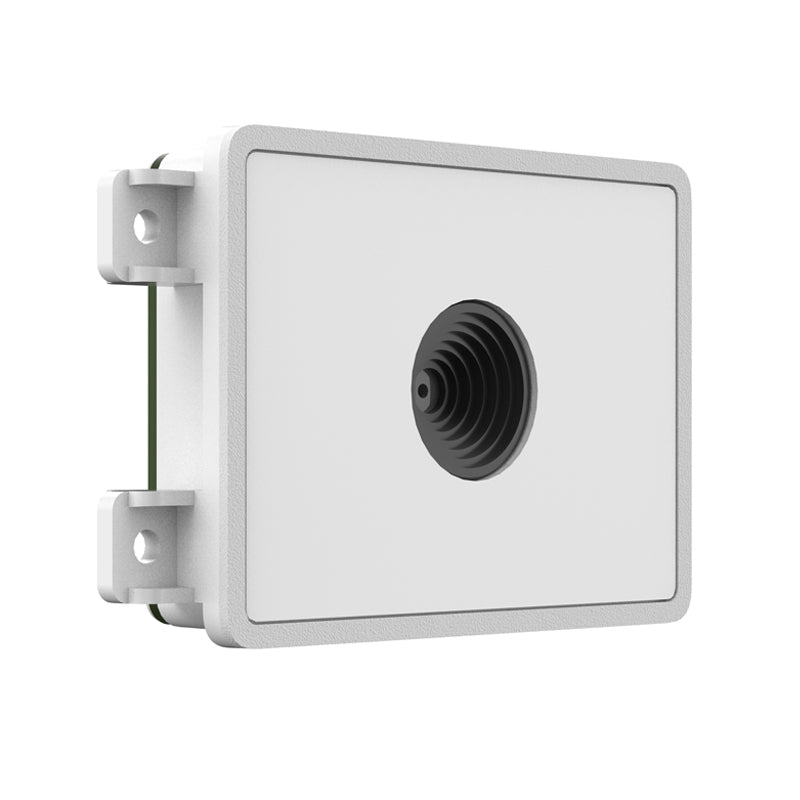

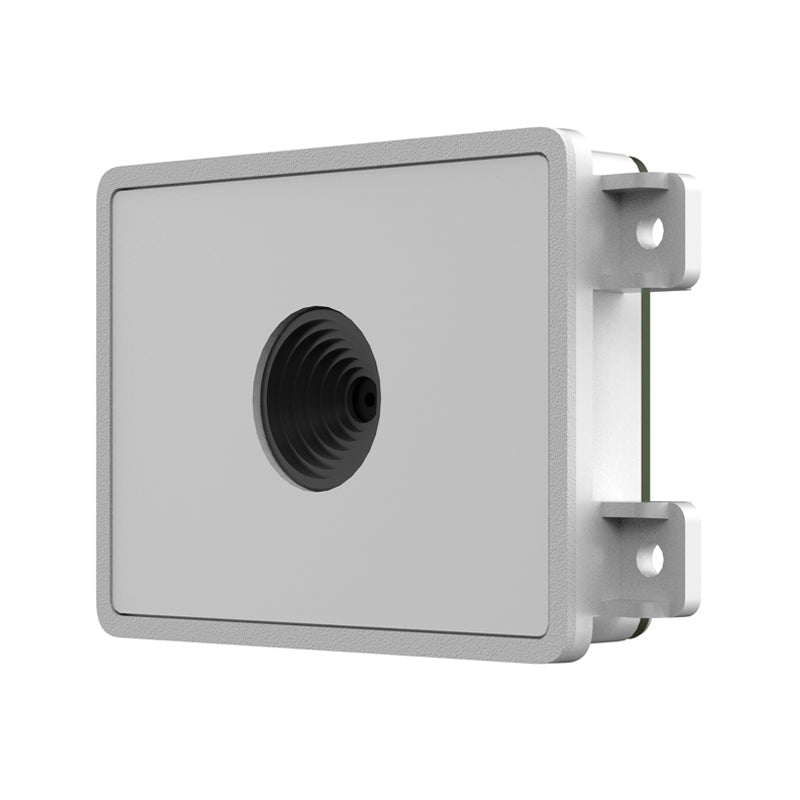

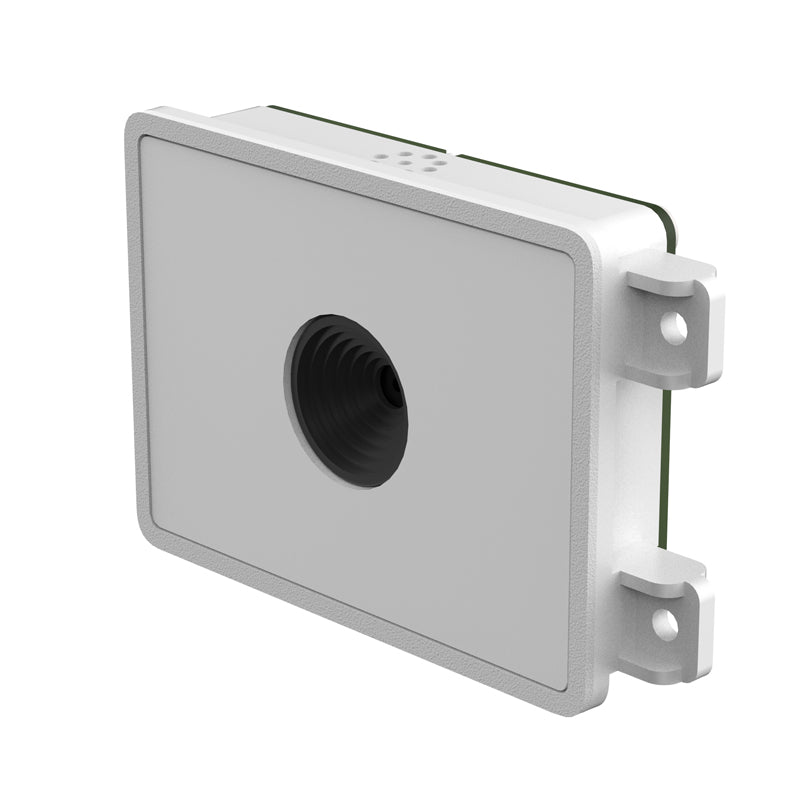

Embedded 2D CMOS Scanner Module WD-M13
Embedded 2D CMOS Scanner Module WD-M13
Features:
1. WD-M13 is an embedded 2D scanning module with small body, high integration , flexibility and convenience, and excellent performance .
2. WD-M13 It can be integrated in bus, ticket vending machine, self-service ordering machine, access control gate and other application equipment . Widely used in intelligent transportation, self-service retail, intelligent medical care, intelligent building and other fields.
3. WD-M13 adopts advanced image recognition algorithm and wide-angle optical lens , which can easily read all kinds of 1D barcodes and 2D barcodes at high speed , and can handle various scanning applications with ease .
4. WD-M13 has strong reading ability and can provide excellent scanning performance in various lighting environments (including completely dark environments) and a wide range of temperature and humidity. It can also adapt to various harsh and complex working environments , such as shock, vibration and strong exposure.
|
Model
|
WD-M13
|
|
Type
|
Embedded 2D CMOS Scanner Module
|
|
Image Sensor
|
640*480 CMOS
|
|
Resolution
|
1D ≥6mil, 2D ≥ 10mil
|
|
Scan Angle
|
Roll:360°, Pitch:±60°, Skew:±60°
|
|
Symbol Contrast
|
≥25%
|
|
Interface
|
TTL-232 / USB 2.0 Full Speed
|
|
Dimensions
|
55.1mm x32.9mm x 11.9mm (LxWxH)
|
|
Weight
|
15g
|
|
Voltage
|
DC +3.3V±5%，USB 5V
|
|
Symbologies
|
1D：EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128,
Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, MSI Plessey , RSS-14, Qualified RSS, Extended RSS 2D：QR Code,PDF417,DataMatrix(ECC200) |
