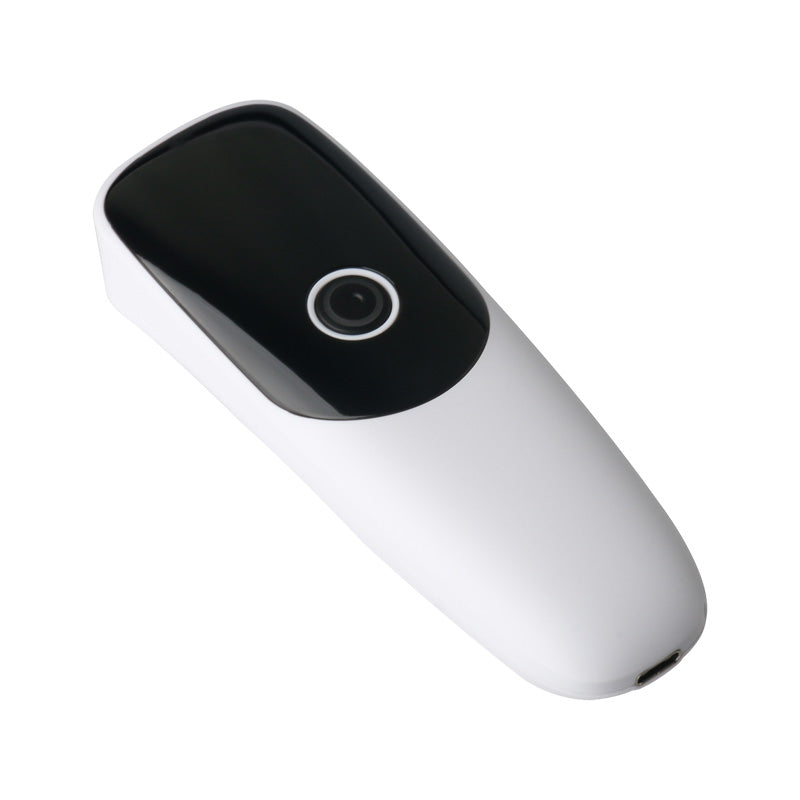

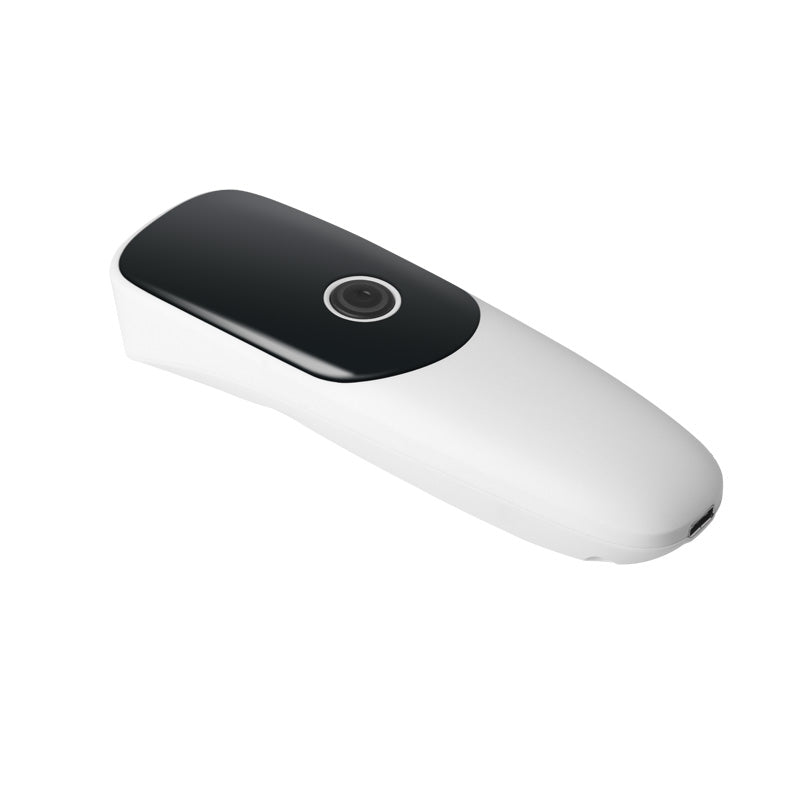

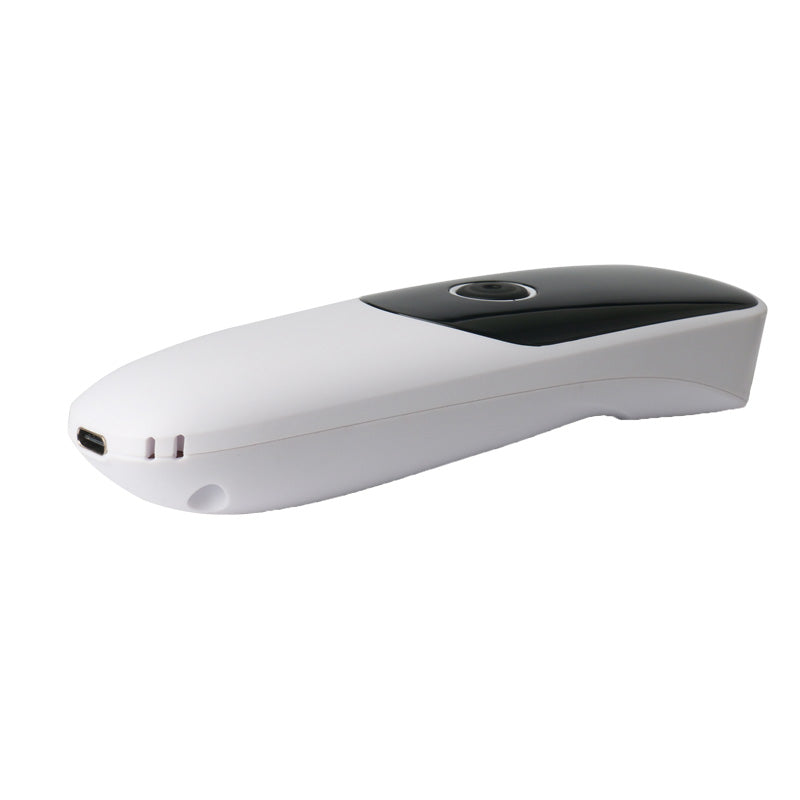

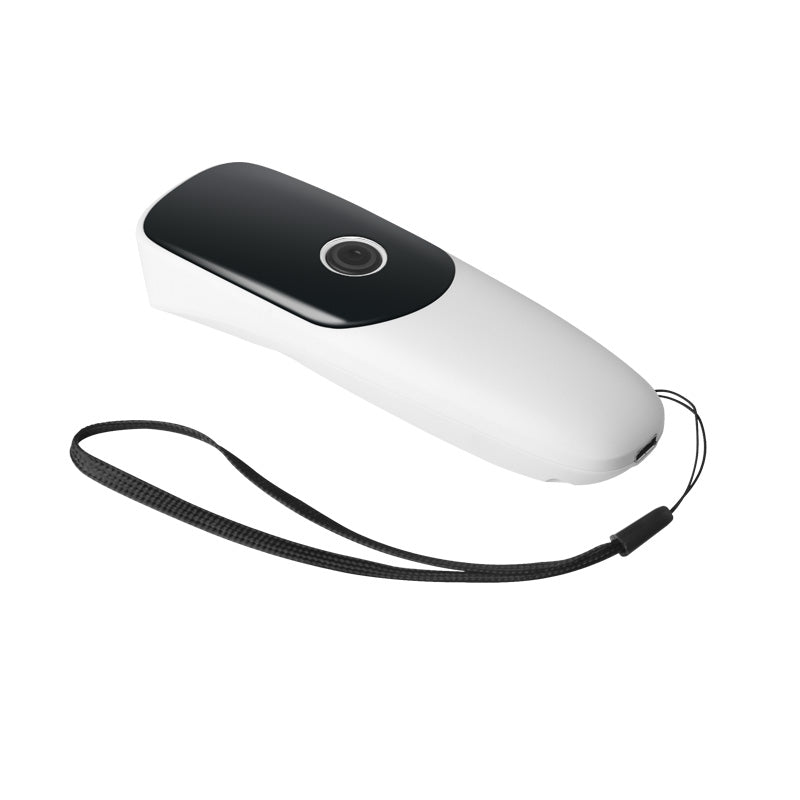

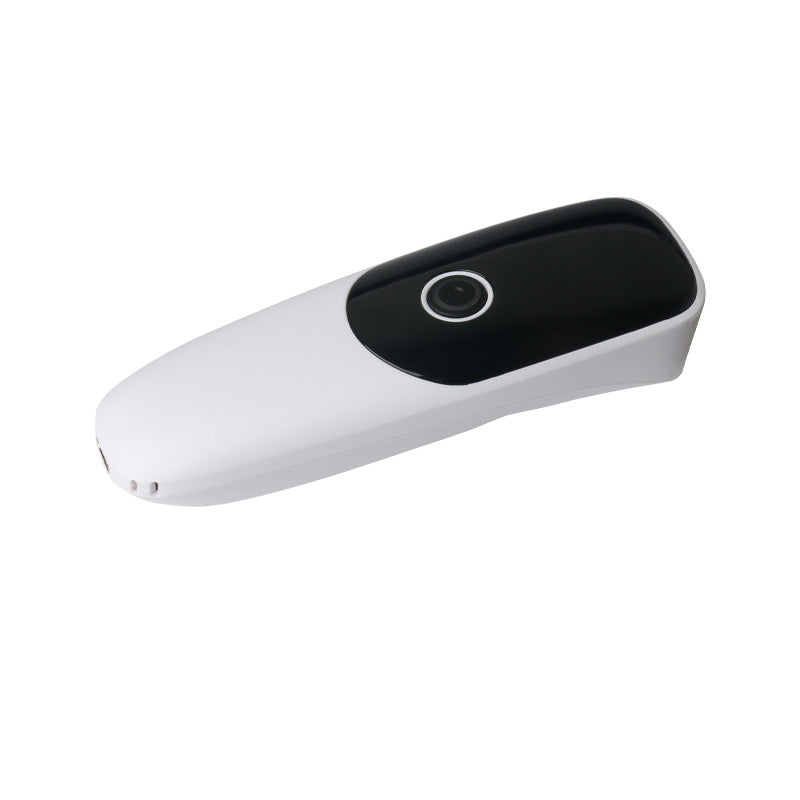

Pocket 2D Barcode Scanner WD-BT66
Pocket 2D Barcode Scanner WD-BT66
Product description:
WD-BT66X-2D is a high-performance 2D bluetooth and wireless 2.4G barcode scanner with leading CMOS image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory, etc.
Features:
1. Wearable design, widely used in warehouse, express.
2. Read all mainstream 1D 2D barcodes in the market easily.(3mil)
3. 100,000 data storage capacity.
4. Bluetooth 4.2, intelligent automatic connection when it’s beyond range, not manual setting.
5. Mode: Bluetooth(HID,SPP,BLE), Wireless2.4G, connected with PC, mobile phone easily.
Product parameters:
| Scan Type | CMOS |
| Light Source | Lighting: white LED(Automatically adjust brightness according to distance) Aiming: Red LED，wavelength coverage 525nm |
| CPU | 32-bit |
| Start time | 750ms |
| Resolution | 1280×800 |
| Reading precision | 1D：≥3mil，2D：≥8.7mil @PCS90% |
| Decoding speed | 25CM/S |
| Visual angle | Horizontal 40°× Vertical 30° |
| Depth of field | 3mil：55~100mm，13mil：55~350mm |
| Scan Mode | Trigger mode、Auto sense mode |
| Scan angle | Test Conditions：CODE39,10mil/0.25mm,PCS90% |
| Roll：±360°、Pitch：±60°or greater、Yaw：±70°or greater） | |
| Print Contrast Signal | ≥25% |
| Ambient Light | 70000lux |
| Wireless communication mode | Synchronization , storage |
| Wireless transmission distance | Bluetooth 30 m, Wireless 2.4G 150m（Open distance) |
| Storage | 16Mb（over 100,000 barcodes） |
| Battery capacity | 1200mAh |
| Battery charging time | About 3.5 h |
| Continuous working time | ≥8h |
| Symbologies | 1D：Codabar、Code39、Code32、Interleaved 2 of 5（ITF25）、Industrial 2 of 5 Industrial 25 code、Matrix 2 of 5、Code93、Code11、Code128、Gs1-128、UPC-A、UPC-E、EAN/JAN-8、EAN/JAN-13、ISBN、ISSN、GS1 databar、GS1 databar limited、GS1 databar expanded、ISBT、MSI、Febraban（Brazil bank code） |
| 2D：PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec |
|
Weight |
≈70g（without cable） |
|
Dimension |
L130mm * W46.5mm * H28.5mm |
|
Interface Type |
Type C |
|
Power Supply |
DC5V, standby current：47mA，Decoded average current：200mA . |
|
Operating temperature |
-20℃ to 55℃ |
|
Storage temperature |
-20℃ to 60℃ |
|
Humidity |
5% to 95%（non-condensing） |
|
Drop Height |
1.5m |
|
Temp. Test |
30 minutes for high Temp., 30 minutes for low Temp., |
|
High Temp. |
60℃ |
|
Low Temp. |
-20℃ |
|
Transport vibration Test |
10H@125RPM |
Accessories List:
|
Cable |
USB, connect the scanner to a host device and charging. |
|
Receiver |
Used to receive and transmit scanner data. |
|
Charger
|
Optional |
