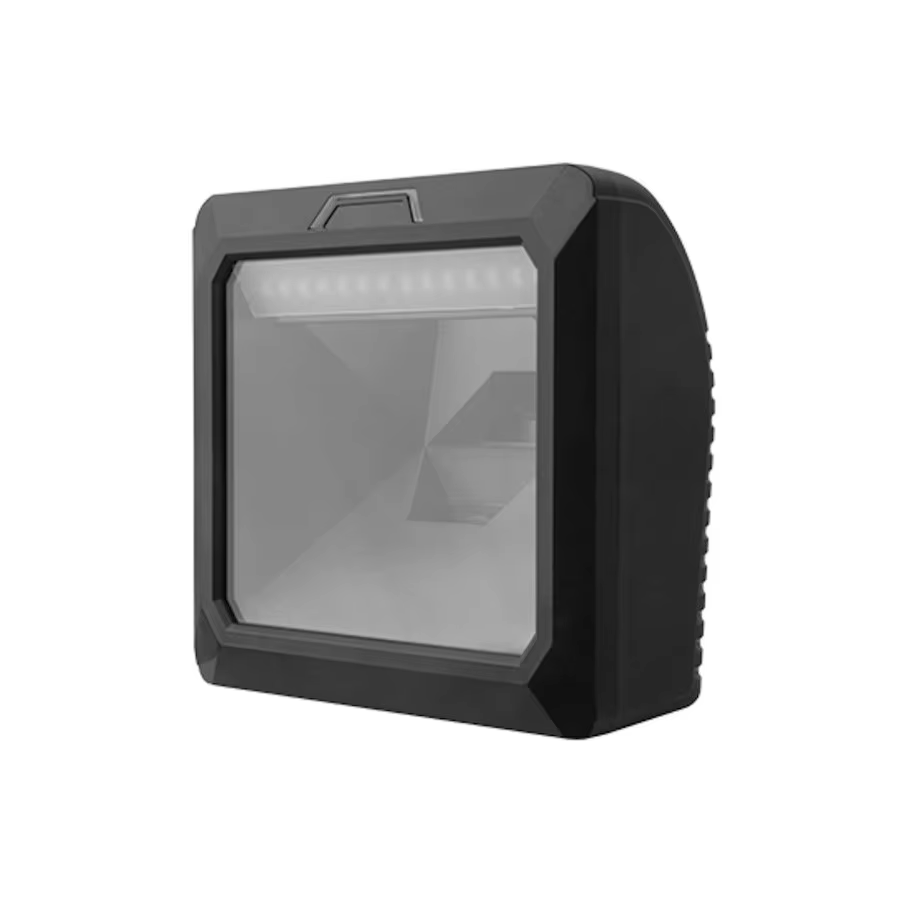

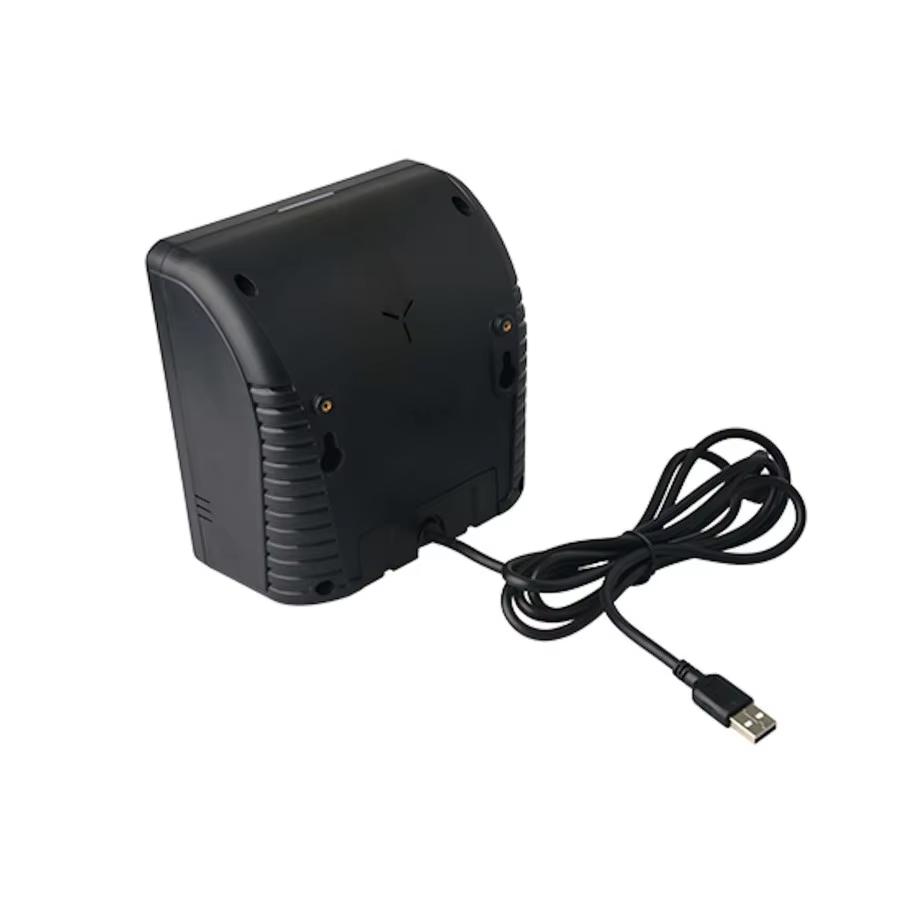

WD-D7 2D&1D desktop barcode scanning platform
WD-D7 2D&1D desktop barcode scanning platform
Need pricing or integration advice?
Tell us your application, interface and expected quantity. Our team will recommend a suitable configuration.
Request a quoteFeature:
1. 1,300,000 global exposure
2.Can scan barcodes on low light screens
3.have large wide-angle lens and large viewing angle.
4.Fixed or suspended design
| Type | 2D&1D desktop barcode scanning platform |
| Interface | USB (Optional RS232:MOQ300) |
| Sensors | CMOS |
| Lighting | Red light |
| Resolution | Megapixel(Optional 1.3 million pixels ) |
| Decoding ability: |
1D:UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5，Strande 2 of 5, Codabar（NW-7），MSI Plessey，GS1 Databar(RSS)，China Post，Telepen,etc. |
| 2D: QR Code, Data Matrix，PDF417， Aztec,HanXin Code, etc. | |
| Reading accuracy | ≥4mil/0.127mm(PCS90%,Code 39) |
| Print Contrast Signal | ≥20% |
| Options | 1.3 million pixels |
| Packing List |
20pcs /ctn, NW:9.2kg GW:10KG 1 unit:0.2k， 17.5*12.7*9CM |
