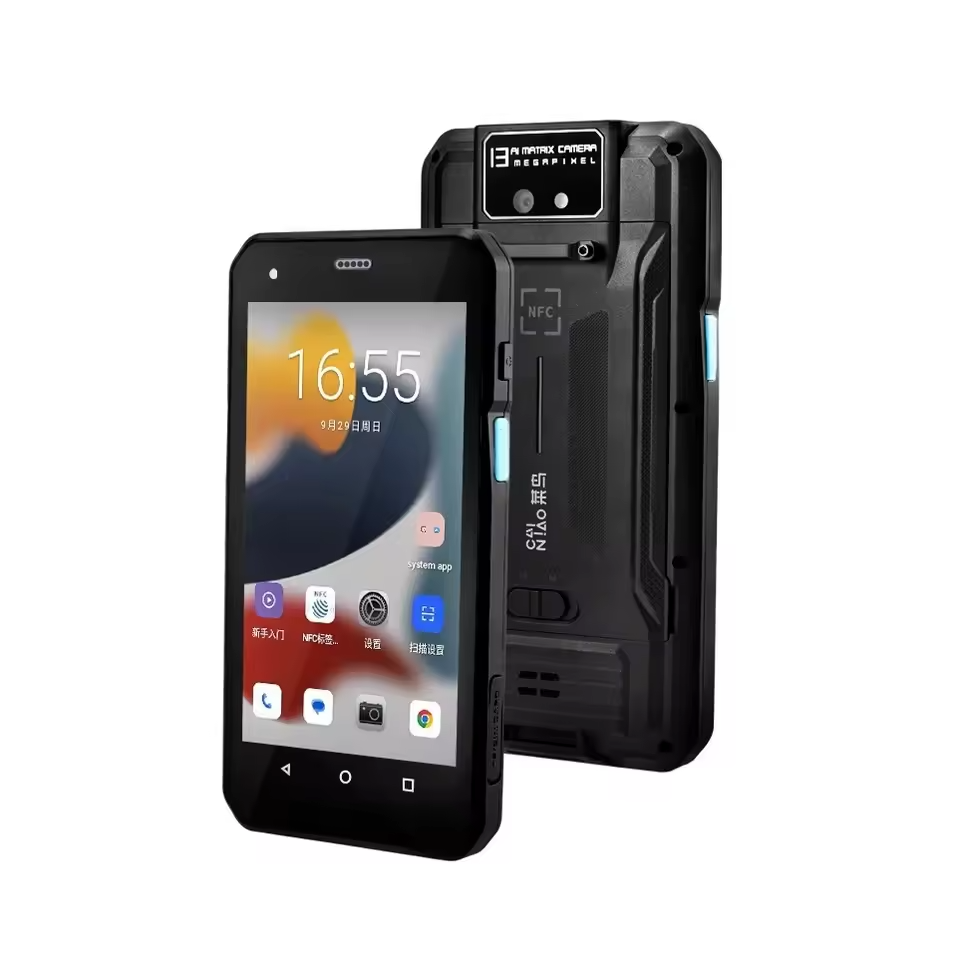

WD-HT22 Industrial Grade intelligent Handheld Terminal
WD-HT22 Industrial Grade intelligent Handheld Terminal
| Touch screen | Industrial Grade intelligent Handheld Terminal |
| Battery | 5100mA polymer lithium-ion battery |
| Expansion Slots | 2 SIM card slots, 1 Micro SD (TF) card slot, supports up to 128GB (choose two from three) |
| Memory | 4+64G (Standard Configuration) |
| Audio | Microphone, earpiece, 1W speaker, supports voice calls |
| Sensors | Light sensor, proximity sensor, gravity sensor |
| Power Adapter | 100-240V, 50-60Hz, 0.29A; Output: 4.35V, 2A |
| Camera | Rear 8MP camera, compatible with 13MP rear cameras |
| Vibration Motor | Built-in vibration motor |
| Memory | Expandable up to 128GB via MicroSD (TF) card |

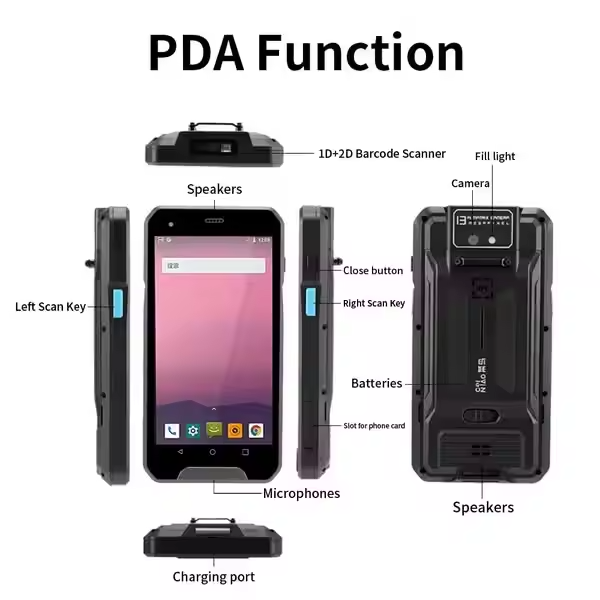

| Keypad | 2 side buttons, 1 power button, 3 keys total |
| Charging Method | Type-C charging |
| Alert | High-power speaker/vibration/LED/audio |
| NFC | Optional |
| Scanning accuracy | ≥3mil |
| Scanning angle | Tilt ±60°, Deflection ±60°, Rotation 180° |
| WLAN | Wi-Fi 802.11 a/b/g/n/r/ac 2.4G+5G, supports fast roaming,Wi-Fi 5G |
| Bluetooth | Bluetooth 5.0 |
| GPS | GPS/AGPS/Beidou/Galileo/GLONASS/QZSS |
| GNSS | Integrated GPS, Beidou, GLONASS, built-in antenna, supports AGPS |
| Decoding Types |
1D:UPC/EAN,Code 12 8,Code3 9,Code 93,Code1 1,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5,Coda bar,MSl,RSS, etc. 2D:PDF417,Micro PDF417 ,Composite ,RSs,TLC-39,Datamatrix,QRcode , Micro QR code , Aztec , MaxiCode, Postal Codes: Us Post Net ,UsPlanet ,UK Postal,Australian Postal ,Japan Postal, Dutch Postal (KlX), etc. |
