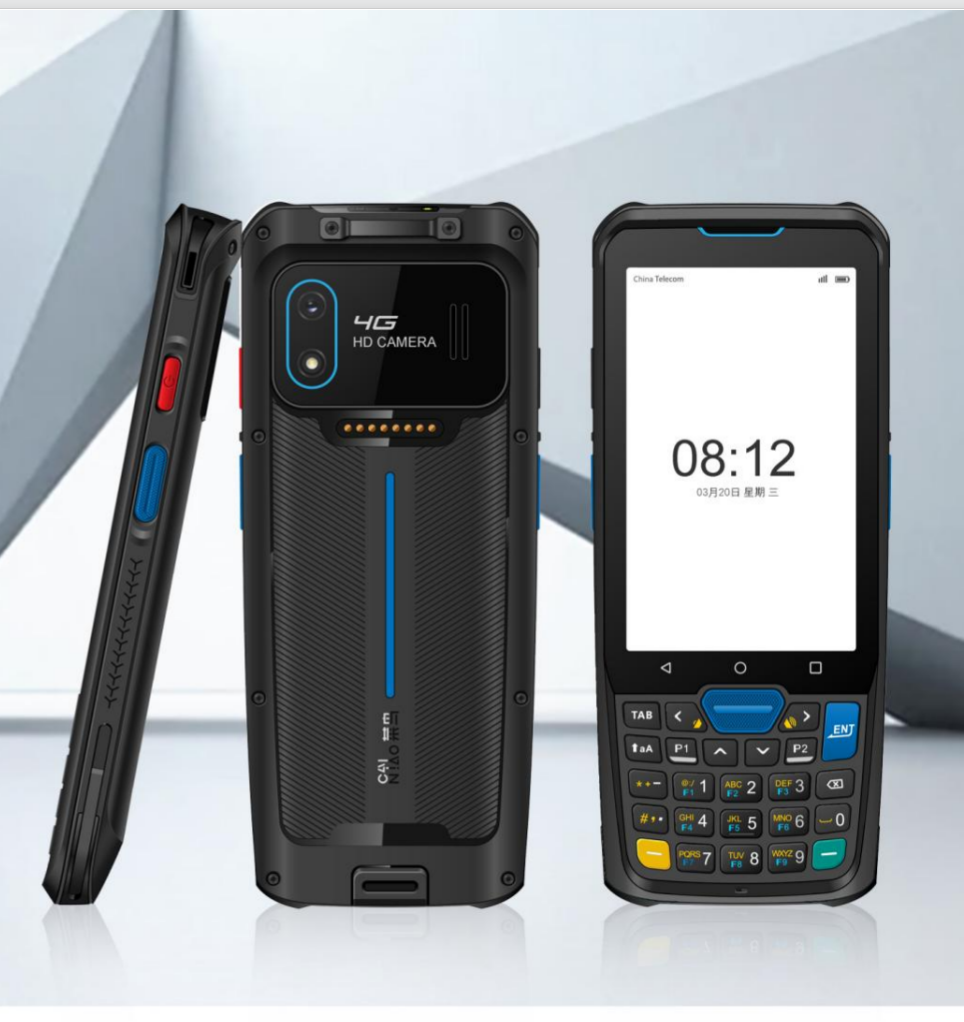

WD-HT23 Industrial Handheld Terminal
WD-HT23 Industrial Handheld Terminal
| Type | Industrial Handheld Terminal |
| Phone call | Support. |
| CPU | MTKA53 8-core, 2.0GHz |
| Structural Style |
Overall Weight：260g Overall Dimension：159mm70mm16mm |
| System | Android 13.0 |
| Screen | 4.0-inch color display, resolution 480x800 |
| Touch Screen | Industrial-grade capacitive screen, supporting wet-hand operation/gesture operation/multi-touch/glove mode |
| Battery | Polymer lithium-ion battery, 5100mA |
| Memory | 4+64G (Standard Configuration) |
| Camera | Rear 8-megapixel camera, expandable to 13-megapixel, supporting auto-focus and flash |
| WIFI | Wi-Fi 802.11 a/b/g/n/r/ac 2.4G+5G, supporting fast roaming, Wi-Fi 5G PA amplifier |
| Bluetooth | Bluetooth 5.0 |
| Charging interface | USB Type-C supporting OTG function, supporting Pump Express Plus fast charging |
| Horn | 1W/8R |
| NFC (Optional) |
Operating Frequency：13.56MHz Protocol Standards：ISO14443AB, ISO15693, NFC-IP1, NFC-IP2, etc. Tag Standards：M1 card (S50, S70), CPU card, NFC tag, etc. Reading and Writing Distance：Within 60mm |
| Barcode Scanning |
Supported 1D Barcode Types：UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSl, RSS, etc. Supported 2D Barcode Types：PDF417, Micro PDF417, Composite, RSS, TLC-39, Datamatrix, QRcode, Micro QR code, Aztec, MaxiCode, Postal Codes: US Post Net, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KlX), etc. |
