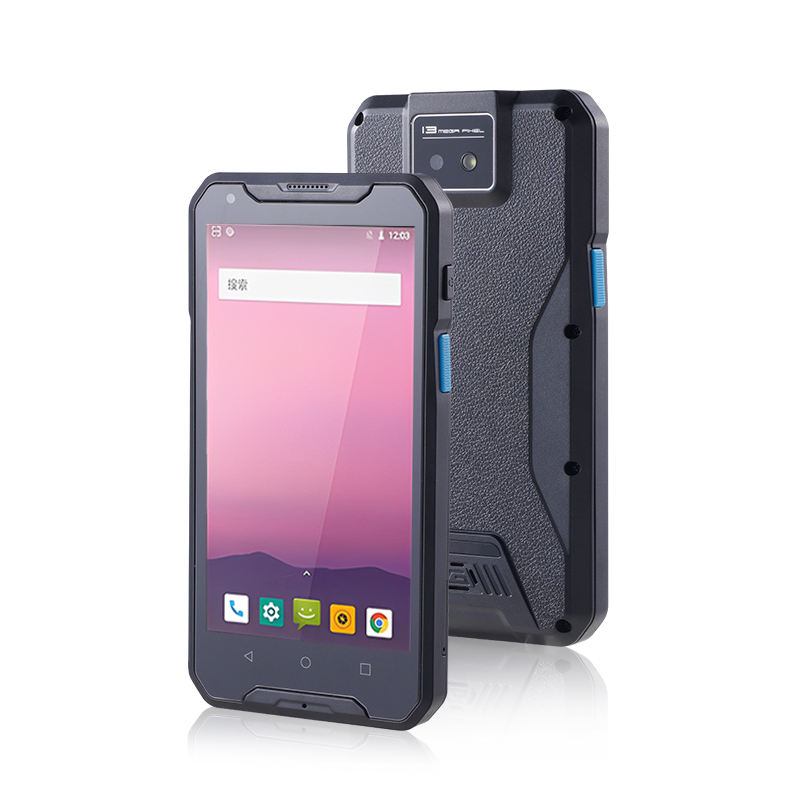

WD-HT3 Industrial Grade intelligent Handheld Terminal
WD-HT3 Industrial Grade intelligent Handheld Terminal
| Type | Industrial Grade intelligent Handheld Terminal |
| Operating System | Android 13 |
| Processor | Octa-core A53, 2.0 GHz (MTK6762) |
| Dimensions | 146 mm *75 mm *18 mm |
| Weight | 220 g |
| Display | 5.0" HD+ capacitive multi-touch, 720 *1280 |
| Cover Glass | Corning GG3 tempered glass, full lamination |
| Memory | RAM + ROM: 4 GB + 64 GB |
| Expandable Storage | Micro SD (TF) up to 128 GB |
| Battery | 4300 mAh Li-polymer |
| Expansion Slots | 1 *SIM, 1 *MicroSD (TF) up to 128 GB |
| Interface | USB Type-C with OTG |
| Connectivity | 4G / 3G / 2G, Bluetooth 5.0 |
| Wi-Fi | Dual-band 802.11 a/b/g/n/ac (2.4 GHz + 5 GHz) |
| Wi-Fi Hotspot | 5 GHz supported |
| Audio | 1506 waterproof earpiece, 1027 flat motor |
| Single MIC, 1 W speaker, external headset support | |
| Sensors | Light, proximity (FPC), gravity |
| Charging | Type-C, 5 V 2 A |

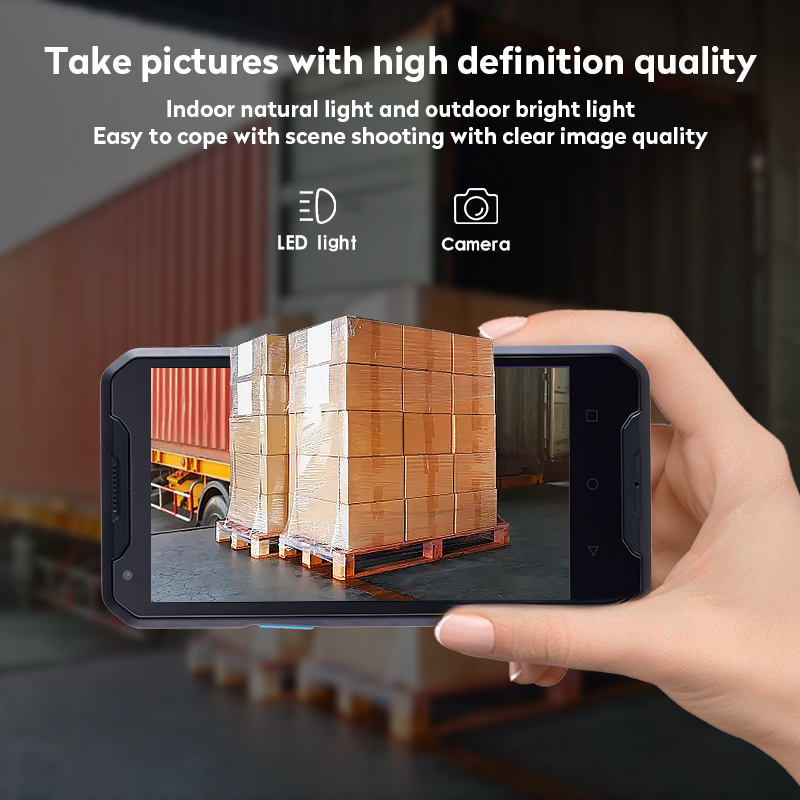

| Rear Camera | 13 MP with LED flash |
| Flash | Supported |

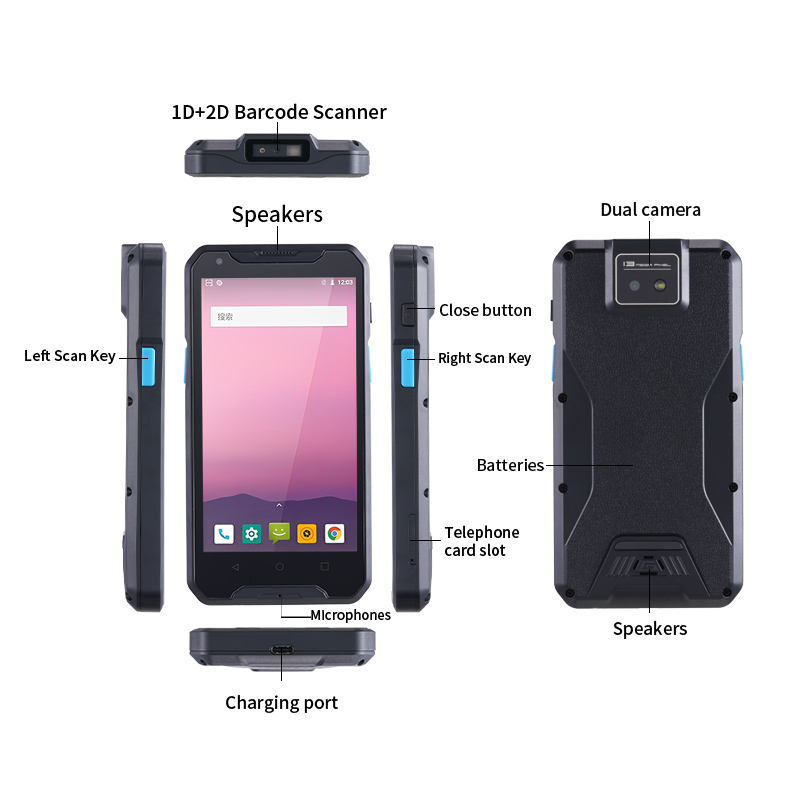

| Keys | Front: Back, Confirm, Menu (virtual) Left: Scan key Right: Power + Scan keys |

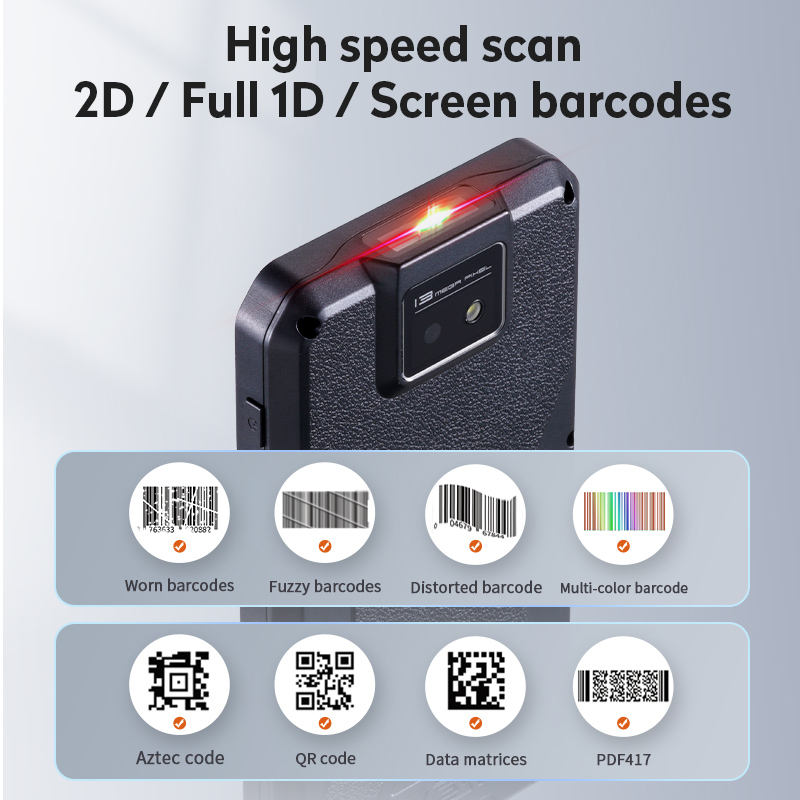

| Scan Engine | 1D/2D barcode engine supported |
| 2D Engine Model | SE66 |
| Supported 1D Symbologies |
Supported 1D Barcode Types： UPC/EAN, Code 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. Supported 2D Barcode Types：PDF417, Micro PDF417, Composite, RSS, TLC-39, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode, Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. |
