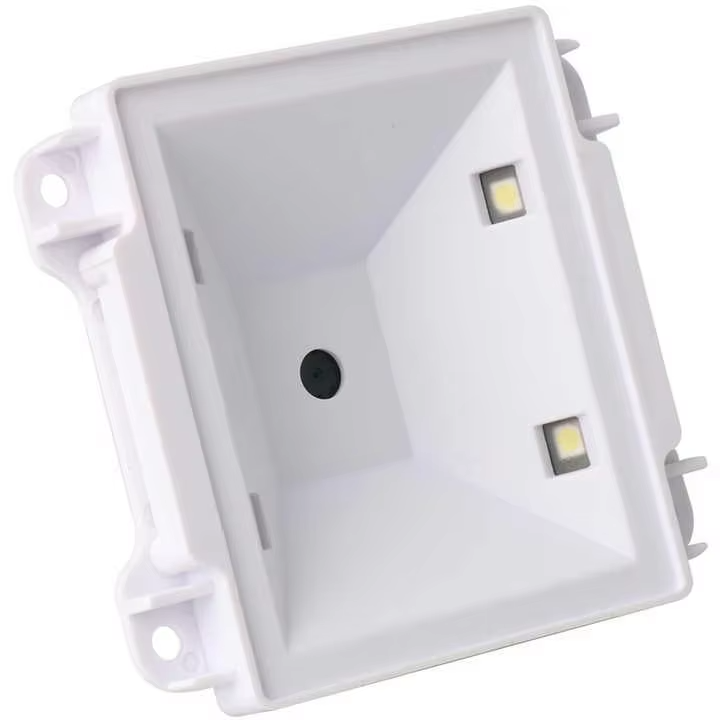

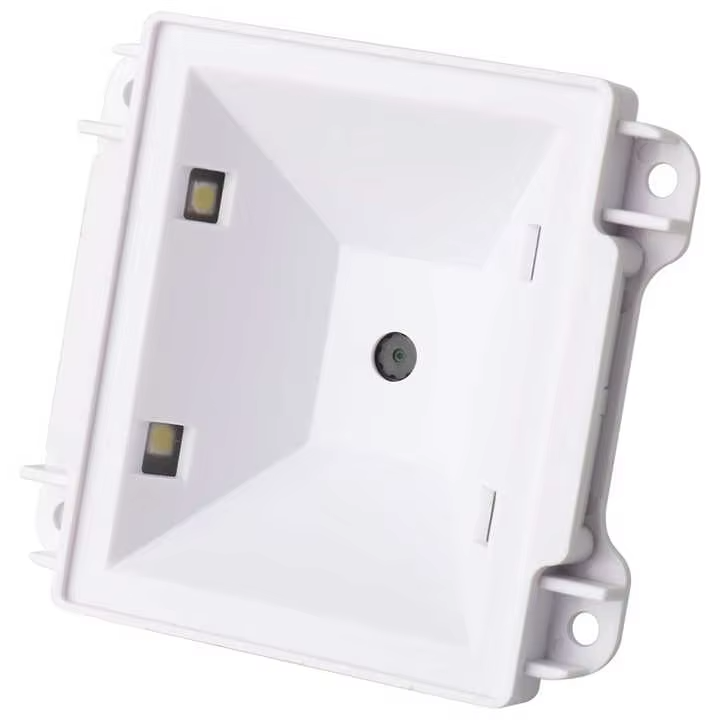

WD-M10 2D CMOS Barcode Scan Engine
WD-M10 2D CMOS Barcode Scan Engine
Need pricing or integration advice?
Tell us your application, interface and expected quantity. Our team will recommend a suitable configuration.
Request a quoteFeature:
1. Wide-angle design
2. Comes with a fixed hole, easy to integrate into other devices;
3 Support online upgrade, custom development and secondary development.
| Type | 2D CMOS Barcode Scan Engine |

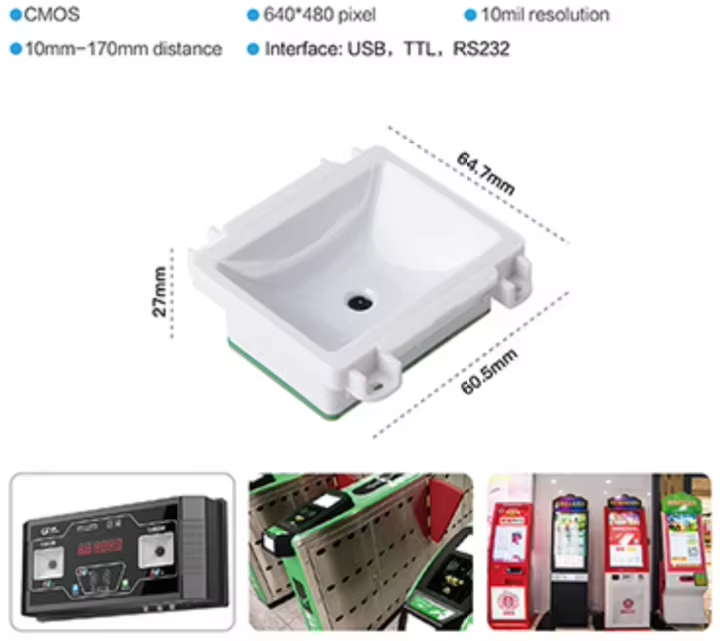

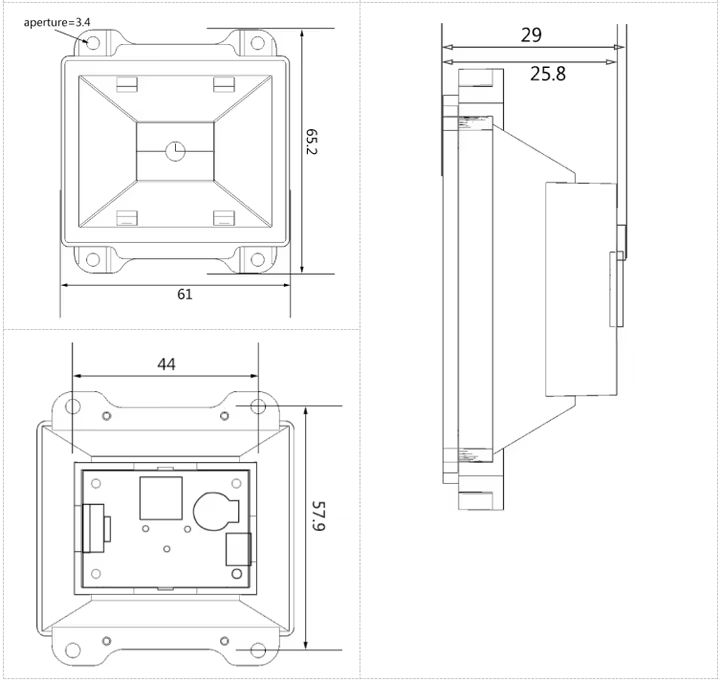

| Dimensions | 65.2mm L* 61mm W * 29mm H |
| Sensor | 640*480 CMOS |
| Interface | USB（USB-KBW，USB-COM），TTL、RS232 |
| Perspective | 65° |
| Mode | Manual、Auto sense |
| Depth of Field | 15mm~250mm |
| Decode Capability | 1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)， etc. |
| 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， Aztec，etc. | |
| Packing List |
50pcs):60*35.5*23.5CM 9kg 1 unit:17*11*4cm 0.15kg |
