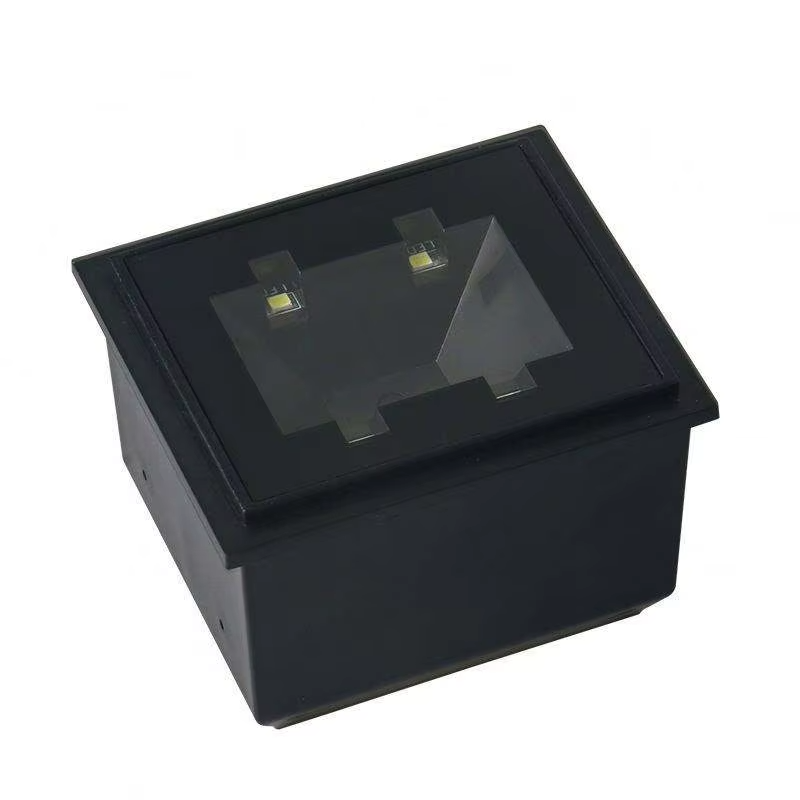

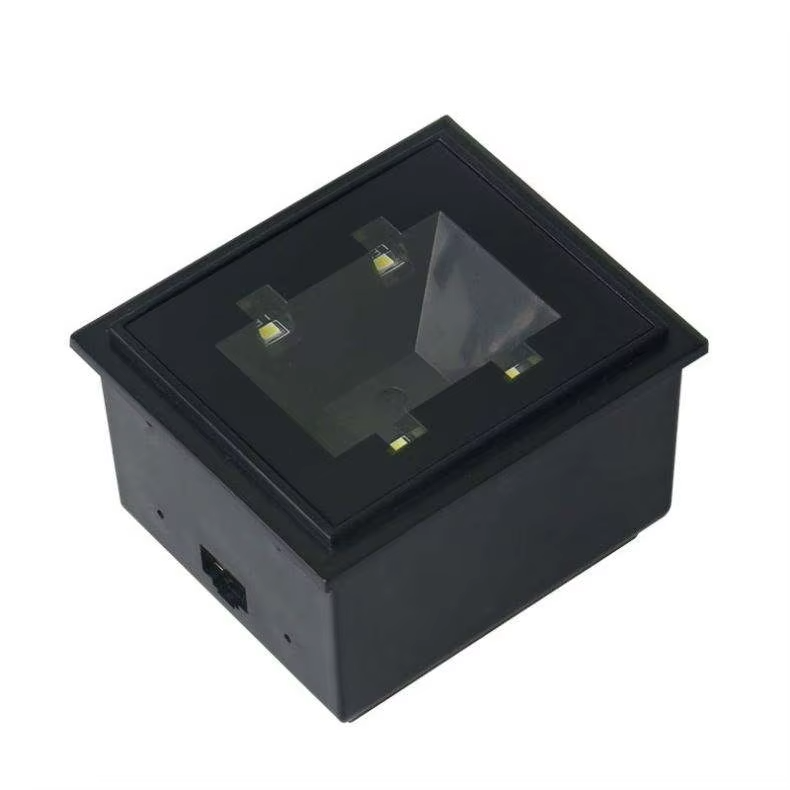

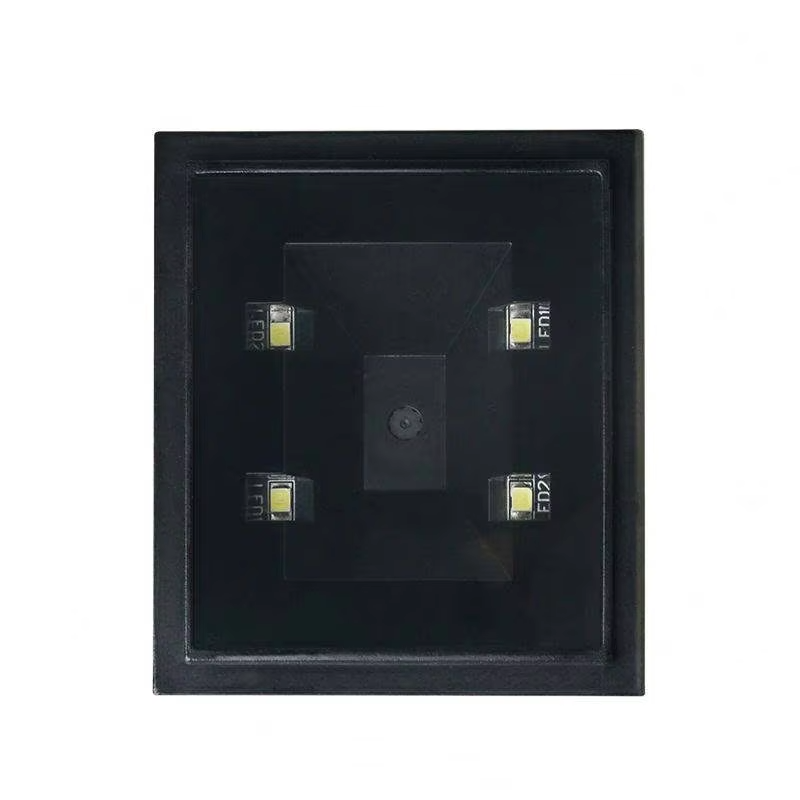

WD-M15 2D CMOS Barcode Scan Engine
WD-M15 2D CMOS Barcode Scan Engine
Need pricing or integration advice?
Tell us your application, interface and expected quantity. Our team will recommend a suitable configuration.
Request a quoteFeature:
1.(640*480) 300,000 Global
2. Can be embedded in other devices with fixed holes.
3. Support online upgrades, customized development, and secondary development.
| Type | 2D CMOS Barcode Scan Engine |
| Resolution | ≥4mil/0.1mm（PCS90%,CODE 39） |
| Interface | USB（USB-KBW，USB-COM），TTL、RS232 |
| Decoding speed | 60CM/S |
| Trigger Mode | Continuous, Induction, Command Control |
| Scanning angle | Roll: ±360°，Pitch:±60°，Skew: ±55° |
| Options |
Sensor： Global Shutter CMOS 640*480 : 23$/pcs |
| Decode Capability |
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， GS1-128， Code 39，Code 32, Code 93，Code 11，Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5(Straight 2 of 5)，Standard 2 of 5（IATA 2 of 5）,Codabar（NW-7），MSI，GS1 Databar(Omnidirectional, Limited, Expanded)，China Post, Tepepen,GS1 Composite etc. |
| 2D: QR Code, Micro QR Code, Data Matrix，PDF417, Micro PDF 417， MaxiCode, Aztec，HanXin Code, etc. | |
| Packing List |
1unit：19.5*10.5*8CM 30pcs /ctn: 56*41*26CM |
