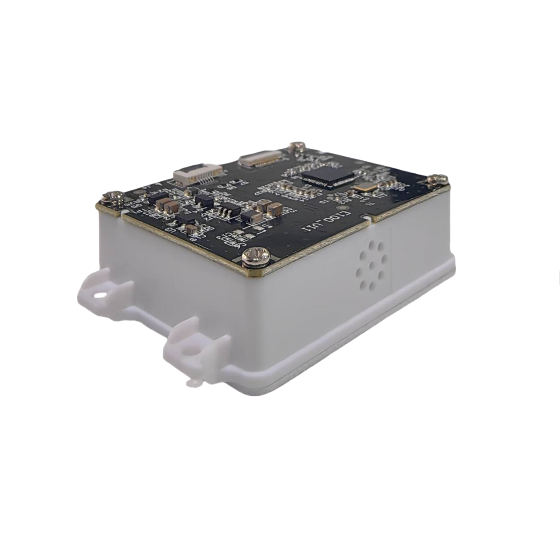

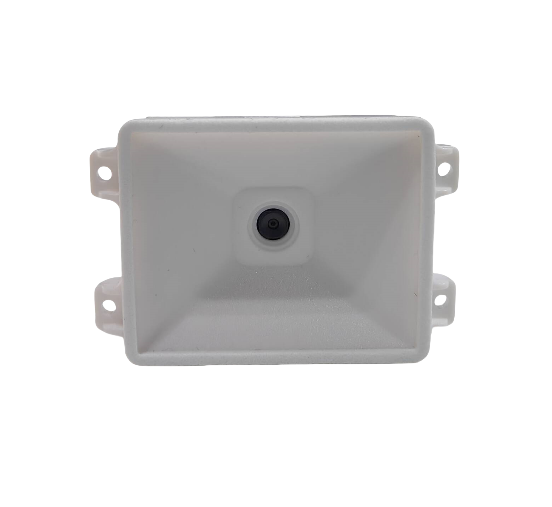

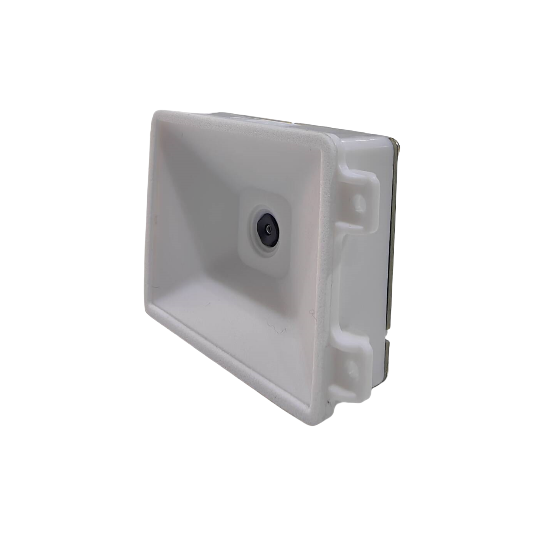

WD-M25 Embedded 2D Barcode Imaging Module
WD-M25 Embedded 2D Barcode Imaging Module
Feature:
1. with NFC
2. Small volume, high integration, flexibility and excellent performance; 3.Widely used in intelligent transportation, self-service
4.Highly compatible transmission interface
| Type | Embedded 2D Barcode Imaging Module |
| Interface | TTL-232 / USB 2.0 Full Speed |
| Sensor | 640 (Horizontal) X 480 (Vertical) Rolling Shutter CMOS |
| Light Source | White fill light 6500K LED |
| View Angle | Horizontal 74°, Vertical58°Horizontal 74°, Vertical58° |
| Horizontal View Angle | Horizontal 74°, Vertical58° |
| Scan Angle | Roll:360°, Pitch:±60°, Skew:±60° |
| Weight | 15g |
| Dimensions | 53.5mm x36mm x 16mm (L x W x H) |
| Decode Capability |
1D EAN13, EAN8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, CodaBar, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code11, MSI Plessey, Standard 2 of 5, Plessey, China Post, Code 16K, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) |
| 2D QR, PDF417, DataMatrix (ECC200), Aztec, HanXin Code, MaxiCode, Micro QR, Micro PDF417 | |
| Options | With NFC : 24.11$/pcs |
