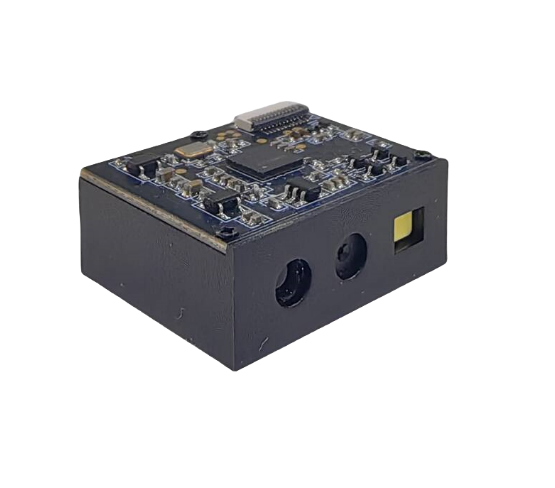

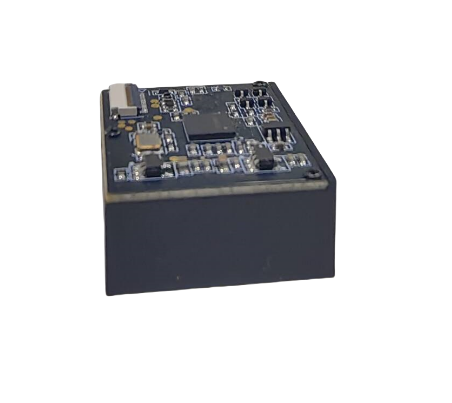

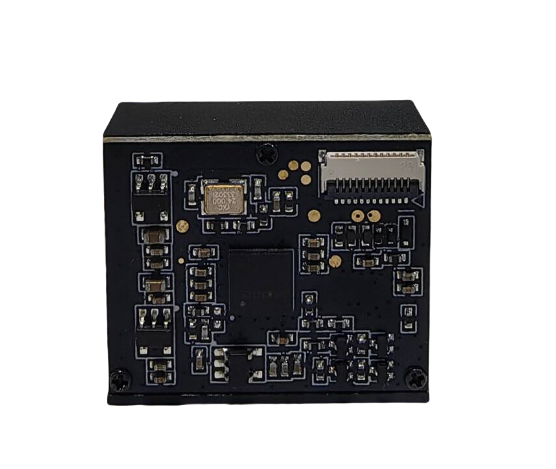

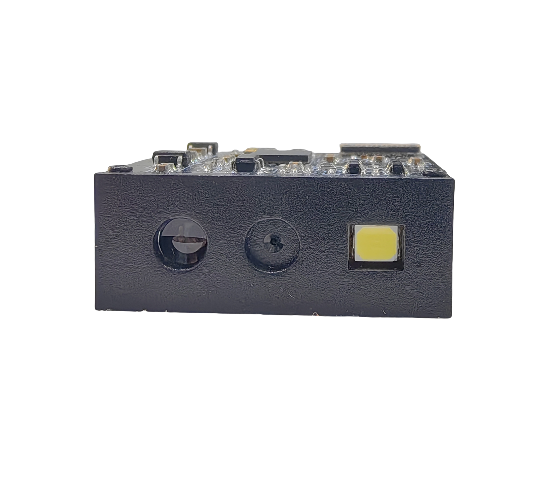

WD-M27 2D CMOS Barcode Scanner Module
WD-M27 2D CMOS Barcode Scanner Module
Feature:
1. OCR function is supported.
2. Supports damaged, distorted, dirty, blurred, colored, reflective, wrinkled, incomplete, folded 1D/2D barcodes
3. 300,000 global camera and wide-angle design.
4.Support scanning code buzzer feedback and vibration feedback
| Type | 2D CMOS Barcode Scanner Module |
| Image Sensor | 640X480 Global Shutter CMOS |
| Interface | TTL-UART, USB-KBW/POS/VCP |
| Dimensions | 26mm x 22.0mm x 11.4mm(L x W x H) |
| Light Source | White light fill/Red light aim |
| View Angle | Horizontal 32° Vertical 24° |
| Scan Angle | Roll:360°, Pitch:±60°, Skew:±60° |
| Weight | <5g |
| Decode Capability | 1D：Code128, Code39, Code93, EAN13, EAN8, UPC-E (E0, E1), ISBN13, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, RSS14 (GS1 Databar), RSS Limited (GS1 Databar Limited), RSS Expanded (GS1 Databar Expanded), RSS14 Stack (GS1 Databar Stack), RSS Expanded (GS1 Databar Expanded Stack), Codebar, MSI Plessey, Code 11, Standard 2 of 5, Plessey, ChinaPost 2 of 5 |
| 2D：QRCode (Mode1, Mode2), MicroQR, Data Matrix, PDF417, MicroPDF417, Aztec, HanXin, MaxiCode, Code 16K | |
| Scan Model | Manual Mode, Command Trigger Mode, Continuous Mode, Sense Mode |
