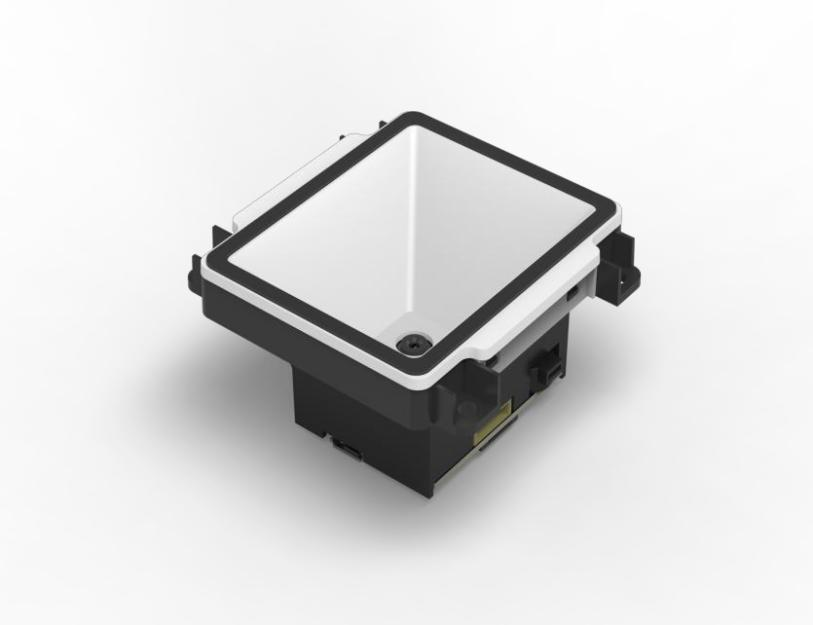

WD-M28 Embedded 2D CMOS Scanner Module
WD-M28 Embedded 2D CMOS Scanner Module
Feature:
1.High-res 1280×960 CMOS with wide-range decoding
2.Stable under strong light (up to 100,000 lux)"
| Type | Embedded 2D CMOS Scanner Module |
| Imaging sensor： | 1280 × 960 CMOS |
| Lighting： | White LED / 320 LUX / 615.6 nm ~ 635.5 nm |
| Reading accuracy： | ≥ 3.3 mil |
| Print contrast： | ≥ 15% |
| Read from an intellectual perspective： | Rotate 360°, Tilt ±30°, Deflection ±40° |
| Field of view： | Horizontal 6.5°, Vertical 4.0° |
| Decode Capability : | 1D： Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, EAN-13, MSI-Plessey, Code 39, Code 11, Plessey |
| 2D： QR code, PDF417, Data Matrix, Hanxin code | |
| Size： | 65 mm × 61.2 mm × 27.5 mm |
| Communication interface： | USB, TTL232, RS232 |
