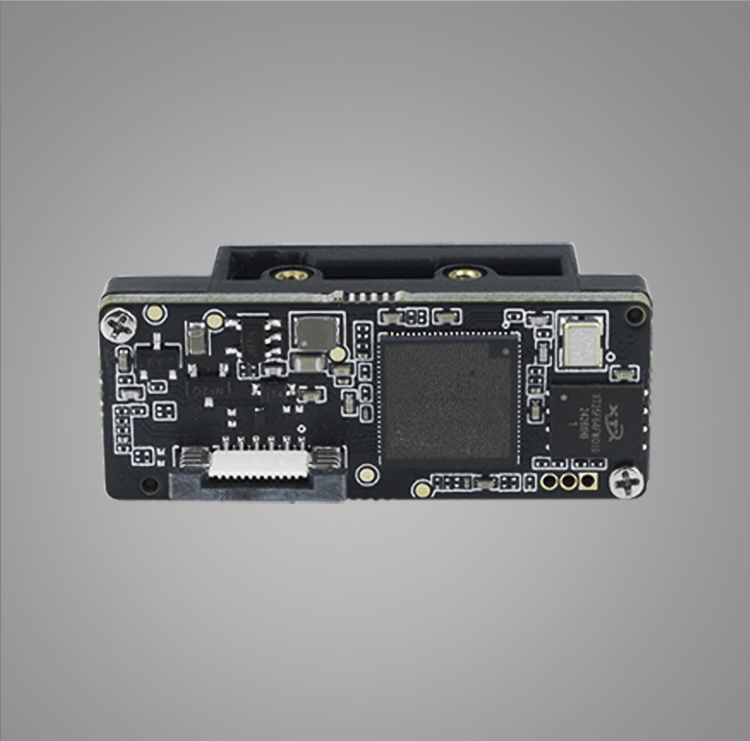

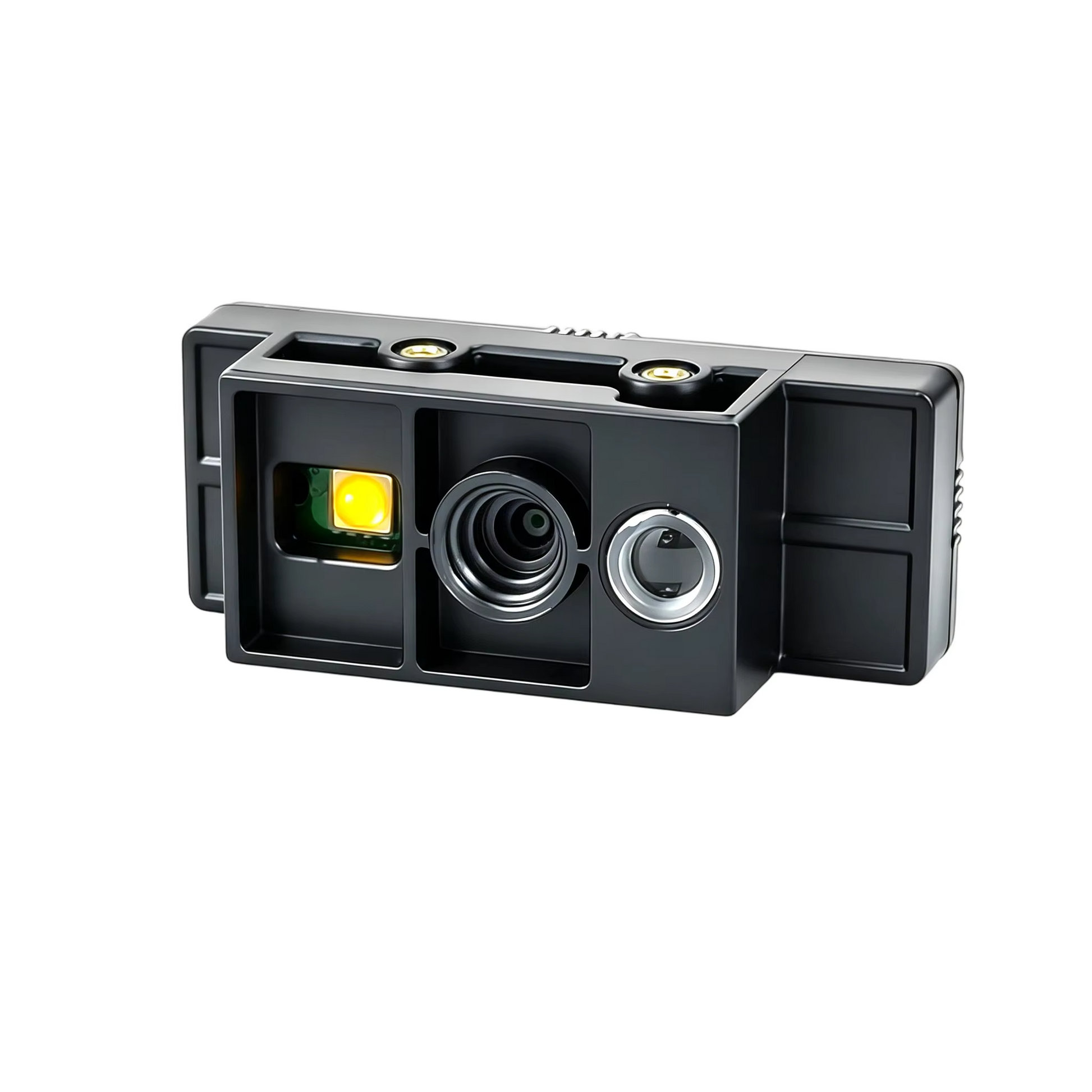

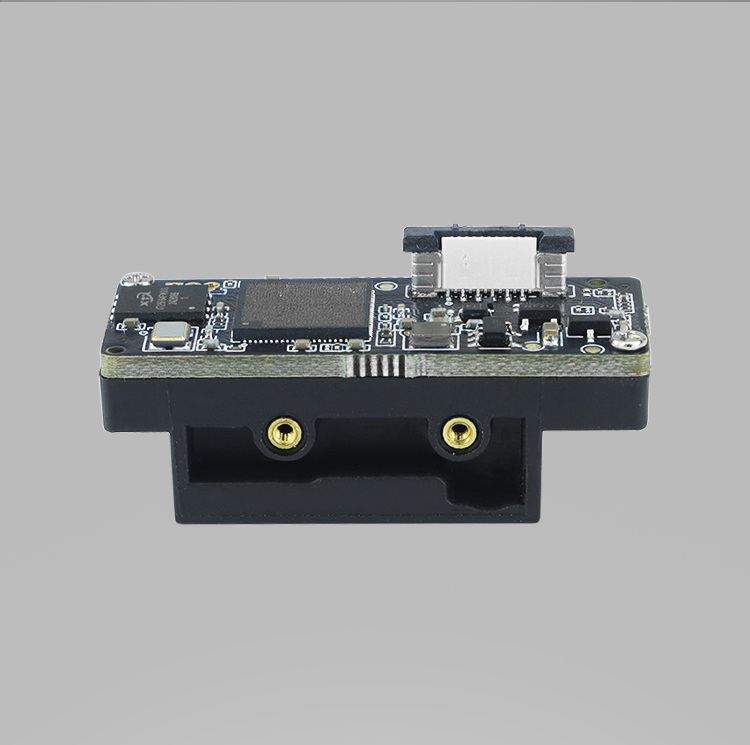

WD-M29 2D CMOS Barcode Scanner Module
WD-M29 2D CMOS Barcode Scanner Module
Feature:
High-res 1280×960 CMOS with wide-range decoding
| Type : | 2D CMOS Barcode Scanner Module |
| Imaging sensor： | 1600 × 1200 |
| Lighting： | White LED |
| Reading accuracy： | ≥ 3.3 mil |
| Print contrast： | ≥ 25% |
| Read from an intellectual perspective： | Rotate 360°, Tilt ±60°, Deflection ±60° |
| Field of view： | Horizontal 42°, Vertical 31.5° |
| Communication interface： | TTL232, USB |

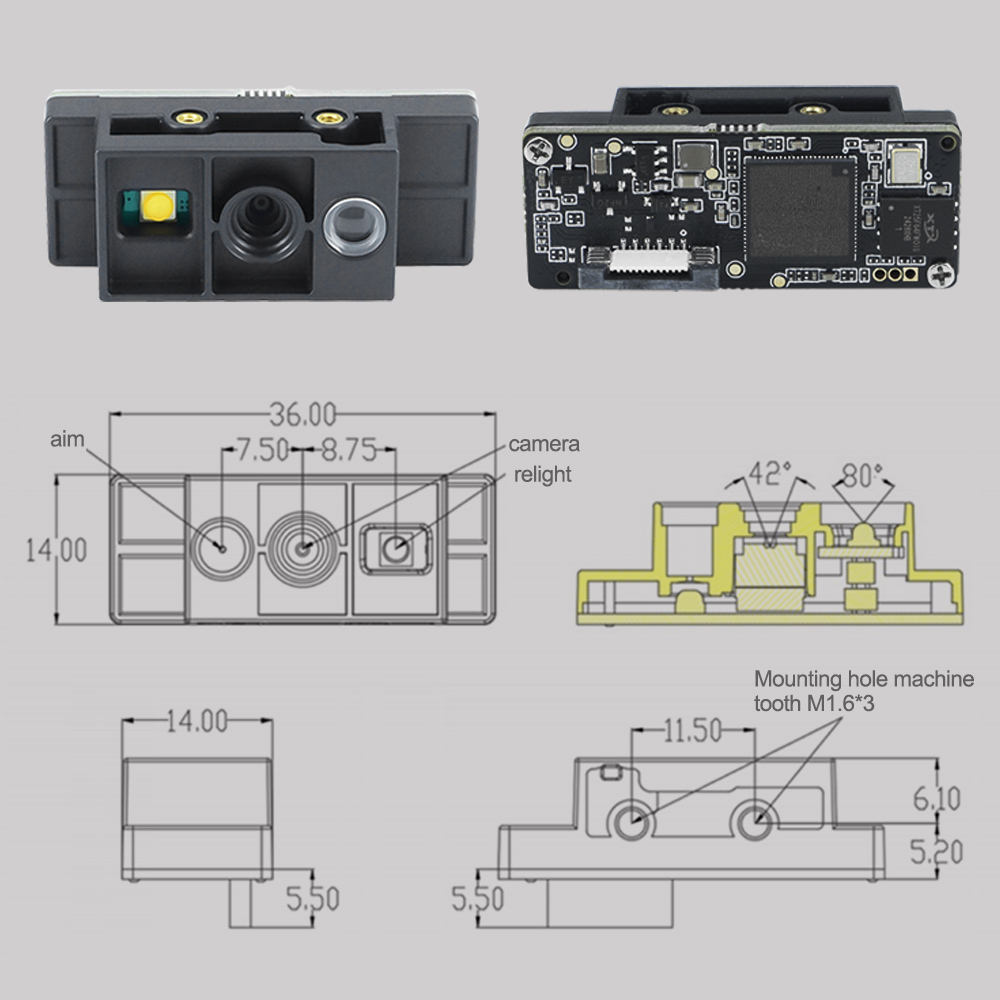

| Size | 36 × 14 × 11.3 mm (max) |
| Decode Capability : | 1D： Code 32, Code 39, Code 93, Code 128, EAN-13, EAN-8, UPC-A, UPC-E, IATA 2 of 5, Interleaved 2 of 5, Codabar, Code 11, MSI/Plessey, GS1 Databar, etc. |
| 2D： Micro PDF417, PDF417, QR code, Micro QR, AZTEC, Data Matrix, Grid Matrix, etc. |
