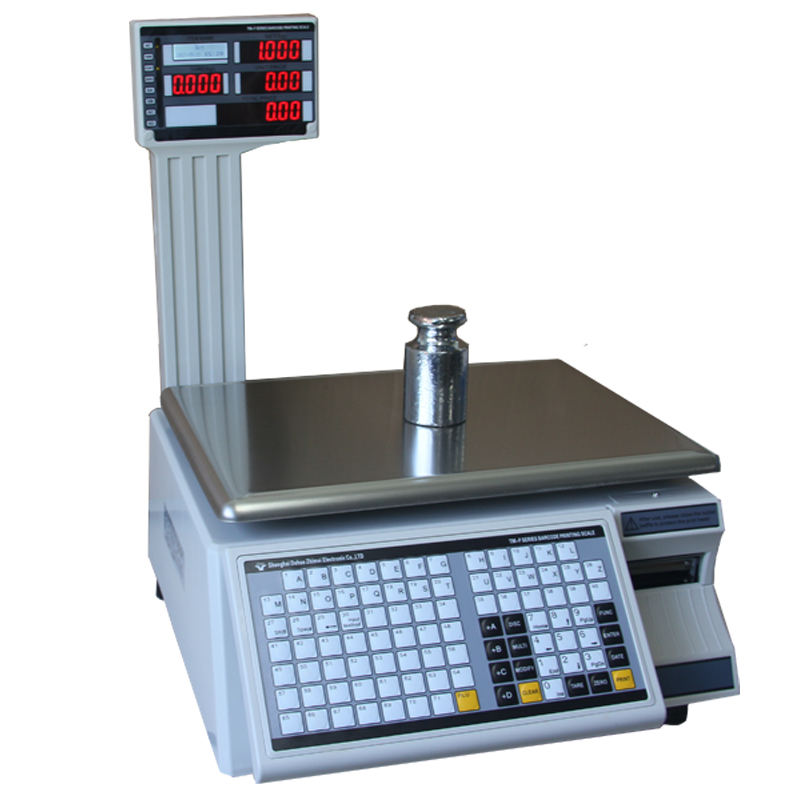

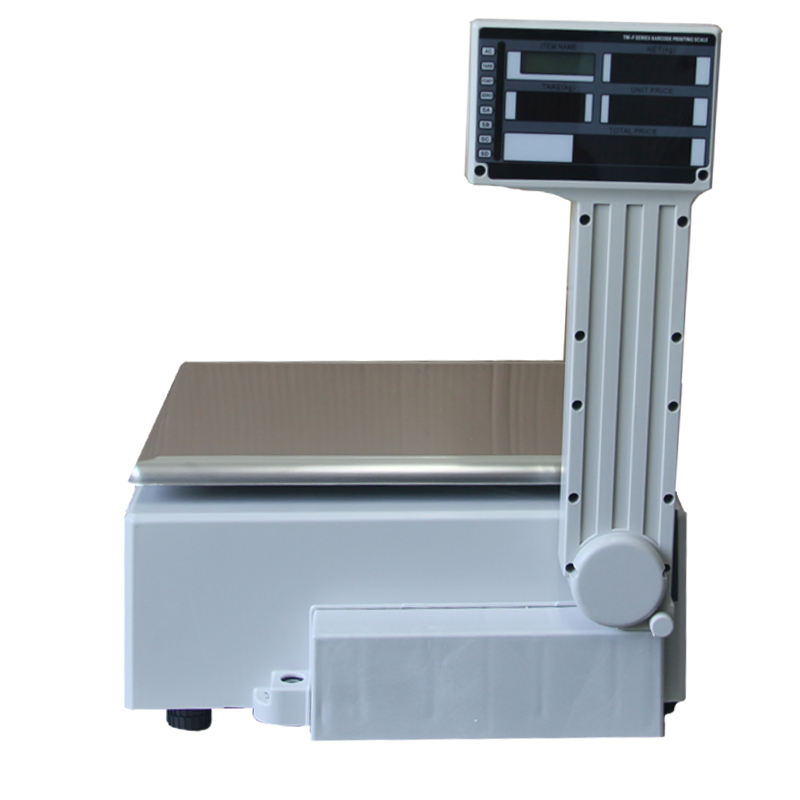

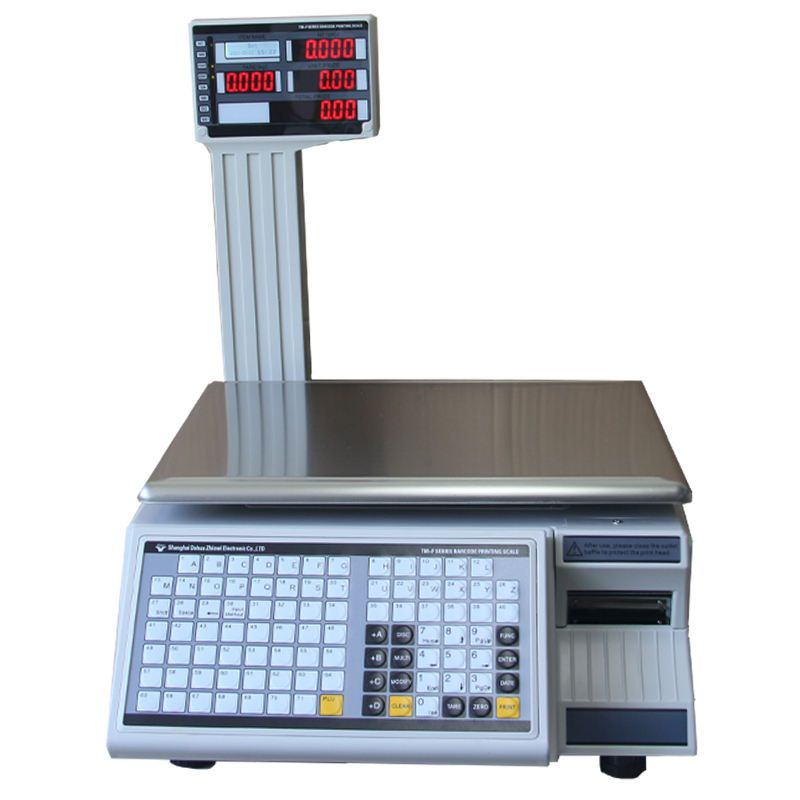

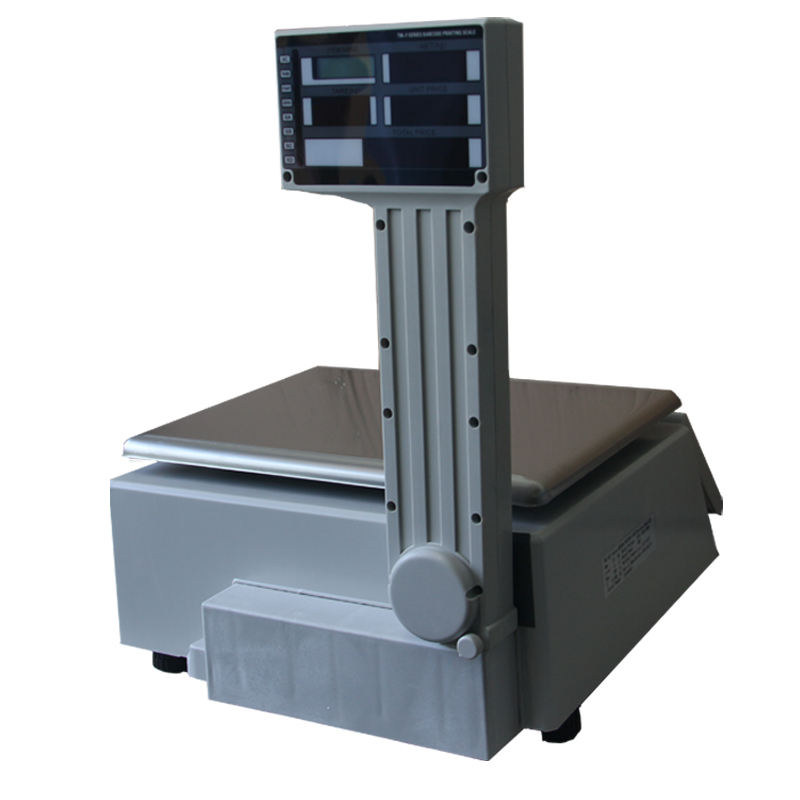

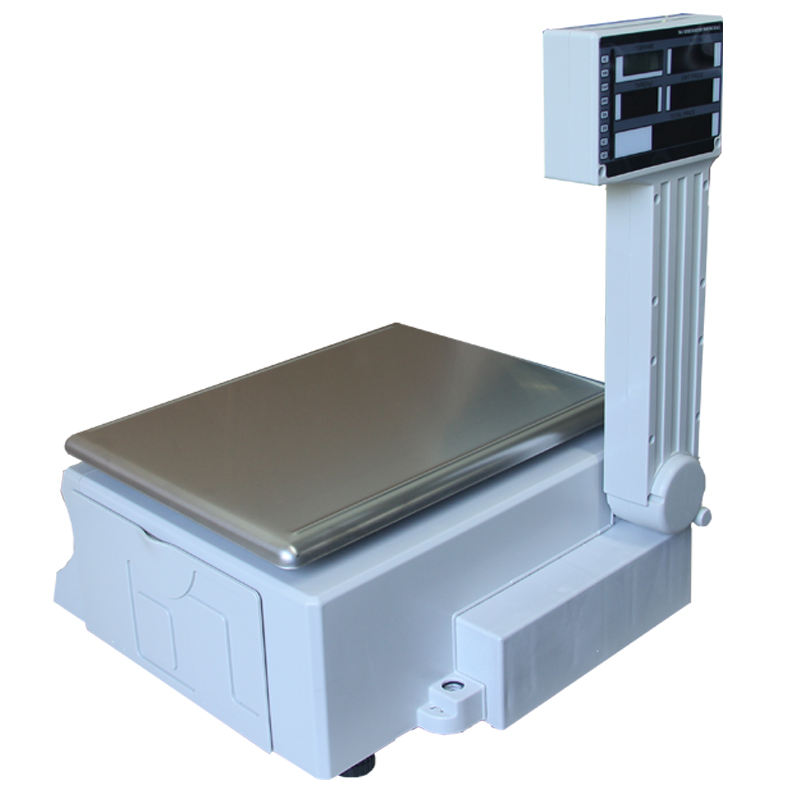

WD-MF Barcode label printing scale
WD-MF Barcode label printing scale
Need pricing or integration advice?
Tell us your application, interface and expected quantity. Our team will recommend a suitable configuration.
Request a quote1.Support external expansion of equipment
2. Support print daily report, monthly report, quarterly report and other customized reports
| Type | Barcode label printing scale |
| Display method | High brightness red or green LED display,LCD dot matrix liquid crystal display lnterfaces:Rs232 (standard) |
| Max Capacity | 3kg/6 kg/15kg/30kg |
| Division value (1/15000) | 0.2g/0.5g/1g/2g |
| Commonly used labelpaper specifications | 30*40mm,37*50mm,40*50mm,40*60mm |
| Label paper core diameter | 25mm diameter |
| Maximum print width | 56mm(max) |
| Print speed | 75mm/s |
| Appearance of size | 381mm*428mm*500mm |
| Options | RJ45 Ethemet interface, WIFI communication 4G (optional) RJ11 line , box interface (optional) |

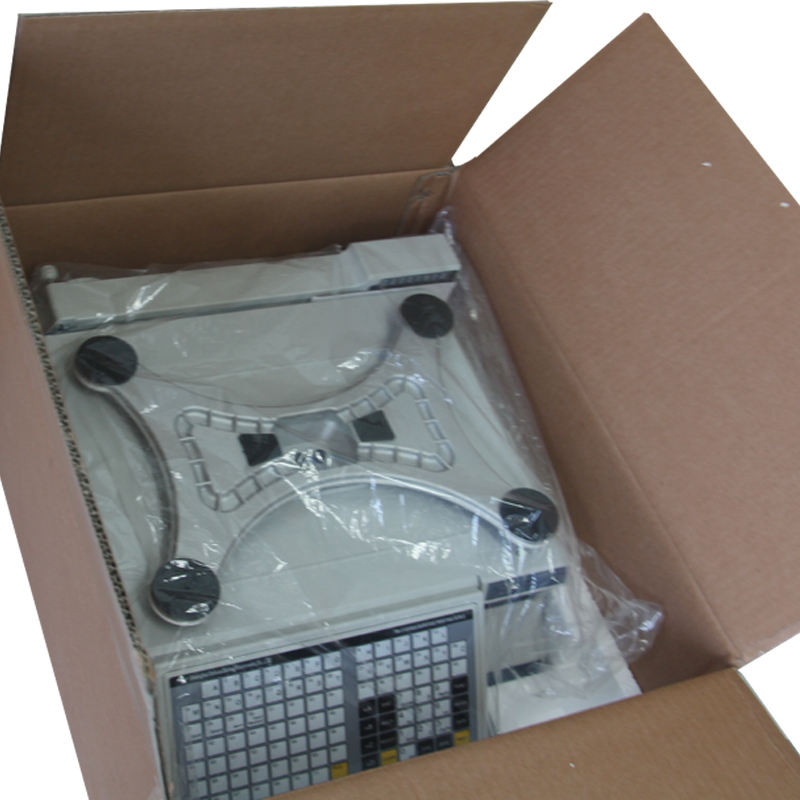

| Packing List | 1unit:52*52*24 cm 11kg |
