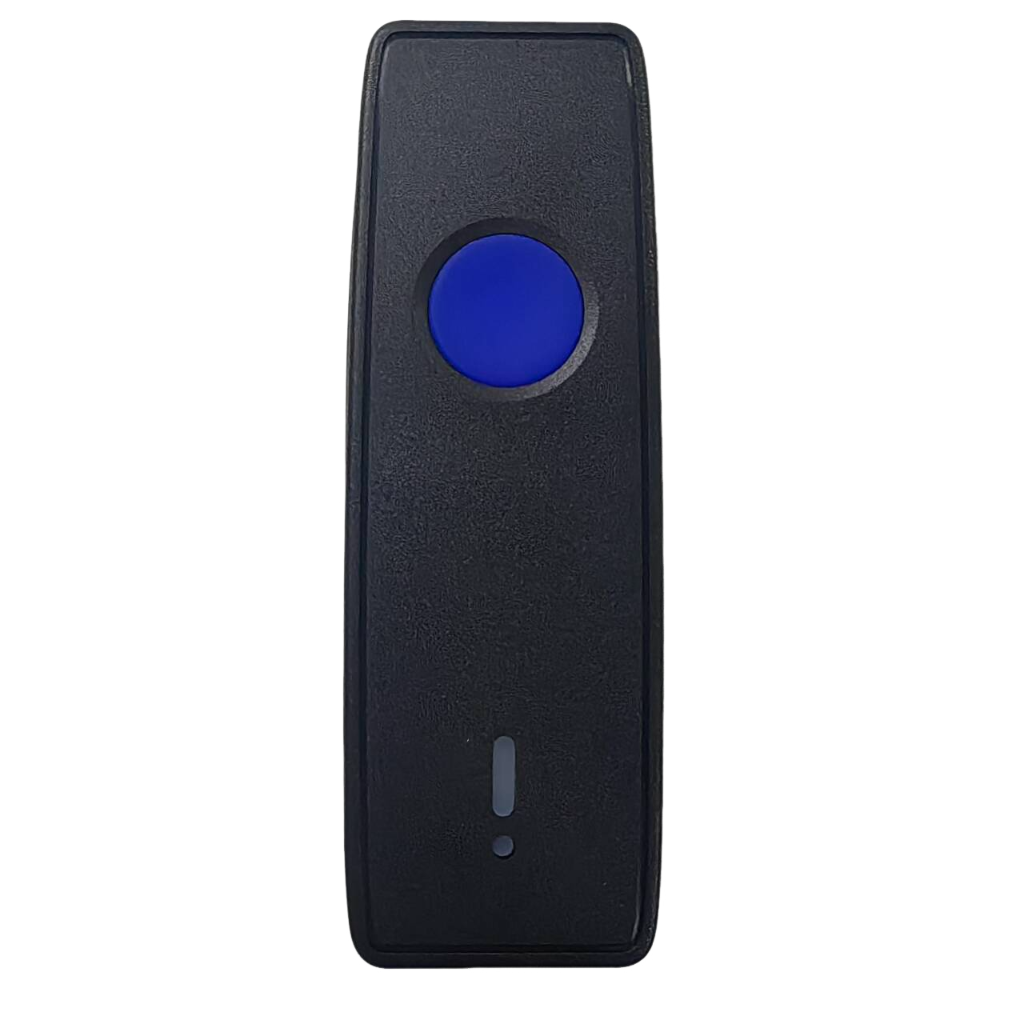

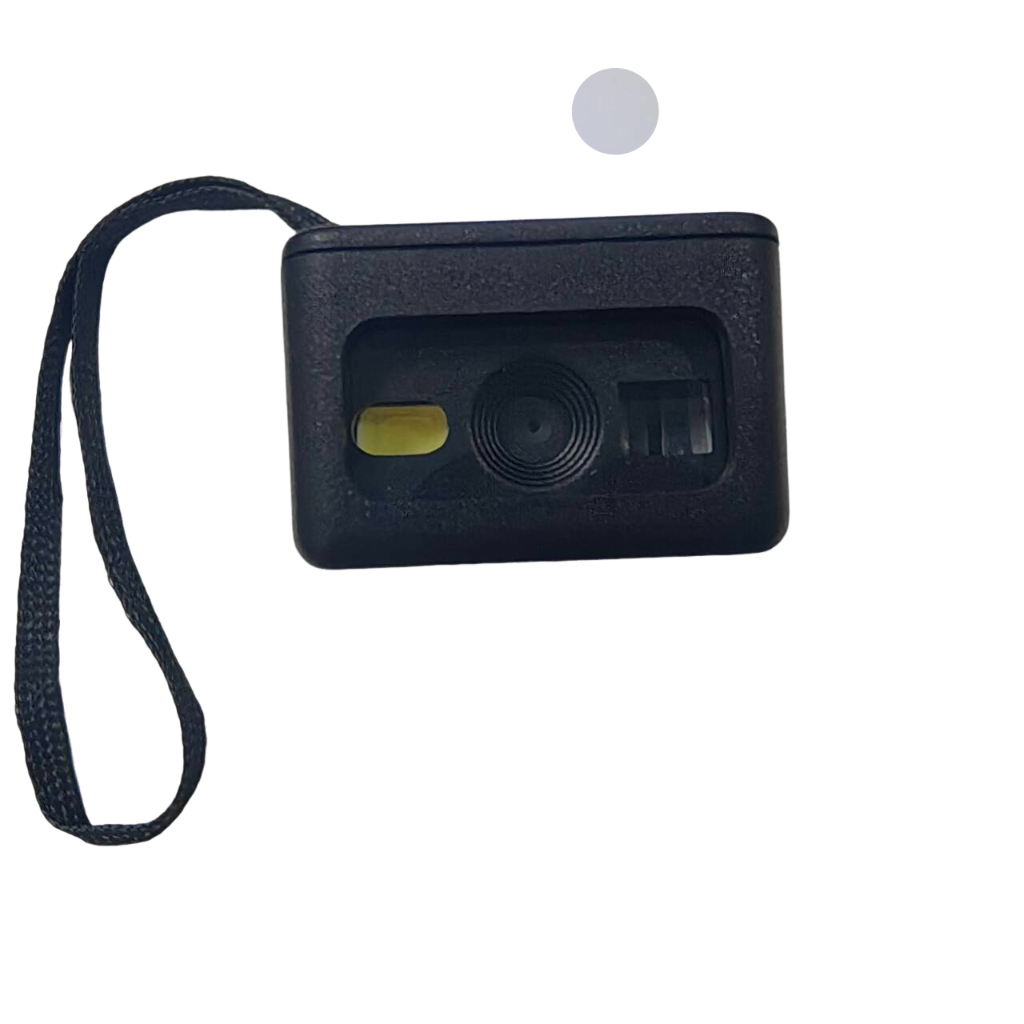

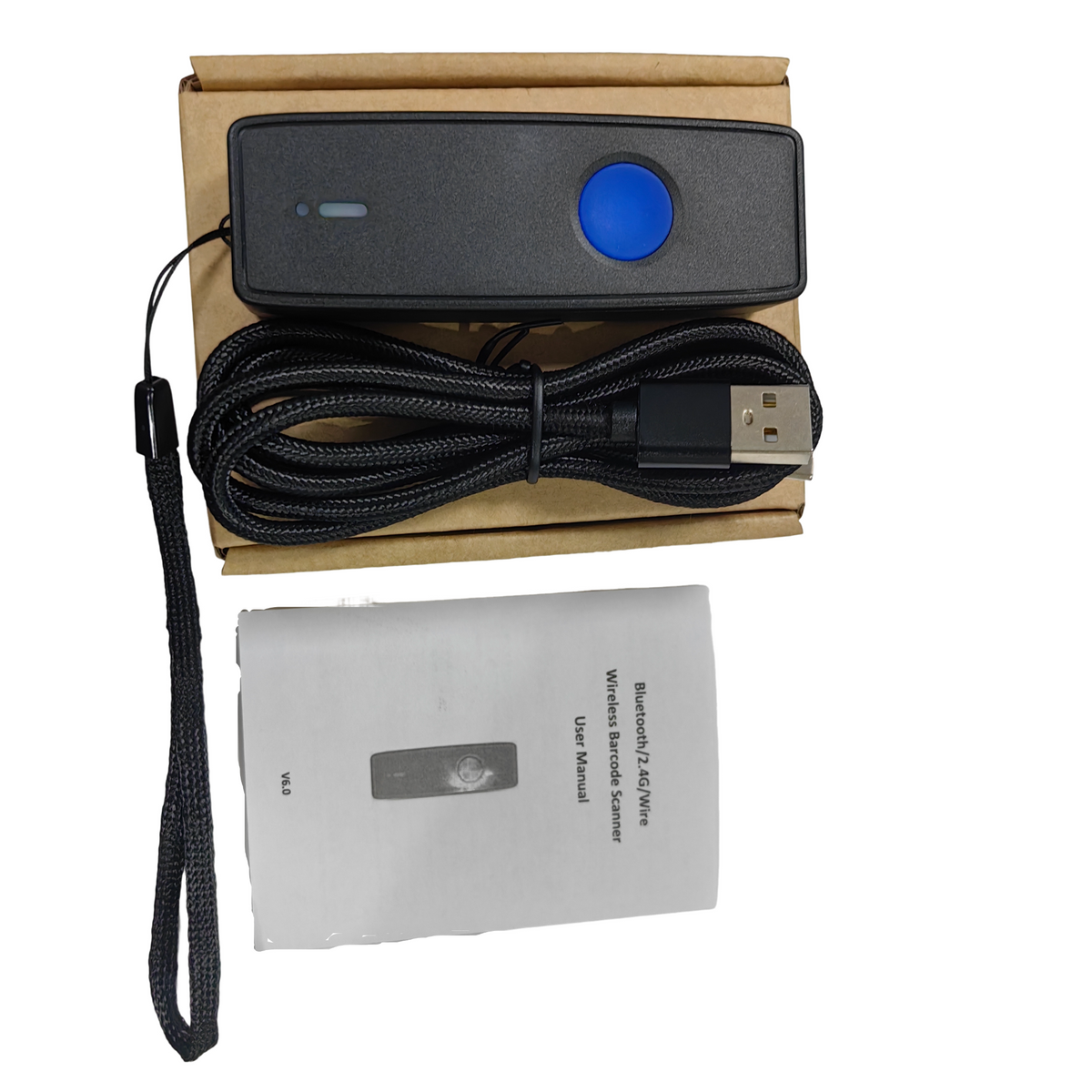

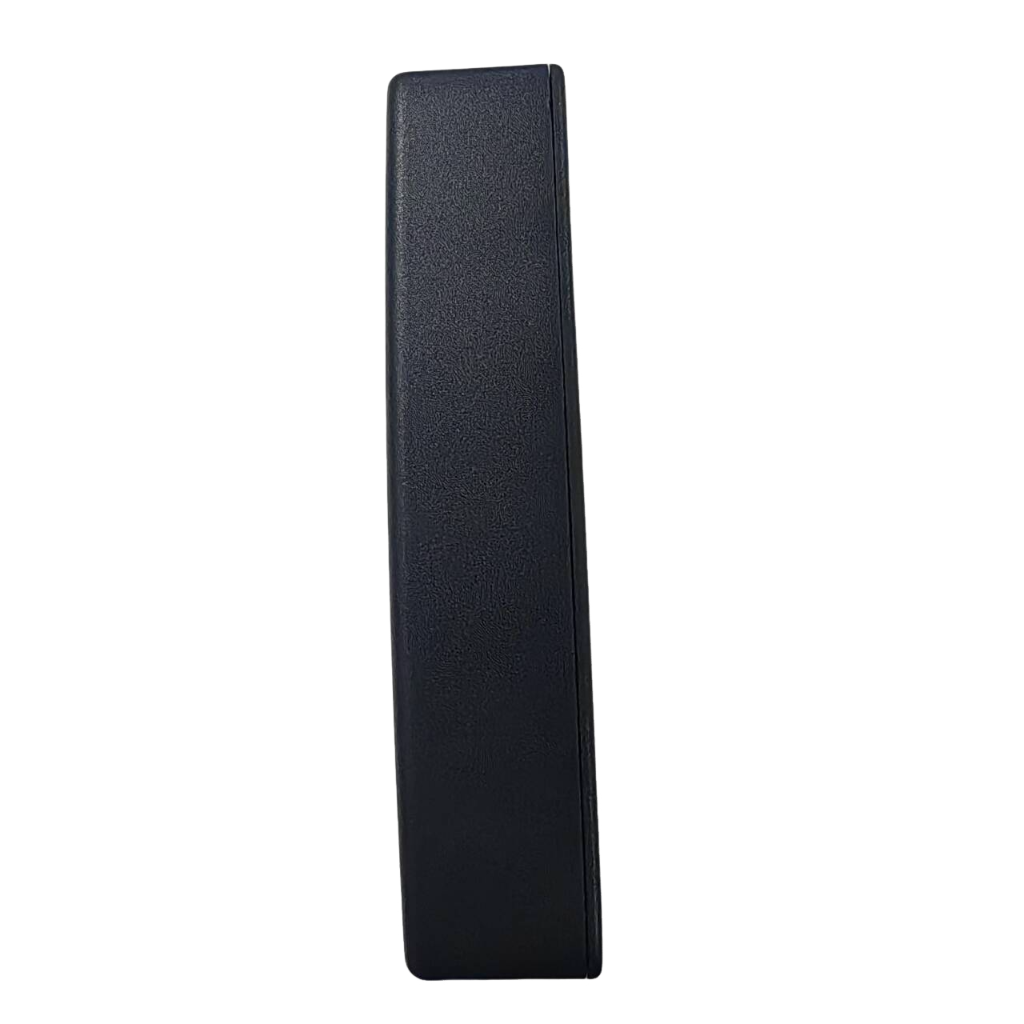

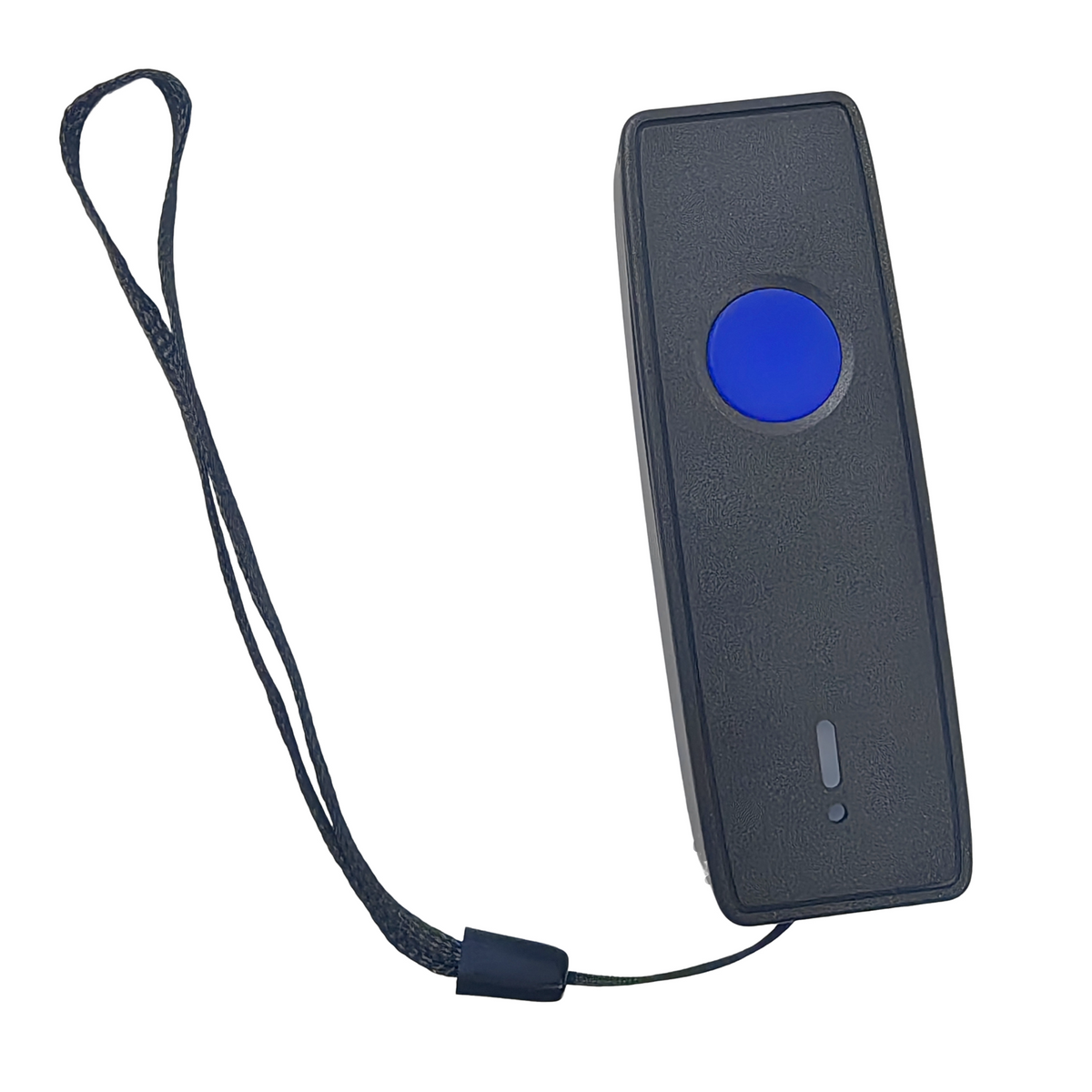

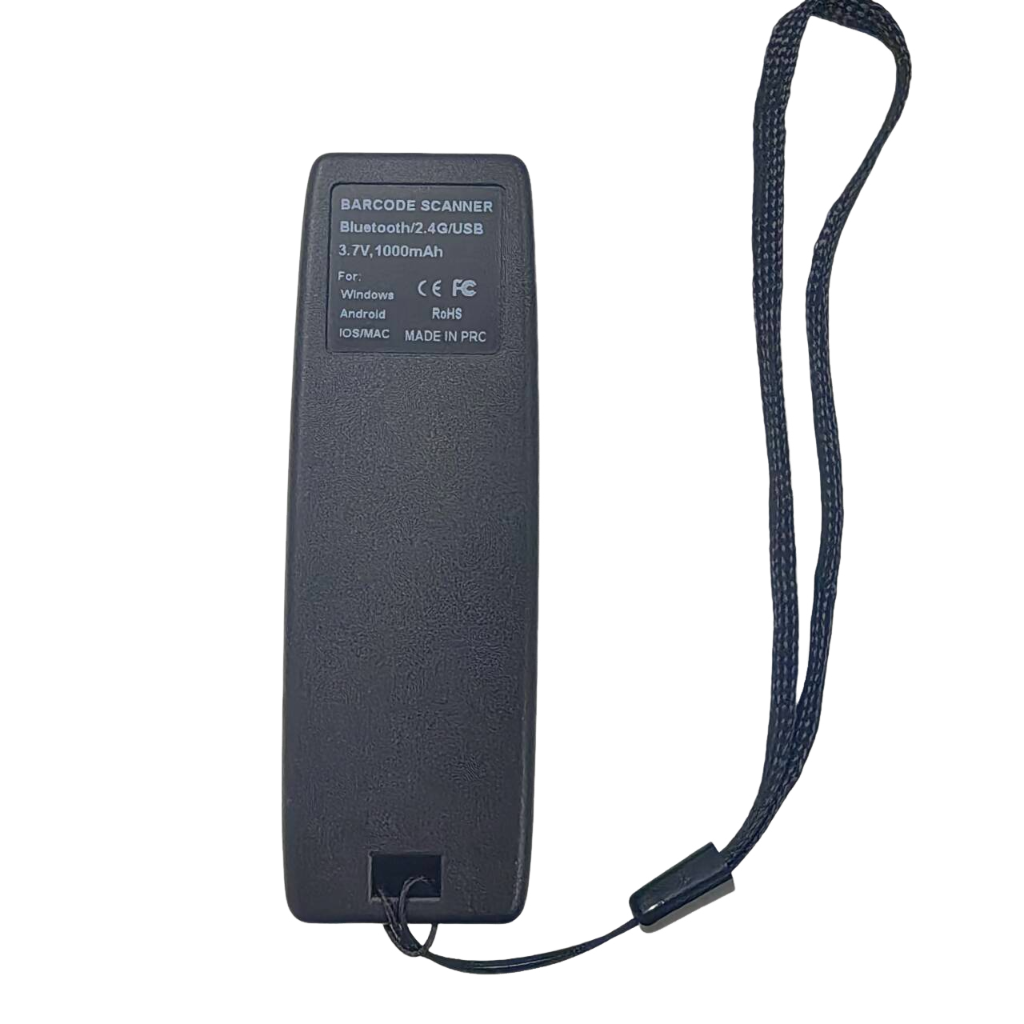

WD-PS6 Mini Bluetooth 2D Barcode Scanner
WD-PS6 Mini Bluetooth 2D Barcode Scanner
Need pricing or integration advice?
Tell us your application, interface and expected quantity. Our team will recommend a suitable configuration.
Request a quote1.Time system
2.Full ASCII character editing
| Type : | Mini Bluetooth 2D Barcode Scanner |
| Working Current | 3.3Vx150mA |
| Communication Distance | Bluetooth≤50m, 2.4G≤100m |
| Storage | 350KB=20000 EAN13 barcodes |
| Battery | 3.7V-1000mAh，Full load≈6hours，Normal use ≈2 to 7 days |
| Working Time | Full load≈10 hours, Normal use ≈2 to 7 days |
| Charging Power | 5V-400 mA |
| Light Aimer | 617nm LED |
| Illumination | 6500K LED |
| Sensor | 800*600 CMOS |
| Resolution | 1D≥4mil/2D≥7.5mil |
| Decoding Speed | 400/sec |
| Printing Contrast | ≥ 15% |
| Trigger Mode | Button, Continuous, Auto-sense |
| Scanning Angle | rotation360°，inclination± 60°，declination ± 60° |
| FOV | horizontal 43°, vertical 33° |
| Decoding ability: |
1D：UPC, EAN, ISBN, ISSN, Code 128, Code 39, Code32, Code 93, Interleaved 2 of 5, industrial 2 of 5, Matrix 2 of 5, IATA 2 of 5, MSI, Plessey, Code 11, Codabar, GS1 Data Bar，etc |
| 2D：QR, Micro QR，Data Matrix，PDF417, Micro PDF417，Aztec，HanXin, Maxicode, Code 16K，GS1 Composite | |
| Packing List | 100pcs/ctn 43.5*30.2*22.3cm, N.W / CTN: 9kg ,G.W./ CTN : 9.5kg Unit size: 80 x100x26mm ,N.W./ Unit:90g |
