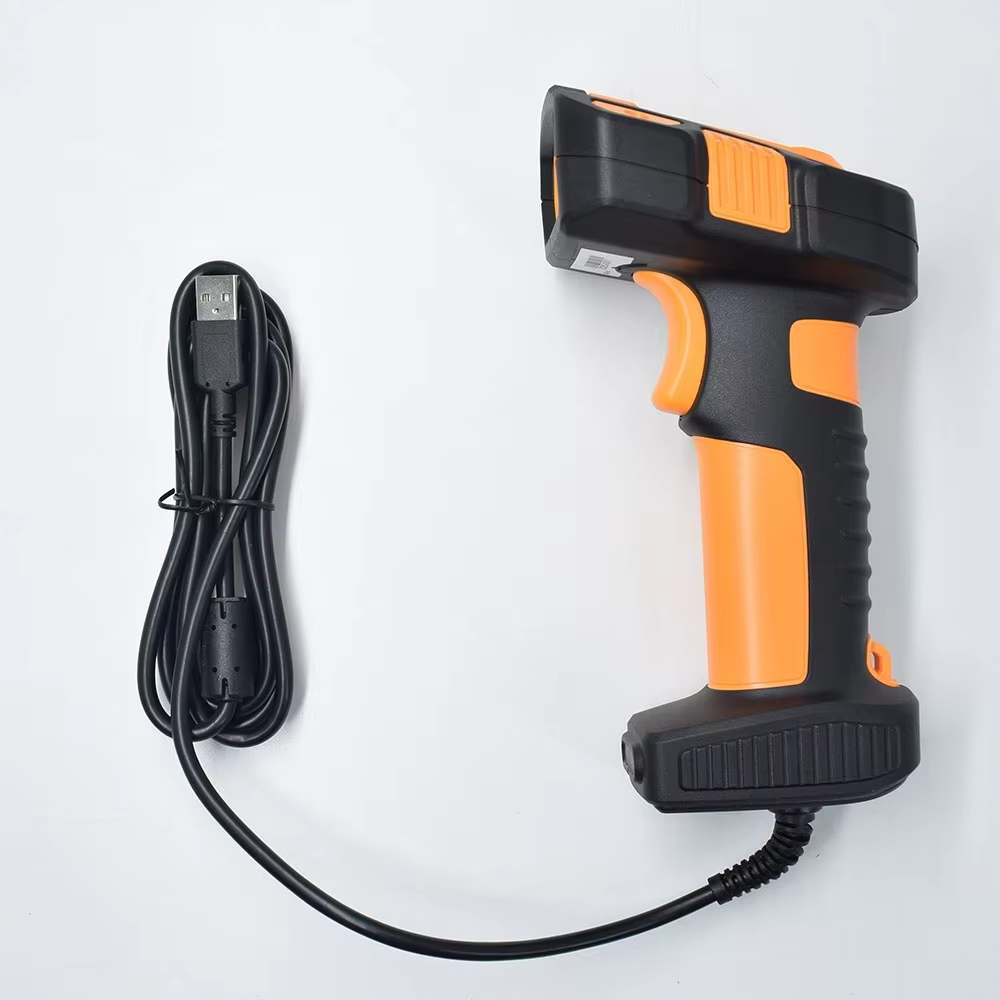

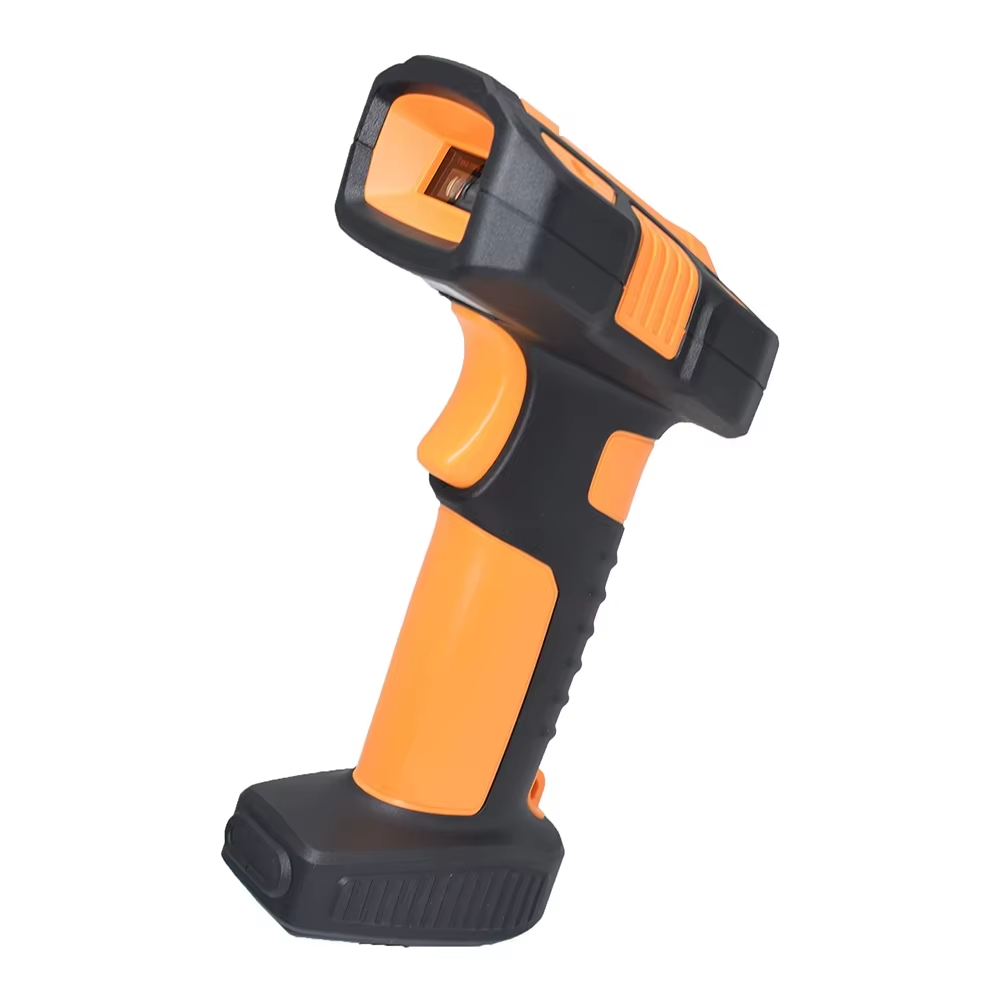

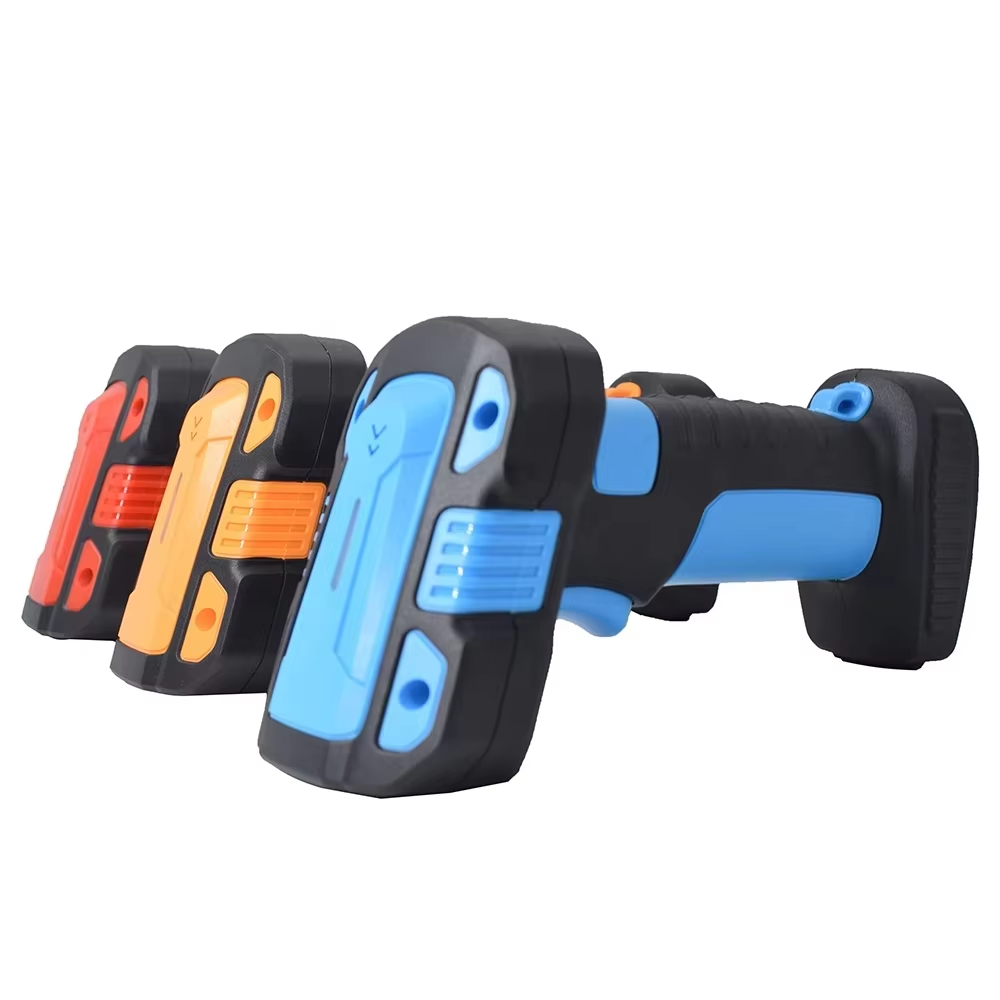

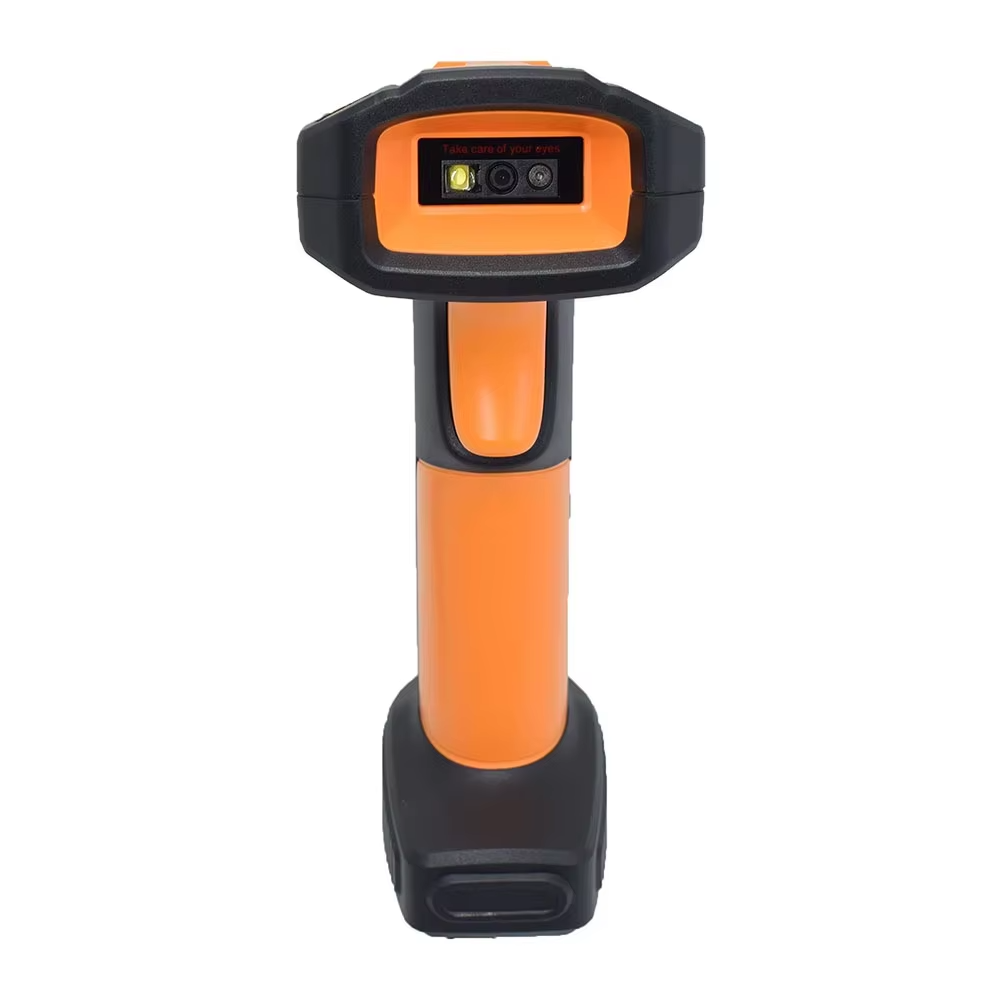

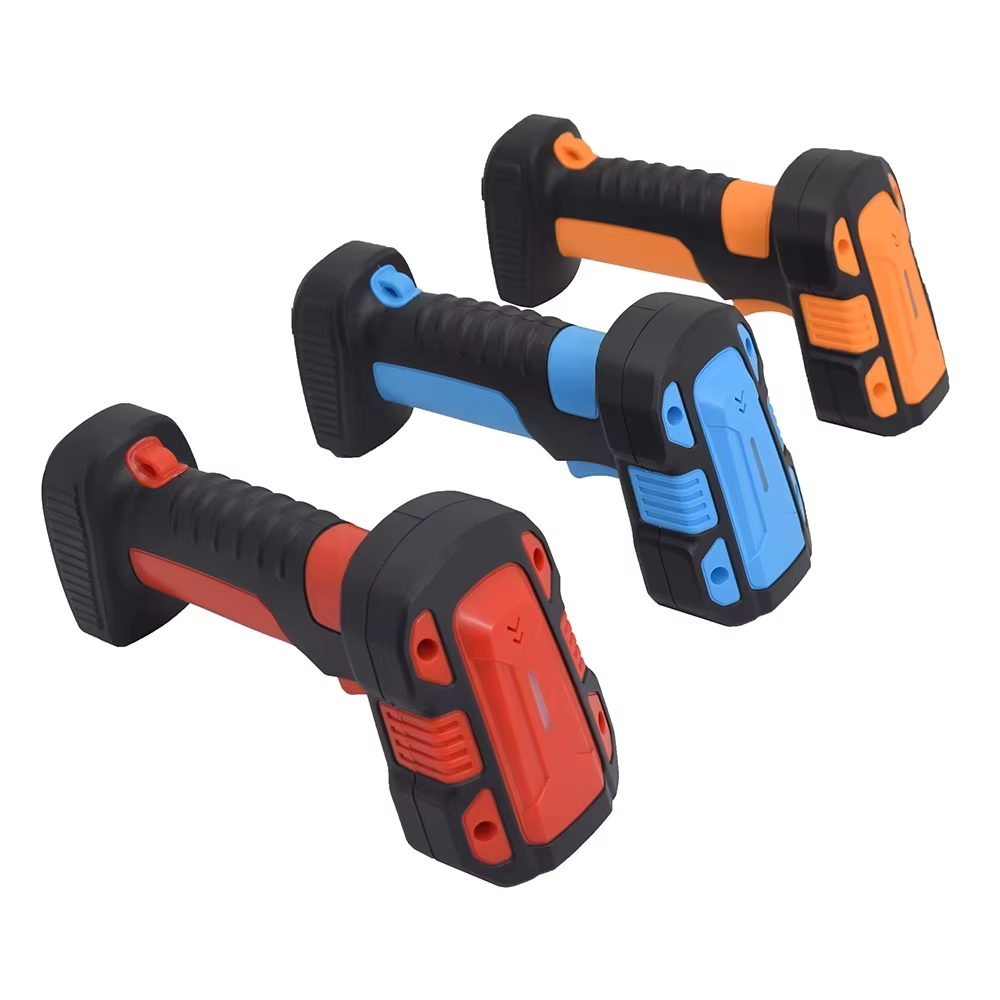

WD-S19 Industrial-grade wired 2D scanner
WD-S19 Industrial-grade wired 2D scanner
Feature:
1.Global shutter, fast decoding, multi-language support
2.High-intensity LED for low-light scanning
3.1 megapixel, IP-rated waterproof & shockproof"
| Type : | Industrial-grade wired 2D scanner |
| Scan element type : | CMOS (Global Exposure) |
| Pixels: | 1 megapixel ( 1280×800 ) |
| light source: | Red laser |
| Scanning mode: | Button trigger, continuous scanning, self-sensing scanning |
| Transmission mode: | Bluetooth mode, 433 mode |
| Transmission distance: | 433 ≥ 100 meters, Bluetooth 10 meters |
| Interface support: | USB, USB-COM, RS-232 (optional) |
| Ambient lighting: | White LED |
| Operating voltage: | 3.2~3.6V |
| Operating current: | 280mA@3.3V (Average current during barcode scanning) |
| Material: | ABS+PC |
| Decode Capability : | 1D: Code128 , Code39 , Code39fullascii , TriopticCode39 , Code32 , Code93 , UPC-A , UPC-E , UPC-E1 , UPC-E+ , UPC-A+ , EAN8/JAN8 , EAN13/JAN13 , Bookland EAN/ISBN , Interleaved2of5 , Matrix2of5 , Industrial 2 of 5 , Chinese 2 of 5 , Codebar , Code11 , MSI , ISBT ,GS1-128 , GS1Databar14 , GS1DatabarLimited , GS1 DatabarExpanded , Postal Codes of Various Countries |
| 2D : QR , Datamatrix , PDF417 , MicroQR , MicroPDF417 ,Hanxin , GridMatrix , Aztec , Maxicode , GS1QR , GS1, Datamatrix , GS1Combosite(CC-A/CC-B/CC-C) | |
| Optional: | Bluetooth and 433Mhz wireless with base＋$26.38 |
| Packing List: | 235 mm × 100 mm × 150 mm (Length * Width * Height) Approximately 700g (including packaging wire and accessories ) |
