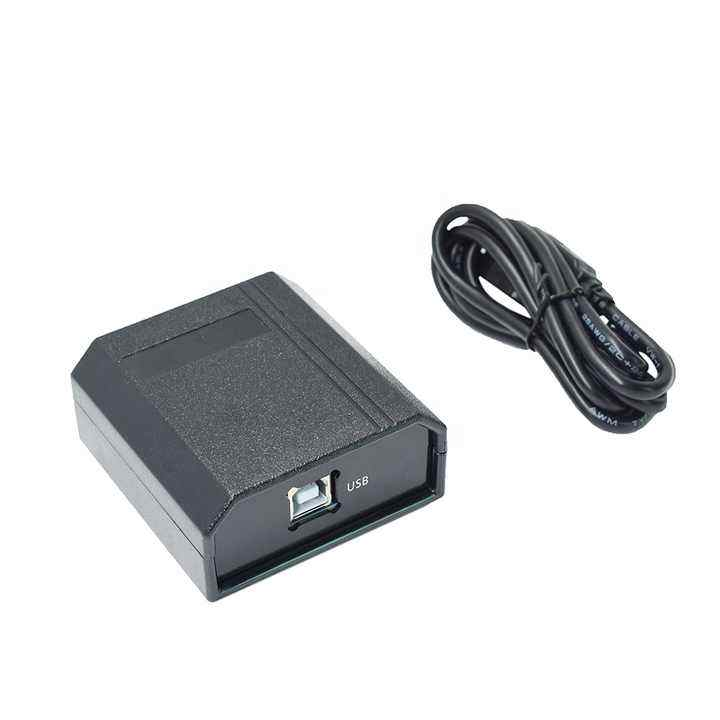

WD-UT Cash Drawer USB Trigger
WD-UT Cash Drawer USB Trigger
| Type | Cash Drawer USB Trigger |

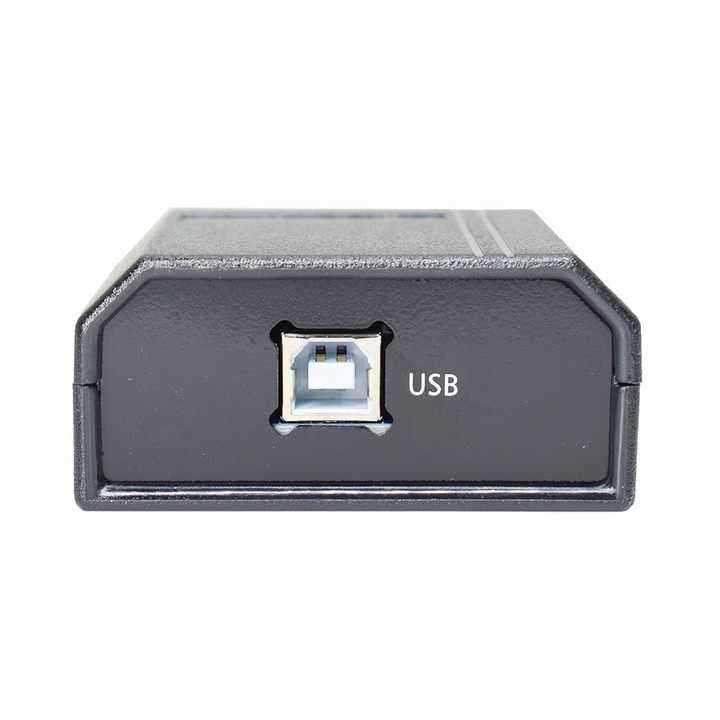

| Communication Port | USB(Type B), using USB transfer to RS232 port chip, baud rate 9600, The data structure is parity-free. 8-bit data bit, 1-bit stop bit |
| Power input | DC 5V/500mA (USB port for power supply) |

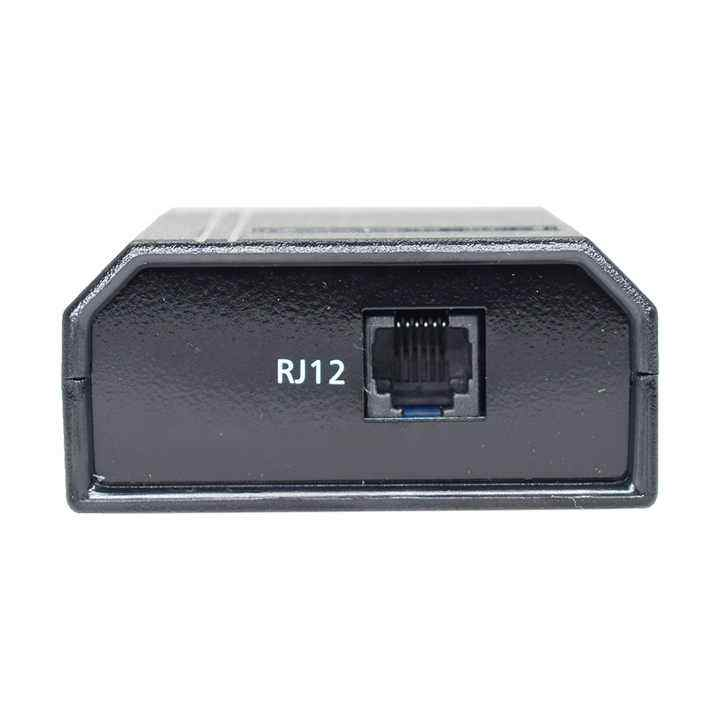

| Cash drawer Control | Standard RJ-11-6P Socket, output DC 12V/1A or 24V/1A power signal to drive the action of the cash drawer. |
| Instruction Type | Compatible with ESC/POS Printer Instruction |
| Options | Support OPOS driver optional |
| Packing List |
Single Dimensions and weight：12*4.5*9.5cm 0.15kg 100 pcs /ctn: 49*42*31.5cm 17.2kg |
